Start with a power-stable configuration. Apply a 4.5V–15V DC supply between the VCC pin and ground–avoiding ripple above 150 mV–while placing a 10 µF electrolytic capacitor within 1 cm of the chip to suppress transient noise. This prevents false triggering in monostable modes and frequency drift in astable setups.
For precision timing, select resistors and capacitors with 1% tolerance or better. A 10 kΩ resistor paired with a 100 nF capacitor delivers a 1 ms pulse in monostable operation; for astable, use RA = 1 kΩ, RB = 6.8 kΩ, and C = 1 µF to generate approximately 1 kHz with a 60% duty cycle. Avoid electrolytics below 100 Hz; ceramic or film capacitors reduce thermal drift.
Route discharge and threshold traces separately to minimize crosstalk. Connect the discharge pin to C through a low-impedance path–preferably under 0.5 Ω–to ensure rapid voltage fall times. In layouts, keep the timing capacitor within 2 cm of the threshold and trigger pins to minimize parasitic capacitance that skews timing by up to 20%.
For reset control, tie the reset pin directly to VCC unless gating is needed; pulling it below 0.4V halts operation. When driving inductive loads, insert a flyback diode (1N4007) across the output pin to clamp voltage spikes exceeding VCC by more than 0.7V.
Verify timing accuracy with an oscilloscope, probing VC at the capacitor rather than the chip pins to isolate board effects. A 10 kHz waveform should exhibit rise/fall edges under 100 ns; slower edges indicate excessive load capacitance or improper decoupling.
Practical Guide to Classic Timer Circuit Layouts
Start by wiring pin 8 (VCC) and pin 1 (GND) to a stable 5–15V DC supply; bypass the power rails adjacent to the chip with a 0.1µF ceramic capacitor. Configure the timing network using two resistors (RA, RB) and one capacitor (C) in astable mode: RA connects pin 7 (discharge) to VCC, RB bridges pins 7 and 2 (trigger), and C ties pin 2 to ground. For precise oscillation, keep RA + RB ≤ 10MΩ and C ≥ 100pF; typical values RA = 10kΩ, RB = 100kΩ, C = 10µF yield a ~0.7Hz output with ~50% duty cycle.
| Mode | Trigger Pin | Threshold Pin | Output Pin (3) | Reset Pin (4) | Discharge Pin (7) |
|---|---|---|---|---|---|
| Monostable | Falling edge | Unused | Pulse (T = 1.1·R·C) | Active low | Connected to C |
| Astable | Internally toggled | Charges C via RA, RB | Square wave (f ≈ 1.44/(RA+2RB)·C) | VCC (inactive) | Discharges C |
| Bistable | Set input | Reset input | Latches high/low | Unused | Unused |
Route pin 5 (control voltage) to ground through a 10nF capacitor to suppress noise; omit this only in regulated environments. For adjustable pulse widths, replace RA with a trimpot (10kΩ) and add a diode across RB (anode to pin 7, cathode to pin 2) to force duty cycles below 50%. Avoid breadboard capacitance by soldering C directly to the chip legs for sub-100kHz operation.
Basic Pin Configuration and Power Requirements for Timer IC Circuits
Apply a supply voltage (VCC) between 4.5V and 15V for stable operation–most prototype boards run at 5V or 12V to align with common microcontroller logic levels. Keep input voltage ripple below 100mV peak-to-peak to prevent false triggering or output glitches. Use a 10µF electrolytic capacitor in parallel with a 0.1µF ceramic capacitor at the power pins to suppress noise, placing them as close as possible to pins 8 (VCC) and 1 (GND).
Critical Pin Functions and Voltage Ranges

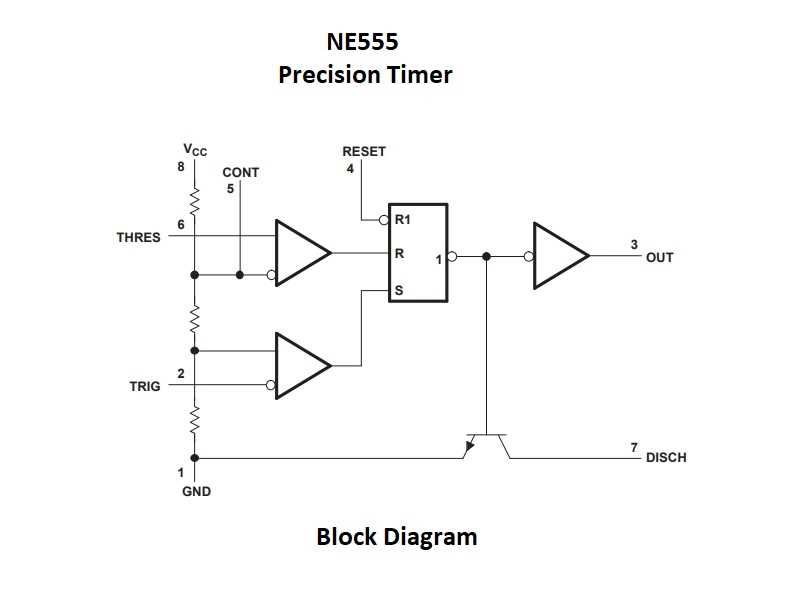

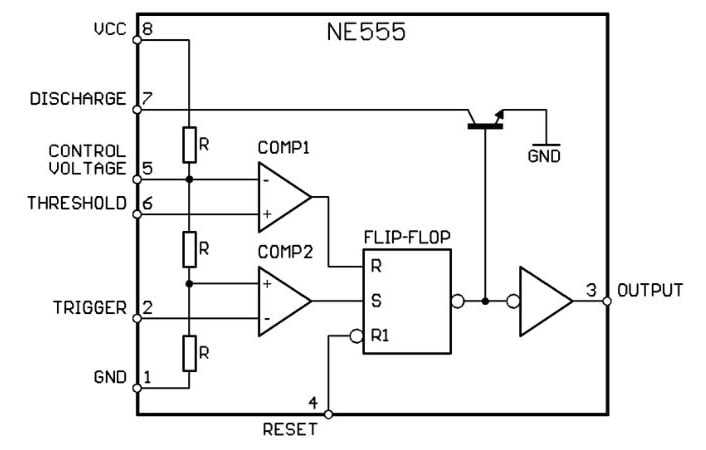

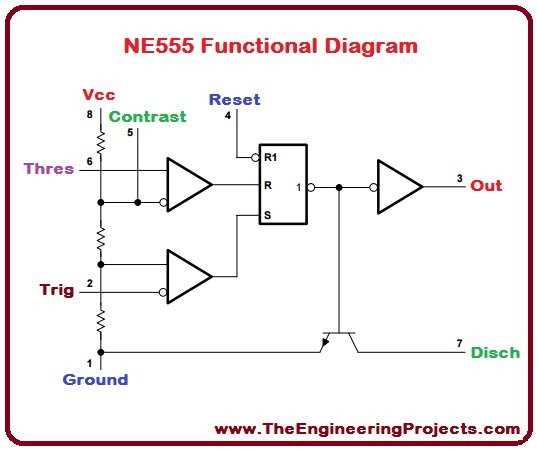

Pin 2 (Trigger) responds to falling edges below 1/3 VCC; hold it above this threshold to avoid unintended resets. Pin 6 (Threshold) triggers when rising above 2/3 VCC, so ensure it never floats–tie it to GND or VCC through a 10kΩ resistor if unused. Pin 5 (Control Voltage) sets the comparator reference at 2/3 VCC by default; bypass it with a 0.01µF capacitor to GND to stabilize timing accuracy. Pin 7 (Discharge) operates in open-collector mode; pull-up resistors (1kΩ–10kΩ) are required for active-high outputs.
Current draw peaks at 15mA during output transitions, but averages 3–6mA in steady-state depending on load and frequency. For battery-powered circuits, clamp VCC at 9V or lower and use a low-dropout regulator (e.g., LM7805) if input exceeds 15V. Avoid exceeding 200mA sink/source current on pin 3 (Output)–use a buffer transistor (e.g., 2N2222) or MOSFET for heavier loads. Ground pin 1 directly to a star-ground point to minimize ground loops.
Calculate timing components (RA, RB, C) using T = 1.1 × R × C, where R = RA + 2×RB for astable mode. Capacitor values below 1nF risk instability; opt for tantalum or film capacitors to reduce leakage current, which distorts timing at low frequencies. Test circuits at 1kHz first to verify stability before scaling to target frequencies.
Step-by-Step Wiring for Astable Operation with Precise Frequency Calculation
Start by connecting pin 8 (VCC) to a stable 5V to 15V DC supply, ensuring the voltage matches your load requirements. A decoupling capacitor (0.1µF ceramic) between VCC and ground near the IC prevents noise interference, critical for consistent oscillation.
Wire pin 1 (GND) directly to the negative rail. For reliable performance, avoid long ground paths–keep connections under 5cm to minimize voltage drops and stray inductance. Add a 10µF electrolytic capacitor across VCC and GND if powering inductive loads.
Connect pin 2 (Trigger) to pin 6 (Threshold) via a jumper. This links the lower comparator output to the upper comparator input, enabling the internal flip-flop’s toggle mechanism. Omit this step, and the circuit won’t oscillate.

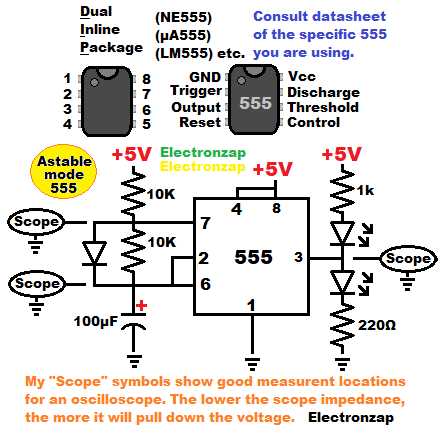

Attach the timing network between pin 7 (Discharge), pin 6, and VCC. Use two resistors (R1, R2) and one capacitor (C). R1 goes from VCC to pin 7, R2 from pin 7 to pin 6, and C from pin 6 to ground. For 50% duty cycle, R1 = R2; for asymmetric pulses, adjust R1 > R2 or vice versa.
Calculating Output Frequency
The pulse frequency follows: f = 1.44 / ((R1 + 2*R2) * C). Example: R1 = 10kΩ, R2 = 10kΩ, C = 100nF yields f ≈ 480Hz. Double R2 to lower frequency; halve C to increase it. Tolerances within ±10% are acceptable for most applications, but tight-tolerance components (±1%) improve precision in timing-critical uses.
Route the output from pin 3 through a current-limiting resistor (220Ω to 1kΩ) to drive LEDs, transistors, or relays. For higher loads, use a MOSFET (e.g., IRFZ44N) or a Darlington pair (TIP120) as an intermediary. Avoid exceeding the IC’s 200mA sink/source limit–derate by 30% for longevity.
Test with an oscilloscope: probe pin 3 and pin 6. Expect a square wave at pin 3 and a sawtooth waveform at pin 6. Deviation indicates faulty components, incorrect wiring, or parasitic capacitance (>10pF on timing pins). Secure wiring with solder or a breadboard with low-leakage current to prevent drift.
Monostable Mode: Trigger Input and Output Pulse Width Tuning
Connect the trigger pin directly to a negative-going pulse source with a minimum amplitude of 1/3 VCC and a duration shorter than the desired output pulse. Use a 10 kΩ pull-up resistor to VCC to ensure stable high state when inactive. For reliable triggering, couple the input signal via a 0.1 µF capacitor to block DC offset while allowing the transient pulse to pass. Avoid exceeding 10 µF capacitance at this node, as it introduces latency and distorts pulse timing.
Adjust output pulse width T using the formula T = 1.1 × R × C, where R (in ohms) is the timing resistor between discharge and threshold pins, and C (in farads) is the timing capacitor from threshold to ground. For precise control, use 1% tolerance resistors and COG/NPO capacitors with ≤50 ppm/°C drift. Target values: R = 1 kΩ–1 MΩ, C = 100 pF–470 µF. Example: R = 100 kΩ and C = 1 µF yields ~110 ms pulse. For microsecond-range pulses, pair R = 10 kΩ with C = 100 pF (1.1 µs). Bypass C with a 100 nF ceramic capacitor to suppress noise-induced timing errors.
Temperature and Load Compensation
Stabilize pulse width against VCC fluctuations by referencing the control voltage pin to a precision 2.5 V source instead of its internal 2/3 VCC divider. Use a TL431 shunt regulator or equivalent. To minimize thermal drift, place the timing components away from heat sources and select capacitors with low ESR. For load-dependent applications, buffer the output with a 74HC14 Schmitt-trigger inverter or a discrete emitter follower to prevent load current from skewing T. Verify timing with an oscilloscope; probe directly at the capacitor node, not the output pin, to observe actual charge/discharge cycles.
Bistable Multivibrator Setup: Latch and Reset Circuit Connections
Connect the control IC’s trigger pin (2) directly to a momentary pushbutton switch tied to ground through a 10kΩ pull-up resistor. Pressing the button pulls the pin low, toggling the output state without requiring continuous input. Ensure the pulse duration exceeds 10μs to guarantee reliable triggering–shorter pulses may be ignored due to internal hysteresis.
Wire the reset pin (4) to a separate pushbutton via another 10kΩ pull-up resistor, linking it to VCC for default high state. Grounding this pin forces the output low immediately, overriding the latch state. Use a debounce circuit–100nF capacitor in parallel with the switch–to prevent false resets from mechanical bounce. For critical applications, add a 1kΩ series resistor to limit current spikes.
- Latch stability depends on supply decoupling: place a 1μF electrolytic capacitor and 100nF ceramic capacitor between VCC and ground, within 2cm of the IC to suppress noise-induced state flips.
- Threshold pin (6) must float or connect to a high-impedance node; external voltage here disrupts hysteresis and causes unpredictable toggling.
- Discharge pin (7) remains unused in bistable mode–leave it disconnected to avoid loading errors.
For dual-button operation (set/reset), cross-couple two switches: one to trigger (2), the other to reset (4). Isolate each path with diodes (1N4148) to block backflow when both buttons are pressed simultaneously, preventing latch conflicts. Test with an oscilloscope–trigger/release edges should show clean transitions, no overshoot beyond 0.7V.
Temperature drift affects bistable reliability. Replace pull-up resistors with 1% tolerance metal-film types if operating beyond 50°C. At –20°C, increase capacitor values by 20% (e.g., 120nF instead of 100nF) to compensate for slower switching times.
Output loads must not exceed 200mA. For higher currents, buffer the output with a 2N2222 transistor: connect emitter to ground, collector to load, and base to the IC’s output via 1kΩ resistor. Add a flyback diode (1N4007) across inductive loads to clamp voltage transients.
To expand functionality, cascade two bistable stages: connect the output of the first to the trigger input of the second via a 1μF coupling capacitor. This creates a 2-bit memory, toggling sequentially with each trigger pulse. Ensure supply voltage matches (4.5V–15V), as mismatched rails cause erratic behavior.
