Start with the astable multivibrator setup if you need a free-running oscillator. Connect pin 2 (trigger) to pin 6 (threshold) with a single capacitor (typically 10 nF to 100 µF) and place two resistors between pins 7 (discharge), 6, and 8 (VCC). The output frequency follows the formula f = 1.44 / ((R1 + 2R2) × C). For a 1 kHz signal, pair a 4.7 kΩ resistor with a 0.1 µF capacitor. Ensure R1 exceeds 1 kΩ to prevent excessive current draw.
Shift to monostable operation when a single timed pulse is required. Ground pin 4 (reset) for stability, then tie pin 2 to a trigger source–commonly a pushbutton shorting to ground through a 10 nF capacitor. The time delay is T = 1.1 × R × C. A 1 MΩ resistor and 1 µF capacitor yield a 1-second pulse. Bypass pin 5 (control voltage) with a 0.01 µF capacitor to suppress noise-induced timing errors.
Implement bistable triggering for a flip-flop-like response. Connect pins 2 and 6 to separate pushbuttons or logic outputs, leaving the capacitor unused. A brief low pulse on pin 2 sets the output high, while a low pulse on pin 6 resets it. Use pull-up resistors (10 kΩ) to ensure clean transitions. This mode is ideal for debouncing switches or sequential logic without external ICs.
Reduce power consumption in low-frequency applications by increasing resistor values. Replace the 4.7 kΩ base resistor with 100 kΩ for astable operation, cutting current draw to microamperes. Verify oscillation with a 100 µF capacitor–frequency should drop to ~0.1 Hz. Add a 470 kΩ resistor in series with the control pin (pin 5) to fine-tune duty cycle without altering timing components.
Eliminate false triggering by isolating the IC from inductive loads. Place a 1N4007 diode in reverse across relay coils or motors driven by the output (pin 3). For sensitive analog tasks, decouple the power supply with a 10 µF electrolytic capacitor and a 0.1 µF ceramic capacitor near the IC’s VCC pins. Test configurations with a 9 V battery before finalizing PCB traces to avoid ground loops.
NE555 Schematic Design: Hands-On Guidance
Start with a 10kΩ pull-up resistor between the supply voltage and pin 4 (reset) to prevent false triggering during power fluctuations. Omit this only if external reset control is required, as undervoltage conditions risk erratic behavior.
For stable timing, use a capacitor with low leakage–ceramic or film types below 1μF, polyester for 1–100μF ranges. Electrolytic capacitors introduce drift due to dielectric absorption; if unavoidable, pair with a 10nF bypass to reduce noise.
- Control voltage (pin 5): Connect a 10nF decoupling capacitor to ground if not modulating frequency externally. Leaving it floating invites interference.
- Discharge pin (7): A 10kΩ resistor isolates the internal transistor when driving high-impedance loads like MOSFET gates.
- Threshold/trigger pins: Keep traces short to avoid stray capacitance altering timing. Standard ratios: R1 (between discharge and threshold) = 1.44–2x R2 (between threshold and ground).
In monostable mode, ensure the trigger pulse is shorter than the timing interval. A 1μs input pulse timed by R=1MΩ and C=10μF yields ~11 seconds; shorten by reducing component values or adding a Schmitt trigger (e.g., 74HC14) at the input for clean edges.
Astable operation at frequencies above 100kHz demands:
- Capacitors ≤1nF.
- Resistors ≤10kΩ to minimize internal propagation delay (~100ns).
- Supply bypassing (100nF ceramic) directly across VCC and GND pins.
Avoid exceeding 200mA output current (pin 3); for higher loads, buffer with a Darlington pair (e.g., ULN2003) or MOSFET.
For duty cycles below 1%, swap the timing capacitor position: connect between trigger and discharge pins, grounding the threshold via R2. This avoids minimum pulse width limitations. Example: R1=5.1kΩ, R2=68kΩ, C=10nF yields 500Hz with 1% high time.
Thermal drift compensation: Replace the timing resistor with a temperature-sensitive element (e.g., NTC thermistor) for precision. Epoxy-coated units reduce humidity effects. Calibrate by adjusting R2 ±10% post-assembly using a frequency counter.

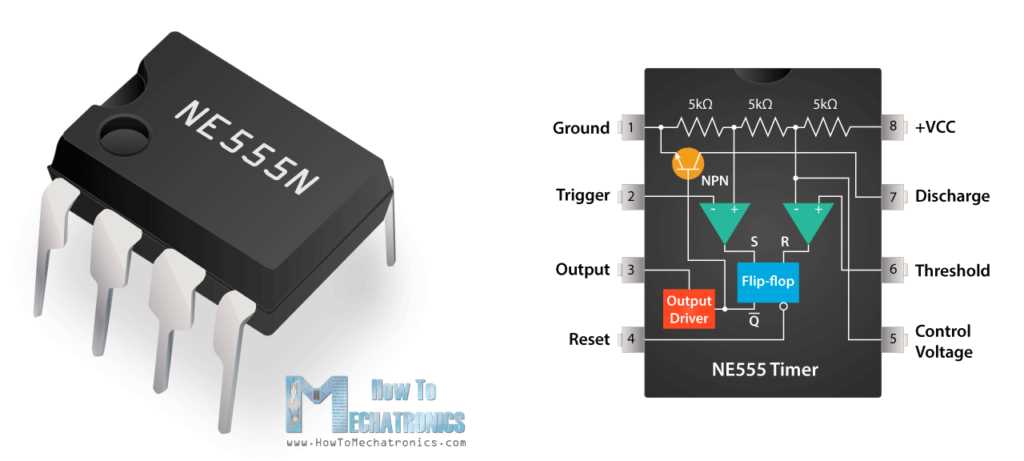

Basic Timer IC Pin Configuration and Roles
Prioritize power connections first: connect pin 8 (VCC) to a stable DC supply within 4.5V–15V. Ground pin 1 (GND) directly to the reference plane–floating this input introduces erratic timing and false triggers. Use a 0.1µF decoupling capacitor across VCC and GND, mounted from the chip; omitting it risks high-frequency noise skewing pulse duration.
Pin 2 (TRIG) level-shifts at ≤⅓VCC to start the timing cycle; drive it from an open-collector/open-drain output or a pull-down resistor ≤10kΩ–source impedance above this causes missed triggers. Pin 6 (THRES) resets output at ≥⅔VCC; tie it to a timing capacitor whose leakage , otherwise threshold detection stutters. For monostable setups, couple TRIG and THRES via a 10nF–1µF capacitor to Pin 5 (CONT) (internal voltage divider midpoint), overriding the default comparator reference with ±2% accuracy.
Pin 3 (OUT) sources or sinks ≤200mA; pair it with a base resistor ≤10kΩ when driving small bipolar transistors, or ≤1kΩ for MOSFET gates–exceeding these values extends rise/fall times beyond 500ns, distorting square edges. Pin 4 (RESET) halts internal counters when pulled ; wire it high if unused, or a momentary GND switch resets timing mid-cycle. Pin 7 (DISCH) clamps to THRES node; attach a diode (cathode to pin) with Vf ≤0.3V when discharging capacitors >4.7µF to prevent latch-up.
Step-by-Step Assembly of an Astable Multivibrator Setup

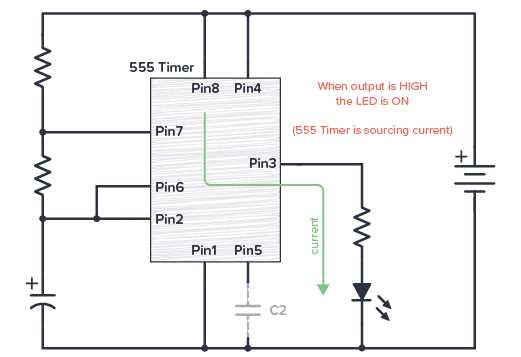

Begin by securing a breadboard and verifying component compatibility. Connect pin 8 to the positive rail and pin 1 to ground. Install a 10 kΩ resistor between pins 2 and 7, then attach a second resistor (1 kΩ) from pin 6 to pin 7. Link pin 2 to pin 6 using a diode (1N4148), ensuring the cathode faces pin 6. Place a capacitor (10 µF) between pin 2 and ground, with a second capacitor (100 nF) parallel to the power rails for stability. Avoid exceeding 15V input; use a regulated 9V supply for consistent performance. LED indicators should be added to the output (pin 3) with a current-limiting resistor (220 Ω).
Critical Calibration Steps
| Component | Typical Range | Adjustment Impact |
|---|---|---|
| Timing Resistor (R1) | 1 kΩ – 1 MΩ | Increases charging time exponentially |
| Timing Capacitor (C1) | 10 nF – 100 µF | Doubling value halves frequency |
| Control Voltage Cap (C2) | 10 nF – 10 µF | Higher values smooth output transitions |
For precise frequency tuning, substitute fixed resistors with a 1 MΩ potentiometer in series with a 1 kΩ resistor. Measure output at pin 3 using an oscilloscope; target a 50% duty cycle by balancing R1 and R2 values. If oscillations fail, check diode orientation–reversing it forces incorrect trigger feedback. For rapid prototyping, use ceramic capacitors; electrolytic types introduce leakage currents, skewing timing. Solder joints must avoid cold connections; reheat suspect points for 2 seconds at 350°C.
Calculating Timing Components for Desired Frequency Output
Select resistors R1 and R2 with values between 1 kΩ and 1 MΩ, and a capacitor C in the range of 100 pF to 100 μF for stable operation. The formula for frequency in astable mode is:
f = 1.44 / ((R1 + 2*R2) * C)
Prioritize low-tolerance components (R1 = 10 kΩ, R2 = 10 kΩ, and C = 47 nF as a starting point. Adjust R2 while keeping R1 constant to fine-tune duty cycle without altering frequency excessively.
Component Selection Constraints
Avoid capacitors below 100 pF due to parasitic effects distorting the waveform. Above 100 μF, leakage currents introduce errors, degrading accuracy. For precision applications, film capacitors (polyester or polypropylene) outperform electrolytic types, reducing drift over temperature variations. If stability across -20°C to +85°C is required, use temperature-compensated resistors (e.g., metal film with ±50 ppm/°C).
Calculate resistor values iteratively:
- Fix
C(e.g., 10 nF) and solve forR1 + 2*R2using the target frequency. - Split
R1andR2to achieve the desired duty cycle (D = (R1 + R2) / (R1 + 2*R2)). - Verify with an oscilloscope; adjust
R2in 5–10% increments.
Example: For 50% duty cycle at 5 kHz, R1 = 15 kΩ, R2 = 30 kΩ, and C = 10 nF yields f ≈ 4.8 kHz (close to target).
Practical Adjustment Techniques
For frequencies below 1 Hz, increase C up to 470 μF, but expect longer settling times (up to 10 cycles). Above 100 kHz, parasitic inductance in leads may require PCB layout optimization: minimize trace lengths, group components tightly, and use ground planes. Trimpots (e.g., 10-turn 50 kΩ) allow fine adjustment when fixed values aren’t sufficient. Replace R1 or R2 with a trimpot if tolerance compensation is needed.
Critical failure modes include:
- Exceeding the timer’s maximum sink/source current (20 mA typical). Ensure
(Vcc - Vout) / Rload ≥ 20 mA. - Thermal drift. Measure frequency at temperature extremes; recalculate components if deviation exceeds 5%.
- Capacitor leakage. Replace
Cif ESR exceeds 1 Ω or leakage current surpasses 1% of charging current.
For consistent results, use the same component batches in multi-unit designs to minimize variability.
Constructing a One-Shot Pulse Generator for Precise Time Delays
Start by connecting the timing capacitor (C) between the discharge pin and ground, ensuring values between 10 nF and 1 mF for adjustable delays from microseconds to minutes. Pair this with a precision resistor (R) linked to the threshold and trigger inputs–target 1 kΩ to 1 MΩ for stable operations. For consistent triggering, feed a brief low pulse (≤ 1/3 VCC) to the input node; longer pulses risk retriggering the output prematurely.
Stabilize the supply voltage between 4.5V and 15V for reliable performance, as fluctuations degrade timing accuracy. Add a decoupling capacitor (0.1 µF ceramic) adjacent to the power pins to suppress noise, especially in noisy environments like DC motors or relays. If interfacing with inductive loads, include a flyback diode (1N4007) across the output to protect against voltage spikes.
Fine-tune delay duration with the formula: T = 1.1 × R × C. For example, a 100 kΩ resistor and 10 µF capacitor yield ~1.1 seconds. Test with an oscilloscope to confirm linear discharge curves–nonlinearity indicates leakage current or improper capacitor/resistor selection. Replace electrolytic capacitors if delays exceed 10 seconds, as leakage currents distort long intervals.
