Start by arranging two npn transistors in series, ensuring the emitter of the first connects directly to the collector of the second. Apply a pull-up resistor (4.7kΩ nominal) between the positive supply (5V) and the output node to enforce a default high state. Inputs should be tied to transistor bases via current-limiting resistors–1kΩ provides reliable switching without saturating the junctions.
Signal inversion occurs when either input is driven low: the corresponding transistor conducts, pulling the output node to near-ground potential. Both inputs must remain high for the output to stay at logical high. Verify functionality with a multimeter or oscilloscope; output rise/fall times should not exceed 100ns for standard silicon transistors (e.g., 2N3904).
For optimal noise immunity, decouple the power rail with a 0.1μF ceramic capacitor placed within 5mm of the transistor array. Layout should minimize trace inductance–keep the output node short and avoid routing near high-frequency traces. If thermal drift is a concern, replace standard resistors with precision 1% metal film types to maintain switching thresholds across temperature swings.
Alternative configurations exist: MOSFET variants reduce power dissipation but require careful gate voltage thresholds, while older RTL designs use fewer components at the cost of fan-out limitations. Always simulate the circuit (LTspice, KiCad) before committing to fabrication–spice models for 2N3904 are readily available and predict performance within ±10% of real-world results.
Constructing a Two-Input Logic Block Circuit
Start with a pair of transistors (e.g., 2N3904) arranged in series: connect the emitter of the first directly to ground and its collector to the emitter of the second. Wire the collectors of both transistors to a 10 kΩ pull-up resistor leading to +5 V. Apply input signals to each base through 1 kΩ resistors. This configuration outputs a low state only when both inputs are high, forming the core behavior of a universal logical element.
Critical Component Values and Testing
Use 1 kΩ resistors for base biasing to ensure stable switching–values above 5 kΩ risk unreliable behavior; values below 200 Ω risk excessive current draw. A 10 kΩ pull-up resistor guarantees sharp voltage transitions: smaller resistances waste power, larger ones slow response times. Verify operation with a multimeter: a high output (~4.8 V) should drop to ~0.2 V when both inputs are driven to +5 V. For breadboard validation, replace inputs with momentary switches tied to Vcc–output should invert only when both switches close.
To expand functionality without redesigning, cascade additional stages: connect the output of this block to a third transistor’s base (via 1 kΩ resistor) to invert its behavior again or combine it with identical units–two linked in series form an AND operation, while parallel wiring yields an OR. Ensure every stage shares a common ground and decouple the power rail with a 0.1 µF capacitor near the pull-up resistor to suppress noise during state changes.
Constructing a Dual-Transistor Universal Logic Element
Assemble two NPN transistors (e.g., 2N3904) in series with their emitters connected to ground and collectors linked through a 10kΩ pull-up resistor to a 5V supply. Apply input signals to the bases via 1kΩ current-limiting resistors–when both inputs are high (above ~0.7V), the transistors saturate, pulling the output low (
Optimize the circuit by selecting resistor values based on load requirements: lower pull-up resistance (e.g., 4.7kΩ) speeds up transitions but increases current draw, while higher resistance (e.g., 22kΩ) reduces power consumption at the cost of slower rise times. For reliability, ensure input voltages stay within 0–5V; exceeding this range risks base-emitter junction breakdown (typically 6V absolute maximum). Test with a signal generator to confirm output integrity across frequency ranges–this element’s behavior mirrors commercial ICs when inputs toggle between 0V and VCC.
To expand, wire multiple stages in cascade: connect the output directly to the next element’s inputs without additional buffering, as this configuration inherently drives CMOS-level logic. For prototyping, use a breadboard with decoupling capacitors (0.1µF) near the supply pins to suppress transient noise. Document voltage thresholds at which the output toggles–hysteresis can be introduced by adding positive feedback resistors (e.g., 100kΩ) between output and base nodes to prevent metastability in noisy environments.

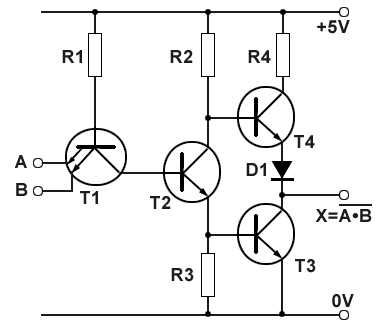

Critical Building Blocks of a Binary Logic Combiner
Use precisely matched transistors for consistent switching thresholds–any deviation above 5% will distort the output transition curve. Bipolar junction transistors (BJTs) in a totem-pole configuration deliver faster edge rates than MOSFETs at the same supply voltage, but require tighter thermal management due to higher base current demands. For low-power applications, CMOS pairs with sub-threshold design minimise standby current while still offering rail-to-rail output swing under normal operating conditions.
Voltage Divider Precision
Integrate a resistor network between the input nodes and the internal logic core to clamp input voltages within ±10% of the nominal supply. A common ratio is 10 kΩ pull-up resistors paired with 1 kΩ series resistors–this configuration balances noise immunity with propagation delay. Avoid carbon-film resistors; use metal-film types with ±1% tolerance or better. Temperature coefficient matters: keep it below 50 ppm/°C to maintain consistent logical levels across the operational temperature range.
- Pull-up resistors must source current sufficient to overcome internal parasitic capacitances without exceeding the transistor’s base-emitter breakdown voltage.
- Series resistors limit inrush current during high-to-low transitions, reducing transient overshoot by up to 40%.
- For mixed-signal designs, separate analog and digital ground planes beneath the resistor footprint to prevent ground bounce.
Parasitic diodes embedded at each transistor junction deserve explicit attention: they clamp reverse input voltages, but if forward-biased beyond 0.7 V, they can induce latch-up conditions. To mitigate this, add Schottky clamp diodes across the base-collector junctions of BJTs. These diodes exhibit lower forward voltage drop (≈0.3 V) and faster response times, effectively suppressing transient currents before they trigger parasitic activation.
Decoupling capacitors should be placed no further than 2.5 mm from the power pins of the logic element. Use one 0.1 µF ceramic capacitor per power rail and an additional 10 µF bulk capacitor per IC to filter low-frequency noise. X7R dielectric ceramics are preferred over Y5V; they maintain capacitance stability up to 85°C and ±15% voltage derating. Mount capacitors directly beneath the IC on the opposite side of the PCB to minimise loop inductance.
- Verify output drive strength: a standard BJT totem-pole output should sink ≥16 mA at 0.4 V and source ≥2 mA at 2.4 V under maximum load conditions.
- For fan-out beyond eight loads, buffer outputs with a dedicated line driver to prevent voltage sag at logical high state.
- Test rise/fall times under load; aim for ≤10 ns edges to avoid metastability in downstream flip-flops.
Building a Two-Input Logic Element on a Breadboard
Gather a 74LS00 IC, two push-button switches, two 1kΩ resistors, one LED, one 220Ω resistor, and jumper wires before starting. Position the 74LS00 in the center of the breadboard, straddling the gap to avoid accidental short circuits between pins.
Connect the power rail to pin 14 (VCC) of the IC using a red jumper wire. Ground pin 7 (GND) with a black wire. Verify the power delivery by momentarily touching the LED to the VCC and GND rail–it should illuminate brightly.
Install the first switch between the positive rail and pin 1 (input A) of the IC. Place a 1kΩ resistor from pin 1 to ground to establish a default low state when the switch is open. Repeat for pin 2 (input B) with the second switch and resistor.
Cut a jumper wire to length–approximately 5cm–and link the output (pin 3) to the LED’s anode. Solder the 220Ω resistor inline with the LED’s cathode, then terminate it to ground. This setup prevents false triggers from floating inputs.
Press both switches simultaneously; the LED should extinguish. Releasing either switch returns the output to high, confirming the logic function. If the LED remains lit, recheck resistor values–incorrect pull-downs cause erratic behavior.
Test edge cases by holding one switch while toggling the other. The output should invert only when both inputs are high. Replace the IC if inconsistencies persist–damaged units exhibit partial logic failures.
Document the final layout with a photo or hand-drawn sketch, noting pin assignments. Label the breadboard’s rails to simplify troubleshooting. Store components in antistatic bags to prevent ESD damage between sessions.
Common Errors in Designing and Building Logic Circuit Blueprints
Incorrect power rail connections can render the entire component non-functional. Always verify that the supply voltage (+VCC) and ground (GND) pins align with the expected values for the chosen IC model. For instance, a 74LS00 series requires 5V, while CMOS variants like the CD4011 tolerate wider ranges (3V–15V). Failure to match these specifications often leads to silent failures or erratic behavior, where inputs appear valid but outputs defy truth tables.
A frequent oversight is neglecting pull-up or pull-down resistors on open-collector outputs. Without these, outputs may float, producing ambiguous high-impedance states instead of defined logic levels. For example, when interfacing with LEDs or other ICs, a 1kΩ–10kΩ resistor ensures stable transitions between states. Below is a reference for common resistor values based on load type:
| Load Type | Recommended Resistor (Ω) | Current Draw (mA) |
|---|---|---|
| LED (standard) | 470–1k | 5–20 |
| TTL Input | 1k–4.7k | 1–5 |
| CMOS Input | 10k–100k | <0.1 |
Mislabeling input and output pins disrupts troubleshooting. Standard IC pinouts (e.g., SN74HC00) place inputs on one side and outputs opposite, but custom PCB layouts may invert this. Always cross-reference datasheets–confusing a single pin can invert expected logic. A quick sanity check: outputs should respond predictably to input combinations (e.g., both inputs high should yield low output).
Component Placement Pitfalls
Overcrowding components near high-current paths causes thermal noise or signal degradation. Maintain a minimum 2mm clearance between traces carrying switching currents and sensitive logic lines. For prototypes, use a ground plane to stabilize reference voltages. Additionally, capacitors (.1µF ceramic) must be placed within 2–5mm of IC power pins to filter noise–omitting these leads to voltage spikes corrupting operations.
Ignoring propagation delays results in race conditions. Each logic element introduces latency (e.g., 74LS00: ~10ns per stage). Cascading multiple stages without accounting for cumulative delay risks metastability, where outputs toggle unpredictably. To mitigate, simulate critical paths in tools like LTspice or verify timing margins with an oscilloscope. Here’s a comparison of typical delays:
| IC Family | Propagation Delay (ns) | Max Frequency (MHz) |
|---|---|---|
| 74LSxx | 10 | 35 |
| 74HCxx | 8 | 50 |
| CD40xx | 100 | 5 |
Skipping continuity tests between stages guarantees wasted debugging time. Before powering on, probe each connection with a multimeter in diode mode–open circuits or shorts are not visibly detectable on breadboards. For PCBs, thermal imaging can reveal cold solder joints causing resistive faults. Document test points for quick revalidation after modifications.
