Start with the factory harness connector–the key to avoiding wire stripping mistakes. Identify the 16-pin plug behind the dashboard: pins 1–4 carry constant power (12V), switched ignition (ACC), and ground. Pin 5 (orange/black) feeds the memory retention circuit–skip this, and presets vanish on battery disconnect. Use a multimeter (20V DC setting) to confirm voltage before connecting; a misaligned crimp here fries the internal amplifier.
For speaker outputs, match polarity precisely: front left (+) via pin 8 (white/black), (-) pin 9 (gray/black). Rear channels (+/-) occupy pins 10–13. Avoid twisting wires–solder joints wrapped in adhesive-lined heat shrink last longer than connectors. If static persists, trace the shield ground (pin 6) to chassis mounting bolts near the climate controls.
Aftermarket adapters often omit illumination dimming (pin 15, green/red). Without this, the display stays at full brightness, draining the battery overnight. Probe the wiring bundle under the center console for the dimmer signal–it pulses at 50% duty cycle when headlights activate. A 1N4001 diode inline prevents backfeed, preserving dash cluster functionality.
Test fit the unit before final mounting: verify CD/eject mechanisms clear the transmission tunnel on manual-equipped models. If the faceplate sticks, sand the mounting tabs 0.5mm with 400-grit paper. Secure the antenna lead (coaxial, pin 16) to the unibody with nylon clips–vibration loosens it within 5,000 miles.
Complete Guide to Audio System Connections in Mazda MX-5 Models
Begin by identifying the vehicle’s harness colors for the aftermarket head unit installation. The primary power feed (ignition-switched +12V) on a 1990-2005 model is typically a light green/orange stripe wire, while constant battery power is a yellow lead. Ground connections use a black wire. Verify these colors against your specific trim year, as variations exist between NB and NA generations.
For speaker outputs, front left (+) uses a gray/red stripe wire, while the (-) is gray/black stripe. Rear left follows a similar pattern with violet/red stripe (+) and violet/black stripe (-). Right-side channels mirror these colors with white/red stripe (+) and white/black stripe (-) for front, and green/red stripe (+) with green/black stripe (-) for rear. Use a multimeter to confirm polarity before splicing.
Factory amplifier integration requires the blue/white stripe (remote turn-on) wire. Connect this directly to the new head unit’s amplifier trigger output. If retaining Bose-equipped models, additional harness adapters (Metra 70-8112 or equivalent) simplify the process by converting OEM plugs to standard ISO connectors. Bypass adapters entirely for non-Bose systems to avoid signal degradation.
Safety precautions dictate disconnecting the negative battery terminal before handling any electrical components. Short circuits from improper connections can damage onboard computers, particularly in 1999+ models with enhanced ECU integration. Use heat-shrink tubing or solder-seal connectors for all splices to prevent corrosion-related failures.
Navigation-ready models (2001-2005) include a separate pink/orange stripe wire for speed-sensitive volume adjustment. While not mandatory for basic audio functionality, this wire should be reattached to maintain original system features. AUX input retrofits on 1999-2005 units require tapping into the gray/violet stripe (CD changer data) wire if using third-party adapters.
Harness pinouts differ slightly between single-DIN and double-DIN installations. For 2006+ models, the OEM plug uses a 24-pin connector with red/black stripe (constant power) and yellow/red stripe (illumination). Aftermarket harnesses like Scosche MA05B provide pre-terminated connections matching these specifications. Always cross-reference with vehicle-specific schematics, as Mazda revised pin assignments between production batches.
Diagnosing no-power issues involves checking fusible links (F43 for 1998-2005 or F38 for 2006+) in the underhood fuse box. Audio-related faults like dim displays or intermittent operation often trace back to the light green (illumination dimmer) wire. This wire should show ~5-12V depending on dash light settings. Test continuity from the head unit plug to the dimmer switch if illumination malfunctions persist.
Subwoofer outputs in premium packages use brown/yellow stripe (+) and brown/black stripe (-) wires, typically located behind the rear deck. These require high-current-capable RCA cables for aftermarket amplifiers. For models without these wires, aftermarket signal processors can derive line-level outputs from the rear speaker leads, though this method sacrifices some fidelity for non-factory setups.
Finding the OEM Audio Connector in Your Roadster
Begin by removing the center console trim panel beneath the climate controls. Use a plastic pry tool to carefully release the clips at the bottom edge–there are four along the lower lip and two on each side near the gear shifter. Pull upward firmly but avoid forcing it, as the plastic hooks are fragile.
Once the panel is loose, disconnect the cigarette lighter harness and set the trim aside. Behind it, you’ll see a white rectangular plug with 16 or 22 pins, depending on the model year. This is the factory audio connector–later models (2001+) may have an additional smaller harness for the Bose system, typically a yellow or green plug with fewer contacts.
For 1990-1997 models, the connector is tucked deeper, requiring you to unclip the ash tray assembly first. Slide it out, then tilt the climate control unit forward slightly to access the back. The harness will be secured with a metal retaining tab–press it downward to release.
If dealing with a 1999-2005 variant, the connector is often obscured by the hazard switch wiring. Gently push the wires aside (they’re routed through a foam grommet) to expose the plug. On NA-series cars, the ground wire is usually a black single-pin connector separate from the main bundle–don’t overlook it.
For accurate identification, count the pins: 1990-1993 models have a 12-pin layout, while 1994-1997 versions expand to 16. Post-1999 units add speaker-level outputs. Mark each wire with tape before disconnecting–factory diagrams use inconsistent color coding across years.
In NB-series roadsters (1999+), the aftermarket adapter (Metra 70-8112 or equivalent) will connect directly to this harness. However, 1990-1993 cars often require a separate power lead, as the factory setup lacks constant 12V–locate the violet/white stripe wire behind the fuse box for this.
If the connector isn’t visible after removing the trim, check for hidden mounting screws near the transmission tunnel. Some 1994-1997 models have a secondary bracket holding the harness in place–remove it with a 10mm socket before proceeding.
Identifying Connector Pin Colors and Their Signal Roles
Start by locating the main harness plug: a rectangular 16-pin A-type connector for factory systems. Pin 1 (solid red lead) carries constant 12V–verify with a multimeter before touching anything. Pin 4 (black with white stripe) is chassis ground, often sharing paths with HVAC grounds–ensure no voltage drop here. For aftermarket units, manufacturers frequently repurpose pins 6 and 7 (typically yellow for accessories power and orange for illumination control)–double-check against the device manual as some brands swap these.
Use this reference table to decode common color schemes across OEM and third-party installations:
| Cable Hue | Standard Purpose | Aftermarket Variation | Voltage Check |
|---|---|---|---|
| Solid red | Fused battery feed | May switch to pink (Pioneer) | 12V constant |
| Black/white stripe | Ground return | Pure black (Kenwood) | 0V |
| Yellow | Ignition-switched power | Blue (Alpine) | 12V key-on |
| Purple | Rear speaker positive | Purple with stripe (negative) | ≤2V peak |
| Green | Front speaker positive | Green with stripe (ground) | ≤2V peak |
| Orange | Dimmer control | Gray (Sony) | 0-12V variable |
For speaker outputs, measure DC offset during playback: values above 50mV indicate incorrect pairing, risking amplifier damage. Left-channel leads generally use darker bases (green, brown), while right-channel counterparts add striped markings. Antenna remote triggers (blue/white) activate at ignition–test for 12V pulse, not constant current, to avoid draining the battery.
When troubleshooting, isolate each circuit segment. Disconnect the power source first–mistaken connections on purple or gray wires (often amplified signals) can fry crossovers instantly. Use a 1kΩ resistor inline for load simulation before permanent crimping; many modern head units require minimum 2Ω impedance to initialize properly.
Installing Third-Party Audio Systems in the MX-5 NB

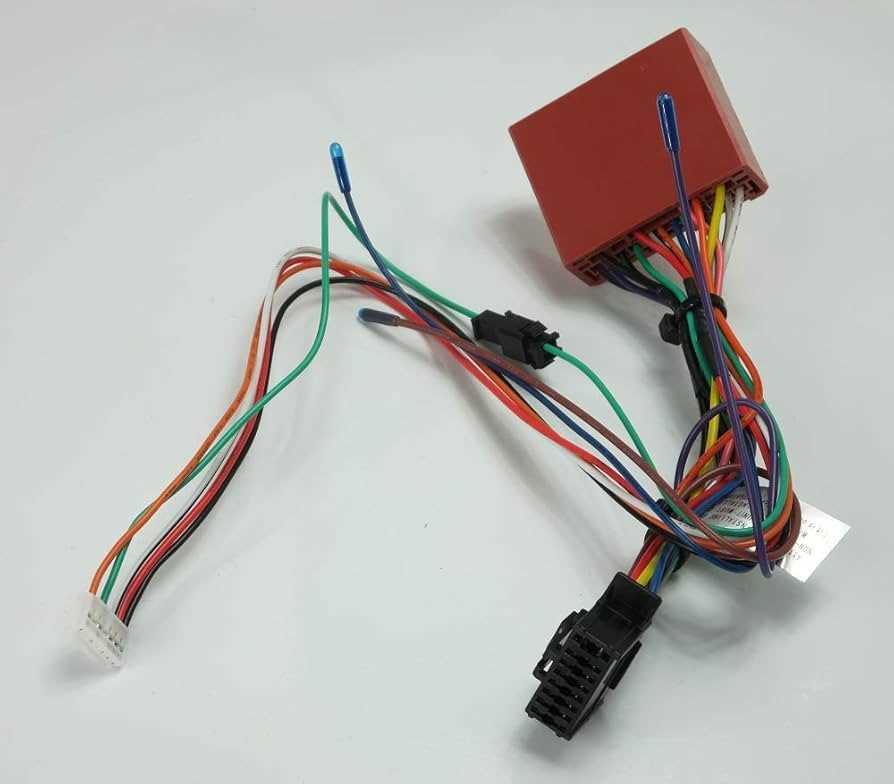

The first step is matching the stereo harness adapter to the vehicle’s OEM connector. The 1999–2005 NB models use a single 20-pin ISO block; later NBFL variants (2006–2015) switch to a compact 16-pin plug. Purchase the corresponding Metra 70-8111 or Axxess AX-DI-NB harness–a quick plug-in that preserves factory antennas and steering-wheel controls without cutting original cables.
Verify speaker impedance before power-on. Factory door woofers are 4-ohm, while tweeters run at 8-ohm; replacing them with mismatched aftermarket drivers risks amplifier overload. Alpine KTA-450 or Pioneer GM-DX2052 amplifiers handle the load safely when wired directly to the new head unit’s 4-channel preamp outputs.
Ground the chassis properly. Locate the unpainted bolt near the driver-side footwell–it threads into the firewall braze plate. Scrape off paint, apply dielectric grease, and secure an 8-gauge ring terminal. Weak grounding causes alternator whine or intermittent volume cuts.
- Dynamat Extreme or Noico 80 mil sheets behind door panels cut road noise by 8 dB;
- JL Audio C5-653 or Focal PS 165 FXE component sets fit the original mounting holes;
- Crutchfield’s free vehicle-specific removed-panel templates prevent dashboard cracks.
Program steering-wheel controls next. The Metra or iDatalink Maestro adapter translates CAN-bus signals into resistive pulses the new stereo recognizes. Aftermarket decks like Sony XAV-AX5500 or Kenwood DDX9907XS decode these pulses natively, eliminating extra boxes.
Test parking brake engagement before enabling video playback. Disconnect the handbrake switch momentarily to simulate engaged state; some Alpine and Pioneer units bypass safety prompts this way, avoiding lockout screens.
Final tuning: set crossover points at 80 Hz for front doors, 100 Hz for rear, and high-pass tweeter filters at 4 kHz. Rockford Fosgate’s RFA2 universal equalizer lets you EQ individual driver responses–critical when mixing different brands–via mobile app without soldering.
