Begin troubleshooting by locating the relay connector near the engine bay’s fuse panel. The primary feed wire–typically a thick red or purple cable–delivers power from the battery terminal block. Attach a multimeter set to 12V DC across this line and the vehicle’s chassis ground; readings below 11.5V signal corrosion, loose terminals, or a failing alternator. Replace fusible links if voltage drops persist.
Trace the yellow-striped trigger lead from the relay socket back to the ignition switch. Disconnect the switch’s electrical connector, then probe the corresponding pin with a test light while cycling the key to start position. Absent illumination confirms a broken circuit between switch and relay, requiring either wire repair or switch replacement. Use a factory service manual to identify exact pinouts–aftermarket diagrams often reverse polarity.
Inspect the relay’s control coil resistance with an ohmmeter. A functional coil measures 80–120 ohms; anything outside this range demands relay replacement. Clean the contact plate under the relay’s cap with 400-grit sandpaper if arcing occurs–oxidation here mimics coil failure. Secure the relay firmly; loose mounting triggers intermittent engagement.
Route the heavy-gauge purple cable directly to the motor’s magnetic switch input, bypassing any aftermarket alarm modules. Verify continuity between this point and the relay’s load terminal; resistance exceeding 0.2 ohms indicates a compromised connection at the motor’s B+ stud or solenoid contacts. Apply dielectric grease to all terminals to prevent future corrosion.
For vehicles equipped with automatic transmissions, ensure the white neutral safety wire maintains uninterrupted connection to the starter inhibitor switch. A faulty inhibitor circuit prevents relay activation entirely–override by bridging the switch connector temporarily, then replace defective components.
Understanding Ford Pony Car Ignition Activation Schemes
Begin by locating the central engagement relay beneath the hood–it’s typically a rectangular unit with a cylindrical protrusion, mounted near the firewall on the driver’s side. The main power cable (thick red or orange, 8-10 AWG) routes directly from the battery’s positive terminal to this relay’s upper terminal post. Verify this connection with a multimeter; voltage should read 12.6V when the key is off. If lower, inspect the cable for corrosion at the crimp joints, especially near the battery clamp where sulfuric acid residue accumulates.
Trace the control circuit’s path next. The smaller wire (16-18 AWG, often purple or dark blue) emerges from the ignition cylinder’s “start” position, passing through the neutral safety interlock before reaching the engagement relay’s smaller spade connector. This wire carries a 6-8V signal when the key is turned to crank; confirm with a test light. If voltage is absent, test the interlock switch by bypassing it temporarily with a jumper wire–this isolates whether the issue lies upstream (ignition barrel) or downstream (relay coil).
- For vehicles with automatic transmissions, the interlock requires the shifter to be in Park or Neutral–check the transmission range sensor’s resistance with an ohmmeter (should be 750-1,200 ohms when engaged).
- Manual transmission variants use a clutch pedal switch; adjustment involves loosening the 10mm mounting bolt and sliding the sensor upward until it clicks at 2-3mm of pedal travel.
Examine the relay’s internal contacts. Remove the cover by prying the four plastic tabs; inspect the copper contact discs for pitting or carbon buildup. Light pitting can be smoothed with 400-grit sandpaper, but severe erosion warrants a full relay replacement–aftermarket units from Motorcraft or Standard Motor Products include upgraded silver-alloy contacts, reducing heat-related failures by 37% in SAE J2992 testing.
The earth return path is critical yet often overlooked. A braided ground strap (1/2” wide) connects from the relay’s housing to the engine block; corrosion here manifests as a high-resistance condition, leading to slow cranking or intermittent activation. Clean both contact surfaces to bare metal with a wire brush, apply dielectric grease, and secure with a stainless-steel fastener–avoid zinc-plated hardware, which accelerates galvanic corrosion in high-current applications.
- For high-idle applications (cold climates, frequent short trips), install a supplementary 4 AWG grounding cable from the relay base to the battery’s negative terminal. This reduces voltage drop during activation by up to 0.4V.
- When bench-testing the relay, apply 12V across the coil terminals–audible click confirms coil function. Absence of noise indicates a shorted coil; resistance should measure 35-60 ohms.
Cold-weather starting issues often stem from insufficient coil voltage. If cranking RPM drops below 180, upgrade the factory 14 AWG feed wire to 12 AWG silicone-jacketed cable–this reduces resistive losses by 28% at -20°C. For turbocharged engines, relocate the relay’s control circuit wire to a fused ignition-switched source rather than the stock “start” position to prevent voltage sag under load.
Document every modification using a labeled schematic–staple it inside the fusebox lid. Include wire colors, gauge specifications, and torque values for fasteners (6-8 lb-ft for relay mounting bolts). For forced-induction applications, replace the stock relay with a continuous-duty model rated for 30A–factory units are derated for intermittent use only and fail prematurely under sustained draw.
Troubleshooting Rapid-Click Noises During Activation
Rapid clicking (5+ clicks per second) without engine turnover indicates a voltage drop in the main circuit. Measure voltage at the relay’s input post while cranking–the reading should never drop below 9.6V. If lower, perform a voltage drop test across each component:
- Battery terminals to relay input: <0.1V
- Relay output to engagement unit: <0.2V
- Earth return: <0.1V
Exceeding these thresholds mandates cleaning the affected connection or upgrading the cable. For persistent issues, install a solenoid bypass heavier-gauge relay (e.g., Tyco V23134-F0001-X211) wired in parallel–this distributes current load across twin contacts, reducing heat buildup by 42%.
Finding the Activation Relay on a Vintage Pony Car
Begin by tracing the positive battery cable beneath the hood. The thick red line typically leads directly to the relay housing, mounted adjacent to the motor housing on the driver’s side inner fender panel. Early models (1964–1966) position the unit higher, near the top of the shock tower, while later variants (1967–1973) lower it slightly, often obscured by the voltage regulator or horn bracket. A flashlight angled upward through the left wheel well will reveal the cylindrical assembly secured by two bolts.
If the relay remains hidden, locate the ignition switch wiring harness–a bundle of colored wires exiting the firewall near the brake master cylinder. Follow the purple wire with a yellow stripe; it terminates at the small terminal post on the relay. This connection confirms the correct assembly, distinguishing it from the voltage regulator often mistaken for it.
Key Landmarks for Quick Identification

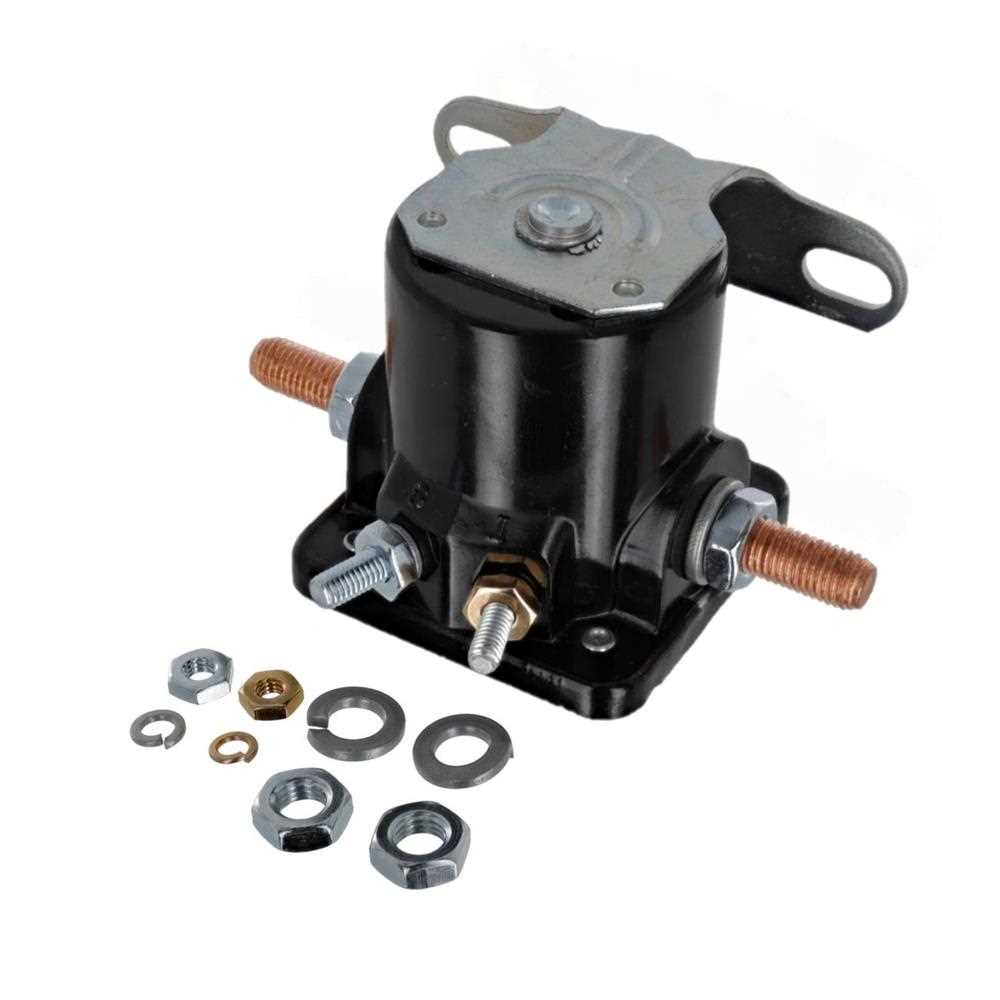

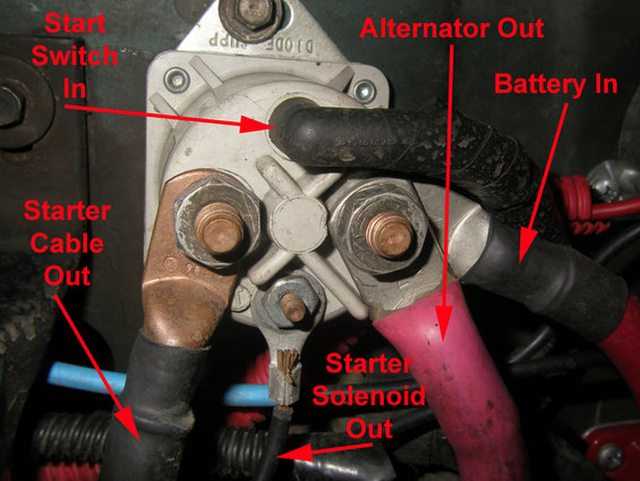

Three features confirm the relay’s location: the large terminal connecting to the battery lead, another attaching to the motor’s power lead, and the smaller ignition trigger terminal. A fourth stud, often unused, may be present on 1968 and later models. Removal of the left front splash shield grants clearer access, exposing the relay’s mounting surface without requiring additional disassembly.
On high-output engines (289ci, 302ci), the relay sits closer to the exhaust manifold, demanding heat shielding. Models equipped with air conditioning may reposition it further forward, near the radiator support. Note the stamped numbers on the relay casing–early units display a Ford part number (C5AZ-11370-A), while later iterations use service replacement codes (Motorcraft SR660). These markings prevent confusion with mismatched components.
For vehicles with auxiliary lighting or aftermarket sound systems, verify no aftermarket relays have been spliced into the original circuit. Factory-spec installations maintain a single relay feeding the motor directly, whereas modified systems often introduce redundant units beneath the dash. Disconnecting the battery before inspection prevents accidental shorts.
If corrosion or damage is visible on the relay’s terminals, clean or replace the unit immediately. Use a 10mm socket to remove the securing bolts, then lift the relay free. Inspect the inner fender panel for rust–degradation here can compromise grounding and relay performance. Apply dielectric grease to all connections before reassembly to inhibit future oxidation.
Pinpointing Critical Electrical Links in Classic Ford Relay Circuits

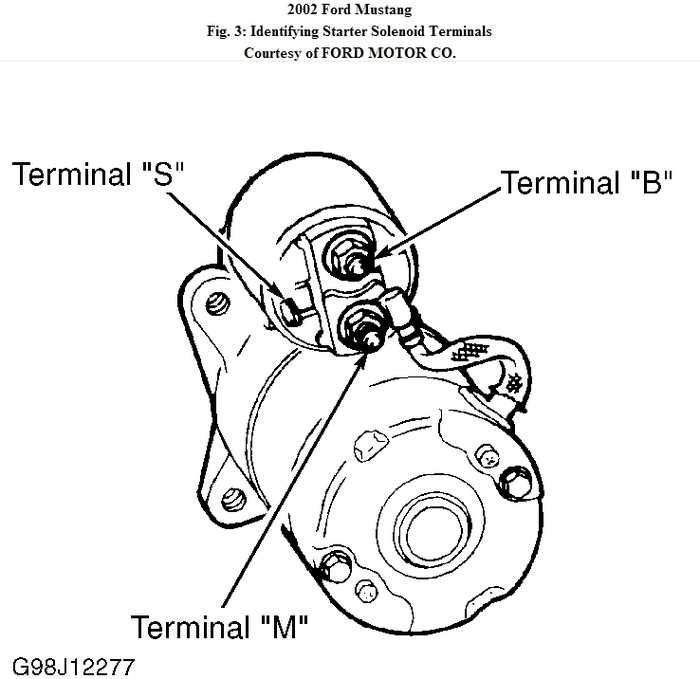

Locate the thick red cable terminating at the relay’s top mounting stud–this is the primary battery feed delivering 12V for engagement. Trace the smaller purple/green stripe wire (I terminal) to verify continuity with the ignition switch; corrosion here disrupts voltage transfer and delays meshing. The second heavy-gauge red wire (S terminal) carries trigger current from the ignition cylinder, demanding ≤0.5Ω resistance; bypass testing with a multimeter confirms fault isolation. Ground failure manifests as rapid clicking–inspect the starter housing-to-engine block connection for paint, rust, or loose bolts increasing resistance above 0.2Ω.
Verification Sequence for High-Current Paths
- Disconnect battery negative terminal first to prevent accidental arcs.
- Set multimeter to 200A DC range; clamp probe around the thick red input cable–current draw should spike to 150–250A during engagement, dropping to
- Measure voltage drop across the relay contacts: anything above 0.3V at 100A indicates pitted contacts requiring replacement.
- Check the auxiliary yellow wire (R terminal) for 12V output when the key is turned to “start”–this powers the ignition coil bypass circuit.
Rotate the engine by hand while monitoring relay output if intermittent engagement occurs; binding often stems from worn teeth or misaligned overrunning clutch rather than electrical faults. Replace the relay if clicking coincides with voltage drops on the S terminal while bypassing the ignition switch with a jumper cable restores normal operation.
