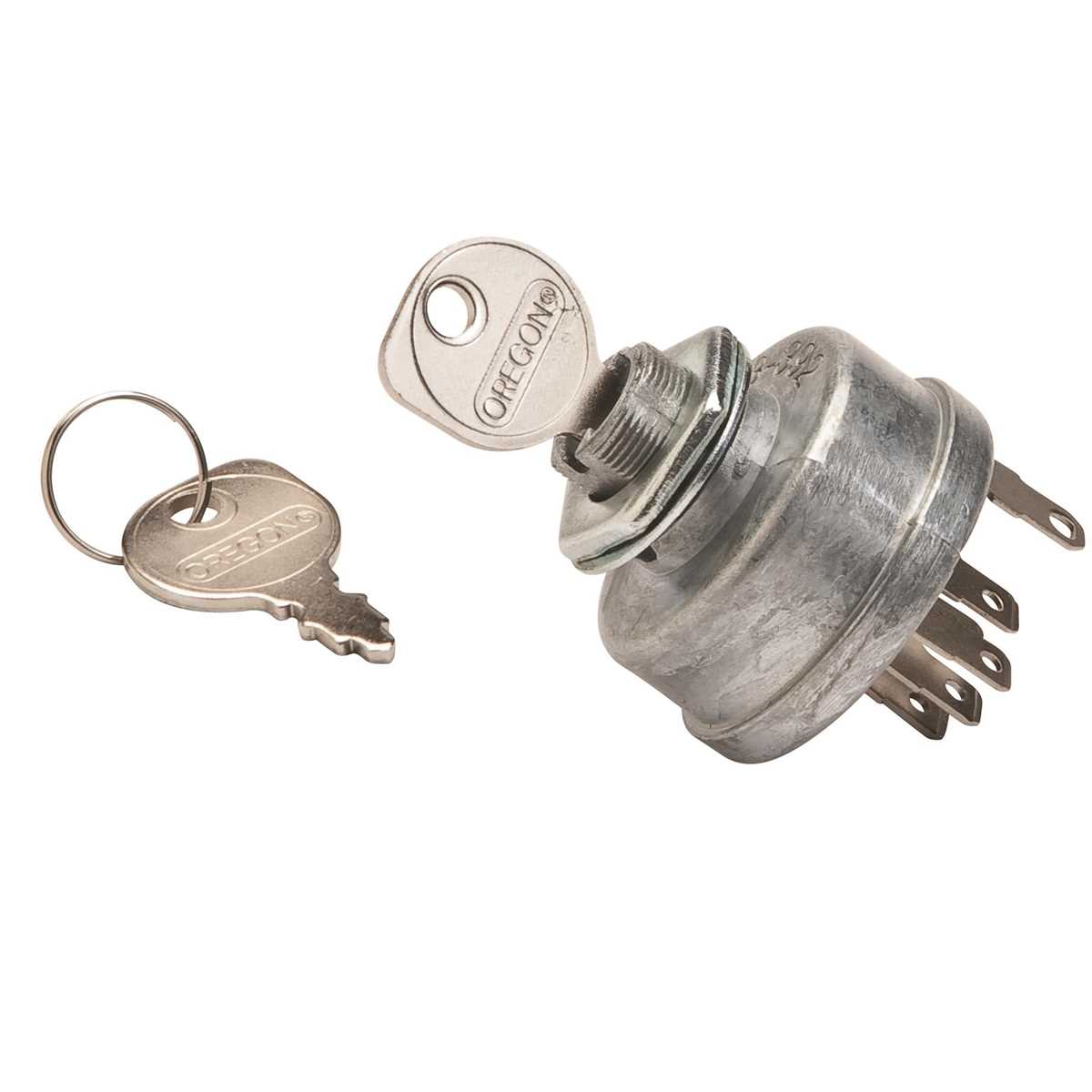

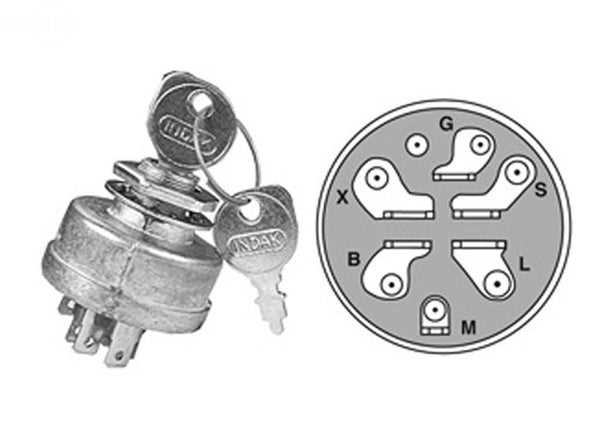

Identify the ignition switch terminals first–these typically include B (battery), S (starter solenoid), M (magneto or ignition coil), and G (ground). Verify connections using a multimeter set to continuity mode; resistance between B and S should drop below 0.5 ohms when the key is turned. If readings exceed 1 ohm, check for corrosion at the fuse block or replace the solenoid immediately.
Trace the charging circuit from the alternator output to the voltage regulator. Standard models generate 12–14 volts at full throttle; less than 12.5 volts indicates a failing stator or loose belt tension. Disconnect the regulator before testing–if voltage jumps above 15 volts, the regulator is defective and must be replaced to prevent battery damage.
Inspect the safety interlock switches under the seat, brake pedal, and power take-off lever. Each switch should complete a circuit when engaged; bypass them temporarily only to diagnose faults, never for operation. Faulty switches are the primary cause of intermittent starting issues–test with a 12V test light by probing the wires at the connector while actuating the switch.
Locate the spark plug wire harness near the engine block–follow it to the coil pack. Misrouting can cause electromagnetic interference, leading to hard starts or stalling. Secure wires at least 3 inches from moving parts using zip ties; avoid routing near exhaust manifolds where heat accelerates insulation degradation.
Replace any wire exhibiting cracked insulation or green oxidation at terminals. Crimp connectors properly using a ratcheting crimper–soldering is unnecessary and risks brittle joints. For 14-gauge wires, use blue connectors; for 12-gauge, use yellow. Always strip exactly 5mm of insulation to ensure full insertion into the connector barrel.

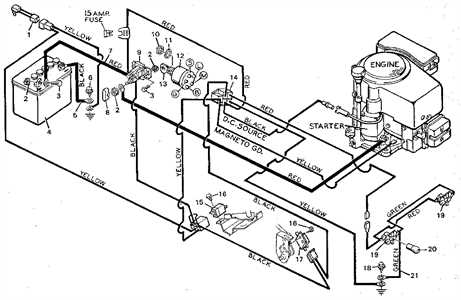

Understanding Electrical Schematics for Garden Tractors
Locate the primary fuse panel beneath the operator’s seat or near the battery tray–common areas for models produced between 2000 and 2010. Use a multimeter set to DC voltage to verify the 10A fuse protects the ignition circuit; if readings drop below 11.5V, inspect the alternator output diode trio, often marked as a small black module with three terminals. Replace faulty diodes immediately to prevent deep-cycle battery drain.
Trace the PTO (power take-off) switch harness from the dashboard to the blade engagement solenoid–look for a yellow-striped wire with a blue tracer. Corrosion at the solenoid connector is frequent; clean contacts with 600-grit sandpaper and apply dielectric grease to prevent future oxidation. If the engine stalls when engaging blades, check the kill wire continuity from the safety switch under the seat; a broken strand can cause intermittent failures.
Key Components to Inspect Before Troubleshooting
Identify the starter relay near the battery–it’s a compact plastic cube with spade terminals labeled 85, 86, 30, and 87. Swap it with a known working relay (e.g., horn or headlight) to isolate faults; relays failing under load often click but deliver no current. For intermittent starting issues, measure voltage at terminal 86 while cranking–the reading should match battery voltage (12.6V+); lower values indicate a weak ignition switch or faulty neutral safety circuit.
Examine the hour meter wiring if backlighting fails; it typically shares power with the dashboard illumination circuit. Splice into the red wire at the meter’s rear with a 14-gauge butt connector to bypass broken solder joints. Verify the hour meter ground (black wire) leads to the frame–add a dedicated 10-gauge ground wire if corrosion is present to restore function. Always disconnect the negative battery terminal before modifying circuits to avoid short circuits.
Advanced Diagnostics for Persistent Issues
If the engine runs but lights dim during blade operation, inspect the voltage regulator’s ground path–most units ground through the frame via a single ¼-inch bolt. Scrape paint from the grounding point and tighten to 15 ft-lbs; a poor ground increases resistance, causing voltage drops under load. For models with electric clutches, ensure the clutch coil receives 12V when activated–use an oscilloscope to detect AC ripple from a failing stator, which requires stator replacement rather than clutch repair.
Finding Electrical Layouts in Your Garden Tractor’s Guidebook
Turn to the last section of the operator’s manual–usually titled “Technical Information” or “Schematics”. The electrical layout is typically grouped here, among other system drawings. Scan the table of contents for entries like “Circuit Connections” or “System Flowcharts” to jump directly.
Check for a fold-out insert; manufacturers often include a large-format sheet tucked behind the back cover. This insert will show the full harness routing, fuse identification, and switch labeling in a single glance. Locate any QR code printed alongside–it may link to an online version with zoomable resolution.
| Manual Edition | Typical Page Range | Diagram Title |
|---|---|---|
| 2020-2024 | 108-112 | Power Distribution Chart |
| 2015-2019 | 94-98 | Wiring Schematic |
| 2010-2014 | 85-89 | Electrical Layout |
If the printed guide lacks detail, search the manufacturer’s support portal using the serial number stamped on the transaxle housing. This number narrows results to the exact model variant, revealing downloads exclusive to owners.
Mark each connector color on the drawing itself using a highlighter–black for ground, red for power, yellow for accessories. This color-coding mirrors physical harness sleeves, simplifying tracing later.
Note any footnotes at the bottom of the schematic; they often specify wire gauge (e.g., 16 AWG) or splice locations critical for safe bypassing during repairs.
Compare the drawing date against your unit’s year listed on the data decal–discrepancies signal revisions that may alter control module pinouts or relay placements.
Store the manual in a clear sleeve to prevent moisture damage; circuits sketched on glossy paper smudge easily when wet, obscuring small but essential symbols like diode orientation or circuit breaker ratings.
Locating Critical Circuit Elements in Your Garden Tractor’s Electrical Blueprint
Begin by tracing the battery terminals–marked red for positive and black for negative–through the main harness. These leads feed power directly to the ignition switch, solenoid, and starter motor. Verify the solenoid’s mounting bracket; its contacts must align precisely with the starter cable to prevent voltage drops during engagement.
The ignition switch typically controls three pathways: accessory (12V to lights or attachments), run (engine management), and start (solenoid activation). Check for fused connections between the switch and the voltage regulator–corrosion here disrupts charging cycles, leading to inconsistent battery performance.
Observe the alternator’s output; it should produce 13.8–14.4V at idle. A failing alternator often overheats the rectifier diode, visible as discoloration beneath its housing. Replace the entire unit if resistance exceeds 0.5 ohms across its stator windings during bench testing.
Examine the PTO (power take-off) clutch circuit. The clutch coil requires 10–12 amps to engage; lower current levels suggest a shorted winding or compromised ground. Test continuity from the clutch wire to the frame–any resistance above 0.1 ohms indicates a faulty path.
Ground Loops and Fuse Blocks
Ground points cluster near the engine block and transaxle. Scrape paint or rust from these surfaces to ensure bare metal contact. Poor grounding manifests as erratic dash lights or motor surges–clean all connections with a wire brush and apply dielectric grease to prevent oxidation.
The fuse block often resides under the dash or near the battery. Standard blade fuses (15–30A) protect distinct circuits: headlights (10A), ignition (20A), accessories (15A). Use a multimeter to confirm continuity; a blown fuse with intact filament may reveal a deeper short in downstream wiring.
Blade switches for deck engagement and lighting use micro-relays. These relays click audibly when energized; absent clicks point to a failed coil or relay socket corrosion. Swap with a known-good relay to isolate faults before replacing the entire switch assembly.
Lastly, inspect the stop/neutral safety interlock. This microswitch, usually mounted on the transaxle bracket, must close only when the gear selector is in neutral. Bypass testing with a jumper wire verifies switch integrity–failure here prevents starter engagement entirely.
Proper Battery Cable and Solenoid Connections for Garden Tractors
Always disconnect the negative (-) battery terminal first before touching any electrical components to prevent short circuits. Use a 10mm wrench to loosen the terminal clamp, then twist and lift the cable free–never pry it off with force. If corrosion is present, clean terminals with a baking soda and water mixture (1 tablespoon per cup) and a wire brush. Apply dielectric grease after reconnecting to inhibit future corrosion and ensure consistent conductivity.
Step-by-Step Solenoid Wire Attachment
Locate the solenoid adjacent to the battery–it’s typically a cylindrical or square relay with two large posts and two smaller terminals. The large posts correspond to the battery and starter motor; connect the positive (+) battery cable to the solenoid’s input post first, securing it with a locking washer and nut. Torque to 10–12 ft-lbs–over-tightening can strip threads. Attach the starter motor cable to the opposite large post, ensuring the ring terminal faces inward to prevent rubbing against the frame.
For the smaller terminals: one receives the ignition start wire (usually red or purple), the other connects to the safety interlock system (often yellow or green). Match these by referencing the color-coded labels on your tractor’s original harness. If labels are missing, use a multimeter: with the key in the “start” position, the ignition terminal will read 12 volts, while the interlock terminal remains at 0 volts until safety switches (seat, blade engagement, PTO) are engaged. Crimp connectors with heat-shrink tubing for a weatherproof seal–avoid electrical tape alone as it degrades quickly.
After connections are secure, reconnect the negative battery cable last. Test the tractor by turning the key to “start” while observing the solenoid: a single audible click indicates proper engagement; no click suggests a faulty relay (resistance should be under 0.5 ohms between large posts). If the starter cranks slowly, check battery voltage (must be ≥12.4 volts) and cable integrity–replace any cable showing fraying, brittle insulation, or resistance above 0.1 ohms. For intermittent failures, lightly tap the solenoid with a wrench while attempting to start; if it engages, replace the solenoid immediately.
Label all disconnected wires before removal using masking tape and a marker–include terminal locations (e.g., “S1 to dash” or “I to PTO switch”). Store removed nuts and washers in a magnetic tray to prevent loss. Use only OEM-spec 10-12 AWG wire for repairs; thinner gauge causes voltage drop, leading to hard starts or solenoid overheating. For long-term maintenance, inspect connections annually–corrosion is the primary cause of electrical failure in outdoor equipment.
