Begin by identifying pinouts on the device’s rear panel–specifically terminals labeled L1, L2, COM for power input, and A+, A-, B+, B- for control signals. Verify the controller model against the provided schematics; discrepancies in terminal arrangement can lead to short circuits or malfunction. Use a multimeter set to continuity mode to confirm connections before energizing the system.
For AC power supply, ensure the live and neutral wires match the L1 (hot) and COM (common) terminals precisely. Reversing these poles risks damaging internal relays and invalidating warranty coverage. If integrating a 24V DC auxiliary supply, connect +24V to the designated terminal and ground the return wire securely to the chassis or a common earth point.
Signal wiring demands attention to polarity. Mistaking A+ for A- or B+ for B- disrupts communication protocols, causing erratic behavior or no response. Shielded twisted pair cables reduce interference; ground the shield at one end only to prevent ground loops. Use ferrite cores near connectors if operating in high-noise environments like variable frequency drives.
Check the controller’s datasheet for jumper settings. Some applications require configuring jumpers to select between sinking or sourcing inputs. Incorrect jumper placement fuses contacts or renders inputs non-functional. Always isolate power before making adjustments–capacitors retain charge after disconnection.
After wiring, perform a dry run without load. Monitor LED indicators: solid green confirms power stability, blinking red signals faults–refer to the troubleshooting section for specific blink codes. If communication errors persist, swap A/B lines; some protocols tolerate reversed signals but introduce lag or dropouts. Validate control behavior with a known-good signal source before deploying under load.

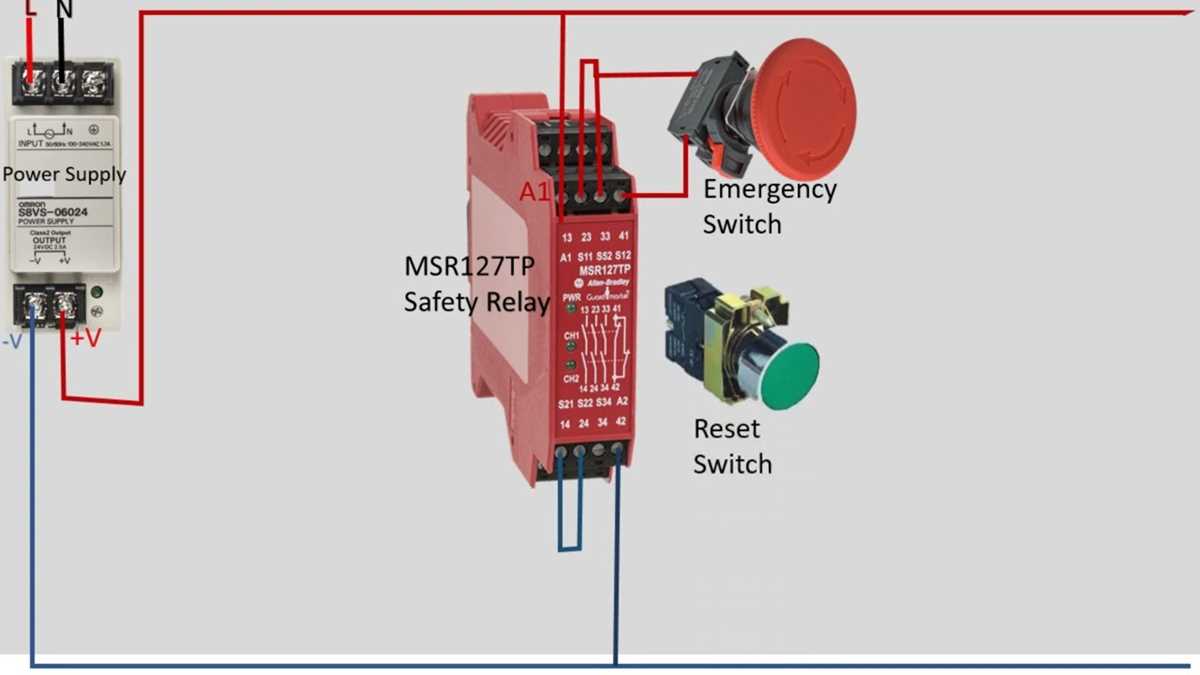

Electrical Connection Guide for the MSR-127-TP Device
Start by identifying the power input terminals on the control panel–these are labeled L (live), N (neutral), and G (ground). Use a multimeter to verify the voltage between L and N is within 110–240V AC before proceeding. Incorrect voltage risks damaging internal components or triggering safety mechanisms.
Connect the communication module via the RS-485 interface using shielded twisted-pair cable. Pin assignments are as follows:
- Pin 1: A (+)
- Pin 2: B (–)
- Pin 3: Ground (optional but recommended for noise reduction)
Keep cable runs under 100 meters to avoid signal degradation; use a repeater if longer distances are required.
For sensor integration, refer to the terminal block marked “S1–S4”:
- S1–S2: Analog input (0–10V or 4–20mA, configurable via dip switches)
- S3–S4: Digital input (dry contact, max 24V DC)
Ensure the sensor’s output matches the configured mode–mismatched settings will result in erroneous readings or device lockup.
Critical Safety Precautions
Always disconnect power before adjusting connections. The device’s internal capacitors can retain charge for up to 30 seconds after shutdown. Check for short circuits between terminals with an ohmmeter if the unit fails to power on. A resistance below 1 ohm indicates a fault requiring isolation.
Use ferrules on stranded wires to prevent fraying and ensure secure contact. For outdoor installations, apply dielectric grease to connectors to prevent corrosion. The device’s IP65 rating does not extend to exposed terminals–use a sealed enclosure if mounted in humid or dusty environments.
Troubleshooting Common Issues
If the display flickers or remains blank:
- Confirm L and N are not reversed (polarity matters for AC input)
- Check for loose terminals–retighten screws to 0.5 Nm torque
- Measure input voltage at the terminals, not the power source
For communication errors, verify the baud rate (default: 9600) and parity settings match the master device. Swap A and B pins if no response is received within 5 seconds.
Key Elements in the Electrical Schematic of the Router Model
Locate the primary power input section first–typically marked near the rear panel. Verify the presence of a fused AC inlet, rated at 250V/10A, ensuring compatibility with regional voltage standards. The transformer stage follows, identifiable by its toroidal or E-core shape, stepping down voltage to 24V AC. Check for labeled terminals: “L” (live), “N” (neutral), and “G” (ground) must align with local safety codes.
Signal Pathways and Control Circuitry
Trace the DC regulation block next, focusing on the rectifier bridge and smoothing capacitor clusters. The 24V AC output converts here to 24V DC, with a ripple no greater than 100mV under full load. Critical components include a 4700µF/35V capacitor and a Schottky diode array (e.g., SB560) handling surge currents. The microcontroller (MCU) occupies the central PCB, interfacing with optocouplers (PC817 or equivalent) for isolated signal transfer. Confirm GPIO pin assignments on the MCU datasheet–MOSI, MISO, and SCK lines govern SPI communications with peripheral modules.
Inspect the Ethernet magnetics section, positioned adjacent to the RJ45 jacks. Each data pair terminates in a pulse transformer (e.g., H1102FNL), ensuring galvanic isolation and impedance matching (100Ω differential). Look for termination resistors (typically 50Ω) soldered directly to the transformer leads–omission here introduces packet loss at gigabit speeds. The PoE module, if present, integrates a DC-DC converter (e.g., TPS54331) with overcurrent protection set to 600mA.
Identify the reset and diagnostic LEDs’ current-limiting resistors. Values range from 470Ω to 1kΩ, chosen based on LED forward voltage (typically 2V for red/green, 3.2V for blue). The boot configuration pins (e.g., BOOT_SEL, JTAG_EN) often default to pulled-high states–use a 10kΩ resistor for stability. For troubleshooting, probe the 3.3V LDO output (e.g., AMS1117) with an oscilloscope; noise above 50mVpp suggests filter capacitor failure or ground loop issues.
Step-by-Step Connection Guide for Interface Input and Output Terminals
Begin by identifying the power supply terminals marked L (live), N (neutral), and ⏚ (ground) on the device’s rear panel. Use a multimeter to confirm the voltage matches the device’s specifications (220-240V AC for most models) before proceeding. Incorrect voltage may cause irreversible damage to internal circuitry or void warranty coverage–double-check polarity if using a polarized plug.
Signal Input Wiring Protocol
Connect analog inputs as follows:
- AI1-AI4: Accept 0-10V DC or 4-20mA signals–verify jumper settings (J1-J4) for voltage/current mode. For voltage input, remove jumper; for current, install it. Use shielded twisted pair cables for distances exceeding 5 meters to minimize noise.
- RTD Input: Supports PT100/PT1000 sensors with 2-, 3-, or 4-wire configurations. Bridge terminals RTD- and RTD+ for 2-wire, or add compensation wires for 3/4-wire. Incorrect wiring will display erratic readings (±5°C deviation).
- Digital In (DI1-DI2): Designed for dry contact closure (max 30V DC). Avoid exceeding 5mA draw–use an external relay for inductive loads to prevent terminal burnout.
Secure all connections with appropriate torque (0.5-0.7 Nm for screw terminals) to prevent loosening from vibration. Loose terminals introduce resistance, leading to measurement errors or intermittent faults. For high-noise environments, ground the cable shield at the device end only–grounding at both ends creates ground loops.
Output Terminal Configuration
Follow these steps for safe output setup:
- Relay Outputs (RO1-RO2): Rated for 250V AC/30V DC, 5A resistive. Verify load type–inductive loads (e.g., solenoids, motors) require flyback diodes (1N4007) or snubbers to protect the relay contacts. Exceeding the rating will weld contacts permanently.
- Analog Output (AO): Supports 0-10V or 4-20mA–configure via firmware (menu: *Outputs > AO*). For current output, ensure a minimum load of 250Ω to prevent open-circuit errors. Short-circuit protection is active but limited to 30mA–use a fuse for higher currents.
- Pulse Output: Open-drain output (max 30V, 100mA). Connect to PLC counters via optocoupler for isolation. Pulse width must exceed 50μs to register reliably.
After wiring, power on the device and perform a dry-run test before connecting to the actual system. Monitor for abnormal heat, sparking, or error codes (E01-E99). If errors persist, consult the fault diagnosis table–common issues include reversed polarity (E12), open circuit (E15), or short on analog inputs (E20). Keep a log of terminal resistance values (0.1-0.3Ω typical) for troubleshooting reference.
Resolving Frequent Connection Issues in Precision Relay Assemblies
Check terminal block polarity first–reversed polarity triggers immediate faults in control circuits, even with low-current signals. Verify pin assignments using a multimeter; model-specific schematics often label inputs and outputs differently across revisions. Misaligned contacts create intermittent failures–not all errors show under static testing.
Inspect crimp quality on stranded conductors. Partial fractures near connectors degrade signal integrity over cycles, escalating voltage drops unnoticed during bench tests. Use a torque screwdriver for terminal screws; under-tightened connections oxidize rapidly under humidity, while over-tightening cracks insulation.
Trace ground loops by probing resistance between neutral and chassis. Ideal readings should stay below 0.5 ohms–any variability indicates corroded busbars or improper bonding. Surface-mounted relays are particularly susceptible; clean interfaces with isopropyl alcohol before reassembly.
Validate load compatibility. Inductive or capacitive loads outside rated specifications cause arcing at switch transitions, evidenced by pitted contacts. Confirm maximum inrush current against manufacturer tables–even transient spikes of 20% above nominal ratings accelerate wear.
Monitor transient suppression. Absent or incorrectly rated varistors lead to voltage spikes damaging digital interfaces. Replace components with exact clamping voltage values–substitutes often fail catastrophically under field conditions.
Test control logic separately from power circuits. Faulty isolation between primary and secondary windings mimics relay failure; differential measurements isolate leakage paths. Use a high-impedance probe to detect ghost voltages interfering with logic thresholds.
Examine cable routing. Sharp bends near terminations stress copper strands, initiating micro-fractures detectable only through TDR testing. Shielded twisted pairs require 360-degree termination–partial shielding invites crosstalk from adjacent high-frequency lines.
Audit firmware revisions. Incompatible versions sometimes reset configurations silently, reverting channels to default states under load. Cross-reference installation dates with release notes to confirm addressed anomalies.
