For optimal performance, route the sensor’s VCC pin to a clean 3.3V supply with a 10µF ceramic capacitor and a 0.1µF decoupling capacitor between VCC and GND. This eliminates noise-induced drift, particularly critical for gyroscopic and accelerometric readings under dynamic conditions.
Connect the SCL and SDA lines to a microcontroller via pull-up resistors–typically 4.7kΩ to 3.3V–ensuring stable I²C communication. Omit these resistors only if the MCU provides internal pull-ups; otherwise, signal integrity degrades at clock speeds above 400kHz.
Ground the AD0 pin to set the I²C address to 0x68. Floating this input risks address conflicts, causing intermittent read failures. For multi-sensor setups, pull AD0 high (to 3.3V) to reassign the address to 0x69, but verify bus capacitance limits to avoid data corruption.
Avoid routing high-current traces (e.g., motor drivers) adjacent to sensor lines. Crosstalk induces false angular velocity spikes, especially during rapid accelerations. Keep signal paths short–ideally under 10cm–and use differential pair routing if noise persists in industrial environments.
For power-sensitive applications, disable the sensor’s internal 8MHz oscillator by pulling the CLKSEL pin low. This cuts current consumption by ~40% but requires an external clock source (e.g., 32kHz crystal) for stable operation. Omitting this step increases warm-up drift.
Test the circuit under real-world conditions: rapid 360° yaw rotations, 2g impacts, and 100Hz vibration bands. Log raw data via serial at 115200 baud; parse temperature registers (0x41) to compensate for thermal drift, which exceeds 0.5°/s/°C without calibration.
Building a Functional Accelerometer-Gyro Circuit: Step-by-Step Wiring
Start by connecting the sensor’s VCC pin to a stable 3.3V or 5V power rail, depending on your microcontroller’s logic levels. A 10µF decoupling capacitor between power and ground at the sensor’s input filters noise–place it as close to the chip as possible to prevent voltage spikes. Avoid longer traces here; inductance from wires can degrade signal integrity. Test the supply voltage with a multimeter before proceeding–fluctuations above ±5% will skew readings.
Route the SCL and SDA lines to your controller’s I²C pins, keeping traces under 10cm to minimize capacitance. Pull-up resistors (typically 4.7kΩ) tie both lines to VCC, but adjust values if communication errors occur–lower resistance (2.2kΩ) helps in noisy environments. For Arduinos, use D20/D21 (Mega) or A5/A4 (Uno); for STM32, check the I²C peripheral pinout. Skip series resistors–they’re unnecessary unless driving long cables (>30cm).
Grounding and Noise Reduction Techniques
Connect the sensor’s ground directly to the board’s ground plane, avoiding shared paths with motors or high-current devices. For analog signals (if using auxiliary outputs), add a separate ground trace to prevent cross-talk. A 0.1µF ceramic capacitor across VCC and ground, alongside the 10µF bulk capacitor, stabilizes transient currents–omit this only if PCB space is critically limited. If jitter persists, add a ferrite bead (e.g., 1kΩ@100MHz) in series with VCC.
For interrupt-driven applications, wire the INT pin to a digital input; configure it for push-pull output in software to avoid false triggers. Leave unused pins (e.g., FSYNC) floating or tie them to ground–external signals here can disrupt internal calibration. Crystals (if applicable) require a clean load capacitance (typically 18pF) but aren’t needed for most eval kits. Test I²C communication first with a simple who-am-I read (0x75 register)–failure here points to power or pull-ups, not wiring.
For 3.3V microcontrollers, use a logic-level converter on I²C lines if the sensor runs at 5V. Never exceed the absolute maximum ratings (VDD: 6V, logic pins: VDD + 0.5V); permanent damage occurs instantly. If soldering to a breakout board, inspect for shorted pins–misaligned headers cause silent failures. Verify all connections with a continuity tester before powering up.
Key Components in Gyroscope-Accelerometer PCB Arrangement
Place the 2.2µF decoupling capacitors directly adjacent to the VDD and VLOGIC pins–maximize copper pour proximity to reduce trace inductance below 1 nH. Use symmetric, minimum-length traces for SDA/SCL lines: 45° angles, 0.15 mm width, matched within 5 mm to prevent phase mismatches at 400 kHz I²C speeds. Ground vias should be positioned no farther than 3 mm from each pad edge, filled with via-in-pad for thermal relief to limit thermal gradients to ±2°C during 30 mA bursts.
Power Integrity & Signal Path Optimization
Isolate analog ground (AGND) from digital (DGND) using a single-point star connection at the 3.3 V source input; keep AGND traces under 1 Ω resistance measured end-to-end to suppress aliasing in high-g scenarios. Route the interrupt line (INT) with a dedicated 10 kΩ pull-up resistor on-chip; ensure the return path for XDA/XCL mirrors SDA/SCL layout rules. For vibration environments, embed the IC in a grounded copper keep-out zone 1.2 mm beyond package perimeter, connected to ground plane via stitching vias spaced ≤ 2.5 mm to attenuate 50 Hz noise pickup by > 20 dB.

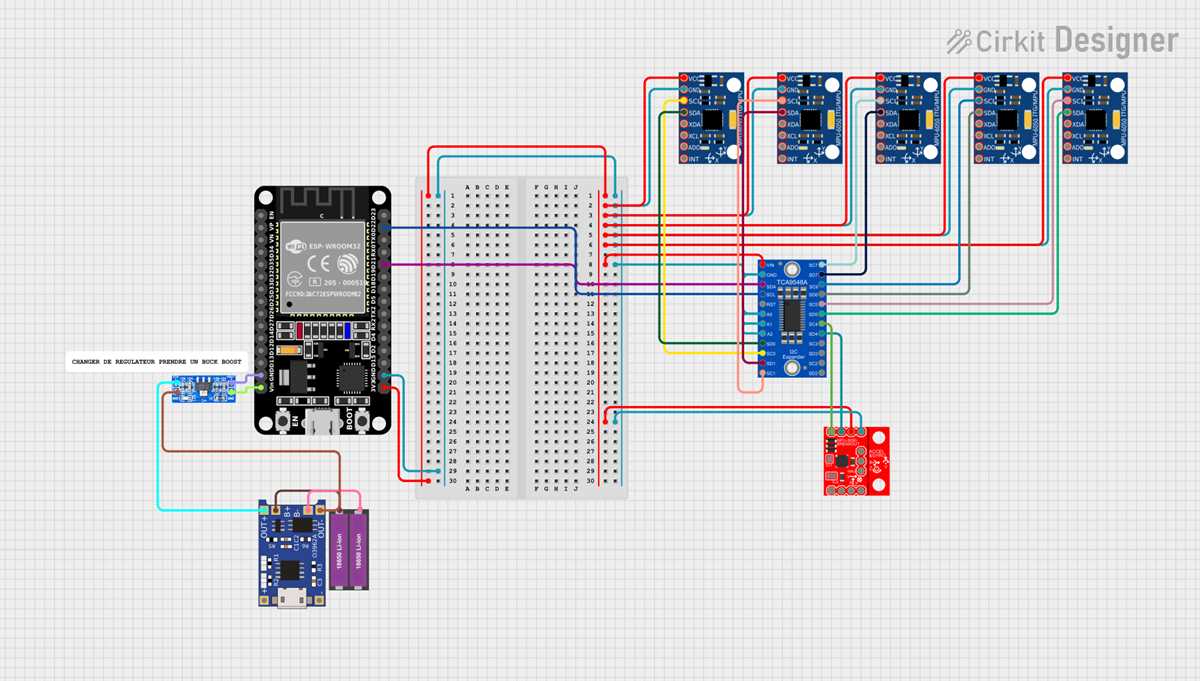

Step-by-Step Wiring for the 6-Axis Motion Tracking Sensor with Microcontrollers
Connect the sensor’s VCC pin to the microcontroller’s 3.3V or 5V output, depending on the module’s voltage tolerance. Most breakout boards tolerate 5V, but verify the datasheet to prevent damage. Use a 4.7µF decoupling capacitor between VCC and GND near the sensor to stabilize power.
Wire the GND pin directly to the microcontroller’s ground. Ensure a common ground for all components to avoid floating reference errors, which cause erratic readings. For noisy environments, add a 0.1µF ceramic capacitor in parallel with the decoupling capacitor.
- SCL → Microcontroller’s I2C clock pin (e.g., A5 on Arduino Uno, GPIO22 on ESP32).
- SDA → Microcontroller’s I2C data pin (e.g., A4 on Arduino Uno, GPIO21 on ESP32).
- Use 4.7kΩ pull-up resistors on both SCL and SDA lines if not already present on the breakout board.
- Avoid exceeding 400kHz I2C speed for stable communication; some clones struggle at 1MHz.
Leave the XDA and XCL pins unconnected unless interfacing with an auxiliary sensor. These alternate I2C lines bypass the primary bus and require separate pull-ups if used. Most applications ignore them to simplify wiring.
For INT (interrupt) functionality, connect it to a digital input pin on the microcontroller. Configure interrupts for events like motion detection or data readiness to reduce polling overhead. Use edge-triggered interrupts instead of level-triggered to prevent missed signals.
- Verify connections with a multimeter for shorts before powering on.
- Upload test code to read raw accelerometer/gyroscope values.
- Check serial output for NaN values, indicating loose wires or incorrect I2C addressing.
- If readings drift excessively, recalibrate offsets in software or add a low-pass filter.
- Secure wires with solder or breadboard anchors in vibrating environments to prevent disconnects.
Power the sensor through the microcontroller’s 3.3V regulator only if current draw remains below 50mA. For higher loads, use an external LDO like a AMS1117 with input from a dedicated power source. Monitor temperature near the sensor–excessive heat degrades gyroscope accuracy.
Critical Errors in Inertial Measurement Unit Circuit Layout
Omitting pull-up resistors on the I²C lines causes intermittent communication failures, especially at bus speeds above 100 kHz. Values between 2.2 kΩ and 4.7 kΩ optimise signal integrity without overloading the master’s drive capability. Place these resistors as close to the sensor’s power pin as physically possible; any trace length beyond 15 mm introduces parasitic capacitance that distorts edges. Verify the bus with a logic analyser at cold start–many designers skip this step and later struggle with dropped transactions after the unit warms to 45 °C.
Incorrect decoupling capacitor placement leads to supply ripple up to 150 mVpp, which directly maps into gyroscope bias drift. A 10 µF tantalum capacitor must sit within 2 mm of the VDD pin; any ceramic capacitor beyond 10 mm fails to suppress high-frequency noise generated by the MEMS oscillator. Additionally, a 100 nF ceramic capacitor placed exactly at the analogue supply pin (not shared with digital VDD) reduces cross-talk on the ADC reference node by 68 %. Ignoring this detail can push the Z-axis rate noise from 0.005 deg/s to 0.03 deg/s RMS.
Signal Chain Missteps
- Via inductance on ground returns injects 30–80 mV of common-mode noise into the accelerometer outputs. Each via adds ≈1.2 nH; stacking three vias beneath a single pad raises the inductance to 3.6 nH, enough to couple switching regulator harmonics into the 25 Hz–5 kHz band. Route ground returns as planar copper pours directly under the sensor footprint.
- Oversized trace widths on the auxiliary I²C lines increase capacitive load beyond the 300 pF limit. A single 75 mm trace, 0.25 mm wide, adds 110 pF; exceeding 300 pF causes the internal rise-time counter to expire and the sensor silently resets. Match trace impedance to 50 Ω; use controlled impedance calculators and pre-fabrication TDR sweeps.
Oscillator instability due to stray electric fields from adjacent components degrades gyro bias stability. Keep switching regulators, microcontrollers, and inductors at least 8 mm away from the crystal pads. A single 1.8 V logic output toggling at 16 MHz, placed 3 mm from the crystal, shifts Allan variance bias instability from 2 deg/hr to 12 deg/hr. Encapsulate the crystal footprint in a grounded copper pour connected to the sensor’s dedicated analogue ground, never the digital return plane.
Power domain mixing corrupts readings during brown-out recovery. The core die requires a separate 1.8 V low-dropout regulator; sharing this rail with the 3.3 V I/O supply causes sporadic accelerometer saturation spikes up to ±4 g when the MCU performs flash writes. Add a π-filter (10 Ω series, 10 µF shunt, 100 nF shunt) on the analogue rail, and enforce power-on sequencing with a single MOSFET gate driver that guarantees the 1.8 V rail reaches 90 % before the 3.3 V rail ramps.
- Measure the I²C rise time with an oscilloscope; the 30 %–70 % transition must stay below 300 ns.
- Probe the analogue supply at the sensor pin with a differential 10× probe to confirm ripple ≤30 mVpp.
- Record a 60-second Allan variance log before layout revisions–any periodic peak at 1.2 s indicates mechanical coupling to the switching regulator frequency.
