Begin by segmenting the backbone into discrete functional zones before defining node roles. Core routers at aggregation points must support penultimate hop popping (PHP) to reduce last-mile processing latency; configure this via RSVP-TE extensions in your LSP parameters. Label distribution between ingress, transit, and egress nodes should follow downstream unsolicited mode for scalability–this avoids the overhead of request-driven signaling while maintaining sub-50ms failover with fast reroute (FRR) bypass tunnels.
Assign interface colors to differentiate traffic classes: gold (EF) for VoIP, silver (AF4) for video, bronze (AF2) for business-critical data, and best-effort (default) for general traffic. Use qos-group or exp markings on ingress interfaces and verify propagation with show mpls forwarding before committing. For multi-area topologies, enforce hierarchical label stacks–outer labels for transport LSPs, inner labels for service differentiation–to prevent label exhaustion on transit nodes.
Place pseudowire (PW) endpoints at edge nodes with dual-homed connections to customer premises equipment (CPE). Ensure PW labels use signaled VC-type 5 for Ethernet and type 4 for TDM, avoiding fragmentation with mtu 1500 on all access links. Validate label bindings with ping mpls pseudowire before activating services; misconfigured PW labels are the primary cause of silent drops in service provider networks.
For resiliency, deploy primary and secondary LSPs with disjoint paths–avoid shared risk link groups (SRLGs) by ensuring fiber routes traverse separate conduits or ducts. Use make-before-break during path updates to prevent micro-loops; confirm stability with traceroute mpls before and after changes. Graphically represent these paths with strict hop constraints in your schematic using color-coded labels: red for primary, blue for backup, gray for TE tunnels.
Annotate each link with bandwidth reservations (e.g., BW 100000 for 100Mbps) and administrative groups (e.g., affinity 0x1 for metro rings). Exclude low-latency links from bulk data LSPs by setting affinity-exclude attributes. For complex meshes, limit transit nodes to 300 active LSPs–exceeding this threshold degrades forwarding performance due to FIB table fragmentation. Verify load distribution with show mpls traffic-eng tunnels summary; imbalance indicates incorrect IGP metrics or constrained routing.
Visualizing Core Network Pathways: A Practical Guide
Label-switched paths (LSPs) must be documented with precise node identification before deployment. Use distinct colors for ingress, transit, and egress routers–hex codes like #FF5733 for head-end, #33FF57 for intermediate hops, and #3357FF for tail-end–to simplify troubleshooting. Annotate each hop with its loopback IP, IGP metric, and RSVP-TE tunnel ID in a legend adjacent to the schematic. Avoid generic labels like “Router A”; replace them with functional names (e.g., “NYC-CORE-01-PE”) that align with device configurations.
Layer the diagram to reflect hierarchy: underlay traffic engineering routes at the bottom, service labels (e.g., VPNv4) in the middle, and application flows (voice, video) on top. Tools like Microsoft Visio or Graphviz can automate edge routing; validate layout by ensuring no crossing lines occur between non-adjacent nodes. For multi-area topologies, group area-border routers in dashed-line clusters with their area IDs clearly marked. Include a timestamp in the footer to track configuration drift.
Anchoring Data with Real-Time Metrics
Embed live monitoring feeds directly into the visual. Use APIs from PRTG or Zabbix to display current bandwidth usage, packet loss, and latency beneath each link. Color-code ranges: green (50%). For high-availability paths, indicate primary/backup routes with solid and dashed lines, respectively, and label failover thresholds (e.g., “SLA: 50ms max”). Hide internal labels for security; publish only public-facing interfaces.
For multi-provider domains, demarcate autonomous system boundaries with thick red lines and annotate peering points (e.g., “IXP: DECIX-FRA”). Overlay BGP community tags and route-targets near each edge router to correlate with policy maps. If using segment routing, append prefix-SIDs to node labels in brackets (e.g., “SF-PE-02 [16002]”). Exclude unused interfaces to reduce visual noise; focus only on active paths.
Static images fail during outages. Generate dynamic SVGs with JavaScript triggers to highlight faulty links when thresholds breach. Host these on internal wikis with version control; mandate updates after every configuration change. For compliance audits, overlay a 200-point grid on the canvas and assign each device a unique coordinate to facilitate cross-referencing with inventory logs.
Post-implementation, validate the schematic by tracing a sample packet flow from ingress to egress using Wireshark. Capture screenshots of each hop’s forwarding table and attach them as pop-ups to the corresponding router icon. Audit trails should include RFC references for protocols depicted, such as RFC 3031 for base forwarding logic or RFC 3209 for RSVP-TE extensions. Store archives in PDF/A format for tamper-evident records.
Critical Elements of a Label-Switched Network Schematic
Begin by labeling each provider edge (PE) router with its loopback IP and role–core, aggregation, or access–to avoid misconfiguration during deployment. Use distinct color-coding for data plane (green) and control plane (blue) links; this separation prevents operational errors when troubleshooting under load. Include vendor-specific MPLS stack limits in a compact table beneath router symbols for quick reference:
| Vendor | Max Labels (Hardware) | Supported Signaling Protocols |
|---|---|---|
| Cisco | 12 | LDP, RSVP-TE, BGP-LU |
| Juniper | 8 | LDP, RSVP-TE, BGP-LU |
| Huawei | 10 | LDP, RSVP-TE, BGP-EVPN |
Place customer edge (CE) devices directly adjacent to PE routers, explicitly marking VLAN IDs and circuit IDs on sub-interfaces to ensure accurate traffic mapping. Embed OSPF area IDs and IS-IS levels within router symbols–omit these details only if the network uses BGP exclusively for label distribution. For service providers, overlay pseudowire IDs (20-bit hex) next to logical connections to enable swift cross-reference with provisioning systems.
Step-by-Step Guide to Illustrating a Packet-Forwarding Label Route

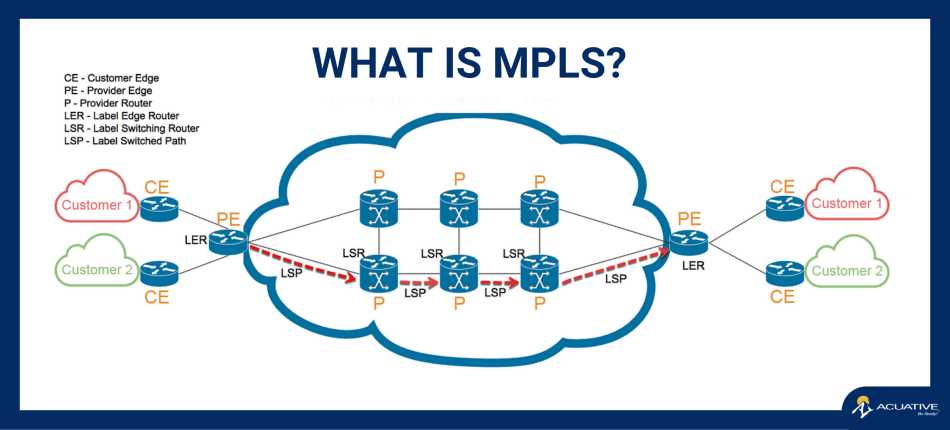

Begin by mapping the network nodes involved in the path. Identify ingress, transit, and egress routers on a whiteboard or diagramming tool. Label each device with its loopback IP or system name for clarity. Use standardized icons–rectangles for routers, directed arrows for links–to maintain consistency. Annotate link speeds (e.g., 1G, 10G) beside each connection to later validate bandwidth requirements.
Plot the primary path first. Draw a thick solid arrow connecting ingress to egress via transit nodes, ensuring it follows the interior gateway protocol’s least-cost path (e.g., OSPF/IS-IS). Add backup routes as dashed arrows, diverging at critical junctures. Indicate CSPF constraints–like link colors or administrative groups–using color-coded highlights along the arrows. Avoid diagonal lines; keep paths horizontal or vertical for readability.
Label Stack Construction
- Assign a unique 20-bit identifier for each hop’s swap operation, starting at the ingress node. Use values above 16 to avoid reserved ranges.
- Write the push/pop/swap actions beside each router: “Push 300” for ingress, “Swap 300→302” for transit, “Pop” for egress.
- Include a secondary label stack for fast reroute (FRR) scenarios. Place FRR labels below the primary ones in parentheses, e.g., “(500).”
- Verify labels against LDP/TDP assignments using
show mpls forwardingoutput to prevent mismatches.
Embed control plane protocols next. Add small text boxes near ingress and transit nodes listing:
- Label Distribution Protocol (LDP) adjacencies.
- RSVP-TE session IDs if traffic engineering is enabled.
- BGP next-hop for labeled prefixes (e.g., VPNv4 routes).
Use distinct shapes–circles for LDP, hexagons for RSVP–to differentiate protocols at a glance.
Validate the path with real-time telemetry. Overlay ping/traceroute results directly on the diagram, noting latency and jitter in milliseconds. Mark ECMP branches if they exist, splitting arrows into parallel paths. For consistency, keep time-sensitive data in a single corner of the diagram (e.g., bottom right) within a shaded box.
Final Refinement Checklist
Common Symbols and Notations in Provider Label Switching Network Visuals
Adopt standardized icons to ensure clarity across schematic representations. A router is typically depicted as a rectangle with “R” or an angled arrow indicating forwarding direction, while label edge routers (LERs) often include a small square at the input/output port. Label switch paths (LSPs) use thick solid or dashed arrows–solid for primary routes, dashed for backup–with directional annotations like “→ LSP 101” to denote flow. Service labels employ stacked ovals or circles, each containing a numeric identifier (e.g., “16” for VPN), positioned adjacent to the relevant node. Avoid color-coding confusion by limiting palettes to three shades: green for active paths, amber for standby, and red strictly for critical alerts or failures.
Use consistent typography for node identifiers–monospace fonts (e.g., Courier) for IP addresses (“10.0.0.1”), sans-serif (e.g., Arial) for labels (“PE2”), and lowercase for operational states (“up,” “down”). Explicitly define acronyms in the legend (e.g., “P: Provider Core,” “C: Customer Edge”) to eliminate ambiguity. For multi-layer networks, overlay symbols: a dotted box signifies a virtual private LAN segment, while a crow’s foot connector denotes one-to-many relationships. Always align symbols orthogonally; diagonal lines obscure hierarchical structure. Validate schematics against RFC 5511 symbols or vendor-specific templates (Cisco/Juniper) to prevent misinterpretation during troubleshooting.
