Start by identifying the main power source–typically a 12V battery–and trace its connections to the ignition switch, fuse block, and key components like the starter relay and lighting system. Use a multimeter to verify voltage at each junction before disassembling anything. A common pitfall is assuming all voltage readings match the nominal system voltage; slight drops (0.5V–1V) across connections are normal, but deviations beyond 2V indicate corrosion or loose terminals.
Sketch the existing circuit on grid paper or digital schematic software before modifications. Label every wire with its gauge, color code, and function–ISO standards (e.g., black/white for ground, red for switched power) simplify troubleshooting later. Replace generic connectors with weatherproof variants rated for ATC/ATM fuses if the bike operates in humid or off-road conditions. Cut wires cleanly at 45° angles with crimpers instead of scissors to prevent fraying and ensure a secure crimp.
For LED upgrades, calculate total amperage draw (P = VI, I = P/V) to select the correct fuse rating. Most stock circuits handle 10–20A, but high-output accessories (e.g., auxiliary lights) may require a relay-triggered sub-circuit. Install a diode (1N4007) across relays to prevent backflow voltage spike damage to the ECU. Test each segment under load–static checks won’t reveal intermittent faults like chafed insulation rubbing against the frame.
Color-code deviations from factory schematics in red or yellow to avoid confusion during future repairs. Archive the final schematic as a PDF with embedded notes on wire lengths, torque specs for terminal screws (3–5 Nm), and OEM part numbers for sensors. If splicing is unavoidable, use solder and heat-shrink tubing rated for 600V, not electrical tape–vibration will loosen tape over time.
Understanding Electrical Layouts for Two-Wheel Machines
Start by identifying the battery’s ground and positive terminals–trace these leads first, as they form the backbone of the entire circuit. Most modern systems use a 12-volt setup, but verify this against your model’s specifications; some vintage units operate on 6 volts, which demands thicker gauge cables to prevent voltage drop. Label each connection with heat-shrink tubing marked in permanent ink–avoid masking tape, which degrades under heat and vibration. For intricate setups (e.g., aftermarket ignition or LED upgrades), a multimeter set to continuity mode will confirm solid joins without ghost loads.
Prioritize fuse placement: position fuses within 15cm of the power source (typically the battery or ignition switch) to protect the entire network from shorts. Standard fuse ratings range between 5 to 20 amps; refer to the OEM manual for exact values–custom setups may require recalibration based on component draw. Use blade-type fuses for reliability; spade or glass versions fail under high-temperature cycling common in engine compartments. When routing cables, separate signal wires (e.g., sensors) from power cables (e.g., headlights) by at least 5cm to minimize interference. Secure all lines with zip ties every 10-12cm, avoiding kinks near sharp edges or moving parts like suspension linkages.
Document every adjustment in a detailed schematic: sketch bifurcations, splice points, and connector types (e.g., bullet, Deutsch, or blade terminals) with color-coded lines matching the actual wires. Store this reference alongside a spare set of fuses and a 2-meter section of 14-16 AWG primary wire for emergencies. Replace worn connectors immediately–corroded terminals increase resistance, leading to overheating or intermittent failures. Test the entire setup under load by running the engine and toggling accessories; voltage at endpoints should remain within 0.5 volts of the battery’s reading.
Interpreting a Fundamental Two-Wheeler Electrical Blueprint

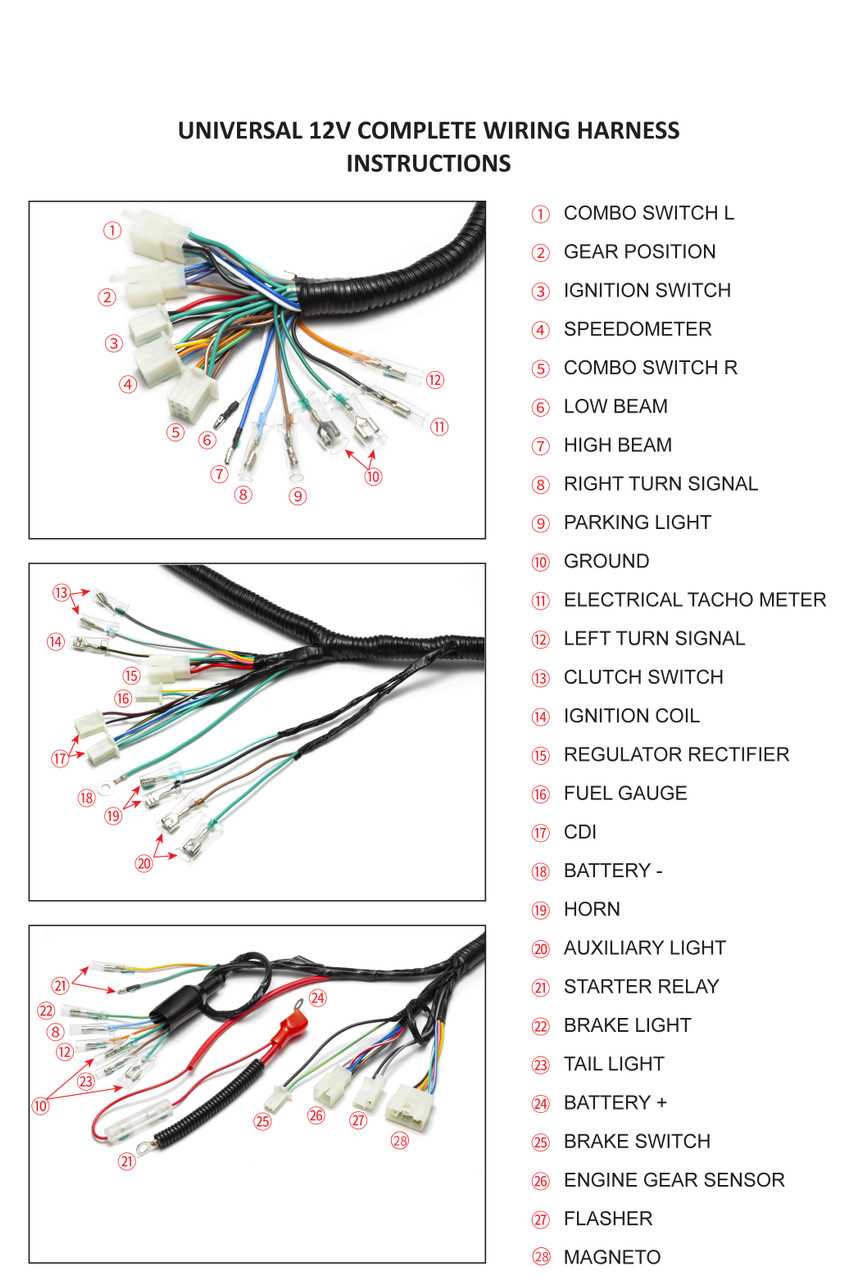

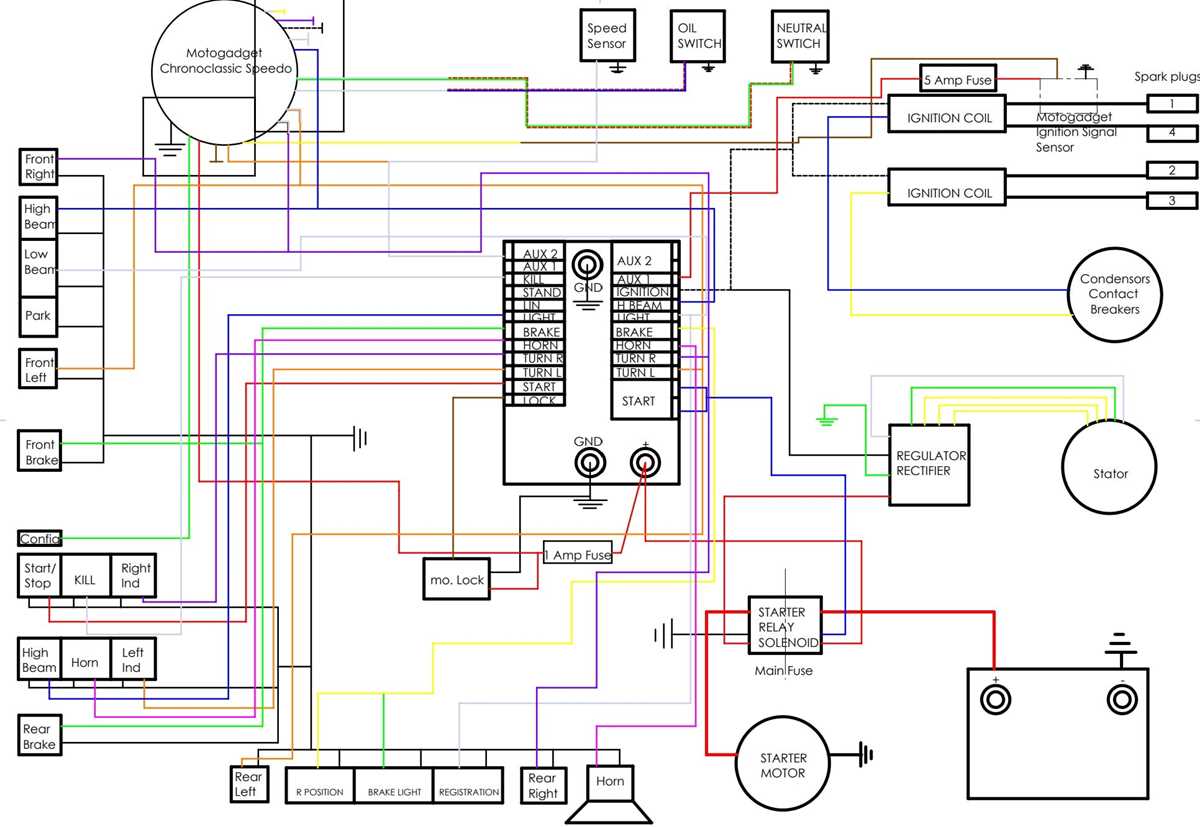

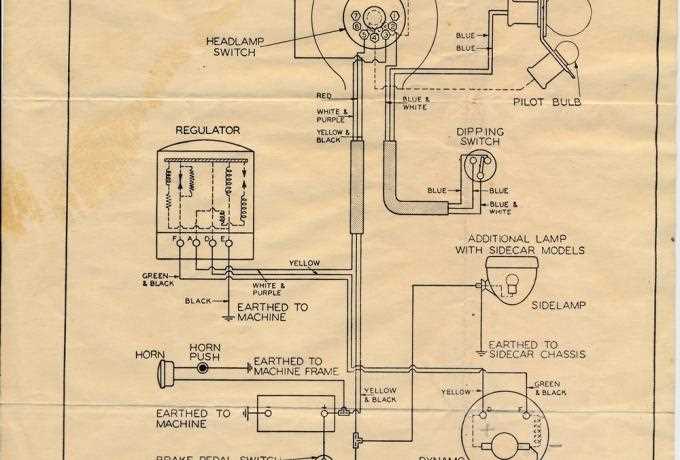

Start by locating the power source–typically a battery symbol–at the top or left edge of the schematic. Follow the main feed line downward or horizontally, noting color codes printed alongside each conductor. Black usually denotes ground, red signifies unswitched 12V+, and yellow or green often carry switched ignition or lighting feeds. Trace each color-coded path to its termination point–bulbs, relays, or ECUs–to confirm continuity.
Identify each switch block by its ladder-like appearance; vertical lines represent internal contacts, while diagonal connections indicate throw positions. For example, a headlamp switch may show three diagonals linking one input red wire to three output paths: high beam, low beam, and parking position. Cross-reference the legend if symbols remain ambiguous: a circle usually marks a light bulb, a zig-zag indicates a resistor or fuse, and a rectangular box often flags a relay coil or electronic module.
Use the table below to match common European and Japanese color abbreviations against their functional roles:
| Schematic Color | Japanese Conductor Hue | European Conductor Hue | Typical Function |
|---|---|---|---|
| R | Red | Red | 12V+ constant |
| B | Black | Black/Brown | Ground |
| Y | Yellow | Yellow | Ignition-switched 12V+ |
| G | Green | Green/White | A.C. generator output |
| W | White | Blue | Stop/brake lamp feed |
Break circuits into smaller segments: begin at the alternator or stator, then move to the regulator/rectifier, main fuse, ignition barrel, and finally each branch line. Mark each branch label–fuel pump, turn signals, horn–to isolate segments for testing. A segmented approach reduces error risk during continuity checks with a multimeter.
Pay attention to dashed lines or dotted rectangles; these often represent shielded harnesses protecting sensor signals like throttle position or O2 readings from electromagnetic interference. Probe the shield’s drain wire separately–it should terminate at chassis ground, not the sensor ground–to prevent signal noise from corrupting critical inputs.
If a fuse symbol appears twice–once before a relay and once after–measure voltage on both sides while energizing the relay coil. A consistent 12.6V before the fuse and zero after indicates a blown fuse; identical readings confirm the circuit remains intact. Swap suspect fuses with known-good substitutes rated at the exact amperage stated on the schematic margin.
Cross-check harness termination points against a physical tear-down. Remove the seat, tank, or side covers to expose connectors; tug gently on each terminal to ensure crimp integrity. Corrosion on male spade connectors often manifests as white powder; clean with electrical contact cleaner and dielectric grease before reassembly to avoid future voltage drops.
Essential Gear for Diagnosing and Fixing Two-Wheeler Electrical Circuits
Start with a multimeter capable of measuring voltage, resistance, and continuity. Models like the Fluke 87V or Klein Tools MM700 offer precision down to 0.05 ohms, critical for detecting high-resistance faults in thin-gauge leads. Avoid budget meters with slow response times–they’ll miss intermittent opens in pulse-width modulated signals. Set the dial to the lowest voltage range (e.g., 200mV) for probing sensitive ECM circuits without risking damage.
A test light with a sharp probe (non-led, 12V rated) confirms live feeds faster than a multimeter when chasing power distribution issues. Pair it with a ground clamp to eliminate false negatives from poor chassis bonds. For dense harness areas–for example, near the ignition switch–use a flexible probe extension (6″ stainless steel, insulated) to reach tight spots without stripping insulation.
Keep a set of heat-shrink tubing assortments in 2:1 and 3:1 ratios, with diameters ranging from 1.5mm to 12mm. Polyolefin variants rated for 125°C resist vibration better than PVC and bond permanently under a 60W soldering iron’s heat. For quick repairs, carry adhesive-lined butt connectors in AWG 20, 18, and 16 sizes–crimp them using a ratcheting crimper (e.g., IWISS SN-24B) to ensure uniform pressure and prevent cold joints.
Magnifying visor or head-mounted loupes (5x power) reveal micro-fractures in solder joints and corrosion on terminal blades. Illuminated models with adjustable interpupillary distance reduce eye strain when inspecting junction blocks. For tracking signal paths, use a tone generator and inductive probe (e.g., Extech 480836); it traces live circuits behind fairings without direct contact, sparing fragile clips.
Wire strippers with self-adjusting blades (e.g., Knipex 12 82 180) prevent nicks in silicone-insulated conductors, which can fail under thermal cycling. For stubborn corroded terminals, apply dielectric grease (Dow Corning 4 or Permatex 22058) after cleaning with a brass bristle brush–never steel wool, as residual fibers cause shorts. When soldering, use lead-free rosin-core wire (0.5mm diameter) to avoid brittle joints that crack under vibration.
Store tools in a roll-up organizer with labeled pockets–3/8″ sockets for terminal nuts, torx drivers for security screws on ECU covers, and a hook spanner for stubborn relay bases. A thermal imager (even a basic Seek Thermal CompactXR) spots hotspots in crimped connectors before failures occur. Document every repair with circuit-labeled sticky flags on the harness itself; digital photos fade, but physical tags survive multiple teardowns.
Step-by-Step Guide to Tracking Down Electrical Shorts in Two-Wheeler Cables
Disconnect the battery terminals immediately to prevent further damage or fire risk. Label each connector with masking tape before removal to simplify reassembly. Inspect the harness for visible burns, melted insulation, or discolored copper strands–these indicate the short’s origin.
Use a multimeter set to continuity mode. Probe suspected circuits by attaching one lead to ground and the other to each wire within the bundle. A beep confirms a direct path to ground, pinpointing the faulty line. Work systematically from the power source outward to isolate the affected segment.
Check connectors for corrosion or bent pins. Apply dielectric grease to cleaned contacts and reseat them firmly. Loose or oxidized terminals often mimic short circuits by disrupting current flow without actual insulation failure.
Examine the harness where it passes through tight bends, rub points, or near sharp edges. Flex the cables gently while monitoring the multimeter–intermittent shorts reveal themselves through fluctuating readings. Reinforce these areas with split-loom tubing or electrical tape to prevent future chafing.
Key Tools for Diagnosis
- Multimeter (continuity and voltage modes)
- Circuit tester with probe
- Wire strippers and crimping tool
- Heat shrink tubing or liquid electrical tape
- Flashlight with narrow beam
- Insulated gloves and safety glasses
Trace the circuit backward from the component to the fuse box. Remove the cover and inspect the fuse slots–blackened residues or blown fuses suggest high-current events. Replace fuses only after identifying the root cause to avoid repeated failures.
For hidden shorts, feed a low-current signal through the suspect wire using a 12V test light. Follow the light’s glow to locate where the wire contacts the chassis. This method works without risking overheating damaged sections.
Document every step in a notebook or schematic sketch. Note wire colors, connector types, and test results to reference during repairs. After fixing, reconnect the battery and test each function individually–headlights, indicators, ignition–to ensure no secondary issues remain.
