Begin by connecting the control circuit’s main supply line to the overload relay’s input terminal, typically marked L1, L2, L3. Use 14 AWG copper wire for currents under 20A and 12 AWG for loads between 20A–30A. Secure each connection with a torque wrench set to 1.2 Nm to prevent loosening under vibration–common in 3-phase setups rated at 480V.
Route the auxiliary contact wires (95–96 for normally closed, 97–98 for normally open) to the pushbutton station. Label each conductor at both ends with heat-shrink sleeves to avoid miswiring during maintenance. If integrating a reversing assembly, split the coil circuit into forward/reverse branches, ensuring interlocking via an additional relay to prevent simultaneous activation.
For soft-start configurations, splice the acceleration timer’s output into the coil circuit, setting the ramp duration based on inertia: 3–5 seconds for centrifugal pumps, 8–12 seconds for conveyor belts. Verify phase rotation before energizing–swap any two supply leads if the shaft spins backward. Ground the enclosure’s bonding stud separately from the neutral bus to meet NEC 250.146 requirements.
Test continuity with a multimeter (<1Ω across closed contacts) before applying voltage. Use a megohmmeter to check insulation resistance; readings must exceed 1 MΩ between conductors and ground. For 60Hz systems, confirm the overload relay’s trip class (Class 10 for pumps, Class 20 for crushers) matches the load’s starting profile to prevent nuisance tripping.
Electrical Activation Circuit Layout Guide
Always connect the overload relay downstream of the contactor to prevent nuisance tripping during inrush currents. Use a 1.5x full-load current rating for the relay in continuous duty applications, and verify the trip class (Class 10 for standard industrial drives) matches the load characteristics.
For three-phase induction drives under 10 HP, a direct-on-line (DOL) arrangement requires these conductor sizes based on NEC Table 430.250:
| Horsepower | 208V (AWG) | 230V (AWG) | 460V (AWG) |
|---|---|---|---|
| 1 | 14 | 14 | 14 |
| 2 | 12 | 12 | 14 |
| 5 | 10 | 10 | 12 |
| 7.5 | 8 | 8 | 10 |
| 10 | 6 | 6 | 8 |
Separate control and power circuits using distinct colors: black for phase conductors, blue for neutral (if present), and yellow/green for grounding. For 24VDC control loops, use 18 AWG minimum to limit voltage drop to under 3% across 100 feet of run.
Install auxiliary contacts in parallel with the main contactor coil for seal-in circuits. For reversing arrangements, interlock mechanically and electrically–use two NC contacts from the opposing contactor wired in series with each coil to prevent simultaneous engagement.
Test insulation resistance before energizing with a 500V megohmmeter; minimum acceptable values are 1MΩ for windings, 2MΩ for cables. Verify phase rotation with a rotation tester–incorrect sequence can destroy pumps, compressors, or fans within seconds.
For soft-start applications, connect semiconductor devices upstream of the contactor and program ramp times to 5-10 seconds to limit current surges to 300% of FLA. Bypass the soft start with a standard contactor once the drive reaches full speed to prevent semiconductor overheating.
Label all terminals per NEMA ICS 2-2019: L1/L2/L3 for line input, T1/T2/T3 for load output, A1/A2 for coil, 95/96/97/98 for auxiliary contacts. Include a schematic adjacent to the assembly with fault codes and troubleshooting steps for maintenance personnel.

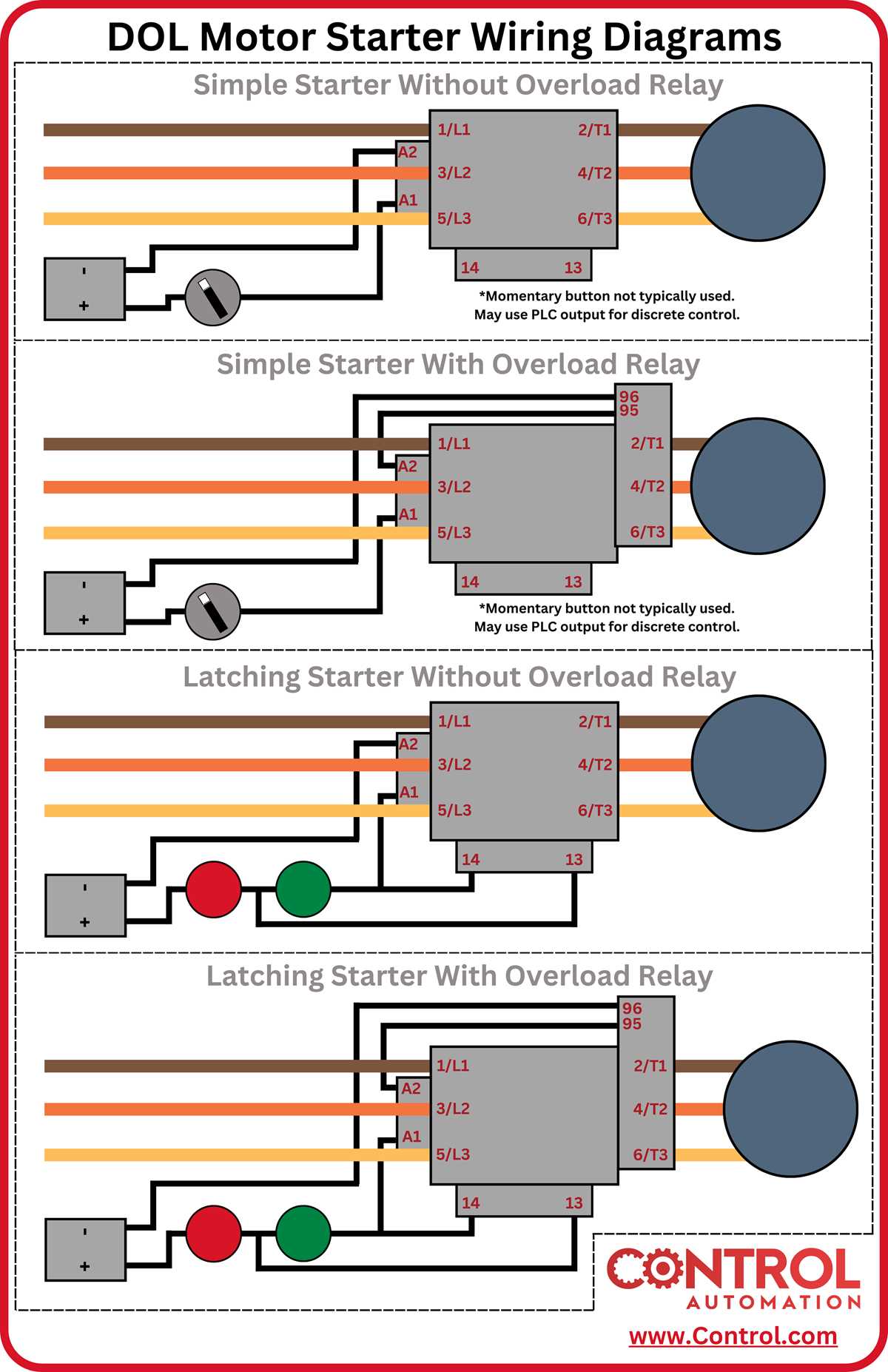

Core Elements of a Direct-On-Line Activation Schematic
Begin by verifying the main contactor’s poles accommodate the drive system’s current rating–typically 1.5 to 2 times the full-load amperage to prevent overheating under locked-rotor conditions. Use Class 10 overload relays for standard duty cycles, as they trip within 10 seconds at 600% overload, balancing protection with operational continuity. Ensure the control circuit fuse is rated at 5A or lower, depending on auxiliary relay coil currents, to isolate faults without damaging upstream components.
Position the start/stop pushbuttons in the auxiliary circuit with normally open (NO) contacts for the start switch and a normally closed (NC) configuration for the stop button–this prevents latching failures if wiring loosens. For 400V three-phase supplies, install a 48V AC control transformer to reduce shock hazards for maintenance personnel, adhering to IEC 60204 safety standards. Include a mechanical interlock between the contactor’s latching mechanism and emergency stop button to ensure instant disconnection during faults, bypassing any reliance on software or firmware logic.
Label every terminal block with engraved phenolic tags, specifying phase sequence (L1/L2/L3), neutral (if applicable), and grounding points to avoid miswiring during commissioning or repairs–mismatched phases can lead to reverse rotation or thermal overloads. For induction drives above 7.5 kW, incorporate a soft-start bypass contactor to avoid voltage sags on the local grid during inrush, ensuring compliance with utility regulations like IEEE 519. Test the thermal trip curve of the overload relay annually with a calibrated ammeter, confirming it matches the manufacturer’s trip class within ±5% tolerance at 200%, 400%, and 600% current levels.

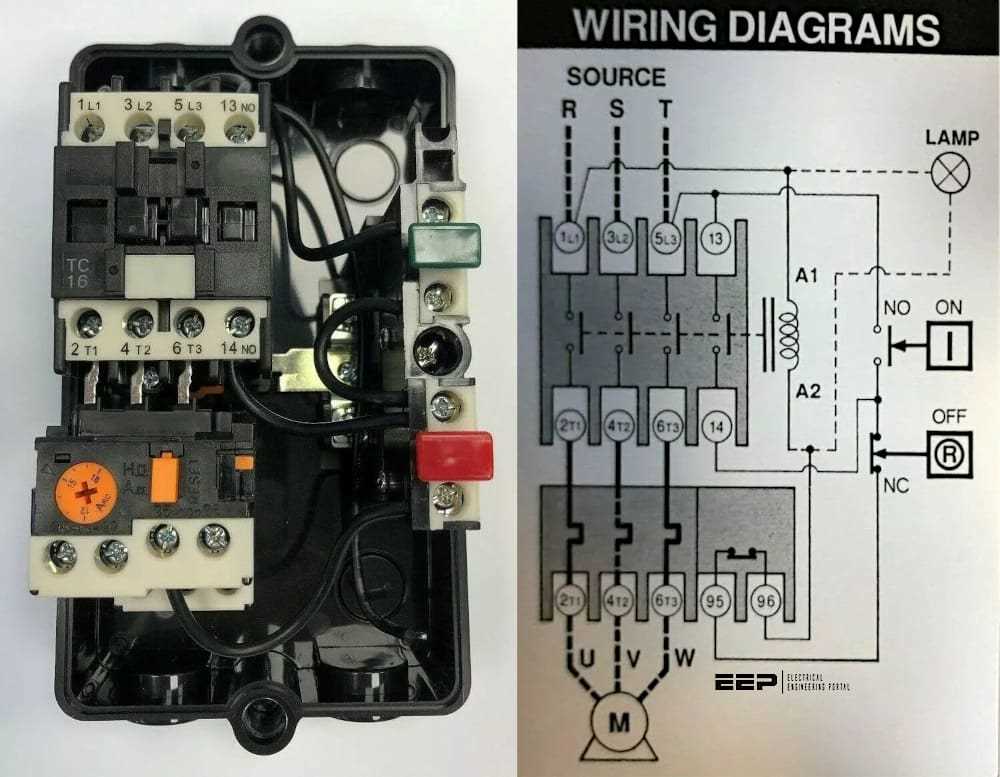

Direct Assembly Guide for a Tri-Phase Power Actuator
Begin by securing the overload relay base adjacent to the contactor block, ensuring the mounting surface is free of dust or conductive debris. Connect the incoming line conductors (L1, L2, L3) to the upper terminals of the main switching device, torquing each screw to 12-15 Nm–verify tightness with a calibrated wrench to prevent thermal failure. Route the downstream conductors from the relay’s lower outputs to the actuator’s terminal box, matching phase order strictly (e.g., L1→T1, L2→T2) to prevent rotational reversals. Install a dedicated auxiliary contact rated for 690VAC if remote status indication is required, wiring it in parallel with the coil circuit.
Safety-Critical Connection Checks
Engage the circuit breaker’s trip mechanism and measure continuity across all phase pairs at the actuator’s terminals; readings should align with the manufacturer’s impedance specifications (±5%). Attach a clamp meter to each conductor while the system operates under no-load conditions, confirming current draw does not exceed 110% of the actuator’s rated FLC (full-load current). Seal the junction box with IP65-rated gaskets and apply dielectric grease to all terminal blocks exposed to outdoor environments to mitigate corrosion. Document the phase sequence with a permanent marker on the enclosure lid for future troubleshooting.
Critical Errors in Power Activation Circuit Assembly
Incorrectly matching conductor sizes to overload relays causes premature failure. Use AWG 14 for 1HP drives, AWG 12 for 2HP, and AWG 10 for 3HP units. Skipping this triggers overheating within 45 minutes of continuous operation. Always cross-reference the relay’s trip curve with the conductor’s ampacity before termination.
Terminal Misalignment Risks
Swapping line and load connections on contactors reverses polarity, damaging sensitive load-side equipment. Verify voltage phase rotation with a meter before energizing. Mark L1/T1, L2/T2, L3/T3 terminals permanently–magnetic interference from adjacent coils can erase temporary labels within weeks.
Neglecting auxiliary contacts during installation disrupts PLC feedback loops. Wire normally-open contacts in series for safety circuits; normally-closed require parallel paths. Test continuity at 0.5V DC to confirm spring tension–corroded contacts with >0.3Ω resistance cause erratic shutdowns under load. Replace components showing visible pitting or discoloration immediately.
Interpreting Symbols and Markings in Activation Circuit Blueprints
Begin by locating the power source indicator–typically a battery or supply terminal labeled “L” followed by a number (e.g., L1, L2, L3). These denote phase lines in three-phase setups, while single-phase systems often show just L1 and N for neutral. Verify voltage ratings adjacent to these markers to avoid mismatches during assembly.
Identify coil activators by their circular symbols with diagonal lines; the accompanying label (e.g., “A1/A2”) pinpoints connection points. Overload relays appear as rectangular blocks with thermal element notations (often “95/96”)–check for normally closed (NC) or normally open (NO) contacts to determine operational behavior under fault conditions.
- Contactors use standardized numbering:
1-2/3-4for control circuits,5-6/7-8for auxiliary contacts. - Pushbuttons show momentary action via arrows; “START” buttons are NO, “STOP” are NC.
- Fuses are represented by elongated rectangles with designation codes like “FU” plus a sequence number.
Trace the control loop from power entry through safety devices (e.g., circuit breakers, thermal cutouts) to the device being energized. Hidden jumpers or shunt wires are marked with dashed lines–note their endpoints, as they often bridge critical components like interlocks or auxiliary switches.
Ground symbols vary by region: zigzag (IEC), horizontal line with descending lines (NEMA), or a bold letter “E” (some Asian standards). Always cross-reference with local codes–mixing conventions risks unsafe isolation. Look for supplementary labels like “PE” for protective earth.
Relay logic symbols follow consistent patterns:
- NO contacts: a break in the line with an open gap.
- NC contacts: a solid line with intersecting diagonal.
- Timed contacts: either NO/NC with a “T” suffix (e.g., “55/56T”).
Current transformers (CTs) appear as circles with winding notations–primary leads marked “P1/P2,” secondary “S1/S2.” Ensure correct polarity; reversed connections distort readings in protection circuits. For variable-frequency drives, look for arrow-marked output terminals labeled “U/V/W.”
Cable designations include:
- “X” for cross-sectional area (mm²)
- “R” for color codes (e.g., R=red, BL=black)
- “+/-” for DC polarity
If labels are missing, use a multimeter set to continuity mode to trace connections, but only after confirming zero voltage on all conductors.
