Start by identifying the power source connections. Locate the main supply lines–typically marked L1, L2, and L3 for three-phase setups or Live and Neutral for single-phase. Verify the voltage rating matches the system requirements; industrial rotary machines often require 400V or 230V. Incorrect voltage will cause immediate failure or long-term damage to windings.
Trace the current flow from the input terminals to the control circuit. Look for contactors, relays, or solid-state switches–these regulate start/stop functions and overload protection. Each relay coil should connect to a control voltage, usually 24V or 110V; mismatched values will prevent activation. Thermal overloads (usually shown as bimetallic strips or current sensors) must sit in series with the main power path to cut supply under excessive load.
Examine the winding configuration–star (Y) or delta (Δ). Star connections split the line voltage by √3 (e.g., 400V line-to-line becomes 230V line-to-neutral), reducing inrush current. Delta setups apply full line voltage across each coil, boosting torque but increasing startup stress. Check for dedicated starting windings or capacitors in single-phase designs; these create phase shifts to initiate rotation.
Pinpoint auxiliary components: cooling fans, encoders, or brake circuits. Fans often link directly to power terminals but may require separate thermal switches to engage. Encoders typically connect via dedicated signal wires (A, B, Z outputs); corrupt signals disrupt closed-loop control. Brakes use DC coils or electromagnets; confirm voltage compatibility (e.g., 24V DC) and ensure capacitor discharge circuits exist to avoid residual torque.
Cross-reference wire colors with documentation. European standards (IEC 60204) use brown (L1), black (L2), grey (L3), and blue (neutral). North American schemes (NFPA 79) favor black, red, blue, and white. Grounding must connect to a green/yellow striped conductor; omit this and risk catastrophic faults. Use a multimeter to validate continuity before energizing.
Understanding Electrical Component Layouts
Begin by identifying the power source connection points–these are typically marked with thick lines or bold symbols on the technical drawing. Check for voltage ratings and ensure the input matches your system requirements (e.g., 12V, 24V, or 48V DC, or standard AC mains). Mismatched power can lead to immediate failure or long-term damage to windings, bearings, or control circuitry.
Key Symbols and Their Real-World Function
Locate the coil symbol–often represented by a series of arcs or a letter “M” within a circle–and trace the path to the commutator or controller. This route dictates how current flows through the rotor; interruptions here cause erratic behavior or no-start conditions. For AC variants, search for capacitor symbols (two parallel lines next to a curved line) as they influence phase shifting and torque output.
Examine switching elements like relays or transistors, usually drawn as a switch with an attached arrow or a semiconductor symbol. These components regulate engagement cycles; faulty connections here result in overheating or premature wear. Measure continuity across contacts if the unit exhibits intermittent operation–replace components if resistance exceeds 5 ohms.
Cross-reference color codes on wiring harnesses with the technical layout–red typically denotes positive polarity, black is ground, and yellow or blue often signal control lines. Deviations from this standard may indicate custom modifications; document these variations before servicing to avoid short circuits or incorrect terminations.
Key Elements of Electrical Representations and Standardized Notations
Begin by identifying the stator winding (⏦⏧), typically depicted as a series of interconnected coils forming a circular or U-shaped pattern–ensure polarity markings (+/−) align with the intended rotational direction. For rotating assemblies (⭮), use the standard symbol of two concentric circles with a diagonal line; brushless variants omit the central dot. Commutators (⏣) require exact segment counts in the drawing: a 3-segment symbol represents a two-pole device, while 6 segments denote a four-pole configuration–mismatches here cause phase errors.
- Power sources: DC (–⎓) or AC (~⎓) must be labeled with voltage (±24V, 110V, 230V) and frequency (50Hz/60Hz); inaccuracies risk insulation failure.
- Protection devices:
- Thermal cutouts (⎯⎯□⎯⎯) – mark trip curves (e.g., 10A at 85°C).
- Fuses (⏚) – specify I²t ratings; time-delay variants need distinct dashed lines.
- Control circuits:
- Use arrow-headed lines for feedback loops.
- Label Hall sensors (□⭊) with angular offsets (120° for BLDC).
Validate cross-references between symbols and bill-of-materials–a missing capacitor (–⏥–) in the snubber circuit induces surge currents >3× nominal.
How to Read Wiring Connections in Electrical Blueprints
Locate the power source first. In industrial blueprints, it’s typically marked with a bold line, often labeled “L” (live) or “V” (voltage) followed by a number. Neutral and ground wires appear as thinner lines or dashed patterns. Trace these lines downstream to identify switches, relays, or contactors before reaching the load components.
Identify symbols for terminal points. Squares or circles with numbers indicate connection points. Cross-reference these numbers with the legend–most technical drawings list terminal assignments in a corner or on a separate sheet. For example, “U1” and “V1” usually denote start and end leads of a winding phase.
Follow solid lines for direct connections. Dotted or slashed lines represent indirect paths–shielding, feedback loops, or control circuits. If a line splits into multiple branches, note the node labels; these help distinguish parallel branches from splits caused by intermediate devices like fuses or overload relays.
- Solid line: Power or signal flow
- Dotted line: Auxiliary or secondary paths
- Dashed line: Ground or shield connections
- Thick line: High-current paths
Check for color coding if included. Blueprints sometimes label wires with codes such as BK (black), BLU (blue), RD (red), or GN/YL (green-yellow). Verify color consistency against physical wiring–mismatches often signal errors in installation or documentation.
Look for component-specific tags. For instance, capacitors may have values like “25μF” next to them, while resistors might show “10Ω.” Contactors often include coil voltage ratings, e.g., “24V DC.” Cross-check these values against specifications to ensure compatibility.
Examine how wires terminate. A solid dot at an intersection means electrical contact, while crossing lines without a dot indicate no connection. Terminal blocks appear as rectangles with numbered slots–ensure each wire lands in the correct slot according to the numbering sequence.
Use continuity tests for verification. With the blueprint as a guide, measure resistance or voltage drop between points. A reading near zero ohms confirms direct connections, while open circuits suggest broken paths or incorrect routing. For AC systems, verify phase alignment–clockwise rotations in three-phase setups should match the diagram’s sequence.
How to Track Current Paths in an Electrical Drive System
Locate the main power source terminals first. On most industrial layouts, these are marked L1, L2, and L3 for three-phase setups or Live and Neutral for single-phase units. Verify voltage levels with a multimeter–400V between phases is standard for European systems, while 480V is common in North America. If readings deviate more than 5%, inspect the transformer or supply line for faults.
Follow the heavy-gauge cables from the terminals. These carry full load current and usually lead directly to the overload protection device, typically a molded-case circuit breaker or fuses. Check the rating plate: a 15 kW drive at 400V will require approximately 25A per phase. Anything smaller risks tripping under full load. If thermal overload relays are present, confirm their dial settings match the calculated current.

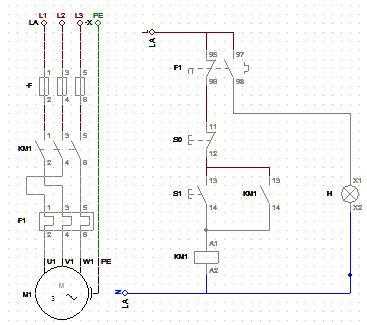

Next, identify the contactor coils. These electromagnetic switches close when the control circuit energizes them. Trace the coil wires back to the starter pushbutton or PLC output. Measure 24V DC or 230V AC across the coil terminals when the start button is pressed–no voltage indicates a break in the control path. If the contactor pulls in but drops out instantly, examine the holding circuit, often a NO auxiliary contact in parallel with the start button.
Verifying Intermediate Connections
Inspect the busbars or terminal strips where intermediate components connect. Look for oxidation or loose crimps–these cause voltage drops that aren’t visible on diagrams but lead to premature overheating. Use a torque screwdriver for terminal screws: 2.5 Nm is typical for M8-sized connections. Label each wire with numbered tags to avoid miswiring during reassembly.
After the contactor, current flows to the windings. In star-delta configurations, two sets of windings exist–star for low starting current and delta for running. Check the timer setting: 5 seconds is standard for a 7.5 kW unit. Measure resistance across each winding pair with an ohmmeter–balanced values within 5% confirm healthy coils. Shorts to ground should not exceed 1 MΩ; lower readings indicate insulation breakdown.
Trace the neutral or ground return path. For single-phase systems, the neutral must connect to the winding’s midpoint or an external ground bar. In three-phase wye setups, the neutral carries imbalance current only–if it’s warm, unbalanced loads or a missing phase exists. Ground cables should be no smaller than half the phase conductor’s cross-section, per IEC 60364.
Finally, test under load. Energize the system and measure current at each phase with a clamp meter. Full-load current should match the nameplate within 10%. If one phase reads higher, suspect a shorted winding or misconnected parallel branch. Log all readings–consistent records help diagnose intermittent faults later.
