For precise component identification, reference U501 (Qualcomm PM8018 power management IC) on page 12 of the official service manual. This chip regulates charging, voltage distribution, and audio amplification. Pin 16 outputs 5V boost voltage for the display backlight–common failure point if shorted. Check R504 (10kΩ resistor) for continuity; degradation here cuts battery charging.
Locate the primary processor (Qualcomm MSM8210) on the reverse side of the board. Surrounding capacitors–C270, C271 (0.1µF)–stabilize supply lines. Reflow these if experiencing boot loops. The NAND flash (Hynix H27UCG8T2DTR-BC) stores firmware; corruption manifests as blank screens post-logo. JTAG requires test point TP401 for flashing.
Signal flow: RF PA (SKY77541) handles GSM/WCDMA bands. Trace antenna path via L501 (multilayer inductor) to UFL connector. Impedance mismatch here causes dropped calls below -100dBm. Replace FPC (flex cable) if intermittent touch issues occur–common after moisture ingress.
Voltage rails: VBUS (5.1V) from USB enters via D101 (diode array). USB data lines (D+/D-) require 47pF caps (C103, C104) for compliance. Missing components here prevent PC detection. For GPS, confirm LNA (AG632) has 3.3V on pin 4–misbiasing adds ~30% lock time.
Thermal management: Apply thermal adhesive between CPU (MSM8210) and midframe. Default paste degrades after 18 months, increasing throttling. Measure temperature via ADB shell “cat /sys/class/thermal/thermal_zone*/temp”. Values above 65°C trigger shutdown.
Understanding the E2 Circuit Reference: Key Steps for Repair
Begin by locating the power management IC–marked as U1201 on the board’s blueprint. This 96-pin component handles battery charging, voltage regulation, and signal distribution across subsystems. Use a multimeter set to diode mode to test continuity between the IC’s output pins (e.g., C1202, C1203) and ground; readings below 0.2V indicate a short, often caused by failed decoupling capacitors. Replace C1202 (10µF, 6.3V) or C1203 (4.7µF, 10V) if resistance drops to near zero, as these are frequent failure points in charging circuits.
For display issues, trace the LCD interface ribbon connector (J4001) back to the main processor. Check the 34-pin flex cable for micro-tears or corrosion at solder joints; reflowing with 0.3mm Sn-Pb solder can resolve intermittent connections. The backlight driver (U4002, a TPS61165) requires 2.8V–5.5V input–verify this at L4001 via oscilloscope. If the backlight stays dim, measure the EN pin (pin 7) for a 1.8V–3.3V enable signal; absence suggests a faulty processor output or broken trace near R4003 (10kΩ).
Audio failures demand inspection of the audio codec (U7001, WT61P6). Probe MIC_BIAS (pin 3) for 2.1V–missing voltage points to a blown L7002 (2.2µH inductor). For speaker distortion, test the differential outputs (SPK+/−) with a 1kHz sine wave; clipping or DC offset (>50mV) signals a damaged C7003 (1µF) or faulty amplifier stage. Remove oxidation from the 3.5mm jack pads with isopropyl alcohol and a fiberglass pen–even minor corrosion disrupts signal integrity.

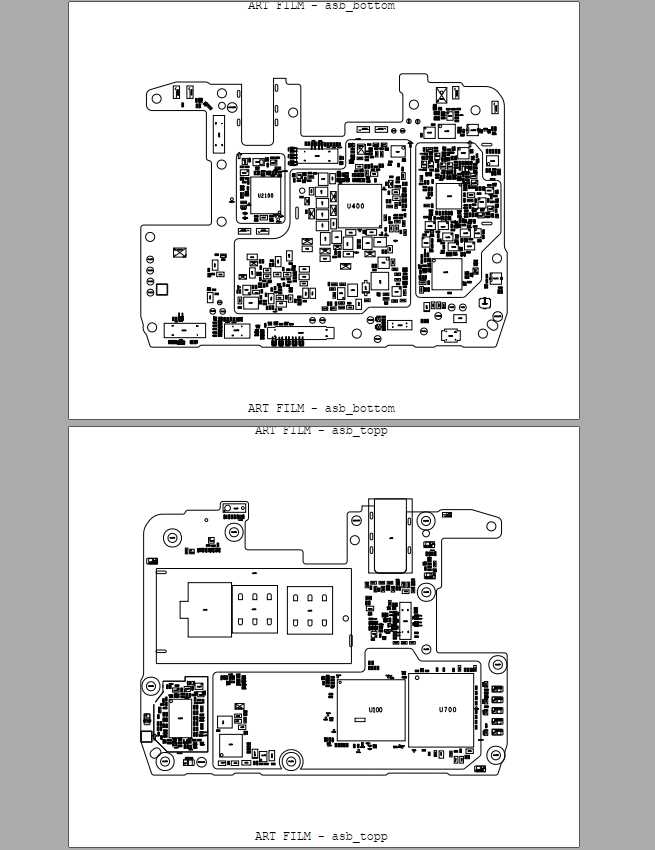

Locating the Device E2 Mainboard Circuit Layout
Start by removing the rear cover using a plastic pry tool–avoid metal to prevent damage to clips or circuits. Identify the battery connector near the top edge; disconnect it first to cut power. The mainboard sits beneath a metal shield secured by screws and adhesive.
Key components to trace on the layout:
- PMIC (Power Management IC): Central hub for voltage regulation, usually near the battery interface.
- CPU/SoC: Largest chip, often labeled with a heat spreader; connects to RAM via ball-grid array.
- Flash Memory: Stores firmware; paired with CPU via dedicated lanes (e.g., eMMC/UFS).
- RF Section: Houses Wi-Fi/BT and cellular modules, typically isolated from digital circuits.
- Connector Clusters: Look for flex cable ports (display, cameras, fingerprint sensor) around the edges.
Use a multimeter in continuity mode to verify ground planes–primary ground is usually the largest copper area near the battery connector. Probe suspected test points marked on the board (e.g., tiny numbered dots) to confirm signal paths. A USB microscope helps inspect densely packed tracks between ICs.
Common pitfalls:
- Misidentifying EMI shields as ground–test with a multimeter before soldering.
- Overlooking buried vias under ICs; use thermal imaging to spot hidden connections.
- Ignoring flex cable orientations–label them before disassembly to avoid reassembly errors.
For advanced tracing, export board images into a PCB design tool (e.g., KiCad). Overlay known reference files–if available–to map unmarked components. Highlight critical power rails (e.g., 3.8V, 1.8V) with colored markers; they often lead to damaged circuits in fault cases.
Safety checks:
- Recheck battery disconnect before probing live circuits.
- Touch a grounded screwdriver to metal shields first to discharge static.
- Work on an anti-static mat–ESD can fry ICs without visible damage.
Locating Power Regulation Elements on the Board Layout
Start by tracing the battery connector pins to the adjacent PMIC (Power Management IC). On most designs, this chip is labeled with identifiers like MT635x, PM8xxx, or SGM254x. Pin 1 typically connects to the battery’s positive terminal via a 2A–5A fuse–measure for continuity with a multimeter if the label is unclear. Look for adjacent 0402 or 0603 resistors (values: 0Ω, 1kΩ, or 20kΩ) bridging the PMIC to decoupling capacitors; these often mark power rail distribution points for VBAT, VPH_PWR, or VSYS.
Identify buck converters by their characteristic inductor pairs (often 2.2µH–4.7µH shielded coils) and Schottky diodes adjacent to the PMIC. Check the silkscreen for labels like BUCK1, BUCK2, or VREG_LDO–these correspond to core rails (e.g., 1.8V, 3.3V, or 5V). The input caps (10µF–22µF X5R/X7R) will cluster around the PMIC’s SW pins, while output caps (same specs) sit near the inductor’s far side. Probe with an oscilloscope at 20MHz bandwidth to confirm ripple doesn’t exceed 20mVpp under load.
Debugging Common Rail Failures
If a rail fails to reach target voltage, isolate the fault by disconnecting the load. Use a DC electronic load (set to 100mA) to test the PMIC’s output directly–if stable, the issue lies downstream (e.g., shorted bypass cap or leaky FET). For intermittent rails, swap the PMIC’s external 12MHz crystal first; failures here cause erratic regulation without obvious thermal stress. Check the EN pin (usually pulled high via 10kΩ resistor) for proper logic-level voltage; a floating input prevents rail activation.
Monitor thermal vias beneath the PMIC–clusters of 0.2mm holes filled with solder indicate intentional heat sinking. If these are obstructed, expect shutdowns at 85°C+, even with nominal load. For LDOs, verify the feedback network (100kΩ/10kΩ divider) hasn’t drifted; an incorrect ratio forces the PMIC into over-current protection. Replace any ceramic caps showing micro-fractures (visible under 10x magnification)–these fail as low-impedance shorts without physical deformation.
Validation via Silkscreen and Reference Designs
Cross-reference the board’s R*, C*, L* designators against the manufacturer’s reference manual (e.g., MediaTek’s MT67xx datasheet). Rails like VRF18 (1.8V) or VPA (power amplifier) often route through µDFN-10 FETs–confirm these aren’t mistakenly swapped with signal FETs by checking their NO/NC pins. For critical rails (e.g., VCORE), duplicate decoupling caps (2x 10µF + 1x 1µF) near the load reduce transient drops. If the board lacks test points, scrape soldermask from 0.2mm traces to probe via micro-clips, but avoid disturbing adjacent ESD diodes or the PMIC’s thermal pad.
Tracing Signal Paths for Display and Touchscreen Connections
Start by identifying the LCD connector (typically a 30-40 pin FPC) on the PCB layout. Pinouts for display interfaces often follow a standard: pins 1-10 handle power rails (VCC, GND, AVDD, VGL, VGH) while mid-range pins (15-25) carry MIPI-DSI signals (CLK+, CLK-, DATA0+ to DATA3-). Use a multimeter in continuity mode to map each pin to its test point on the board–mark these directly on the reference design with a silver pen for clarity.
For touchscreen traces, locate the I2C or SPI bus lines (usually labeled SDA/SCL or MOSI/MISO/SCK). These typically route through 0-ohm resistors or EMI filters before reaching the touch controller IC. Measure resistance between the connector pins and the controller to isolate opens–values above 100 ohms often indicate a broken trace or poor solder joint. Check power delivery to the touch IC first (1.8V or 3.3V); a dead IC will silence the entire bus regardless of intact signal paths.
Examine the flex cable for micro-fractures or delamination, especially near the connector crimp points. A USB microscope at 40x magnification reveals hidden damage not visible to the naked eye. If signal loss persists, probe the MIPI-DSI lanes with an oscilloscope at 500MHz bandwidth: healthy data lanes show differential eye patterns with
Verify display initialization sequences by monitoring the SPI flash dump for firmware commands targeting the display driver IC. Tools like FlashROM or a logic analyzer on the I2C/SPI lines capture boot-time traffic–missing handshake packets (e.g., 0x78/0x7A for SSD2848) indicate either firmware corruption or a dead driver IC. Replace EEPROM contents from a known-good donor only after confirming the touch/display connectors share identical pinouts to prevent further damage.
Lastly, test backlight circuits separately. PWM-controlled backlights use a boost converter (e.g., TPS61165) with inductors and capacitors forming the step-up stage. Measure the enable pin (typically 3.3V) and inductor output–absence of 15-25V suggests a failed converter or open feedback resistor. Bypass mode checks with a bench supply set to the panel’s rated voltage isolate whether the issue lies in the driver IC or LED strings.
