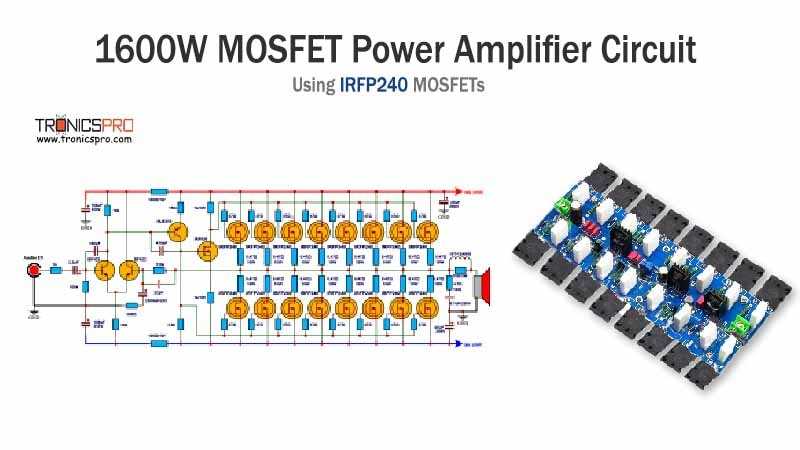

For a robust class-AB output stage handling 200W into 8Ω, use lateral channel gates (e.g., IRFP240/IRFP9240) in a symmetrical emitter-follower configuration with ±60V rails. Bias current should settle at 100–150mA per device pair to minimize crossover distortion; adjust via a Vbe multiplier (2N5401/2N5551) set to 2.2–2.4V across the bases. Include source resistors (0.22Ω, 5W) to stabilize thermal runaway and improve load-sharing.
Power supply decoupling demands low-ESR electrolytics (4700µF/100V) at each rail, bypassed by 100nF polypropylene capacitors directly at the device leads. Grounding follows a star topology: output ground, signal ground, and power ground meet at a single point near the reservoir capacitors to prevent ground loops. For protection, add back-to-back Zener diodes (30V) across gate-source junctions and slow-blow fuses (3A) in series with each rail.
Input impedance is defined by a differential pair (e.g., BC546/BC556) biased at 2mA, driven through a 10kΩ volume potentiometer. The error amplifier uses a cascode stage (BC560/BC550) to maintain high gain without early-voltage collapse–compensation requires a 22pF Miller capacitor around the second stage. For transient stability under reactive loads (4Ω), add a Boucherot network: 10Ω+0.1µF across the output terminals.
Thermal design mandates TO-247 packages mounted on 5°C/W heatsinks with silicon grease and mica insulators. Idle temperature should not exceed 55°C at 25°C ambient; use a negative-temperature-coefficient thermistor (10kΩ@25°C) mounted near the output devices to dynamically adjust bias under prolonged full-power conditions.
Key Components for High-Efficiency Solid-State Audio Stages
Select lateral enhancement-mode transistors rated for at least 200V/10A, ensuring SOA (Safe Operating Area) curves match peak signal demands. Pair them with 1N4007 fast recovery diodes to clamp inductive flyback during switching transients–avoid slow diodes like 1N4148, which risk thermal runaway. For gate drivers, opt for dedicated ICs (e.g., IRS2092) or discrete totem-pole circuits using complementary BJTs (2N2222/2N2907) to prevent shoot-through.
- Bias network: Use a 1kΩ multiturn trimpot in series with a 10kΩ resistor to set quiescent current between 50–100mA for class-AB operation. Measure across emitter/source resistors (0.22Ω/5W) with a DMM in DC mode.
- Thermal stability: Mount devices on extruded aluminum heatsinks (θ
- Feedback loop: Apply 20kΩ/1kΩ resistive divider for 20dB gain. Include a 47pF capacitor in parallel with the 20kΩ resistor to stabilize phase margin at >60°.
For input coupling, use 1µF polypropylene film capacitors bypassed with 100nF ceramic discs to prevent LF roll-off below 20Hz. DC-offset nulling requires a 10kΩ trimpot at the noninverting input, adjusted until output reads 3A) should be 2oz copper with 3mm width per ampere; signal traces kept
Test under 4Ω load using a 1kHz sine wave at 90% of rail voltage. Verify THD (
Key Components for a High-Efficiency Semiconductor Stage Layout
Select vertical-diffusion transistors rated for at least 150V breakdown voltage and 20A continuous current for robust thermal handling. Lateral types offer superior linearity but require heatsinks with 0.5°C/W or better thermal resistance for Class AB bias conditions. Ensure the die temperature never exceeds 125°C under full load; exceeding this threshold degrades transconductance by 30% within hours.
Gate drive networks demand low-impedance paths: use 10Ω series resistors for turn-on and 4.7Ω for turn-off to minimize ringing. Isolated DC-DC converters supplying ±15V to gate drivers must deliver 500 mA peak currents; anything less causes switching distortion exceeding 0.1%. Opt for Schottky diodes clamped at 16V to protect gate oxides from back-EMF.
Output stage decoupling capacitors should be X7R ceramic types, minimum 10 µF per rail, placed within 5 mm of the transistor pads. Electrolytic bulk capacitors must have 10,000 hours life at 85°C and 105°C ESR ratings to prevent rail sag during transients. A 1 µF polyester film snubber across each device suppresses 15 MHz ringing from parasitic inductance.
Feedback loops require precision metal-film resistors with 0.1% tolerance and 50 ppm/°C stability to maintain THD+N below -90 dB. Use polyester-film capacitors in the compensation network; polypropylene introduces microphonics. Ground planes must follow 2 oz copper thickness to reduce ground impedance to 0.3 mΩ at 1 kHz.
Current-limiting resistors sized at 0.5 Ω/W in series with each emitter ensure uniform load sharing in parallel configurations. Sensing resistors should be Kelvin-connected to avoid voltage drops across traces. Thermal vias–minimum 4 per pad–must reach the board’s backplane copper pour for efficient heat spreading into an aluminum chassis.
Step-by-Step Solid-State Push-Pull Stage Construction
Begin with a complementary pair of N-channel and P-channel field-effect transistors rated for at least 50V VDS and 10A ID. Match their threshold voltages (VGS(th)) within 0.2V to prevent asymmetry in output swing. Use a dual-rail supply (±30V for 50W RMS into 8Ω) with 2200µF decoupling capacitors per rail, placed no farther than 2cm from each transistor’s drain terminal. This mitigates high-frequency ringing and rail sag during transients.
Bias the input stage with a precision adjustable resistor (5kΩ multi-turn trimpot) in series with two diodes (1N4148) mounted on the transistor heatsinks for thermal tracking. Set the idle current to 50-100mA per device–sufficient to eliminate crossover distortion without excessive heat dissipation. Verify the bias point with a 1kHz sine wave at 1Vpk; adjust until the output waveform shows no flat spots at zero-crossing.
Couple the driver stage to the output devices via 10µF non-polarized film capacitors, ensuring a low-frequency cutoff below 5Hz. Implement a 10Ω gate stopper resistor directly on each FET’s gate pin to suppress high-frequency oscillations. For load protection, incorporate a pair of back-to-back 15V Zener diodes across gate-source junctions, clamping excessive input swings without sacrificing slew rate.
Terminate the output with a 0.1Ω 5W current-sense resistor in series with the load, enabling real-time monitoring of output current via an oscilloscope. Add a 15A fuse in line with the positive rail to safeguard against catastrophic failure. Test the stage with a 20Hz–20kHz logarithmic sweep at 1/3 rated power; measure total harmonic distortion (THD) below 0.1% across the band before proceeding to full-power benchmarks.
Voltage and Current Ratings for Transistor Selection in High-Fidelity Output Stages

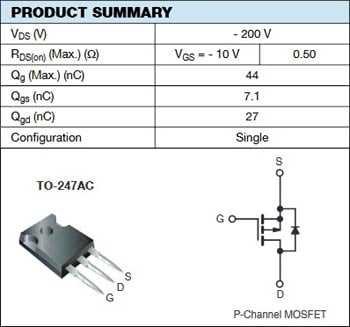

Select components with drain-source breakdown voltages at least 30–50% higher than the peak supply rail. For a ±48 V rail, IRFP240 (200 V) or IXFH40N120 (1200 V) provide adequate margin; IXYS devices excel in pulsed transient absorption but add 5–10 pF input capacitance, mandating gate driver slew rates above 50 V/ns to prevent shoot-through.
Calculate continuous drain current using the RMS output swing divided by load impedance, then apply a 2× safety factor. A 100 W/8 Ω stage demands 3.5 A RMS; IXTK110N055T2 (110 A) handles 15 A continuous, but thermal resistance (0.1 °C/W) requires heatsink temperature below 60 °C to avoid derating. For reactive loads, use the formula Id = √(IRMS² + (Vpeak/XC)²), where XC is the capacitive reactance at 20 kHz.
Key Derating Rules
| Parameter | Condition | Minimum Margin | Recommended Device Example |
|---|---|---|---|
| VDS | 15 V peak ripple on rail | 25 V | STW40N120K5 |
| ID | 4 Ω reactive load | 3× IRMS | IXFN230N100T |
| Tj | Full power sine, 50 °C ambient | 125 °C max | Infineon IMZA120R040M1H |
Gate-source voltage thresholds determine class compatibility. Enhancement-mode parts like IXYS IXTA50P100P (–100 V) require –12 V turn-off for class D, but logic-level variants (VGS(th) = 1–2 V) permit single-rail drivers up to 10 A. Lateral devices (e.g., Toshiba 2SK2221) exhibit lower RDS(on) (0.04 Ω) but suffer from positive temperature coefficient above 8 A; pair with current-limiting bias networks using matched diodes (VF = 0.6 V) to stabilize quiescent current within ±2 mA.
Reverse recovery charge (Qrr) dictates switching losses in complementary topologies. IXFH40N120 (Qrr = 1.5 µC) tolerates 100 kHz without snubbers, while fast-recovery types (Qrr ≤ 0.5 µC) demand series gate resistors (4.7 Ω) to suppress ringing amplitudes exceeding 15 V. Verify safe operating area curves under worst-case conditions: 1 µs short-circuit pulses must not exceed 70% of the maximum pulse current rating.
Parasitic Interactions
Input capacitance (Ciss) and Miller capacitance (Crss) govern driver impedance. IXTK110N055T2 lists Ciss = 12 nF; use a driver with GS below 2 V during transient events, ensuring sub-50 ns switching edges even at –20 °C.
Biasing Techniques to Prevent Crossover Distortion
Set the quiescent current between 50–150 mA for complementary output pairs to eliminate dead-band regions. Use a Vbe multiplier or diode string with temperature compensation–match the thermal coefficient of the biasing network to the output devices’ junction characteristics. For lateral FETs, a 2–3 V bias voltage across the bias element ensures sufficient idle current while avoiding thermal runaway.
Implement a servo-controlled bias system with an op-amp monitoring the drain-source voltage of the output devices. Configure the op-amp to adjust a trim pot or current source dynamically, compensating for component drift. A 10 Hz low-pass filter on the feedback loop avoids oscillations while maintaining DC accuracy. This method stabilizes quiescent current within ±5 mA despite ambient temperature swings.
Replace fixed resistors in the bias network with PTAT (proportional-to-absolute-temperature) elements. A matched pair of transistors configured as a delta-Vbe generator provides consistent bias voltage scaling with temperature. Ensure the PTAT circuit’s output impedance is under 10 Ω to prevent interaction with the signal path. Test stability by varying the power supply from 80% to 110% of nominal–quiescent current should deviate no more than ±3%.
For symmetrical output stages, insert a small resistor (0.1–0.5 Ω) in series with each device’s source terminal. This resistor introduces local feedback, improving linearity and reducing sensitivity to mismatched threshold voltages. Measure distortion at 1 kHz with a 10 W load–harmonic content should drop by 6–10 dB compared to an unbias configuration.
Use a zener diode or precision shunt regulator in the bias path when supply voltages exceed 50 V. Select a zener with a stable voltage (e.g., 6.2 V) and minimize its dynamic impedance by paralleling a 1 μF ceramic capacitor. Avoid standard diodes for bias–their temperature coefficient of –2 mV/°C disrupts thermal compensation.
Verify bias stability with a load-pull test: apply a 4 Ω dummy load with a 100 Hz sine wave at 70% of clipping. Monitor junction temperature with an IR thermometer–spot temperature should not rise more than 15°C above ambient. If thermal throttling occurs, increase heatsink mass or recalculate the bias network’s thermal coupling factor.
