Start with component placement optimization to reduce signal interference. Group high-frequency elements like oscillators, power amplifiers, and microcontrollers within 5 mm of each other to minimize trace length. Use 4-layer PCB layouts where possible–outer layers for signal routing, inner layers for power and ground planes. This configuration cuts radiated emissions by 60-70% compared to 2-layer alternatives, critical for battery-powered devices.
Power delivery networks demand precise decoupling. Place 0.1 µF ceramic capacitors within 2 mm of every IC power pin to suppress voltage transients. For noise-sensitive analog sections, add 10 µF tantalum capacitors near voltage regulators. Measure load transient response with an oscilloscope–aim for at full load. Ignore this, and RF interference will degrade receiver sensitivity by 12-15 dB.
Trace impedance control is non-negotiable for USB, MIPI, and DDR interfaces. Use 6 mil width, 5 mil spacing for differential pairs to maintain 90 Ω ±10% impedance. For single-ended signals, target 50 Ω with 8 mil traces on 1 oz copper over 4 mil FR-4. Verify with a time-domain reflectometer; mismatches cause data corruption at speeds above 500 Mbps.
Thermal management dictates package selection. Quad-flat no-leads (QFN) packages dissipate 30% more heat than ball grid arrays (BGAs) of equal size but require precise stencil design–0.12 mm thick, 80% aperture ratio–to avoid solder bridges. For high-power PA stages, use thermal vias (0.3 mm diameter, 0.2 mm pitch) connecting to an internal ground plane to prevent junction temperatures exceeding 125°C.
ESD protection starts at the connector. Place bidirectional TVS diodes rated for ±15 kV air discharge within 3 mm of I/O pads. For RF inputs, use inductors (10-100 nH) in series to block fast transients without degrading signal integrity. Failure here risks latch-up–a single 8 kV ESD event can permanently damage gate oxides in 14 nm nodes.
Designing Portable Electronics Blueprints: Core Practices
Start by isolating power delivery paths before routing signal traces. Use a ground plane on the inner layer for noise reduction in high-frequency handheld devices–this cuts EMI by up to 40% compared to split planes. For lithium-based battery connections, place a 0.1μF decoupling capacitor within 2mm of the IC’s power pin and a 10μF bulk capacitor near the battery terminal; spacing beyond 5mm increases voltage ripple by 15-25%. Stack capacitors vertically to save board real estate without sacrificing stability.
Implement differential pairs for USB 2.0 or MIPI signals with controlled impedance–90Ω ±10%–using microstrips on outer layers. Keep trace lengths matched within 0.15mm to prevent skew in clock rates above 480Mbps. For antennas embedded in small form-factor devices, maintain a 3mm keep-out zone around RF traces on all adjacent layers and use solid copper pours underneath to avoid detuning, which drops efficiency by 8-12dBm if violated.
| Component | Recommended Value | Spacing Rule | Failure Risk if Ignored |
|---|---|---|---|
| Decoupling cap | 0.1μF (X5R/X7R) | <2mm from pin | Voltage spikes up to 0.8V |
| ESD diode | 4kV rating | >0.5mm from edge | Fails IEC 61000-4-2 |
| Pull-up resistor | 2.2kΩ | >1mm from via | Leakage current >1μA |
Route thermal vias under power amplifiers at 0.5mm pitch with 0.3mm diameter, connecting to a copper heat spreader on the bottom layer. This reduces junction temperatures by 18-22°C compared to single-sided cooling. For processors exceeding 3W, allocate a 25mm² copper pad linked via thermal vias–omitting this risks throttling after 60 seconds of peak load.
Embed overtemperature sensing: place a 10kΩ NTC thermistor 3-5mm from the hottest component and route its traces with 0.1mm width to minimize self-heating errors. For waterproof designs, add a 0.2mm solder mask dam around critical connectors to contain ingress–gaps smaller than 0.15mm prevent sealant penetration, invalidating IP67 ratings.
Validate manufacturability by exporting Gerbers with 0.05mm resolution and checking for acid traps–acute angles below 45° dissolve during etching, causing opens. For flex-rigid assemblies, limit bend radii to 5× substrate thickness to avoid copper delamination, and stagger vias in the bend zone to prevent stress fractures.

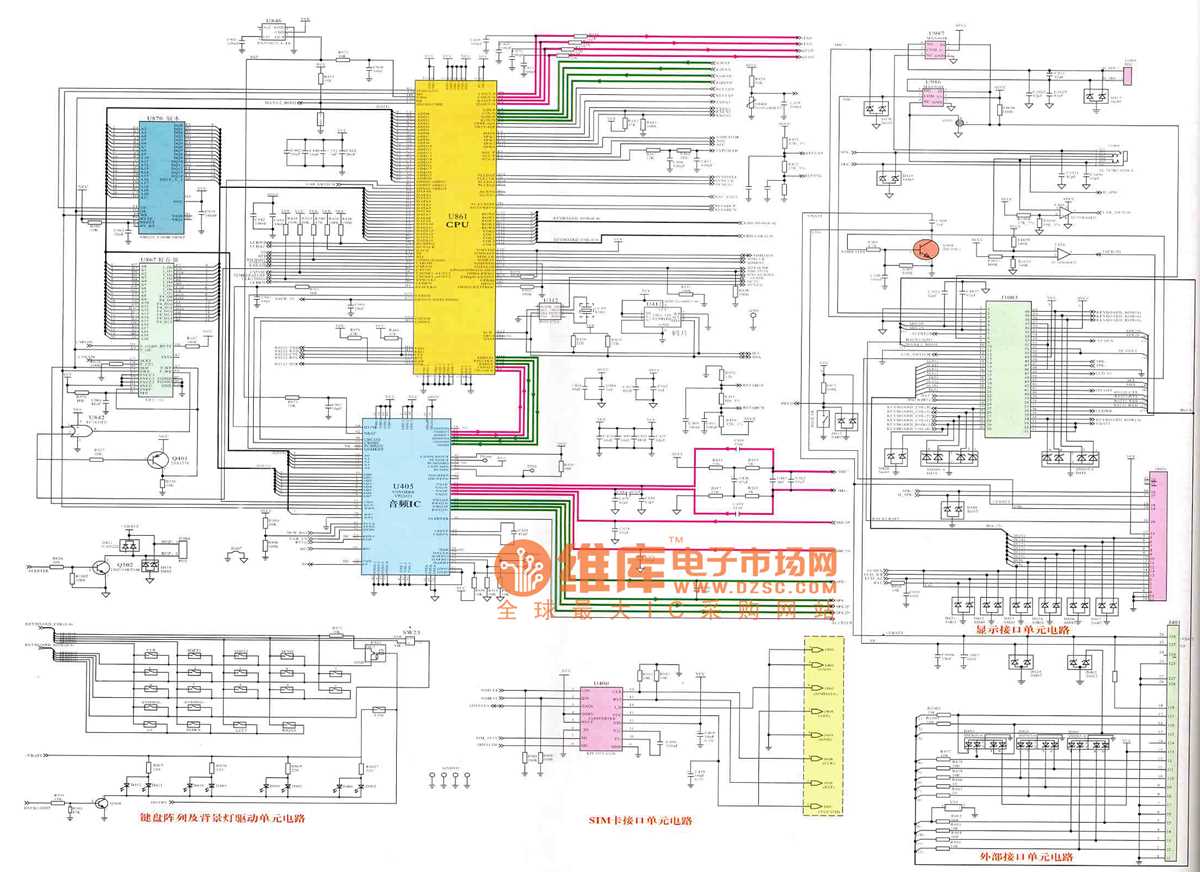

Critical Elements for Handheld Device Schematics
Include a power management unit (PMU) with separate rails for the application processor, baseband, display, and RF modules. Specify voltage regulators (LDOs or switching converters) for each rail, ensuring stability margins: ±5% for digital cores (e.g., 1.0V ±0.05V) and ±3% for analog blocks (e.g., 1.8V ±0.054V). Add reverse polarity protection, overcurrent thresholds (typically 1.5–2.5A), and slew-rate control on power-up to prevent latch-up in sensitive components like the transceiver or camera sensor.
Detail antenna matching networks with discrete components–capacitors (0.5–10pF), inductors (1–15nH), and resistors (0–50Ω)–tuned to the target bands (e.g., GSM 850/900, LTE Bands 1/3/5/7). Indicate PCB trace widths: 0.25mm for signal paths, 0.5mm for power, and avoid sharp bends (>90°) in RF traces to minimize signal loss (target
Map out the processor’s pin assignments with power domains, clock signals (e.g., 26MHz ±10ppm for TCXO), and reset circuits. Use series resistors (22–100Ω) on high-speed interfaces (MIPI, USB 2.0/3.0) to reduce electromagnetic interference; place decoupling capacitors (0.1µF + 10µF) within 5mm of each IC power pin. For memory, specify flash (NAND or UFS) and RAM (LPDDR4/X) footprints with controlled-impedance traces (50–60Ω) and length matching (±5mm) to prevent skew in data lanes.
Incorporate electrostatic discharge (ESD) protection–diode arrays or TVS (transient voltage suppressors)–on all external connectors (USB, SIM, headphone jack) with clamping voltages 3W/mm²) via internal copper pours (2oz). Document trace spacings: ≥0.2mm for low-voltage signals (≥3.3V) and ≥0.5mm for lines carrying >10V (e.g., battery charging paths).

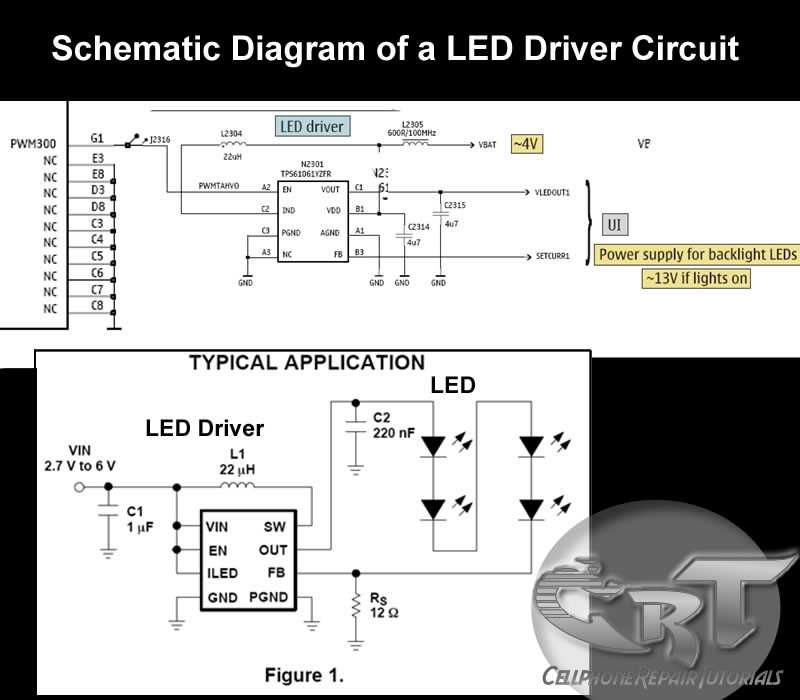

Building Reliable Power Control Schematics for Handheld Electronics
Begin with selecting a lithium-based cell as your primary energy source. A single-cell 3.7V Li-ion pack (e.g., 18650 or pouch format) delivers optimal energy density for portable designs. Position the battery contacts on opposite ends of the layout to minimize short-circuit risks during assembly. Label each terminal–positive with a “+” symbol and negative with a flat or recessed pad–to prevent polarity errors during soldering.
Integrate a protection module (PCM) between the battery and load. Use an IC like the TPS65580 or BQ24090 for overcharge, overdischarge, and short-circuit safeguards. Route traces at least 1.2mm wide (2oz copper for currents above 1A) to handle peak discharge rates. Add a 4.7μF ceramic capacitor near the IC’s input pin to stabilize transient responses during load jumps.
Design a charging path separate from the discharge loop. Employ a linear or switching regulator–MCP73831 for USB-C charging at 5V/1A, or BQ24295 for 9V/2A fast-charging scenarios. Include a status LED (red for charging, green for full) wired to the charger IC’s STAT pin via a 470Ω resistor. Place thermal vias under the IC if the PCB lacks a dedicated ground plane to dissipate heat from high-current charging cycles.
Implement battery fuel gauging with a coulomb counter like the MAX17043 or LC709203F. Connect the IC via I²C to the microcontroller, using 2.2kΩ pull-up resistors on SDA/SCL lines. Reserve space for a 10-pin connector (e.g., JST SH) to interface with a debug header for monitoring voltage, current, and state-of-charge during development. Route differential traces for analog signals away from high-speed digital lines to avoid noise interference.
Add a load switch to isolate the power rail during sleep modes. The TPS22940 offers low-voltage drop (10mΩ) and 3.3V logic compatibility. Connect the EN pin to the microcontroller’s GPIO to toggle power to subsystems like displays or sensors, reducing idle current to microamps. Include an ESD protection diode (PMEG4030EP) on each input/output pad to prevent damage from static discharges during handling.
Validate the schematic with Spice simulations before PCB fabrication. Test the charging loop with a dummy load set to 500mA, monitoring voltage rise across the battery terminals. Verify protection triggers by forcing an overcurrent condition (e.g., 3A) and confirming the PCM cuts off power within 10μs. Measure quiescent current in sleep mode–target
Optimize PCB stack-up for small footprints. Use 0.4mm drills for vias under ICs to save space, and panelize designs with breakaway tabs for batch assembly. Apply soldermask openings around high-current pads to improve thermal dissipation. For low-volume prototypes, hand-solder components in sequence: passives first, then ICs, finishing with the battery connector to prevent electrostatic damage.
Common Power Supply Challenges and Troubleshooting in PCB Layouts
Measure voltage drop across critical paths using an oscilloscope with . Voltage sags exceeding 3% of nominal under load indicate insufficient trace width or bad via placement. For 1 oz copper, a 100 mV drop at 5A requires ≥40 mil traces–calculate exact widths using IPC-2221 formulas. Thermal imaging reveals hotspots where resistance exceeds 5 mΩ/cm; reroute or add copper pours to dissipate heat.
Component-Specific Failures
- LDOs: Check for output oscillation (>20 mVpp) post-capacitor–replace ceramic caps with X7R/X5R if ESR 20 mΩ. Input/output voltage differential must stay ≥1V to prevent dropout.
- Switching regulators: Probe gate drive signals with differential probes; ringing > 2V suggests improper gate resistor (try 10 Ω–100 Ω). Verify inductor saturation by monitoring current waveforms–flat-topped pulses indicate core saturation (replace with higher Isat).
- Battery management: Measure charge termination current–values C/10 imply faulty fuel gauge algorithms or depleted battery internal resistance (100 mΩ). Use 4-wire Kelvin sensing for accurate cell voltage readings.
Noise coupling through shared rails demands star grounding and decoupling caps (0.1 µF + 10 µF per IC). For analog/digital separation, maintain ≥2 mm spacing between high-current traces and sensitive signals. Ferrite beads (100 Ω–600 Ω at 100 MHz) isolate noise but verify impedance curves to avoid resonance–use murata BLM18 series for predictable performance.
- Remove bypass capacitors one by one while monitoring ripple with a high-Z probe (≥1 MΩ). A >20% reduction in ripple identifies the ineffective cap; replace with low-ESL MLCCs (e.g., 4.7 µF 0805 X5R).
- Inject 1 kHz–1 MHz sine wave at the input (amplitude 10% of Vin) and observe output response. Peaking > 3 dB indicates poor phase margin–adjust compensation network (add 10 pF–1 nF feedback cap).
- Short-reflex testing: Temporarily short the output to ground for –if recovery exceeds 500 µs, replace the controller IC or adjust soft-start settings.
