Start by connecting the battery’s positive terminal to the motor’s power input using 6-gauge marine-grade cable. Ensure the connection is tightened to 10-12 Nm torque to prevent voltage drop under load. For 24V setups, link two 12V batteries in series–negative to positive–before attaching the main lead. Avoid grounding through the boat’s hull; use a dedicated 8-gauge ground wire back to the battery’s negative terminal instead.
Route all cables away from sharp edges, fuel lines, or moving parts, securing them every 18 inches with UV-resistant zip ties or adhesive-lined clips. For circuits exceeding 30 amps, install a 50-amp marine circuit breaker within 7 inches of the battery. On models with foot pedal control, verify the pedal’s potentiometer resistance (typically 5k ohms) matches the control board specifications before powering on.

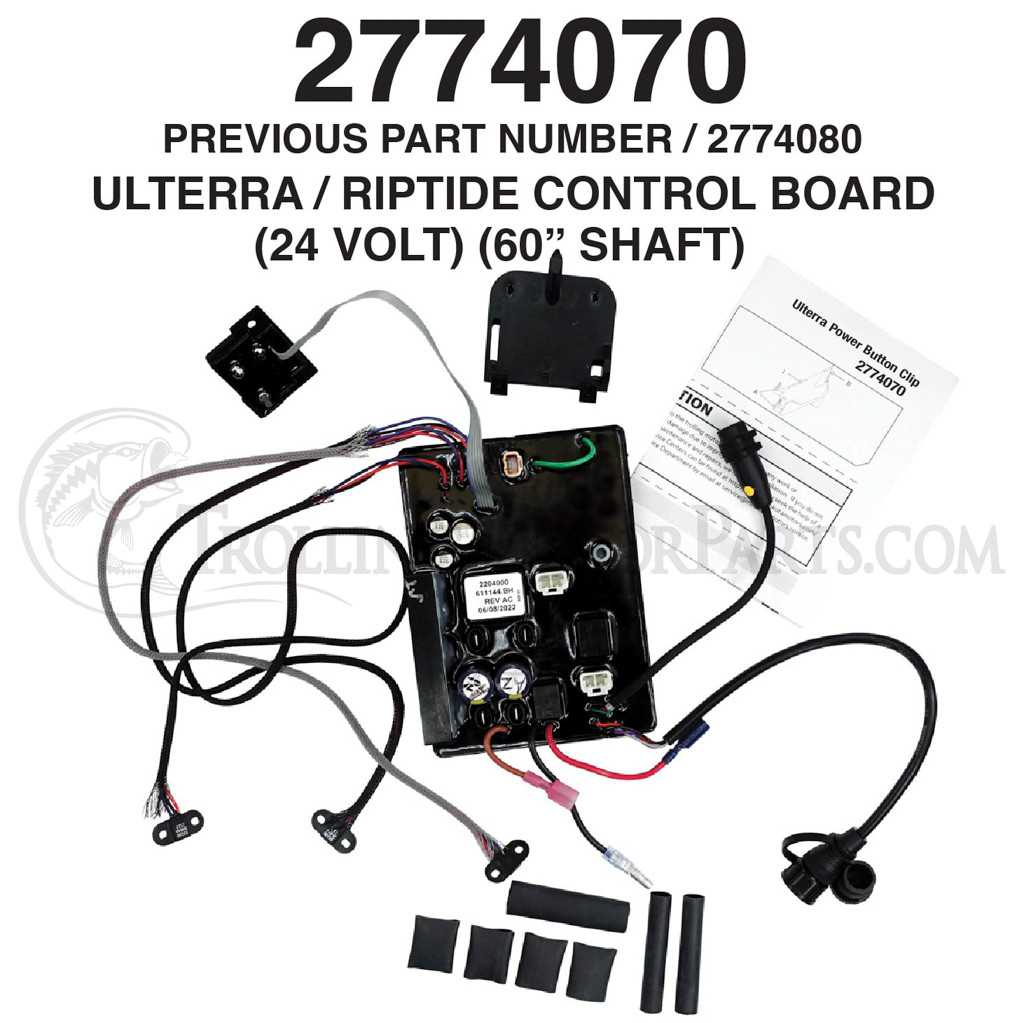

Test the system dry before deployment: set the speed control to mid-range and confirm steady current draw (≈15-22 amps for 1HP motors at half throttle). If erratic behavior occurs, inspect the control box’s MOSFET array for thermal paste degradation or swollen capacitors. For 36V configurations, add a third battery in series and upgrade the charging circuitry to support equalization cycles during maintenance.
Label all connections with heat-shrink tubing markers–red for power, black for ground, yellow for control signals. When splicing, use tinned copper butt connectors crimped at 200 psi and sealed with adhesive-lined marine heat shrink. Replace the factory fuse with a blade-type of equivalent rating (e.g., 40A for most 24V models) housed in a waterproof fuse block near the battery.
Guide to Electrical Connections for Terrova Trolling Systems
Start by disconnecting the boat’s battery to prevent short circuits. Use a 6-gauge marine-grade cable for the main power leads, ensuring minimal voltage drop over distances exceeding 10 feet. Connect the red lead to the battery’s positive terminal and the black to the negative, securing each with stainless steel ring terminals crimped and soldered. Integrate a 50-amp fuse or circuit breaker within 7 inches of the battery for protection. Verify polarity with a multimeter before finalizing connections.
Motor and Foot Pedal Setup

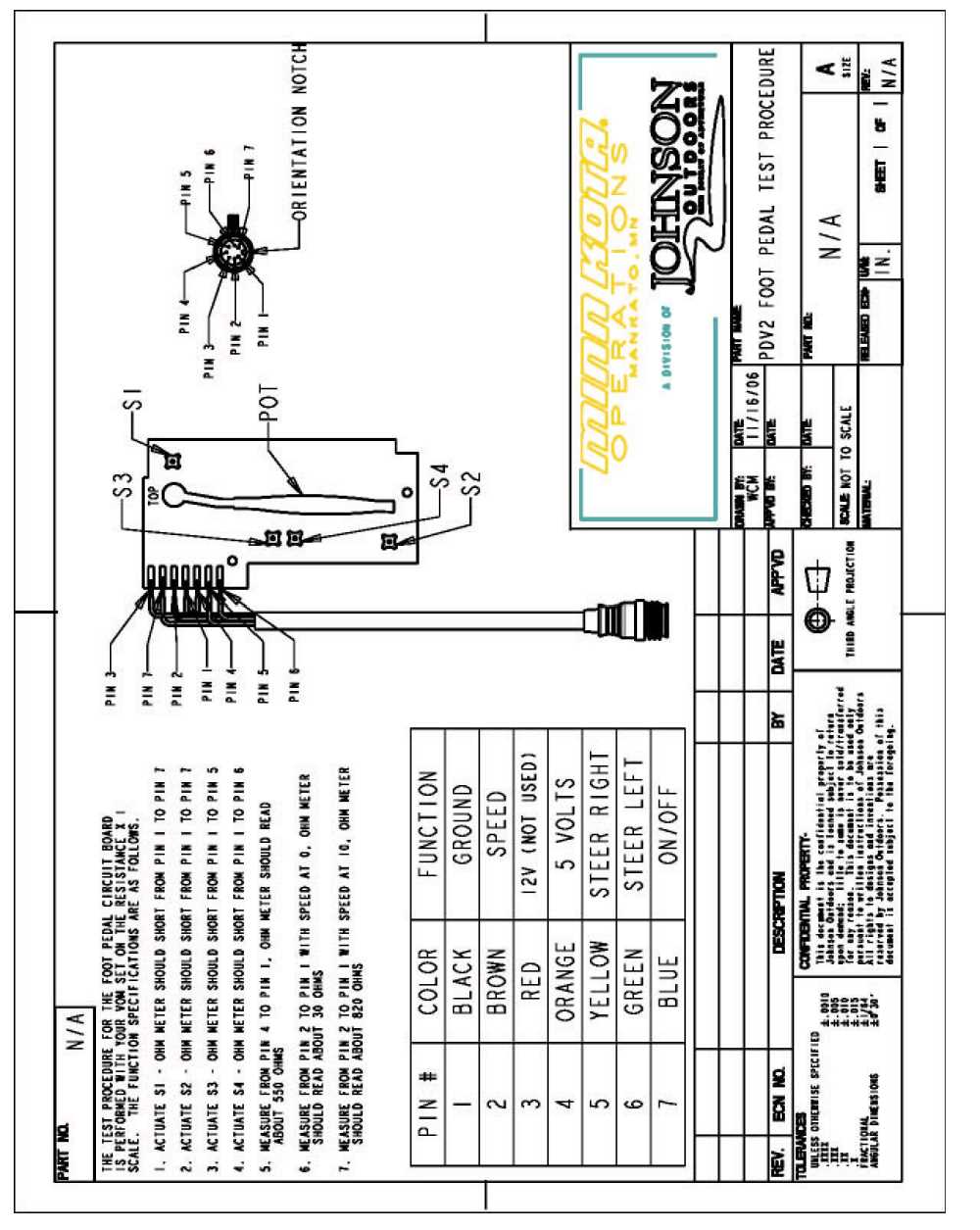

Route the control cables from the propulsion unit to the foot pedal, avoiding sharp bends or pinch points that could damage internal wires. Use waterproof connectors rated for submersible conditions (e.g., AMP or Deutsch terminals) at both ends. For the Terrova 80, match the A/B/C color codes on the motor plug to the corresponding pins on the pedal harness–failure to align these precisely will disable steering or speed functions. Test each function (variable thrust, directional control) before sealing connections with heat-shrink tubing.

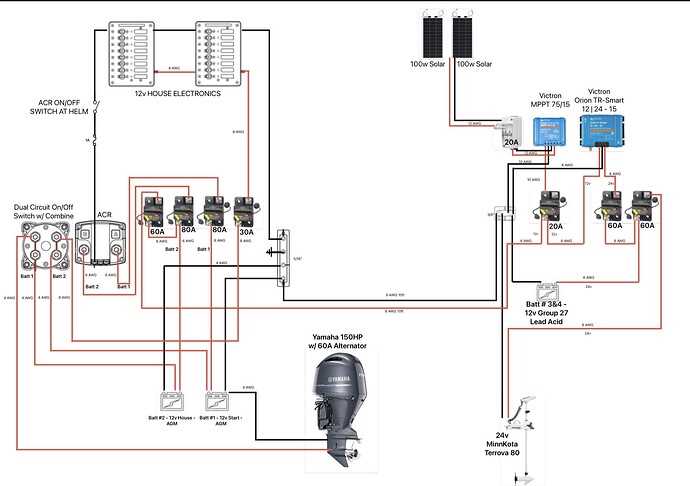

Ground the motor’s bonding wire to the engine block or a dedicated ground plate using a 4-gauge wire. Omit this step only if the boat’s hull is non-metallic; in such cases, route the wire to the battery’s negative terminal directly. For dual-battery setups, employ a battery selector switch with OFF, 1, 2, and BOTH positions, wiring the motor to the “BOTH” terminal for balanced power distribution. Confirm the switch’s voltage rating exceeds the system’s 24V or 36V requirements by at least 20%.
Label all wires with heat-resistant tags indicating their purpose (e.g., “Thrust – Pedal +,” “Steering – Unit –”). Store spare fuses (one 50A, two 30A) and a spare 6-gauge cable segment in a waterproof container mounted near the battery. Replace any corroded terminals immediately–even minor oxidation increases resistance, leading to overheating. If the propulsion unit exhibits erratic behavior post-installation, recheck the foot pedal’s plug alignment first, as misrouted pins are the primary failure point.
Identifying Power Cable Connections for Electric Boat Motors
Locate the battery terminals first–the red (+) lead connects directly to the positive post, while the black (-) attaches to the negative. Ensure terminal clamps are corrosion-free; clean with a wire brush if oxidation is present. For 24V configurations, link the first battery’s negative to the second battery’s positive, then attach the motor’s power cables to the remaining terminals.
Check the motor plug–most transom-mounted models use a 6-pin or 8-pin connector. Match the cable’s pin arrangement to the socket: the top row typically handles power (thicker wires), while the lower row manages control signals (thinner wires). Label each wire before disconnecting if replacing components to prevent miswiring. Use a multimeter set to DC voltage to confirm 12V or 24V output before connecting.
Troubleshooting Common Issues
If the motor fails to power on, verify the fuse between the battery and control unit–replace with the manufacturer-specified amperage (usually 50A for 12V, 30A for 24V). For intermittent operation, inspect the quick-disconnect plug for bent pins or moisture intrusion; apply dielectric grease to the contacts. Cable strain near the motor head can cause internal breaks–replace damaged sections with marine-grade tinned copper wire (minimum 6 AWG for 12V, 8 AWG for 24V).
On-foot pedal models, trace the control cable from the motor housing to the pedal–ensure the 10-pin connector is fully seated. If i-Pilot functionality is unresponsive, confirm the blue i-Pilot harness wire (if present) is connected to the designated port on the control box. For saltwater use, rinse all connections with fresh water after each trip to prevent galvanic corrosion; avoid silicone spray near electrical contacts, as it can trap moisture.
Step-by-Step Connection Guide for 24V and 36V Electric Drive Configurations
Begin by securely mounting the power source brackets near the propulsion unit’s motor housing. Ensure the mounting surface is corrosion-resistant and rated for at least 150 kg shear strength to prevent vibration-induced misalignment. For 24V setups, use a minimum of two 12V deep-cycle batteries in series; for 36V, three 12V units in series are mandatory. Avoid parallel connections–voltage drop across parallel links can exceed 0.7V under load, risking motor stutter.
Use tinned copper cables no thinner than 6 AWG for 24V systems and 4 AWG for 36V variants. Each cable run must terminate in a waterproof crimp connector with dual-layer adhesive heat shrink. Apply dielectric grease generously to all terminals before fastening–this prevents galvanic corrosion even in brackish water. Connect the positive lead to the motor’s top post first, followed by the negative to the lower post; reversing this sequence increases risk of arcing.
Key Safety Checks Before Powering On
- Verify all connections are torque-tightened to 12 Nm using a calibrated driver–loose terminals cause resistive heating.
- Inspect battery electrolyte levels if using flooded cells; maintain levels 12 mm above plates.
- Measure open-circuit voltage: 24V setups should read 25.6–26.4V, 36V systems must show 38.4–39.6V.
- Test polarity with a multimeter before engaging the circuit breaker–reverse polarity destroys motor brushes within 30 milliseconds.
Route control cables through a rigid conduit, keeping them at least 20 cm away from power wires to prevent electromagnetic interference. The throttle harness requires a dedicated 2-pin plug; insert the male end into the motor’s port labeled “CTRL” first, then secure the female end to the foot pedal. If using a wireless remote, bind it to the receiver before connecting power–this prevents accidental pairing while submerged.
For systems with integrated GPS or autopilot, connect the NMEA 2000 backbone next. Use a T-connector to splice the network; terminate both ends with 120Ω resistors to ensure signal integrity. Avoid daisy-chaining more than three devices per drop cable–excess nodes degrade steering response latency to over 800 ms. Ground the network to the main negative bus, not the motor housing, to eliminate stray current.
- Engage the circuit breaker for 5 seconds, then disconnect. Recheck all terminal blocks for heat–any warmth indicates a faulty crimp.
- Power on fully and observe the digital display: 24V motors should idle at 10–12 RPM, 36V units at 15–18 RPM.
- Activate throttle in 1-second pulses while monitoring amperage draw–steady state should stabilize at 22–28A for 24V and 30–36A for 36V.
- Submerge the unit in a test tank filled with 3% salt solution for 10 minutes. After retrieval, rinse with fresh water and inspect for moisture ingress at cable glands.
Store spare fuses (40A for 24V, 60A for 36V) and a 3M™ Scotchcast repair kit on board–these components fail predictably under sustained loads above 85% of rated capacity. Replace the anode every 60 operational hours in freshwater, every 40 hours in saltwater, regardless of visible degradation.
Resolving Electrical Faults in Trolling Motor Control Systems
Check connection terminals for corrosion first–clean them with a wire brush and apply dielectric grease before reassembly. Saltwater exposure accelerates oxidation, reducing conductivity by up to 60% within six months if untreated. Use a multimeter to verify voltage at the battery posts; readings below 12.4V indicate sulfation or loose cable lugs necessitating immediate attention.
Inspect the foot pedal’s coiled cord for frayed wires or kinks that restrict signal flow. Replace the entire assembly if resistance exceeds 2 ohms when tested with a continuity checker. For wireless models, ensure the hand-held unit’s antenna is fully extended–partial extension weakens signal strength by 30%, causing intermittent dropouts during operation.
Examine the circuit breaker rating against the motor’s amperage draw. A 50A breaker tripping repeatedly signals either a short in the propulsion unit or insufficient gauge thickness in the supply cables. Replace cables with marine-grade 4 AWG for 36V systems to prevent voltage drop exceeding 0.5V under load.
Verify the battery bank’s series-parallel configuration matches the motor’s voltage requirement. Misconfigured cells create imbalance, reducing runtime by 40% and risking permanent damage from reversed polarity. Label each interconnect cable for quick troubleshooting during seasonal adjustments.
Test the on-board battery charger’s output with a calibrated load tester. Chargers outputting below 13.8V fail to fully replenish deep-cycle batteries, shortening lifespan. Replace compact units if their housing shows deformation–heat warping compromises internal solder joints, causing erratic charging cycles.
Ensure the GPS module’s grounding cable is secured directly to the negative bus bar, not chassis metal. Stray current from poor grounding disrupts navigational accuracy, skewing anchor drift correction by up to 15 feet in 50-foot depths. Use star washers at all grounding points to maintain low-impedance connections.

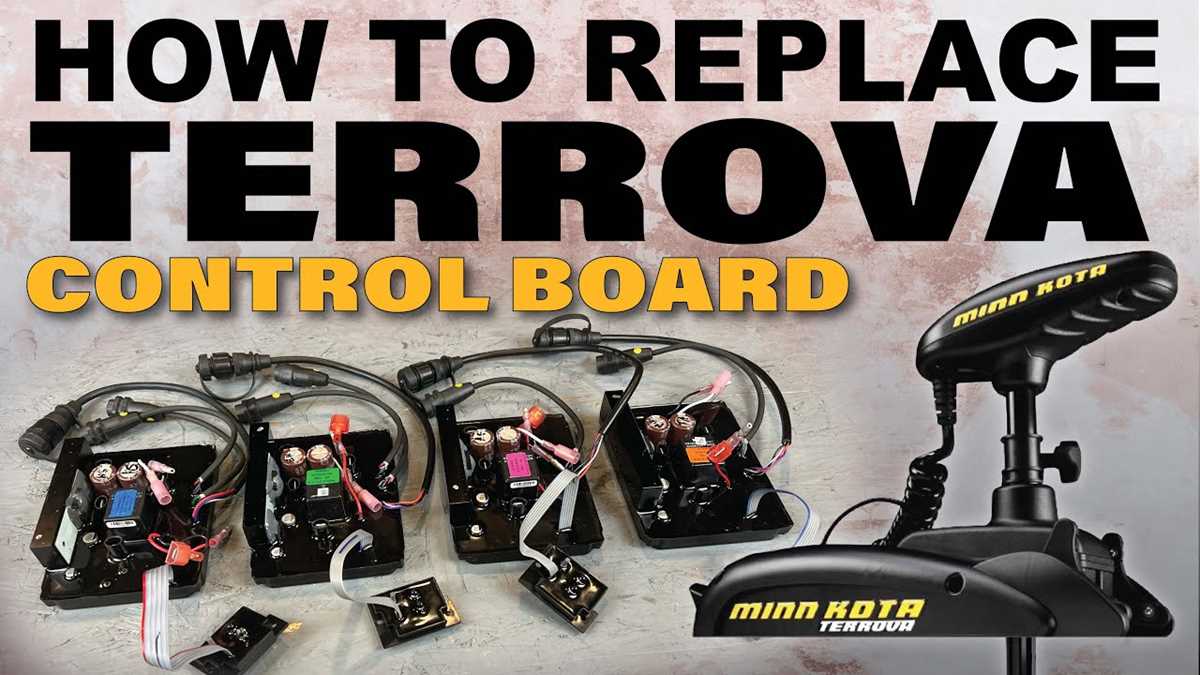

Isolate the speed selector switch by removing it from the pedestal bracket. Visible pitting or melted contacts demand replacement–no cleaning restores reliable operation. For models with digital controls, recalibrate the potentiometer through the onboard menu after each maintenance cycle to preserve precise thrust settings.
Perform a sea trial after repairs, monitoring thrust consistency across all speed settings. Oscillations typically stem from moisture inside the motor housing; disassemble and dry the lower unit completely if dampness is detected. Silica gel packets inside the compartment prevent recurrence during long-term storage.
