Structural Overview of Key Milk Proteins and Their Molecular Arrangement

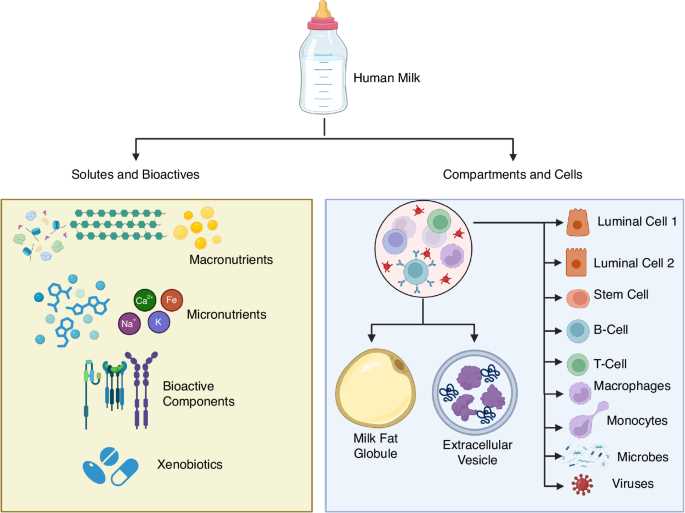

milk protein schematic diagram

Begin by segmenting bovine lacteal fractions into primary groups: casein micelles and serum constituents. Casein accounts for roughly 80% of total nitrogen content, distributed across αs1, αs2, β, and κ variants. Whey–comprising 20%–contains β-lactoglobulin, α-lactalbumin, immunoglobulins, and serum albumin. Assign distinct geometric shapes to each variant: circles for αs caseins, triangles for β, squares for κ, and polygons for whey proteins.

Place κ-casein as an outer stabilizing layer, illustrated with dashed lines to denote its hydrophilic C-terminal tail. Use color gradients: cooler tones (blues) for αs and β caseins, warmer tones (oranges) for whey. Label calcium phosphate nanoclusters as dotted hexagons, linking casein subunits. For serum proteins, depict β-lactoglobulin with jagged edges to highlight disulfide bridges and α-lactalbumin as ovals with inner concentric rings for bound calcium.

Include size references in the legend: casein micelles range from 50–500 nm, whey proteins from 3–20 nm. Add a secondary axis for pH-dependent dissociation: arrows pointing outward at pH 4.6 for casein precipitation, inward at pH 2 for whey denaturation. Exclude generic icons; instead, overlay chemical formulas for phosphorylation sites (Ser-P) on casein depictions.

Reference PDB IDs for structural validation: 1QG8 for β-lactoglobulin, 1SM5 for αs1 casein. Use transparent fill for obscured regions in micelle cores, solid fill for accessible whey surfaces. Annotate hydrophobic/hydrophilic regions with hatching: vertical for hydrophobic, horizontal for hydrophilic. Stacked bar graphs adjacent to the diagram can quantify molar ratios per liter: 12 g/L casein vs 6 g/L whey.

Visual Representation of Lacteal Nitrogenous Components

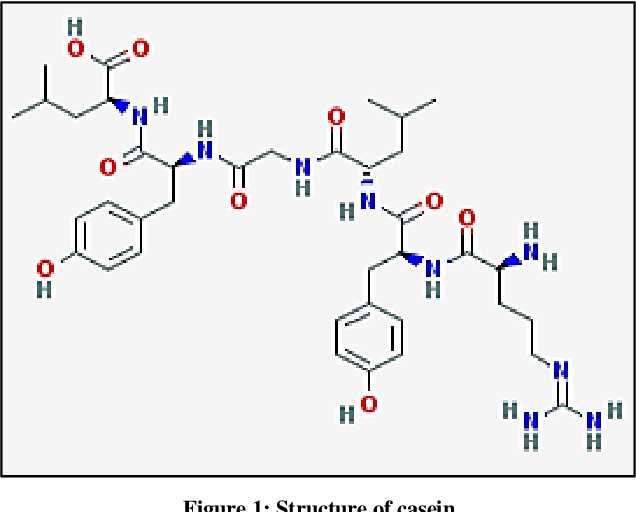

milk protein schematic diagram

Begin by mapping the two primary fractions: casein micelles (≈80% of total nitrogen) and whey constituents (≈20%), ensuring clear separation at the isoelectric point (pH 4.6). Use color-coded branches–dark blue for αs1-casein, red for β-casein, green for κ-casein, and yellow for α-lactalbumin/β-lactoglobulin–to distinguish structural and functional roles. Label post-translational modifications (e.g., phosphorylation of serine residues in αs1-casein, glycosylation of κ-casein) directly on the diagram to highlight their impact on micelle stability and cheese yield.

  • Place κ-casein at the micelle surface with arrow annotations showing its hydrophilic C-terminal “hairy layer” repelling aggregation.
  • Indicate calcium phosphate nanoclusters as gray spheres (≈2–4 nm) bridging phosphoserine-rich regions of αs1- and β-casein, emphasizing their role in preventing precipitation.
  • Add a side panel for minor components (

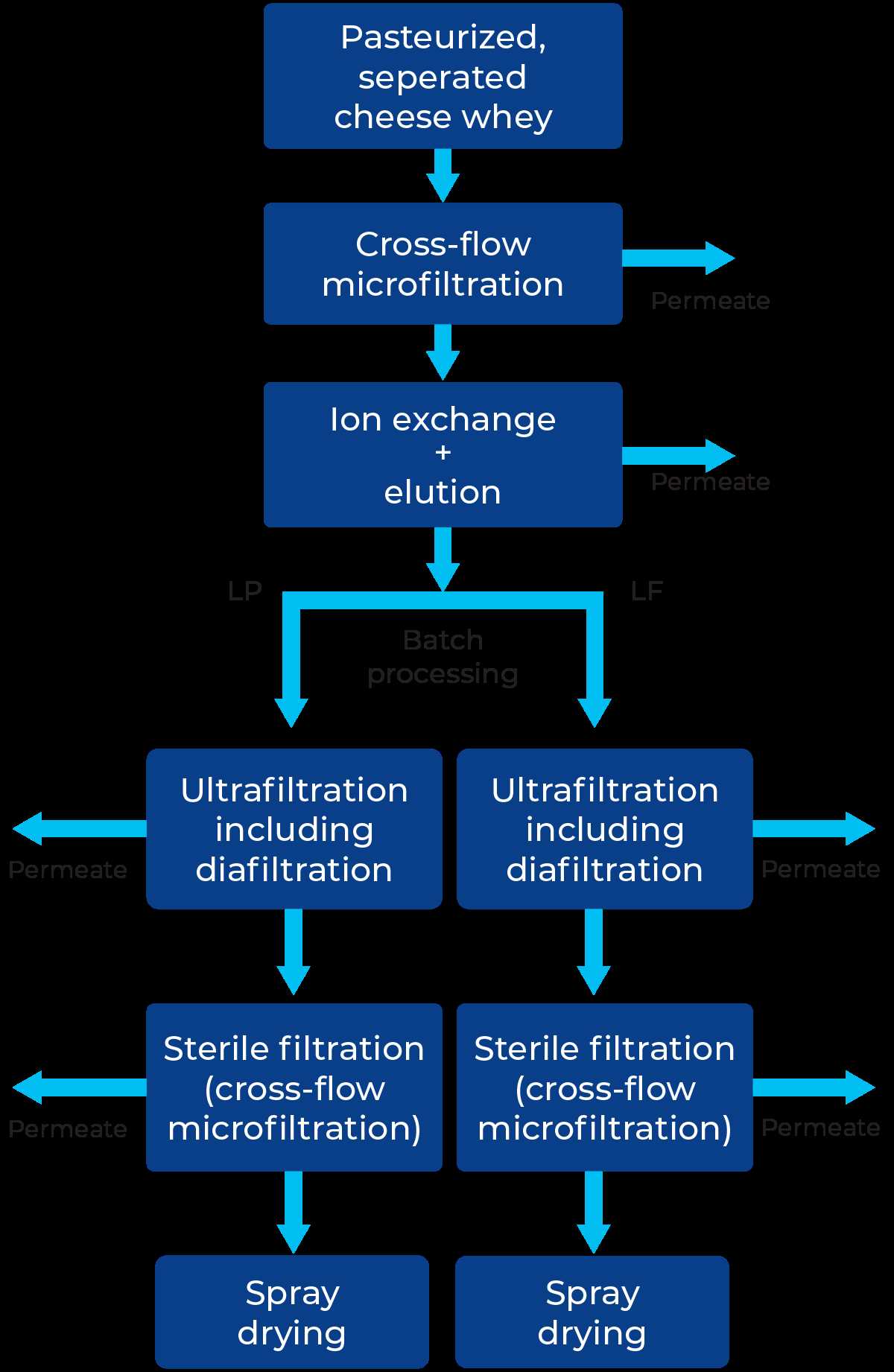

For dairy processors, superimpose a simplified flowchart layer: pasteurized fluid → ultrafiltration → retentate (high molecular weight) → permeate (low molecular weight). Annotate key decision points–e.g., temperature thresholds (72°C for whey denaturation, 4°C for cold agglutination of casein)–using icons: thermometer for heat treatment, column for chromatography steps. Include a small inset table comparing ideal pH ranges for rennet coagulation (6.2–6.5) versus acid precipitation (4.6–5.0), with arrows pointing to respective casein branches to guide product-specific adaptations (yogurt vs. hard cheese).

Core Building Blocks of Dairy Macromolecules in Visual Representations

To accurately depict casein micelles and whey fractions in simplified models, begin by segmenting structures into three hierarchical levels:

  • Primary: Polypeptide chains (e.g., αs1, β-casein) rendered as linear sequences with key phosphorylation sites marked (Ser-P clusters). Include disulfide bonds in whey-derived β-lactoglobulin at positions Cys66–Cys160.
  • Secondary: α-Helices (e.g., κ-casein’s C-terminal tail) and β-sheets (β-lg’s calyx) shown as coiled ribbons or arrows, respectively. Highlight hydrophobic domains using dotted shading.
  • Tertiary: Micellar assembly with κ-casein “hairs” protruding outward (anchored to calcium phosphate nanoclusters). Represent colloidal dimensions: 50–600 nm diameter for caseins, sub-20 nm for whey globulins.

Use color gradients to differentiate charge distributions: acidic regions (red), basic domains (blue), and neutral segments (gray). Add a legend specifying:

  1. Hydrophobic interaction zones (30% of micelle surface).
  2. Disulfide-linked dimers (β-lg’s native state).
  3. Glycosylation sites (κ-casein’s Thr133/Ser141).

Critical Annotations for Functional Clarity

Overlay annotations directly on the model to denote physiochemical roles:

  • Casein resistance: Label κ-casein’s polar C-terminus as the steric repulsion zone preventing aggregation.
  • Whey stability: Indicate β-lg’s Tanford transition (pH 7.5, 4°C) with a reversible conformational shift arrow.
  • Enzymatic cleavage: Mark rennet-sensitive Phe105–Met106 bond in κ-casein using scissor icons.

Superimpose a pH scale bar (4.6–6.8) to show isoelectric point impacts on structural integrity. For whey, include temperature-dependent denaturation thresholds (e.g., β-lg: 70°C onset).

Step-by-Step Construction of a Casein Micelle Illustration

Begin by sketching the core hydrophobic subunits, denoted as αs1-casein and β-casein, arranged in concentric spherical clusters. Depict these molecules as irregular, branching structures with phosphate-rich segments facing outward to bind colloidal calcium phosphate (CCP) nanoclusters. Use dashed lines to indicate flexible regions of κ-casein, which extend as “hairs” from the surface, preventing aggregation via steric and electrostatic repulsion. Ensure the CCP nodes–represented as small filled circles–are positioned at the terminus of each phosphate group, maintaining a 1:1 ratio with serine residues.

For accuracy, label key structural elements: CCP binding sites (SerP clusters), hydrophobic interactionss1/β-casein interfaces), and the glycomacropeptide region of κ-casein. Highlight the micelle’s diameter (100–200 nm) by scaling the outer κ-casein layer proportionally–its glycosylated termini should span 5–10 nm beyond the core. Verify symmetry by aligning CCP nodes along radial axes, ensuring they do not overlap with κ-casein’s stabilizing projections.

Visualizing Whey Constituent Breakdown: β-Lactoglobulin and α-Lactalbumin

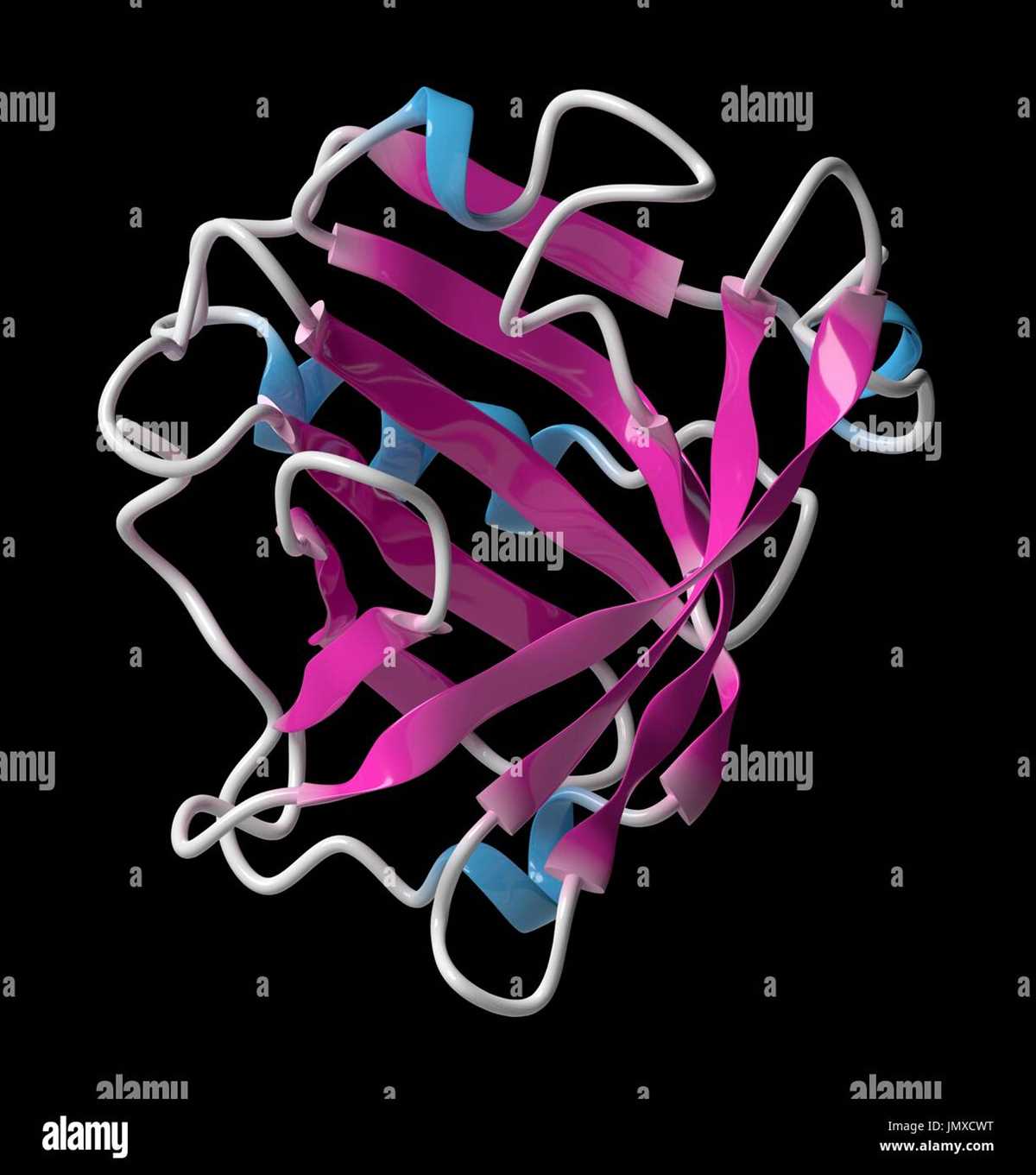

milk protein schematic diagram

Begin by mapping β-lactoglobulin’s structure using ribbon models to highlight its eight-stranded β-barrel core. This conformation explains its thermal stability–denaturing only above 70°C–and resistance to pepsin digestion. Annotate the central calyx pocket (TI binding site) where hydrophobic molecules dock, crucial for emulsifying properties in food matrices. For clarity, overlay disulfide bonds (Cys66-Cys160 and Cys106-Cys119) in yellow to emphasize their role in preserving tertiary integrity under acidic conditions, a key factor in whey isolate processing.

Key Fraction Differences

milk protein schematic diagram

α-lactalbumin contains 142 residues with four disulfide bridges, while β-lactoglobulin spans 162 residues and includes an additional free thiol group at Cys121. This distinction explains why β-lactoglobulin aggregates at pH 4.5–5.5, forming gels ideal for texturized products, whereas α-lactalbumin remains soluble. Use color gradients in your visualization: blues for α-lactalbumin’s EF-hand calcium-binding loop (residues 72–88) and reds for β-lactoglobulin’s reactive thiol. Include pH-dependent charge curves to show how α-lactalbumin’s isoelectric point (pH 4.2–4.5) shifts under varying ionic strengths, a critical parameter for membrane filtration selectivity.

Add a comparative heat map of flavor-binding affinities–β-lactoglobulin binds aldehydes and ketones 5–10× stronger due to its larger hydrophobic pocket. This interaction is measurable via fluorescence quenching assays (λ_ex = 280 nm, λ_em = 335 nm) and should be represented as contour plots. Specify that α-lactalbumin’s lower affinity makes it preferable in infant formulations where minimal aroma retention is desired. Annotate genetic variants (β-lactoglobulin A/B/C, α-lactalbumin B) and their impact on processing, e.g., variant A’s reduced heat stability requiring higher pasteurization temperatures.

For electrophoretic patterns, run SDS-PAGE under non-reducing conditions to visualize β-lactoglobulin dimers (36 kDa) and α-lactalbumin monomers (14 kDa). Include a reference lane with 2-mercaptoethanol to show disulfide cleavage, producing distinct bands at 18 kDa and 14 kDa respectively. Superimpose densitometry scans to quantify relative abundances in commercial whey streams: β-lactoglobulin typically constitutes 50–60% of total whey solids, while α-lactalbumin ranges 20–25%. This ratio directly correlates with foam stability in aerated applications–higher α-lactalbumin content yields smaller, more persistent bubbles due to its lower surface tension.

Leverage 3D crystallography data (PDB IDs: 1BEB for β-lactoglobulin, 1HML for α-lactalbumin) to generate cross-sectional views. Highlight α-lactalbumin’s lone tryptophan residue (Trp104) near the calcium site–its fluorescence serves as a sensitive probe for conformational changes during pH shifts or chelation. β-lactoglobulin’s two tryptophans (Trp19 and Trp61) exhibit environment-dependent shifts, useful for monitoring denaturation kinetics. Use ChimeraX or PyMOL to render these visuals with electrostatic potential maps, revealing how β-lactoglobulin’s net negative charge at neutral pH drives casein micelle interaction in cheese manufacturing.
