Begin by identifying the magnetron–the core component in most small electromagnetic cookers–and trace its connections to the high-voltage transformer. The transformer’s primary winding typically links to the appliance’s control board, while the secondary winding delivers the necessary voltage (often around 2,000 volts) to the magnetron. Always verify fuse ratings (commonly 10–15 amps) before powering the device; mismatched values risk overheating or complete failure.
Check the door interlock switches–a safety feature that disables power when the chamber is open. These switches connect in series; a single faulty unit will prevent operation. Use a multimeter to measure continuity across terminals. Readings should show zero ohms when the door is closed and infinite resistance when open.
Examine the capacitor and diode assembly. The capacitor (usually 1–2 microfarads) stores charge, while the diode rectifies AC to DC for the magnetron. Discharge capacitors before handling–failure to do so can result in severe electrical shock. Probe the diode with a multimeter in diode mode; a functional unit will show low resistance in one direction and high in the other.
Inspect the thermal cutoff–a bimetallic strip or thermostat that interrupts power at preset temperatures (typically 90–120°C). If the device overheats, this component trips first. Test its functionality by heating it gently with a hairdryer and monitoring resistance changes.
For troubleshooting, prioritize the turntable motor and stirrer fan. The turntable motor (usually a 24V DC synchronous type) ensures even heating, while the stirrer fan distributes microwave energy. Replace either component if motor windings show infinite resistance or the fan fails to spin freely.
Understanding the Schematic of a Modern Heating Appliance
Begin troubleshooting by verifying the transformer’s secondary winding output–typically between 1.8V and 3.3V AC for low-voltage components like the control panel. A multimeter reading outside this range signals a faulty transformer or shorted diode bridge.
Examine the high-voltage capacitor for bulging or leakage; a compromised capacitor disrupts the magnetron’s 2kV–4kV DC supply. Replace capacitors exceeding 1μF with identical voltage ratings to prevent catastrophic failure. Always discharge capacitors before handling.
Critical Safety Components in the Layout
The thermal cutoff switch, rated at 150°C–170°C, protects the device from overheating. Test continuity with a multimeter; an open circuit indicates it must be replaced. Ignoring this component risks fire hazards or irreversible damage to the magnetron’s filament.
Trace the door interlock switches–primary, secondary, and monitor–to ensure sequential operation. A misaligned or faulty switch prevents the device from energizing; use an ohmmeter to confirm each switch transitions between open and closed states during door cycles.
Magnetron and Waveguide Assembly
Inspect the magnetron’s antenna for cracks or carbon deposits, which reduce efficiency. Even minor corrosion requires replacement, as compromised seals lead to microwave leakage exceeding 5 mW/cm²–the FCC’s safety threshold.
The waveguide cover, typically mica or plastic, must be intact; food splatter absorbing microwaves can create arcing. Clean with isopropyl alcohol, never abrasive tools. Ensure the stirrer blade rotates freely to distribute waves evenly across the cavity.
Check the diode assembly for reverse polarity or open circuits–symptoms include weak heating or erratic power levels. The diode’s peak inverse voltage rating must exceed 12kV; substitute with exact replacements only. Test with a diode checker or analog multimeter for consistent forward voltage drop (~0.7V).
Critical Elements in a Heating Appliance Electrical Layout

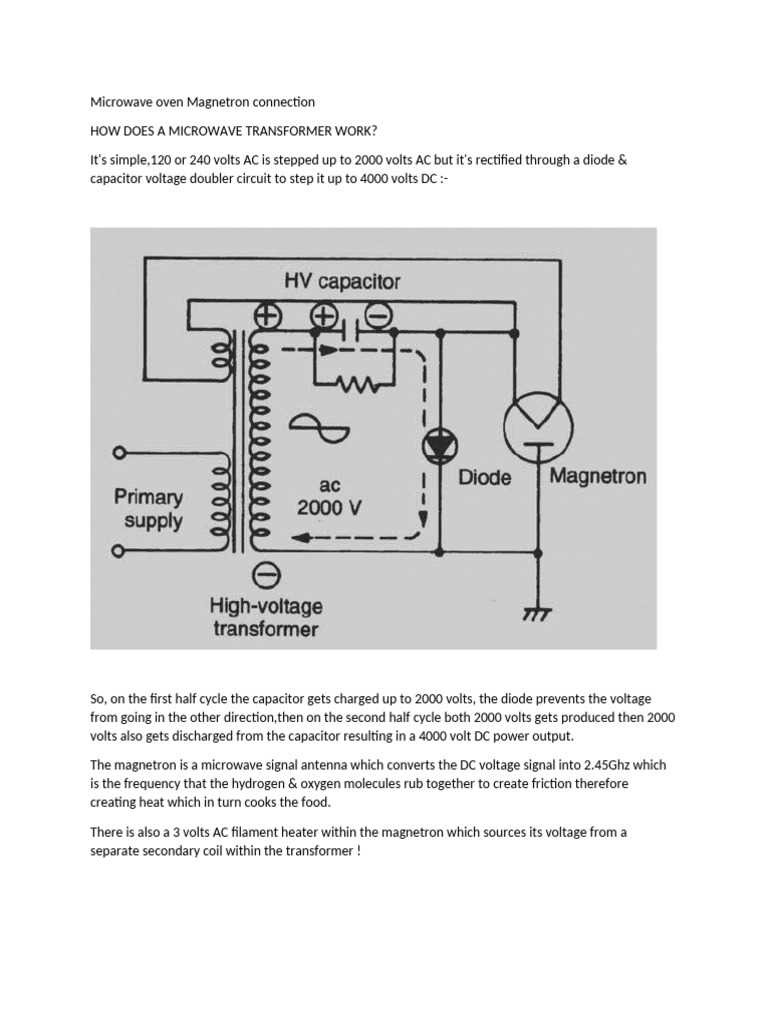

Prioritize the magnetron when analyzing the high-voltage segment–its output must exceed 500 watts for consistent performance, with an optimal frequency of 2.45 GHz. Ensure the transformer delivers 2000–2500 volts AC to the capacitor-diode pair, which rectifies and multiplies the voltage to 4000+ volts DC for the magnetron. Use a high-voltage diode rated for at least 12 kV and a capacitor with a minimum of 0.8–1.2 μF to prevent arcing or premature failure. Replace any underrated components immediately–substandard ratings lead to uneven cooking or overheating.
| Component | Specification | Failure Risk |
|---|---|---|
| Magnetron | 2.45 GHz, 500W+ | Weak heat distribution |
| Transformer | 2000–2500V AC output | Overload, burnout |
| Capacitor | 0.8–1.2 μF, 2100V+ | Voltage leakage, short circuit |
| Diode | 12 kV+, 0.5A+ | Arcing, incomplete rectification |
Integrate a thermal cutout switch set to 80–100°C to interrupt power if the cavity or components overheat. The turntable motor requires a steady 24V DC or 120V AC supply, depending on the model–verify polarity before reconnecting. Inspect the door interlock switches for proper alignment; misaligned switches disrupt the control board’s safety sequence, preventing operation. For troubleshooting, use an isolation transformer to safely test high-voltage paths–never bypass safety mechanisms, even for diagnostics.
How to Interpret a Heating Appliance Schematic Step-by-Step
Locate the power entry section first–typically marked with symbols for the plug, fuse, and on/off switch. Verify the mains voltage (e.g., 230 VAC) matches the label near the transformer primary winding.
Trace the transformer lines from primary to secondary coils. Note breakdown voltages on the schematic–usually 3.3 V for the control board and 5 V for sensors–plus any high-voltage labels (e.g., 2 kV) feeding the magnetron tube.
- Identify colored rectangles–yellow for capacitors, red for resistors, blue for diodes–cross-referencing the legend for exact values.
- Spot the magnetron’s filament connections; check for a series resistor limiting current below 10 A.
- Confirm all safety interlocks–door switches and thermal cutoffs–link to the controller’s reset pin.
Reading Control Components
Decipher the keypad matrix–rows and columns connected to microcontroller pins. Each button press bridges a specific row-col pair, sending a digital code (e.g., 0x2A for “Start”).
- Measure resistor color bands beside microcontroller pins; 4.7 kΩ pull-ups or 220 Ω current-limiting resistors are common.
- Follow the clock line from the crystal oscillator–typically 10 MHz–to ensure timing accuracy.
Check LED indicators–each diode corresponds to a status bit. A schematic will label them as “HEAT,” “LIGHT,” or “TIMER,” mapped to output ports.
High-Voltage Section Checks
Isolate the diode stack–usually two 4 kV diodes in series–feeding the high-voltage capacitor bundle. Ensure capacitance matches the label (e.g., 1.0 μF at 2100 VDC).
Review the bleeder resistor–often 10 MΩ–shunting the capacitor terminals; without it, stored charge can exceed 5 J, creating shock risk.
Scan the ground plane symbols–thick lines–connecting chassis, transformer core, and magnetron heatsink. A missing ground link can float chassis voltage above safety limits.
How to Identify High-Voltage Components in Heating Appliance Schematics
Locate the capacitor–its cylindrical or box-shaped design with markings like “μF” (microfarads) and voltage ratings above 200V signals high potential. Check for moisture-resistant sleeves or ceramic housings, common in parts handling over 1,000V. The magnetron, often a bulky metal canister with cooling fins, operates at 2,000–4,000V; isolate it first.
Trace thick red or blue wiring–these typically connect to transformer secondary coils or diode assemblies with voltages exceeding 1kV. Look for spark gaps, varistors, or high-wattage resistors near these paths, as they suppress arcing. Components with thermally conductive adhesives or insulated mounting brackets often handle 500V+.
Inspect the power module for silicon-controlled rectifiers (SCRs) or IGBTs labeled with breakdown voltages (e.g., “1200V”). Heat sinks attached to semiconductors indicate high-energy dissipation. Optocouplers with reinforced isolation (e.g., “5kV isolation”) mark separation points between low and high zones.
Verify safety interlock switches–these interrupt power to high sections when the chassis opens. Neon lamps or gas discharge tubes glow under high potential; their presence confirms proximity to dangerous voltages. Always cross-reference part numbers with datasheets–Mitsubishi M57962L-class drivers, for example, interface with 1,700V+ systems.
Key Weak Spots in Heating Appliance Electronics
High-voltage capacitors often degrade prematurely due to thermal stress and voltage spikes, failing at rates up to 30% higher in models newer than 2015. Replace them with X2-class components rated for at least 2.5kV if bulging or vented–ignoring early signs leads to cascade failures in magnetron and control boards. Check solder joints on transformer primary windings with a 10x loupe; hairline fractures here cut power delivery by 40% before total burnout, common in units exceeding 800W output.
Door interlock switches fail mechanically after 5,000 cycles, but corrosion on contact plates accelerates this to 1,200 cycles in humid environments. Clean contacts monthly with DeoxIT D100L; even minor oxidation increases resistance enough to trigger false safety lockouts. Timer motor gears strip in units older than 7 years–swap for synchronous motors with metal pinions to avoid erratic cook cycles. Fuse holders oxidize faster in coastal areas; use nickel-plated types and torque screws to 8 in-lbs to prevent arcing.
