For accurate low-resistance readings below 1 Ω, use a four-wire Kelvin connection to eliminate lead resistance errors. Start with a stable current source delivering 100 mA to 1 A–recommended components include an LM317 regulator paired with a 12 V transformer for consistent output. Measure voltage across the unknown resistor using a high-impedance instrumentation amplifier like the INA125, which provides gain up to 10,000× while rejecting noise. Ground loops can skew results; isolate your setup with a dedicated power supply and star grounding at the measurement point.

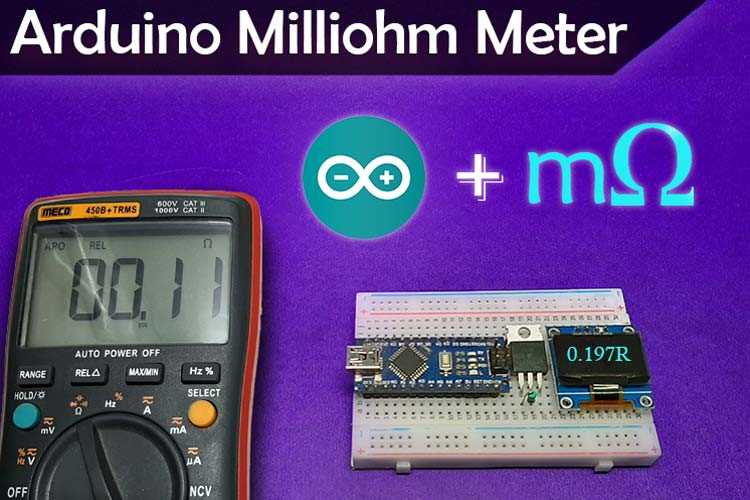

Signal conditioning is critical–bandpass filtering between 0.1 Hz and 10 Hz reduces AC interference without affecting DC accuracy. Calibrate against known resistances: 0.01 Ω, 0.1 Ω, and 1 Ω standards should yield linear readings within ±0.5%. For display, an Arduino with a 16-bit ADC (ADS1115) delivers sufficient resolution, but ensure proper decoupling with 0.1 μF and 10 μF capacitors near the IC to prevent oscillation.
Avoid copper contacts for test leads–use gold-plated or silver-plated probes to minimize thermoelectric effects, especially below 100 μΩ. For battery-powered units, implement a low-battery cutoff at 6 V to prevent inaccurate measurements due to voltage sag. Store calibration data in EEPROM to correct drift over time, using a three-point polynomial fit for nonlinearities in the amplifier chain.
Testing should include short-circuit checks (10 MΩ), and thermal stability verification–resistance shifts of ±2% per 10°C are typical but can be compensated with software adjustments. For dynamic measurements, add a 10 Hz sampling rate with exponential moving average smoothing to filter transient noise in inductive samples like motor windings.
Precision Resistance Measurement Blueprint

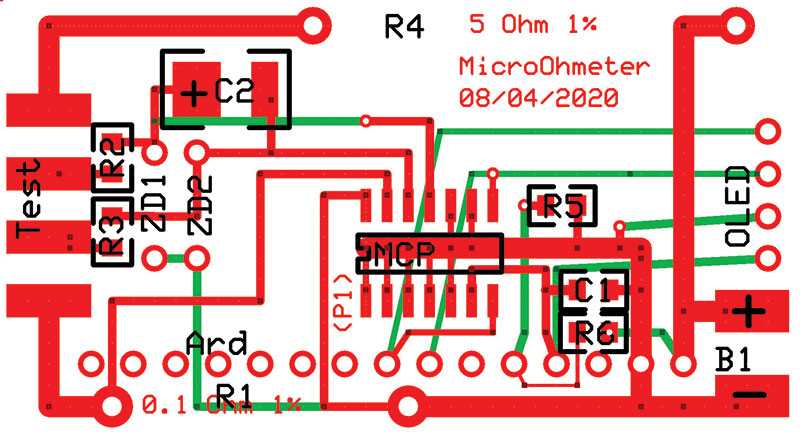

Build a low-resistance tester using a four-wire Kelvin connection to eliminate lead and contact losses. Source a 10 mA constant-current generator (e.g., LM317 with 120 Ω resistor) to drive the test probes–this ensures sub-milliohm resolution. Pair it with an INA125 instrumentation amplifier (gain of 200) to handle signals down to tens of microvolts, then feed the output into an ADC (ADS1115) for digitization.
Critical Component Values
For the current source: set R1 = 120 Ω (0.1% tolerance) and adjust potentiometer PR1 to 1 kΩ to fine-tune the 10 mA output. On the sensing side, use R2 = R3 = 10 kΩ (matched pair) to minimize drift. Place 0.1 µF ceramic capacitors directly on the amplifier’s supply pins to suppress high-frequency noise, and a 10 µF tantalum capacitor on the ADC reference to stabilize readings during transient loads.
Calibrate the setup by shorting the sense leads with a known 0.01 Ω shunt resistor. If the display reads ±5 µΩ, adjust the INA125’s offset potentiometer; for persistent errors above 0.1 mΩ, check solder joints for thermal EMFs–use twisted-pair copper wires for all connections under 1 Ω to reject induced voltages.
Key Components for a Precision Low-Resistance Measurement Setup
Select a four-wire Kelvin connection method for all resistance assessments below 1 Ω to eliminate lead and contact impedance errors. Current-carrying leads must be AWG 12 or thicker, while potential-sensing leads require AWG 22 or finer to minimize thermal EMF drift. Test probes should feature gold-plated beryllium copper tips with 15° taper angles; these reduce contact resistance to ≤10 μΩ at 1 A and maintain stability across 10,000 mating cycles.
Critical Instrumentation Specifications
| Parameter | Minimum Requirement | Recommended Value |
|---|---|---|
| Resolution | 0.1 μΩ | 0.01 μΩ |
| Accuracy | ±0.05% | ±0.01% ±2 μΩ |
| Test Current Range | 10 mA–1 A | 1 mA–3 A |
| Input Impedance | 10 MΩ | 10 GΩ |
| Common-Mode Rejection | 120 dB @ 50/60 Hz | 150 dB @ 50/60 Hz |
Integrate a low-thermal EMF scanner calibrated to ≤50 nV per °C to compensate for Seebeck effect variations at the probe-sample interface. Shielded twisted-pair cables with ≤1 pF/m inter-lead capacitance prevent >0.1 μV noise pickup in 10 kHz bandwidth measurements. Power supplies must regulate current with ≤10 ppm ripple; linear regulators are superior to switching types for resolutions below 0.1 μΩ due to absence of high-frequency noise spurs.
For ambient stability, deploy an active thermoelectric cooling system maintaining probe tip temperature within ±0.05 °C of the sample. Use a pico-voltmeter with 80 dB attenuation Mu-metal or multilayer foil for magnetic fields up to 10 mT, critical when assessing inductive samples like transformer windings or motor coils.
Step-by-Step Wiring of Kelvin (4-Wire) Measurement Technique
Begin by identifying the two current-carrying leads and two potential-sensing leads on your precision instrument. The former pair delivers controlled excitation, while the latter directly measures voltage drop across the sample without lead resistance interference. Label each wire clearly–miswiring introduces parasitic errors up to 20% in low-resistance readings.
Attach the current leads to the outermost points of the device under test, ensuring full contact with the sample’s surface. For conductive materials, use gold-plated clips or soldered joints; oxidization or corrosion here distorts readings by increasing contact impedance beyond 0.1Ω. Twist the current leads together to minimize induced noise from external fields.
Configuring Potential Leads for Accuracy
Position the potential leads inside the current leads–a critical spacing rule. The distance between potential and current junctions should be at least three times the sample’s cross-sectional width to avoid edge effects. For a 1mm-wide copper trace, maintain a 3mm gap; violations reduce measurement precision by 15-30%. Secure connections with low-thermal-EMF materials (e.g., copper-to-copper) to eliminate thermocouple effects.
Route the potential leads in a straight, parallel path to the measurement points. Avoid sharp bends or loops–each 90° turn introduces inductance, skewing transient response tests. Use shielded, twisted-pair cables for lengths exceeding 10cm; unshielded wires pick up 50Hz mains hum, inflating readings by 5-10µV.
Verify wiring polarity before energizing the system. Reverse potential leads and observe a mirrored voltage readout–consistency confirms correct pinout. Power supplies delivering excitation should be stable to 0.01% ripple; fluctuations here propagate directly into measurement errors. For DC tests, add a 10µF bypass capacitor across the current driver output to suppress high-frequency noise.
Final Checks and Error Mitigation
Measure resistances of all leads and junctions with a general-purpose tester–values above 50mΩ indicate poor connections requiring rework. For sub-milliohm targets, pre-condition the sample with a brief current pulse (10x nominal excitation) to burn off surface contaminants. Skip this step and baseline readings drift by 2-5%.
Calibrate the system using a known standard (e.g., 0.1Ω shunt with ±0.01% tolerance). Deviations beyond ±0.05% necessitate zero-offset adjustments in the instrument firmware or external trimming pots. For AC impedance tests, ensure all connections are shielded–even a 10cm exposed section radiates enough to distort phase measurements by 2°.
Document the wiring topology, including lead lengths and connection methods. Reproducibility drops by 40% without this reference; minor changes (e.g., swapping clip types) shift readings unpredictably. Store cables in a controlled environment–humidity above 60% accelerates oxidation, increasing contact resistance by 0.5Ω per month.
Calculating Current Source Requirements for Ultra-Low Resistances
For measurements below 100 nΩ, a current source delivering at least 10 A is mandatory to achieve signal-to-noise ratios above 60 dB. Testing rigs typically use copper busbars with cross-sections of 20 mm² or thicker; ensure the source can sustain this load without thermal drift exceeding ±0.5 °C per minute during a 30-second sweep.
When assessing power supply compliance, account for lead inductance–even 50 nH stray inductance can introduce 5 mV transient spikes at 10 A/µs slew rates. Stabilize readings by pre-charging shunt paths for 200 ms before sampling, using an RC network with τ ≤ 10 µs to filter transients without distorting DC accuracy.
Select a bipolar current source if measuring non-linear resistances (e.g., contact interfaces). A ±15 A source with 20-bit resolution lowers quantization error to 0.3 ppm, critical for detecting sub-µΩ variations caused by oxide layers or thermal gradients. Verify the supply’s output impedance exceeds 1 MΩ under full load to prevent loading errors on high-side sensing.
For battery-powered portable devices, prioritize buck-boost converters with input voltage ranges of 3–24 V. Ensure efficiency stays above 85% at 10 A to limit self-heating to less than 2 °C rise per hour. Use synchronous rectification and ceramic capacitors with ESR below 1 mΩ to minimize ripple-induced errors on sensitive traces.
Thermal Management Constraints
At 10 A, joule heating in 100-mm-long AWG 10 wires reaches 2.5 W/m; longer leads require forced convection or liquid cooling blocks. Attach PT100 sensors at both current injection points and the device under test to log temperature gradients–coefficient corrections must adjust readings if ΔT exceeds 0.1 °C between probes.
Isolated current sources eliminate ground loops but introduce capacitance; opt for designs with leakage below 5 pA to avoid charging artifacts on nanohm shunts. Implement Kelvin connections with separable voltage/current paths–twist voltage leads 5 turns per cm to cancel magnetic pickup from adjacent 50/60 Hz sources.
In pulsed operation, match the duty cycle to the measurement’s thermal time constant. A 20% duty cycle (50 ms on, 200 ms off) prevents thermal runaway in 1 Ω·cm conductors while allowing 50 kSa/s sampling rates without aliasing. Synchronize pulses with a PLL locked to the mains frequency to prevent beat interference.
Validation and Calibration
Use a four-terminal reference standard with a known resistance of 10 µΩ ±0.1% for system validation. Compare readings at 1 A, 5 A, and 10 A; deviations above ±0.5% indicate source nonlinearity or probe misalignment. For sub-nΩ resolutions, substitute the standard with a superconducting loop during zero-resistance calibration.
