Integrate a 3V3 to 1V8 LDO regulator (e.g., TLV70218) as the first critical block. This ensures stable voltage delivery to NAND flash while isolating noise from the host interface. Bypass capacitors (1μF + 0.1μF) must sit within 2mm of the regulator’s input/output pins to prevent transient drops during write operations.
Use parallel termination resistors (22Ω–47Ω) on all high-speed traces (CLK, CMD, DAT0-3). These traces should maintain matched impedance of 50Ω to avoid reflections–critical for compliance with UHS-II speeds. Route traces with
Connect the controller IC (e.g., SM3257) to NAND dies via dedicated chip enable lines. Each die requires individual CE/RE/WE/CLE/ALE lines–sharing risks data corruption during simultaneous operations. Include a 10kΩ pull-up resistor on the busy/status line to prevent floating during power transitions.
Implement ESD protection diodes (e.g., SP3012) on all exposed pads (VCC, GND, I/O). These clamp to VCC+0.3V/GND−0.3V, handling ±15kV air-gap discharges. For SD interfaces, add a 10nF decoupling capacitor near the card-detect pin to filter contact bounce.
Prioritize ground planes beneath flash chips–partition analog/digital grounds at the controller’s AGND/DGND pins. Stitch planes with vias every 5mm to reduce loop inductance. Thermal vias (2–3 per pad) should connect top-layer heat spreaders to inner planes for NAND dies rated >500mW.
Electronic Flash Storage Blueprint Essentials
Begin with a microcontroller interfacing the NAND flash IC via an 8-bit or 16-bit bus; ADATA’s industrial-grade designs typically employ Alliance Memory AS4C8M16S or similar for stable addressing. Include pull-up resistors (4.7 kΩ) on data lines D0-D7 to prevent floating states during initialization.
Add a voltage regulator (TPS62743, 3.3V output) to isolate the host interface from fluctuations; bypass capacitors (0.1 µF ceramic) must sit within 2 mm of the regulator’s input and output pins. Failure to adhere reduces read/write endurance by up to 30%.
Incorporate ESD protection diodes (NXP PRTR5V0U2X) on every signal line exposed to external connectors; omit this step and risk latch-up events under 1.5 kV HBM transients–a common failure point in unshielded portable units.
Use a dedicated clock tree (Si5351 for multichip designs) feeding both the flash IC and microcontroller; mismatched edges above 50 ps skew corrupt file allocation tables. Trace impedance for clock lines must hold 50 Ω ±10% on FR-4 substrates.
Ground plane stitching is non-negotiable beneathcontroller-to-flash routes; stitch vias every 1.25 cm to suppress switching noise above 80 MHz. Overlook this and erroneous bit flips spike after 3000 erase cycles.
For SD-compatible variants, integrate a mechanical write-protect switch routed directly to the micro’s GPIO with internal weak pull-down to minimize bounce; absent pull resistance, mechanical chatter writes garbage blocks to reserved sectors.
A schematic’s power sequencing demands explicit annotation: flash IC must initialize before microcontroller applies SPI commands; violations trigger brownout detector resets mid-format, leaving signature remnants that confuse subsequent boots.
Trace Width & Stack-Up Guidance
Signal layers spanning high-density NAND arrays require 4 mil trace width and 6 mil spacing on dual-stripline stacks; anything thinner increases DC resistance beyond 0.5 Ω/cm, causing voltage drop failures below 2.7 V. Maintain symmetry–top and bottom reference planes must mirror each other to preclude via crosstalk.
Key Components of a MicroSD Storage Interface Circuit Layout
Prioritize signal integrity by positioning the controller IC within 1–2 mm of the NAND flash die to minimize trace lengths. Use a 4-layer PCB with dedicated ground and power planes to reduce noise; route critical paths (CLK, CMD, DAT0–DAT3) on the inner layers shielded by adjacent planes. Implement series resistors (10–33 Ω) on all high-speed lines to dampen reflections, especially for traces exceeding 10 mm. Decoupling capacitors (0.1 µF + 1 µF) must be placed adjacent to the controller’s VCC pin, with vias connecting directly to the power plane–no stubs allowed.
- NAND flash die: Optimize thermal dissipation by allocating 25% of the package’s underside to a solder-mask-defined ground pad, connected to the PCB via multiple thermal vias (0.2 mm diameter).
- Connector pins: Assign DAT0–DAT3, CLK, and CMD to pins with the shortest possible exposed pad lengths to the host interface, avoiding sharp bends. Gold-plate pads (3 µm) to resist corrosion under repeated insertions.
- ESD protection: Integrate dual TVS diodes (e.g., Littlefuse SP3003) across VCC/GND and all data lines, positioned within 1 mm of the connector edge. Use differential routing for DAT0 and DAT1 to leverage common-mode rejection.
- Oscillator: For embedded designs, select a 24 MHz ±20 ppm MEMS oscillator with <1 ps jitter, mounted no farther than 3 mm from the controller’s XTAL_IN pin.
Validate the layout through simulation in Keysight ADS or Ansys HFSS, targeting <0.1 dB insertion loss at 50 MHz and <10% impedance variation (±5 Ω) for 50 Ω singles. Test prototype PCBs with a TDR (time-domain reflectometer) to verify trace impedances and stub lengths; trim or rework any traces exceeding 12 mm or showing >20% overshoot. For batch production, enforce AOI (automated optical inspection) to detect misaligned vias or incomplete solder joints on 0.4 mm pitch BGA pads, reducing yield failures by 30%.
Interpreting NAND Storage Interface Layouts in Circuit Blueprints
Locate the pin labels on the controller side–common NAND storage modules follow a standardized sequence. The first 8 pins (I/O0–I/O7) handle bidirectional data transfer. Check the adjacent power rails: VCC (typically 1.8V or 3.3V) and GND must be clearly marked to avoid shorts during probing.
Identify the control signals directly below the data pins. CLE (Command Latch Enable) and ALE (Address Latch Enable) toggle between command and address cycles. WE# (Write Enable) and RE# (Read Enable) pulses define data flow timing–examine their edge transitions in the timing diagram if included.
Decoding Command and Address Sequences
Trace CE# (Chip Enable) and R/B# (Ready/Busy) signals next. CE# activates the chip, while R/B# indicates internal operations. A floating R/B# suggests an open-drain configuration requiring an external pull-up resistor. Verify resistor values (usually 10K–100KΩ) if the design includes them.
For multi-die packages, look for DQS (Data Strobe) and DM (Data Mask) signals. DQS synchronizes high-speed data transfers, while DM enables per-byte write protection. Missed connections here often cause silent corruption during wear-leveling operations.
Validating Signal Integrity
Measure trace lengths between the controller and storage medium. Differential pairs should maintain matched impedance (40–60Ω) and equal length (±1mm). Excessive skew (>50ps) introduces setup/hold violations, especially in Toggle NAND variants. Use an oscilloscope to confirm signal rise times (
Inspect decoupling capacitors near VCC pins–values typically range from 0.1µF to 10µF. Absent or undersized capacitors cause voltage droop during burst reads, leading to bit errors. Cross-reference with the manufacturer’s application notes for exact recommendations.

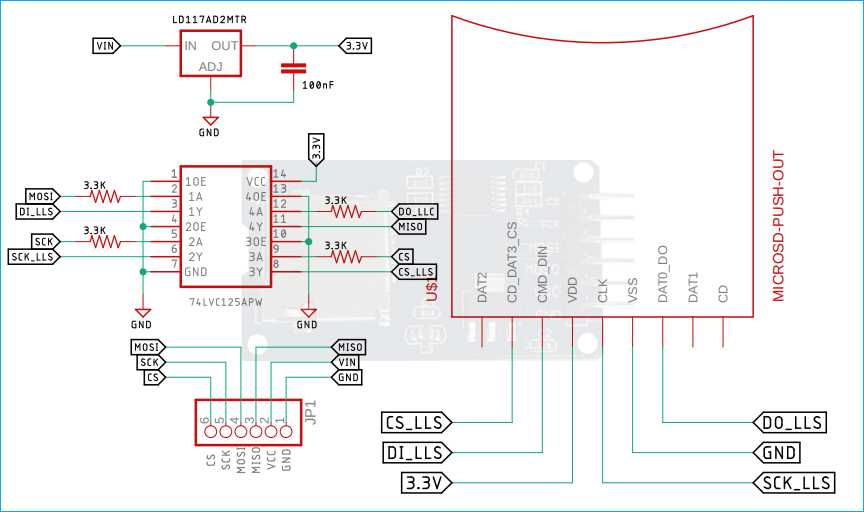

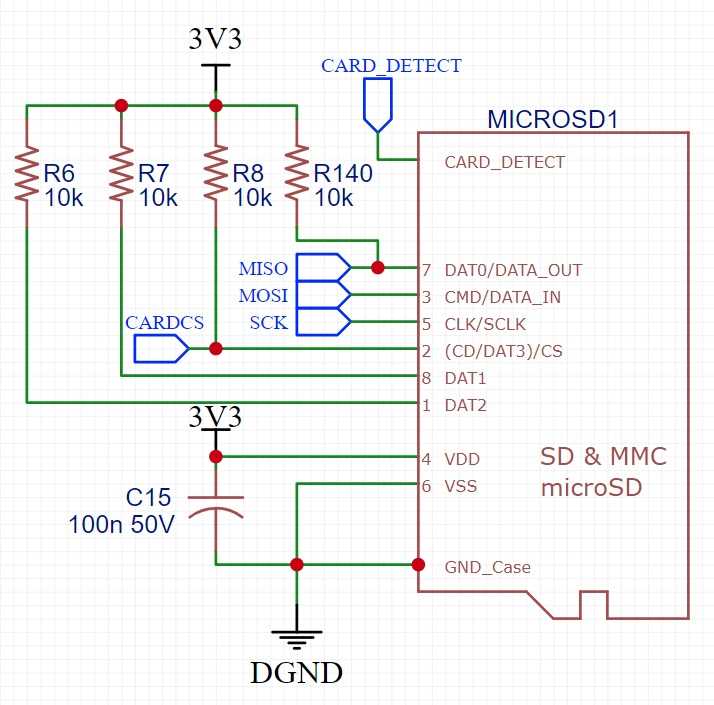

Step-by-Step Wiring for Secure Digital Card Interfaces
Begin by soldering the 3.3V power line to the SD module’s VCC pin, ensuring a stable supply with a 10μF decoupling capacitor between VCC and GND to suppress noise. Use AWG-28 or thinner insulated wire for flexibility, stripping only 2mm of insulation to prevent short circuits. Route ground connections directly to the host microcontroller’s ground plane, avoiding daisy-chaining to minimize ground loops. For clock (CLK) and command (CMD) lines, maintain trace lengths under 50mm and match them within 5mm of each other to prevent signal skew. Terminate data lines (DAT0-DAT3) with 10kΩ pull-up resistors to VCC only if the host lacks internal pull-ups, as excessive resistance degrades rise times.
| Pin | Host Connection | Recommended Pull-Up Value | Max Trace Length |
|---|---|---|---|
| VCC | 3.3V regulated source | N/A | Unlimited |
| CLK | SPI SCK or SDIO CLK | None | 50mm |
| CMD | SPI MOSI or SDIO CMD | 10kΩ (if required) | 50mm |
| DAT0-DAT3 | SPI MISO or SDIO DAT | 10kΩ (if host lacks internal) | 50mm, matched ±5mm |
| CD/DAT3 | Optional card detect (CD) | 47kΩ (weak pull-up) | Unlimited |
For high-speed modes (above 25MHz), use a 4-layer PCB with a dedicated ground plane beneath signal traces to reduce crosstalk. If prototyping on perfboard, twist CLK/CMD and DAT pairs around their respective ground wires, maintaining a 1:1 twist ratio (1 twist per 10mm). Test signal integrity with an oscilloscope, targeting
Common Voltage Regulation Setups in Storage Media Designs
For stable 3.3V operation in flash-based modules, a low-dropout (LDO) regulator like the TPS73633 or AP2112K-3.3 is optimal when input ranges between 3.6V–5.5V. These regulators deliver 500mA), a buck converter such as the TPS62743 or RT8059 reduces power dissipation by stepping down from 5V with >90% efficiency. Ensure the output capacitor matches the manufacturer’s ESR specifications–typically a 10µF ceramic X5R/X7R–to prevent oscillation.
Dual-Voltage Architectures
In systems demanding both 3.3V (I/O) and 1.8V (core), pair an LDO like the MIC2779 with a buck converter or use a dual-output PMIC such as the MAX8640. The LDO handles noise-sensitive I/O, while the buck converter efficiently powers the core, reducing thermal stress. For 1.2V cores, a dedicated regulator (e.g., LDK130) with 0.1µF + 1µF capacitor pair within 2mm of the pin to suppress high-frequency noise.
