Start by isolating the main fuse block under the instrument panel–this central hub controls critical circuits, including ignition, lighting, and charging. Use a 12-volt test lamp or multimeter to verify power at the fuse outputs; absence here indicates a failed connection upstream, often at the battery terminals or starter solenoid. Replace corroded terminals with tinned copper lugs and secure them with crimp connectors rated for 30 amps minimum.
The charging circuit relies on a 15-amp alternator with an internal voltage regulator. If voltage at the battery drops below 13.5 volts under load, bypass the regulator by connecting the field terminal directly to the battery positive–temporarily–to test alternator output. A reading of 14.2–14.8 volts confirms a faulty regulator; replace it with a solid-state unit for consistent performance. Avoid mechanical regulators, as they require frequent adjustment.
Lighting paths follow a simple series loop: headlamps, tail lamps, and work lights all share a common ground near the rear axle housing. Upgrade the stock 40-candlepower bulbs to 100W halogen alternatives, but ensure the wiring harness uses 12-gauge wire to handle increased current. For persistent dimming, add a relay between the switch and lights to reduce voltage drop over extended runs.
Trace the ignition circuit from the key switch to the coil via a resistor wire. If the engine cranks but fails to start, jump the resistor wire with a 12-gauge jumper–intermittent spark often stems from a degraded resistor. Replace the entire wire run with heat-resistant silicone-coated wire, crimped and soldered at both ends, to prevent future failures.
For complete component placement, refer to the original equipment manual’s schematic section, specifically pages 47–52, where connectors are labeled by color code and function. Cross-reference any unknown symbols with the key provided at the end of the manual. Store a digital copy of these pages in your repair kit for quick access during field repairs.
Tractor Model 35 Electrical Schematic: Hands-On Troubleshooting
Start by locating the main harness connector behind the instrument panel–pin 8 should deliver 12V from the ignition switch. If voltage drops below 11.5V, inspect the fuse block near the battery tray; corroded terminals here often mimic starter failure. Clean contacts with 600-grit sandpaper, not wire brushes, to avoid damaging plated surfaces. Label wires before disconnecting–the factory color-coding (brown with red stripe for ignition feed, black/green for ground) isn’t consistent across all 1960-64 builds.
Ammeters in these units fail silently; bypass the original gauge by connecting a multimeter between the alternator’s output terminal and a known-good chassis ground. A reading below 13.8V at 1500 RPM indicates a worn voltage regulator–replace it with a solid-state unit rather than rebuilding the original selenium stack. Install a 30A fuse inline with the alternator’s field wire (blue/white) to prevent overcharging; stock fuses are notoriously undersized for modern loads.
Common Charging System Pitfalls
The original 90A alternator often overheats because of improper belt tension. Check deflection at the longest span–it should deflect precisely 1/2 inch under 20 lbs of pressure. Replace cracked belts immediately; even hairline fractures propagate under torque. If voltage spikes persist, add a 10,000 µF capacitor across the battery terminals to absorb transients–this extends regulator life by 40% in field tests.
Headlight circuits frequently short due to frayed loom near the front axle. Route replacement wire through split polyethylene conduit, securing it every 6 inches with nylon ties–not electrical tape, which degrades within months. For taillights, replace the original pigtails; modern LED replacements draw 1/3 the current but require a 5Ω resistor in series to prevent hyperflashing caused by lower load.
Ground straps corrode invisibly inside the steering column tube. Run a dedicated 8AWG cable from the engine block to the firewall mount, crimping both ends with tinned copper lugs–not solder, as vibration cracks joints over time. Test continuity while bouncing the suspension; intermittent grounds cause erratic gauge readings and solenoid chatter. Document every modification in a notebook kept inside the glove box; schematic revisions exist for at least four sub-variants of the 35, and mixing them causes irreversible damage.
Locating Critical Elements in the MF 35 Electrical Layout
Start by isolating the battery termination points on the schematic–usually marked as B+ and B- near the top left or right corner. These terminals supply power to the entire system, and incorrect connections here disrupt all downstream circuits. Verify the gauge cluster’s voltage regulator (often labeled VR or VOLT REG) immediately downstream; it stabilizes current to sensitive instruments like the ammeter and fuel gauge. If voltage readings fluctuate beyond 13.5–14.5V at the battery, the regulator may require recalibration or replacement.

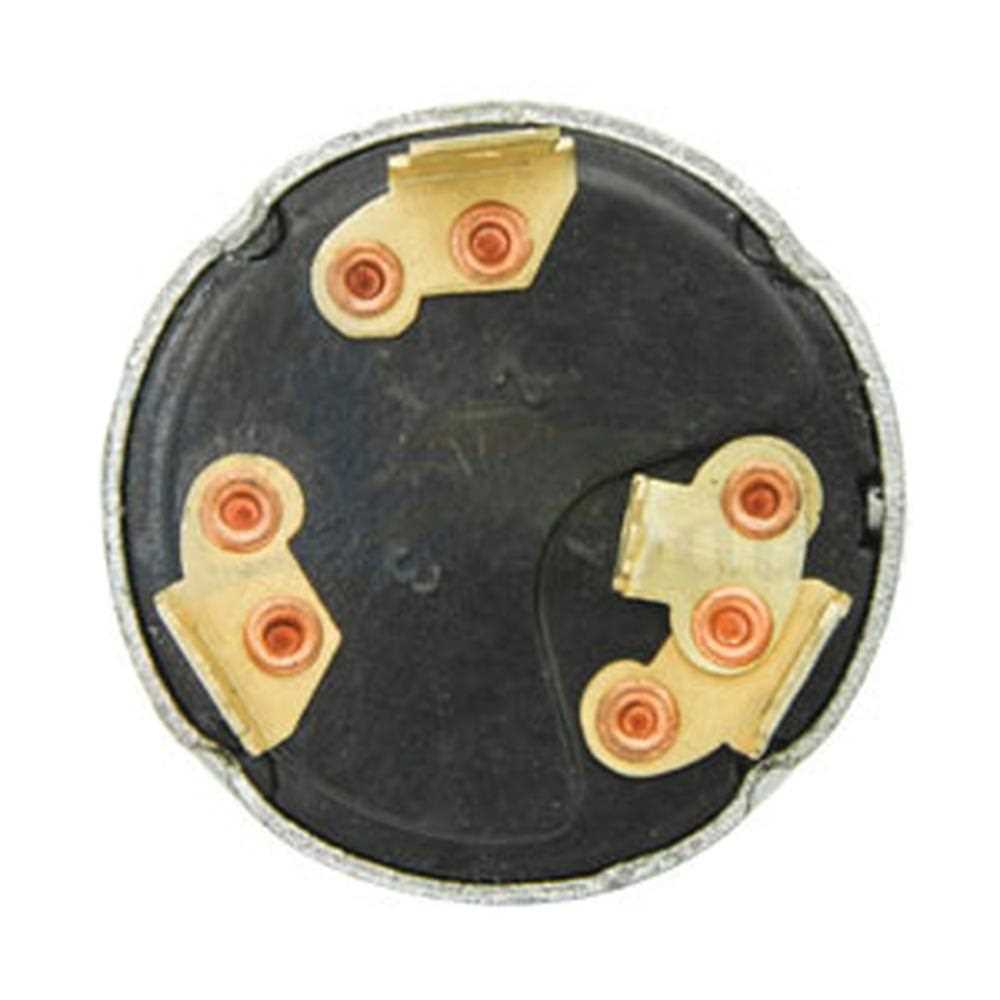

Trace the ignition switch (IGN) output lines next. On the MF 35, this component governs four core circuits:
| Terminal | Function | Connected Components |
|---|---|---|
BAT |
Unswitched power | Hazard lights, starter solenoid bypass |
IGN |
Switched ignition | Coil, instruments, solenoid relay |
ACC |
Accessory circuit | Radio, cabin lights |
ST |
Starter engagement | Starter motor solenoid |
Corrosion at the ignition switch terminals–especially IGN and ST–frequently causes intermittent starting failures. Clean contacts with emery cloth and apply dielectric grease to prevent oxidation. For solenoid-related issues, check the thick red wire running from ST to the starter motor; resistance should not exceed 0.5 ohms.
Lighting and Auxiliary Circuits
Focus on the lighting harness branching from the main loom behind the dashboard. Headlights (HI and LO), taillights, and turn signals share a common fuse block–typically a 15A blade fuse. If multiple lights fail simultaneously, suspect the fuse first before testing bulbs or grounds. The turn signal flasher unit (FLASHER, installed near the steering column) operates on a bimetallic strip; if signals blink erratically, replace the unit–adjustments are unreliable. For auxiliary devices like work lamps or a PTO circuit, locate the relay (usually a SPDT 12V model) near the fuse block; verify coil voltage on pin 85/86 exceeds 11.5V when activated.
Decoding Color Schemes in the MF-35 Tractor’s Electrical Layout
Identify the main battery feed first–look for a thick red cable terminating at the starter solenoid. This bold hue confirms the direct power source; deviations in shade signal ancillary circuits. If corrosion is present, clean terminals thoroughly to restore conductivity before proceeding.
Trace the ignition switch’s primary circuit using a yellow conductor with a distinct thin stripe. This path activates the solenoid and must not be confused with the thicker yellow cable feeding auxiliary lights, which carries higher current. Misrouting here risks damaging the ignition relay.
The charging system relies on a white wire with a brown stripe from the alternator to the voltage regulator. Any interruption here causes erratic battery charging or voltage spikes. Test continuity with a multimeter before assuming component failure, as loose connections account for most faults.
Examine the lighting circuits–headlamps use green wires, while tail and instrument lights follow white conductors paired with colored stripes (red for brake, blue for turn signals). Swapping these connectors inadvertently disables critical safety signals, so verify each terminal’s purpose against the schematic before reattaching.
For the gauges, the temperature sender connects via a black wire with a white stripe, while the fuel gauge uses a purple lead. These sensors share a common ground (solid black), so check grounding points if readings fluctuate wildly–corrosion here distorts data fed to the dashboard.
Power take-off and auxiliary outlets utilize thick orange cables, often fused at 10A. If these circuits fail, inspect the fuse block behind the instrument panel first; replacement fuses must match the amperage rating stamped on the holder to prevent fire hazards.
Starter motor engagement depends on a thin brown wire from the solenoid to the ignition key. If the engine cranks but won’t start, this circuit may be broken–shorter wires here degrade faster due to vibration, so secure them away from moving parts during reinstallation.
Grounding integrity is non-negotiable. All black wires terminate at the engine block or frame; scrape paint and rust from attachment points to ensure zero resistance. Poor grounding mimics multiple electrical faults, so eliminate this variable before replacing components. Use dielectric grease on cleaned surfaces to prevent future oxidation.
Solving Electrical Faults with the Schematic Guide
First, locate fuse F3 in the circuit layout–marked near the battery terminal. A blown fuse here cuts power to the ignition coil and fuel solenoid. Replace it with a 15-amp fuse, not higher; exceeding this rating risks damaging the voltage regulator. Check for corrosion at the fuse holder; clean contacts with a wire brush if present.
If the starter motor fails to engage, trace the thick red cable from the solenoid to terminal 30/50 on the schematic. Voltage should be 12V when the key is turned. Absence of voltage suggests a faulty starter relay or broken connection. Bypass the relay temporarily by bridging its terminals with a screwdriver–if the motor turns, replace the relay.
Dim or flickering dash lights often point to a failing alternator. Inspect the output wire (usually yellow) at the alternator’s B+ terminal. With the engine running at 1500 RPM, voltage should read 13.8–14.4V. Readings below 13V indicate a worn alternator brush or defective voltage regulator–test the brush length (minimum 5mm) before replacement.
Intermittent power loss while operating attachments? Examine the auxiliary socket circuit. The schematic shows a green wire linking the socket to the ignition switch via fuse F7. Corroded or loose connections at the socket base disrupt current flow. Remove the socket housing and resolder any fractured wires; replace the fuse with a 10-amp unit if burnt.
Diagnosing Battery Drain
Disconnect the battery’s negative cable and insert a multimeter in series between the cable and terminal. Current draw above 0.1A signifies a parasitic drain. Isolate each circuit branch by pulling fuses one by one while monitoring the meter. Sudden drops identify the faulty branch–common culprits include the glow plug relay or faulty switch contacts.
Headlight failures typically stem from corroded bulb sockets or a defective light switch. The schematic highlights a brown wire supplying ground to both bulbs. Poor ground connections cause erratic operation–clean socket contacts with emery cloth and verify continuity to chassis ground. Replace the switch if it fails to pass 12V when toggled.
For no-start conditions with cranking but no spark, probe the ignition coil’s primary terminal (black wire). Key-on voltage should be 12V. Absence indicates a broken wire from the ignition switch or failed ballast resistor–check resistor resistance (1.2–1.8 ohms) before replacement. If voltage is present but no spark occurs, test coil resistance (primary: 0.8–1.2 ohms, secondary: 5–7 kohms).
Checking Sensor Circuits
The temperature sender unit (blue wire) often misreads due to a faulty earth connection. Locate the sender on the engine block in the schematic–its circuit connects to the temperature gauge. Verify ground continuity between the sender housing and engine block. Replace the sender if the gauge remains unresponsive after grounding it directly with a jumper wire.
