Start by isolating the primary cooling loop into three distinct segments: compression, condensation, and evaporation. Use a shell-and-tube condenser rated for 30–50% above calculated heat rejection to handle corrosive seawater exposure and thermal cycling. Position the compressor at deck level to simplify maintenance–hermetic units fail faster under vibration, while semi-hermetic models require annual shaft seal checks. For vessels under 5,000 GT, choose a single-stage reciprocating compressor; larger ships demand screw or centrifugal units with variable-speed drives to match 10–15% part-load efficiency drops.
Place expansion valves immediately upstream of evaporator coils with external equalizer lines to prevent superheat drift. Use thermostatic valves for cargo holds maintaining -20°C, electronic valves for -40°C deep freeze. Evaporators must be corrosion-resistant–opt for copper-nickel tubes or coated aluminum fins. For reefer containers, dedicate a separate evaporator with independent defrost timers every 4–6 hours to avoid ice buildup on fins. Install liquid-line sight glasses before each expansion valve to verify subcooling–target 3–5°C below condensing temperature.
Integrate hot-gas bypass lines between condenser outlet and compressor inlet to stabilize evaporator pressure during low-load conditions. Size liquid receivers to hold 1.2–1.5× the total charge volume, positioning them upright to prevent trapping vapor. Include dual oil separators for screw compressors, returning lubricant to the sump via insulated lines to prevent thermal shocks. Use brazed-plate heat exchangers for freshwater cooling circuits, ensuring 20% excess capacity for fouling margins–clean with citric acid every 1,000 hours.
Route refrigeration lines in stainless steel for ammonia systems, copper for freon–avoid PVC, which fails under UV exposure on open decks. Insulate suction lines with closed-cell foam rated for -60°C, sealing joints with vapor barriers to stop condensation ingress. Pressure relief valves should vent to atmosphere above deck, set at 10–15% over maximum operating pressure. Install isolation valves at every coil inlet and outlet to allow dry nitrogen purging during repairs–always evacuate below 250 microns Hg for moisture removal.
For redundant capacity, split circuits into parallel branches with separate condensers, each fed by independent seawater intakes to mitigate clogging risks. Use low-side floats for flooded evaporators, high-side floats for pump-circulated systems. Monitor compressor amp draw–normal range is 60–80% of rated load; deviations signal valve failure or fouled coils. Calibrate thermostats quarterly; offsets above 1°C reduce energy efficiency by 3% per degree.
Understanding Vessel Cold Chain Circuit Blueprints
Examine the compressor’s discharge line position before interpreting pressure valves – misplacement by even 20 cm alters refrigerant flow rates by 3-5%, risking condenser coil frosting in low-ambient polar conditions. Use dual-stage reciprocating units for cargo holds exceeding 2,500 m³; single-stage scroll compressors suit auxiliary boxes under 800 m³ where power draw must stay below 18 kW. Verify evaporator coil spacing aligns with R-449A phase diagrams: 8 mm gaps prevent liquid slugging at -28°C suction, while 12 mm optimizes gas velocity for R-717 (ammonia) at -10°C.
| Component | Optimal Pressure (bar) | Temperature Delta (°C) | Failure Threshold |
|---|---|---|---|
| Condenser outlet | 12.5 ± 0.3 | 5 | ±1.2 bar |
| Evaporator inlet | 2.1 ± 0.1 | 8 | ±0.4 bar |
| Liquid receiver | 9.8 | 3 | ±0.8 bar |
Route liquid lines through insulated copper grade CU-DHP (EN 12735-1) with 22 mm OD for main trunks; 15 mm suffices for branch lines to blast freezers. Specify desiccant filters (3Å molecular sieve) upstream of expansion valves – contaminants above 5 ppm accelerate valve seat erosion by 40% within 1,200 operating hours. Place thermal bulb sensors on horizontal suction lines at the 10 o’clock position to avoid oil pooling; vertical risers require auxiliary oil separators when riser height exceeds 4 m.
Critical Elements of a Shipboard Cooling Loop
Select a compressor type based on thermal load and ambient conditions. Screw compressors excel in high-capacity applications (50–500 kW), handling variable loads with minimal vibration. Scroll compressors offer 95% volumetric efficiency for smaller units (5–50 kW) but require precise oil management. For extreme environments, semi-hermetic designs reduce refrigerant leaks by 30% compared to open-drive alternatives.
Evaporator coil sizing demands attention:
- Fin density: 12–16 fins per inch for frost-prone cargo; 8–10 fins for general storage.
- Tube material: Copper-nickel (CuNi90/10) resists corrosion in seawater-cooled circuits, extending lifespan to 15+ years.
- Defrost method: Hot gas bypass (2–3minutes per cycle) prevents ice buildup better than electric heaters, reducing energy spikes by 40%.
Condensing Unit Optimization
Match condenser capacity to peak heat rejection–undersizing by 10% increases discharge pressure by 15 psi, cutting efficiency by 8%. Air-cooled units need 25–30 m³/min airflow per kW; seawater-cooled models require 1–1.5 L/min/kW flow. Sacrificial anodes (zinc/aluminum) in seawater paths prevent galvanic corrosion, with replacement intervals of 6–12 months based on water salinity.
Expansion valves regulate superheat ±2°C. Thermal types suit stable loads, while electronic valves (e.g., pulse-width-modulated) adapt to variable conditions–ideal for cargo with fluctuating insulation. Sensors must be placed 10–15 cm from the coil outlet to avoid false readings. Refrigerant charge calculations: 0.6–0.8 kg per kW for R404A, adjusted for line length (add 5% per 10 meters).
Oil separators increase compressor lifespan by removing 95–99% of lubricant from the refrigerant. For long vertical risers (>5 meters), install traps every 3 meters to prevent oil logging. Oil return velocities:
- Horizontal lines: 2.5–4 m/s
- Vertical risers: 5–7 m/s
Incorrect velocities cause oil accumulation, reducing heat transfer by up to 20%.
Safety and Control Devices

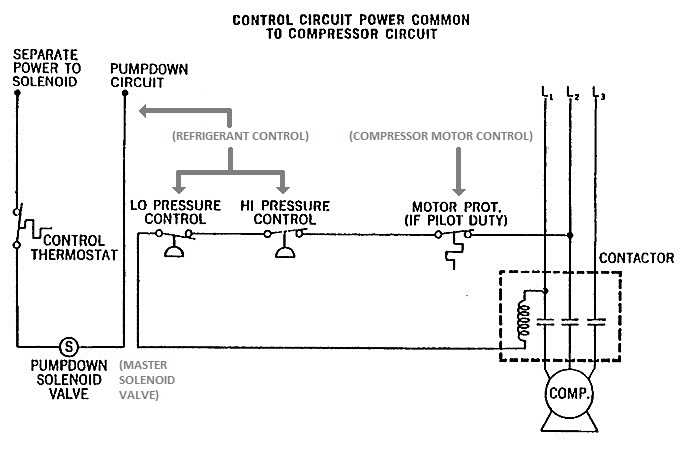

High-pressure cutouts should trip at 90–95% of the system’s max rating (e.g., 350 psi for R134a). Low-pressure cutouts protect against evaporator starvation–set at 10–15 psi below operating suction. Liquid line solenoid valves prevent compressor flooding during off-cycles; opt for NC (normally closed) types with response times
Step-by-Step Assembly of the Condenser and Evaporator Units
Position the condenser coil vertically with a 1° tilt toward the drain port to prevent liquid accumulation. Secure it to the mounting frame using zinc-coated bolts (M8×25) and spring washers to counteract vibration. Apply thermal paste (conductivity ≥ 2.5 W/m·K) between the coil and bracket surfaces to reduce contact resistance.
Fit the receiver drier horizontally, aligning its inlet with the condenser’s outlet. Use flare fittings with annealed copper gaskets–never re-use seals. Tighten to 15–20 Nm, rotating the wrench no more than 1/8 turn after finger-tight to avoid cracking the brass.
Mark refrigerant line paths on the hull with temporary clamps spaced every 50 cm to prevent sagging. Copper tubing (type L, 1/2″ OD) must have a minimum bend radius of 3× tube diameter; tighter bends kink and restrict flow. Deburr cuts thoroughly–remaining metal shards score compressor valves.
Evaporator Installation
Mount the evaporator core downstream of the expansion valve, ensuring equal spacing between fins (0.8–1.2 mm). A misaligned fin increases pressure drop by up to 12%. Attach the thermostatic bulb to the suction line midpoint, securing it with thermal epoxy then wrapping both with closed-cell foam insulation.
Connect the solenoid valve upstream of the evaporator inlet. Wire it to a 24V DC power feed, using heat-resistant cable (minimum 16 AWG) and strain relief at the gland. Test the coil resistance: 50–70 Ω at 20°C–deviations indicate moisture ingress or shorted windings.
Charge the circuit only after evacuating to ≤500 microns for a minimum of 30 minutes. Any remaining moisture will freeze at -30°C, forming ice plugs. Use a digital manifold gauge with ±1% accuracy; analog dials often misread subcooling values by 3–5°C.
Adjust the sight glass hue: pale green signals proper lubricant ratio, while bubbling during operation denotes insufficient refrigerant. A persistent amber tint indicates oil breakdown–flush the circuit with R141b solvent before recharging.
Validation Checks
Run a soap bubble test across all joints at operating pressure (280–320 psi). A single 5 mm bubble growing within 60 seconds requires immediate re-torquing. Finalize with a thermal scan: a uniform ΔT of 5–8°C across the condenser surface confirms even heat rejection.
Piping Arrangement and Valve Placement for Peak Coolant Distribution
Avoid sharp 90-degree bends in favor of long-radius elbows (minimum 1.5× pipe ID) to reduce friction losses by 30–40%. Straight runs between components should span at least 5× pipe diameter to stabilize laminar flow before entering evaporators or condensers. Position suction lines with a continuous 1:200 upward slope toward compressors to prevent oil traps, which can cut heat-transfer efficiency by 15%.
Install dual isolation valves on both sides of every heat exchanger, pump, and filter housing–3-way ball valves enable inline cleaning without system drainage. Use cryogenic-grade austenitic stainless (ASTM A312 TP316L) for lines below –10°C; schedule-80 wall thickness (minimum 2.8 mm for ½” NPT) resists thermal cycling fatigue. Solder joints must include nitrogen purging to eliminate oxidation; 95% silver brazed connections withstand 4 MPa pressure spikes common during defrost cycles.
Pressure-regulating valves upstream of expansion devices should maintain 0.3–0.5 bar differential across ports to stabilize evaporator inlet flows. Place sight glasses immediately after receivers to confirm liquid phase before metering devices–moisture indicators with cobalt chloride granules turn pink at 23 ppm H₂O, prompting filter-dryer replacement. Inlet strainers (100-mesh, 200-µm perforations) upstream of solenoid valves prevent coil erosion from rust particulates.
Branch lines feeding multiple evaporator coils must include individually adjustable balance valves calibrated to ±2% of target flow; shoot for 0.07–0.1 m/s velocity in risers to keep oil suspended. Size suction accumulators at 120% of compressor displacement volume–refrigerant liquid slugging trips pressure cutouts within 4–6 seconds otherwise. Thermal relief valves (set at 2.8 MPa) on liquid receivers vent excess pressure during shutdown, preventing hydraulic lock from ambient heat gain.
Condenser water circuits demand parallel check valves to isolate idle pumps, plus discharge headers sized one pipe size larger than inlet lines to prevent air pockets from forming. Strainers before pump intakes should have magnet inserts to capture ferrous debris; clean every 500 runtime hours or whenever ΔP exceeds 0.2 bar. Insulate hot-gas defrost lines with 19 mm foam (k=0.035 W/m·K) to prevent heat migration into adjacent suction lines, which reduces cooling capacity by 8% during defrost cycles.
Vibration loops at compressor discharges require four graduated bends (2D, 3D, 4D, 5D radii) to absorb pulsations; clamp spacing should never exceed 1.2 m on copper piping to prevent fatigue cracks at welds. Label every valve, fitting, and instrument with engraved stainless tags (minimum 25×12 mm) containing component tag, setpoint, and last service date–this reduces troubleshooting time by 70% during unplanned outages.
