Begin by isolating the main power distribution panel to verify circuit protection ratings before connecting any new components. Use tinned copper conductors–minimum 12 AWG for low-draw devices, 8 AWG for high-output equipment–rated for wet locations and exceeding the expected load by at least 25%. Corrosion-resistant terminals, such as tin-plated ring connectors, prevent voltage drop in humid conditions; crimp and heat-shrink each joint immediately after securing.
Install a dedicated 30A fused line for each high-demand appliance, bypassing shared circuits to eliminate interference. Ground all metal casings directly to the engine block or a centralized bus bar, ensuring paths are shorter than six feet and free of intermediate connections. Label every wire at both ends with heat-resistant sleeves, noting function, gauge, and destination–e.g., “STBD NAV LCD, 14 AWG, Panel 3, Terminal 7”–to simplify future diagnostics.
Test continuity with a multimeter set to ohms, probing each connection point before energizing. Voltmeter readings should show less than 0.2V drop between the battery and furthest outlet under load. If variance exceeds this threshold, re-crimp terminals or upsize the conductor. For DC systems above 50W, incorporate a transient voltage suppression diode near sensitive electronics to absorb inductive spikes from solenoids or pumps.

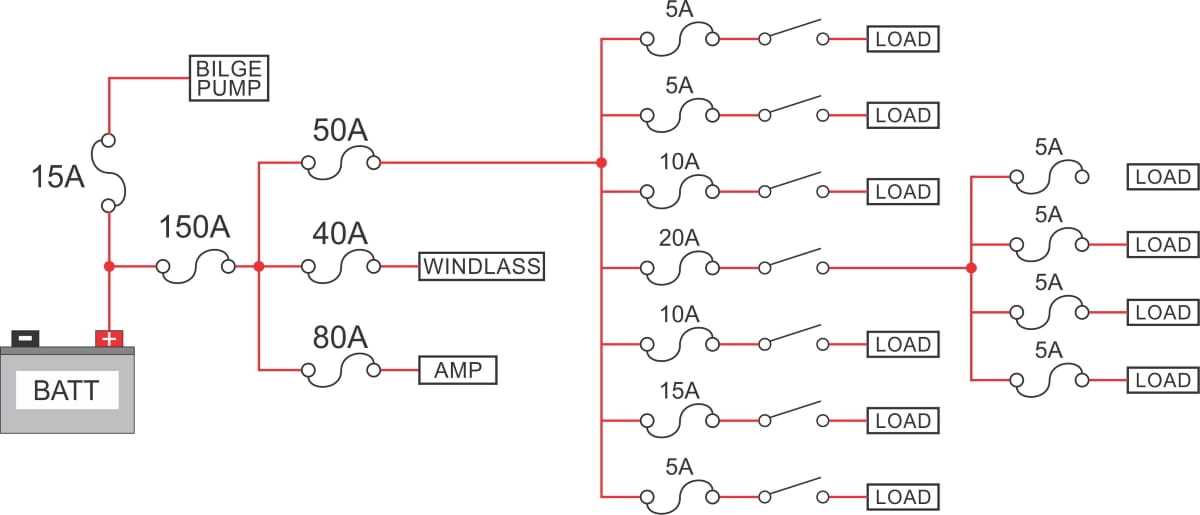

Segment circuits into zones: navigation, auxiliary, and propulsion. Use a four-pole, 150A marine-grade circuit breaker as the primary disconnect, located within 7 inches of the battery bank. Secondary breakers–thermal-magnetic, American Boat & Yacht Council (ABYC) compliant–should sit no more than 40 feet from any device they protect. Avoid daisy-chaining; instead, run radial branches from a bus bar to reduce fire risk and voltage sag.
Secure cables every 18 inches with UV-stable nylon ties, routing through conduit only where physical protection is unavoidable. Keep power lines perpendicular to signal wires and maintain 6-inch separation to prevent EMI corruption in depth sounders or VHF radios. Document the final layout in a scalable vector file, including exact conductor paths, breaker types, and fuse values for quick reference during inspections or retrofits.

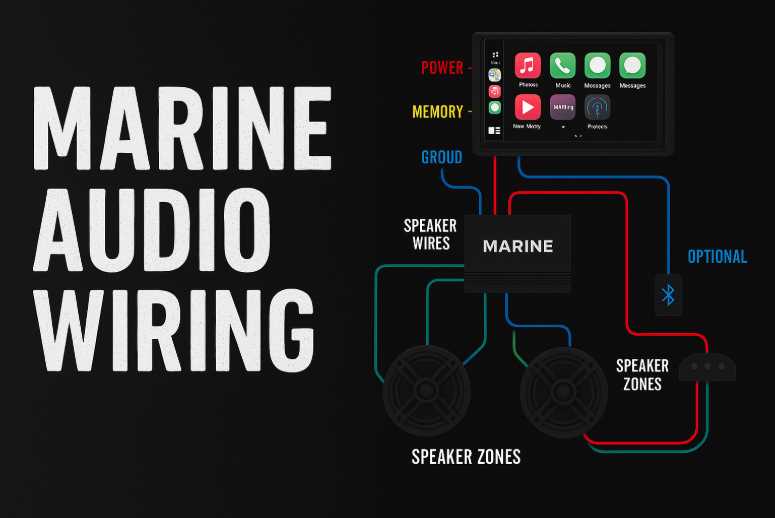

Optimizing Maritime Audio System Connections
Start with a 4 AWG power cable for equipment rated above 1,000 watts to prevent voltage drop–critical in environments with high humidity and salt exposure. Use tinned copper wire exclusively; standard copper corrodes within months in these conditions. Measure the run from the battery to the device, then add 20% extra length to account for routing obstacles like bulkheads or fuel tanks.
Fuse the positive lead within 7 inches of the battery terminal with an ANL or MIDI fuse matching the cable’s ampacity. For 4 AWG, use a 100-amp fuse; for 8 AWG, 50 amps. Skip fuse holders with plastic housings–marine-grade stainless steel or brass constructions outlast them by years. Mount the fuse block on a non-conductive surface, ideally above the bilge line to avoid corrosion from standing water.
Grounding and Signal Integrity
Attach the negative lead directly to the engine block or a dedicated chassis ground bar using a star washer to penetrate oxidation. Avoid daisy-chaining grounds–each device needs its own dedicated path back to the battery or ground plate. For signal cables, use twisted pairs with foil shielding and a drain wire tied to ground at the source end only to prevent ground loops.
Install a 12V isolator if pairing the system with lithium batteries to block parasitic draw that can drain them overnight. Label every connection with heat-shrink tubing and marine-grade labels; sharpie markings wash off within weeks. Test continuity after installation–resistance above 0.5 ohms between the ground point and battery negative indicates a faulty connection requiring immediate rework.
Critical Elements of a Seagoing Audio Power Connection Layout
Install a dual-battery isolation module if running high-output setups on extended voyages. A 100-amp continuous-rated isolator prevents voltage sag under load, ensuring auxiliary power sources remain balanced. Avoid cheap mechanical relays–opt for solid-state units with built-in surge protection to handle saltwater-induced voltage spikes.
Choose tinned copper cables rated for at least 20% above calculated RMS draw. Standard automotive wire degrades within months in high-humidity environments; tinned strands resist corrosion at connection points. For runs exceeding 15 feet, upsize conductors by one gauge to compensate for voltage drop–calculate using a 3% maximum loss formula specific to 12V systems.
Fuse every positive lead within 7 inches of the battery terminal, using marine-grade ANL or MIDI fuses matched to cable ampacity. A 4 AWG cable paired with an 80-amp fuse protects a 600W RMS system, while a 1/0 AWG requires a 200-amp fuse for 1500W setups. Install a fused distribution block if branching multiple feeds, never daisy-chain connections.
Ground directly to the engine block or dedicated bus bar–never to painted surfaces or fiberglass. Use star washers and dielectric grease at every termination to prevent oxidation. Test resistance across all paths before final assembly; a reading above 0.2 ohms indicates compromised contacts requiring rework.
How to Secure Stable Power and Earth Connections for Audio Gear
Strip 8–10 mm of insulation from the main supply cable using a precision cutter–never a knife–to prevent nicking the copper strands. Crimp a 4 AWG ring terminal rated for 150 A, ensuring the barrel fully encloses the strands without gaps; soldering the joint afterward adds mechanical strength but is optional for purely electrical integrity. Position the terminal on the battery’s positive post, aligning it perpendicular to the axis of the stud to maximize contact area. Torque the nut to 12 Nm using a calibrated wrench–over-tightening risks stripping threads, while under-tightening causes resistive heating.
- Use tinned copper wire (minimum 4 AWG for 500 W RMS, 2 AWG for 1000 W RMS) to resist corrosion in humid conditions.
- Apply dielectric grease to the terminal and battery post to prevent oxidation before fastening.
- Route the power line directly from the battery to the device, avoiding sharp edges or moving parts that could abrade the insulation.
- Install an ANL fuse holder within 18 cm of the battery positive post, sized 1.25× the continuous current draw (e.g., 80 A fuse for a 65 A draw).
For the earth link, select a chassis point with a bare metal surface larger than 3 cm², free of paint, rust, or anodizing. Scrape the surface to raw metal using a wire brush, then clean with isopropyl alcohol to remove oils. Attach a 4 AWG ring terminal identical to the power side, torquing to 12 Nm. Verify continuity with a multimeter–readings should be under 0.5 Ω between the earth terminal and the battery’s negative post; values above 1 Ω indicate a poor connection or undersized wire. If the chassis lacks a suitable point, bolt a dedicated earth bus bar adjacent to the device and bond it to the battery’s negative post with a separate 0 AWG cable.

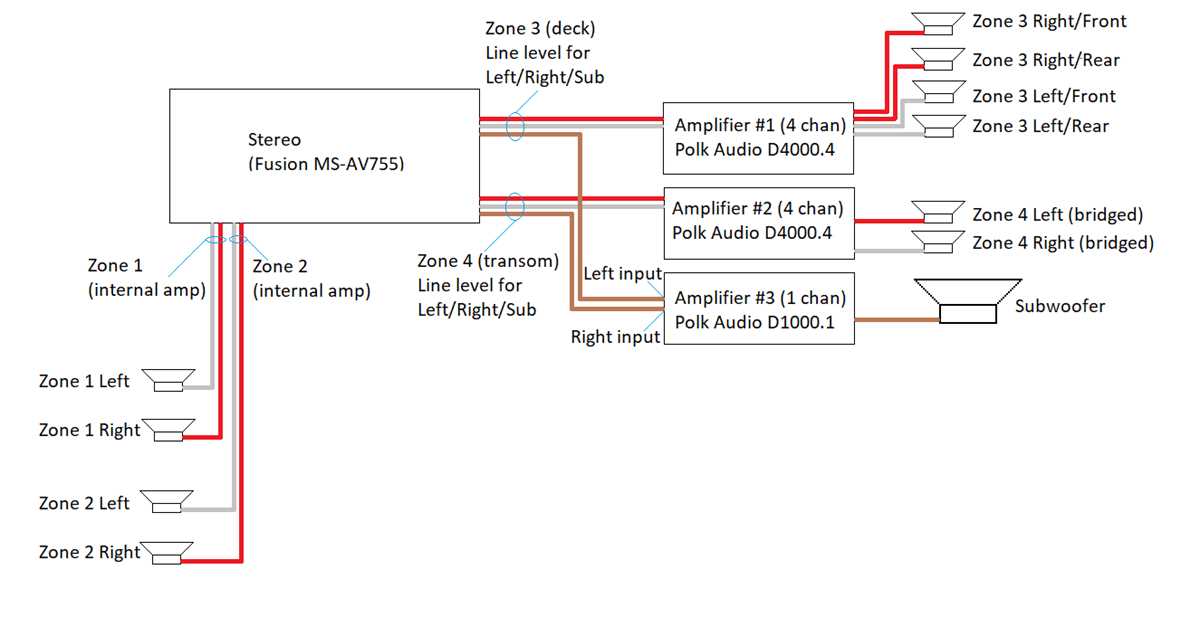

Best Practices for Routing Signal and Audio Lines on Vessels
Run RCA cables perpendicular to power lines, maintaining a minimum 18-inch separation to prevent electromagnetic interference. Use shielded coaxial cables with 100% foil and braided shielding for low-level signals, particularly in engine compartments where alternators and starter motors generate noise. Secure cables every 12 inches with UV-resistant nylon ties, avoiding metal staples that risk corrosion from saltwater exposure. Route cables above bilge areas and behind fixed panels to protect from condensation and splashing, using sealed bulkhead connectors when passing through compartments.
For speaker cables, select tinned copper conductors with a minimum 16 AWG gauge for runs under 20 feet; increase to 14 AWG for longer distances to minimize voltage drop. Avoid parallel runs with DC power lines, especially trolling motor or navigation circuits, which can induce hum. Label both ends of each cable with heat-shrink tubing and indelible ink to simplify future troubleshooting. Inspect connections quarterly for oxidation, applying dielectric grease to terminal blocks exposed to moisture.
How to Select Proper Circuit Protection and Conductor Size for Onboard Electrical Systems
Begin by calculating the maximum continuous current draw for each device. Use the formula: I = P / V, where I is current in amperes, P is power in watts, and V is system voltage (typically 12V or 24V). For inductive loads like motors or compressors, add a 25% safety margin to account for startup surges. Standard fuse values should exceed this calculated current by 15-20%, but never by more than 40% to prevent wire overheating.
Match conductor cross-sectional area to current capacity using ABYC (American Boat and Yacht Council) E-11 standards. The table below lists minimum copper wire gauge for tinned conductors in free air, based on one-way circuit length:
| Current (A) | Up to 5 ft (1.5 m) | Up to 10 ft (3 m) | Up to 15 ft (4.5 m) | Up to 20 ft (6 m) |
|---|---|---|---|---|
| 10 | 16 AWG | 14 AWG | 12 AWG | 10 AWG |
| 20 | 14 AWG | 12 AWG | 10 AWG | 8 AWG |
| 30 | 12 AWG | 10 AWG | 8 AWG | 6 AWG |
| 50 | 10 AWG | 8 AWG | 6 AWG | 4 AWG |
| 100 | 6 AWG | 4 AWG | 2 AWG | 1/0 AWG |
Select fuse types based on application requirements. Blade-style ATO/ATC fuses suit general electronics under 30A. ANL fuses handle 30-500A circuits for inverters or windlasses, while class T fuses (up to 400A) provide superior short-circuit protection for high-capacity engines and thrusters. Always install protection within 7 inches (178 mm) of the battery or distribution block to meet safety regulations.
Use 90°C-rated tinned copper conductors for all connections exposed to moisture or salt spray. Untinned conductors corrode within months in humid environments, increasing resistance and fire risk. For circuits exceeding 30A, employ dual-path protection: place a primary fuse at the battery positive terminal and a secondary fuse at the load side of the distribution block. This redundancy ensures protection if one fuse fails under vibration or thermal cycling.
Verify voltage drop across circuits using a digital multimeter under load. Acceptable drop is 3% for critical equipment (navigation lights, bilge pumps) and 10% for non-essential devices (stereo amplifiers, cabin lighting). For a 12V system, this translates to 0.36V and 1.2V maximum drop respectively. If measured values exceed these thresholds, upgrade conductor size or shorten circuit length before proceeding. Record all specifications in a system log for future troubleshooting.
