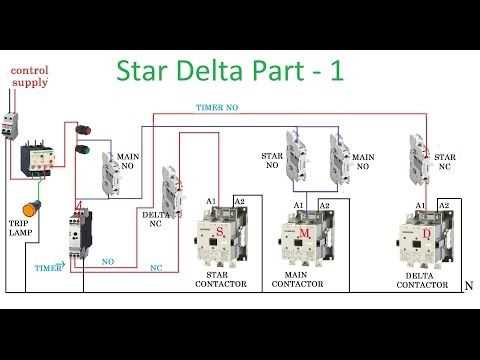

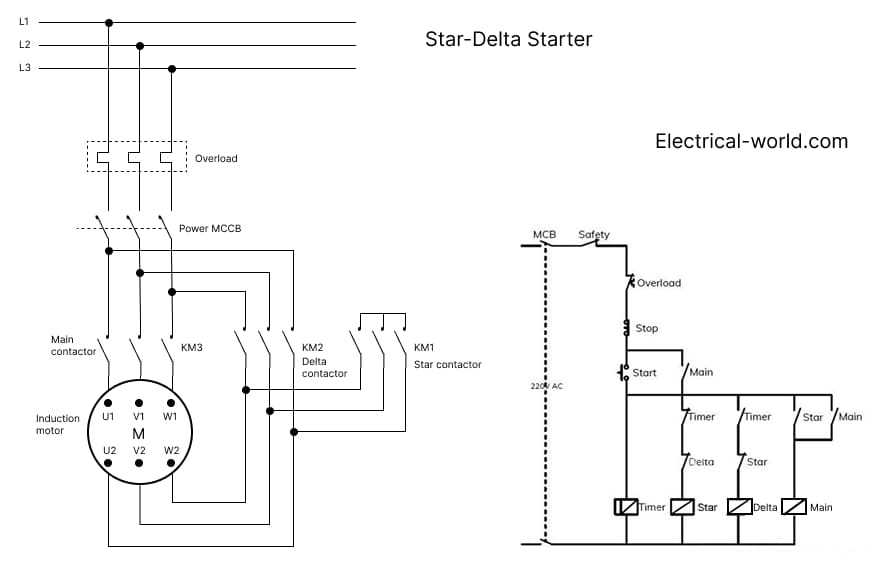

Use a contactor-based switching arrangement to reduce inrush current by first connecting windings in a wye configuration before transitioning to a mesh layout. Ensure the main contactor (KM1) and wye contactor (KM2) close simultaneously at startup, with a 5–10 second delay before the wye contactor opens and the mesh contactor (KM3) engages. This timing prevents high transient currents exceeding 300% of the motor’s rated value.

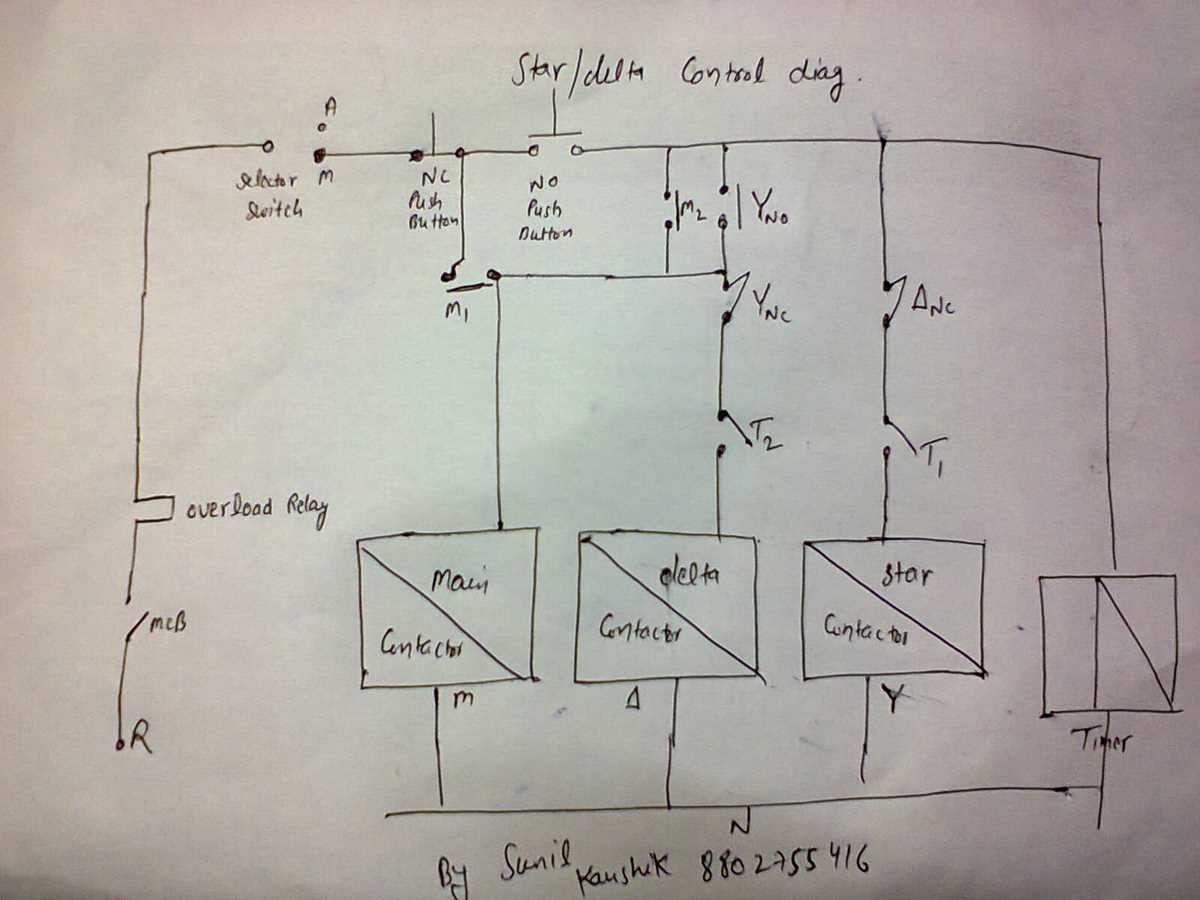

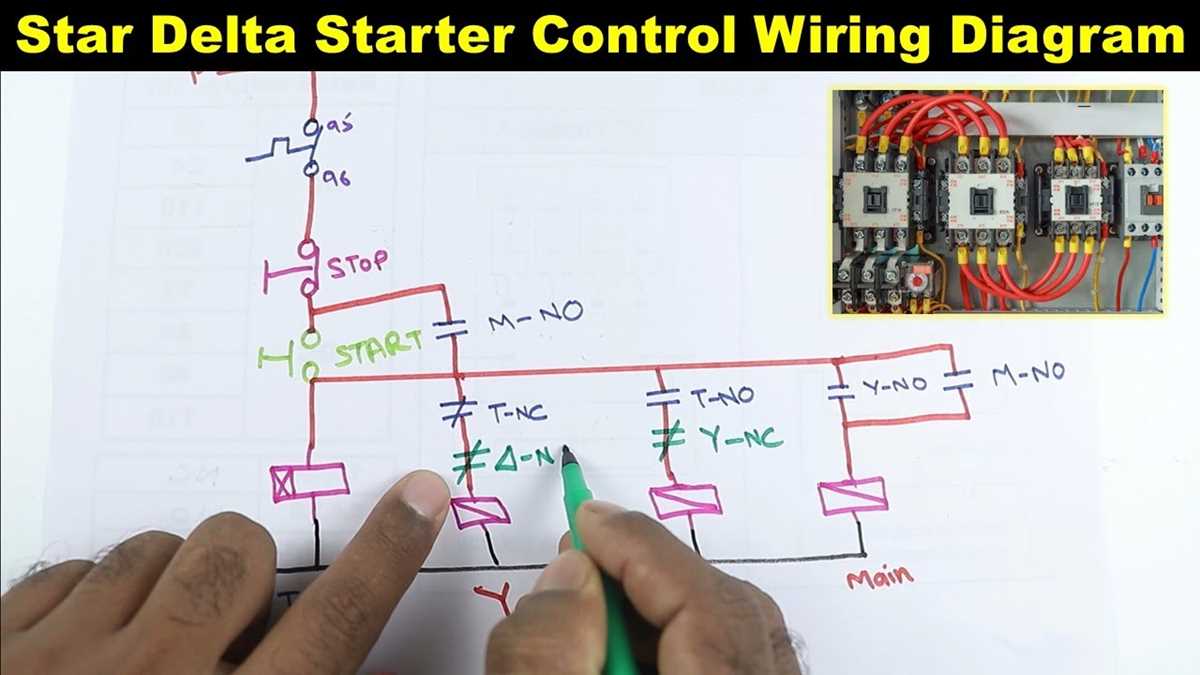

Wire the control pushbuttons in series with the overload relay (KH1) to provide direct fault protection. A normally open pushbutton for start should be paired with a normally closed pushbutton for stop, both feeding the main coil (KM1). Verify that KM2 and KM3 coils share the same control voltage but are mutually exclusive through a normally closed auxiliary contact on KM3 that breaks KM2’s coil circuit.
Mount contactors with AC-3 duty ratings at least 1.5 times the motor’s full-load current. For a 10 HP motor at 415 V, select 25 A contactors with silver-cadmium oxide contacts to handle the switching stress. Position the overload relay between the main contactor and the motor terminals, not inside the wye or mesh legs, to monitor true motor current in both configurations.
Insert a timer relay with 0.5-second accuracy to coordinate the wye-to-mesh transition. The timer coil (KT1) must be powered only when KM1 and KM2 are closed; use a spare normally open contact from KM1 for this purpose. Set the timer delay conservatively–7 seconds for a 10 HP motor–then wire the timer’s normally open delayed contact to interrupt KM2 and energize KM3.
Label every wire with crimp-on ferrules and heat-shrink sleeves. Terminal X1 on KM1 should land on L1, X2 on KM2 connects to the wye midpoint, and X3 on KM3 ties to the opposite phase. Cross-check phase rotation with a meter before applying power; reversed supply can produce damaging circulating currents in the mesh stage.
Test the assembly at 80% of rated voltage before full-voltage commissioning. Energize KM1 and KM2; the motor should spin smoothly with line current below half the expected mesh value. After the timer expires, KM3 must seal in without chattering, and stator current should stabilize within 150% of nameplate. If current jumps or contactors chatter, re-examine the auxiliary interlocks between KM2 and KM3.
Wiring Schema for Hand-Operated Three-Phase Motor Transitions
Connect the motor’s U1, V1, and W1 terminals to the main contactor’s corresponding outputs before engaging any secondary switching. Verify line voltage matches the motor’s plate rating–230V, 400V, or 460V–to prevent coil burnout during initial energization.
Use a rotary switch with six positions: “Off,” “Pre-start,” “Coil 1,” “Transition,” “Coil 2,” and “Run.” Label each position clearly; misalignment can cause phase imbalance. The “Pre-start” position should include a current-limiting resistor (10% of motor’s full-load amps) wired in series with the windings to soften inrush.
For 7.5 kW motors and below, employ a 40A DOL contactor as the primary switch; above 7.5 kW, upsize to 63A to handle transient spikes. The secondary network–operating in Y configuration–must use a contactor rated at least 58% of the main unit’s capacity. Example: if the main device handles 63A, the Y-side should tolerate 37A minimum.
Key Components Placement
- Overload relay: mount directly after the main breaker, calibrated to motor’s FLA ±5%.
- Control circuit fuse: 2A slow-blow for 24VDC, 4A for 110VAC.
- Timer: mechanical cam type, set to 8–12 seconds delay for motors ≤ 15 kW, 15–20 seconds for larger frames.
- Auxiliary contacts: ensure the main switch’s NO block opens before the Y-side closes; use 12VDC for pilot lamps.
Wire the trial sequence in strict order:
- Engage main breaker–verify line voltage across L1-L2, L2-L3, L3-L1.
- Shift to “Coil 1” (Y); confirm all three phases draw identical current within 10%.
- Move to “Transition”–hold for the timer’s full duration, monitoring for voltage sags below 85% nominal.
- Switch to “Coil 2” (mesh); torque should stabilize within 1.5 seconds.
Color-code conductors: red (L1), yellow (L2), blue (L3) for power; black (neutral), green/yellow (earth). Terminate earth at both motor frame and starter enclosure; torque bolts to 25 Nm. Use crimp lugs for ≥ 16 mm² cables; solder joints for ≤ 6 mm².
Troubleshooting Checks
If motor hums but fails to accelerate:
- Phase loss: verify all three lines with a clamp meter (≥ 2A difference indicates open winding or contact).
- Incorrect Y-to-mesh timing: confirm timer adjustment or replace if mechanical wear exceeds 0.2 seconds drift.
- Overload trip: reset relay, then restart; if trip reoccurs within 30 seconds, inspect motor insulation resistance (minimum 1MΩ phase-to-earth).
Essential Parts for a Three-Phase Transition Switch Configuration
Select a contactor with a current rating at least 1.5 times the motor’s full-load amperage–AC-3 duty class is mandatory for frequent switching. Schneider LC1D or Siemens 3RT models, sized between 9 and 40 A, cover most 5–30 kW induction motors. Verify coil voltage matches the control supply (24 V DC, 110 V AC, or 230 V AC), avoiding mismatches that cause premature failure.
Use an overload relay set to the motor’s nameplate current, not exceeding ±10% tolerance. Thermal types (e.g., ABB TA or Eaton PKZM) should have class 10 trip curves; electronic relays may include phase-failure detection. Mount the relay adjacent to the main contactor to simplify wiring and calibration.
Three-phase HRC fuses (gG/gL type, 6–50 A) must interrupt short-circuits before the motor windings overheat; consult IEC 60947-4-1 for coordination tables. Install fuse bases with touch-safe covers; clip-out versions reduce arc flash risk during replacement. Replace any blown fuse immediately–never bypass with wire.
A rotary switch or push-button station with defined start-run-stop positions ensures unambiguous operator action. IEC 60947-5-1 specifies minimum travel angles and mechanical endurance (>10⁶ operations). Label each position clearly and lock the cover to prevent accidental resetting during motor deceleration.
Copper cables sized for 1.5 mm² control circuits and 4 mm² for 230 V/400 V power lines reduce voltage drop below 2%. Use stranded wire (class 5) for flexible terminations; crimp ferrules on all ends to prevent strand fatigue. Route power and control wires separately in steel conduits or cable trays to avoid inductive interference.
Mount all components on a non-combustible DIN rail or NEMA-rated enclosure (IP55 minimum). Position the main disconnect within arm’s reach of the switchgear; include ventilation if ambient exceeds 40 °C. Ground the enclosure and all metallic parts via 10 mm² bare copper bonding straps, terminating at the facility’s main earth bar.
Step-by-Step Wiring Process for Phase Transition Switching
Begin by connecting the primary terminals of the three-phase motor to the main contactor’s output side, ensuring L1, L2, and L3 align with U1, V1, and W1 respectively. Use 4 mm² copper cables for currents up to 20A and increase to 6 mm² for loads exceeding 25A, verified via a clamp meter before energizing. Wire the auxiliary contactor’s outputs to the motor’s U2, V2, and W2 terminals, but leave these disconnected until the initial phase is activated–this prevents unintended closed-loop formation. Ground the motor frame and all metallic components of the control panel using a 10 mm² bare copper conductor, bonded to a dedicated earth pit with resistance below 5 ohms.
Testing and Sequential Activation
Before applying power, verify all connections with a multimeter in continuity mode, checking for short circuits between phases and the ground. Energize the main contactor first, then–after a 3-5 second delay–activate the auxiliary unit using a timed relay (adjustable range: 2-10 seconds) to avoid current surges. Monitor line voltage during transition; it should drop by 58% (e.g., 400V to ~230V) if the configuration is correct. For motors above 15 kW, install a soft-start resistor (10-15 ohms) in series with the auxiliary path to limit inrush current to 3-4 times the rated value. Document phase-to-phase voltages at each step: discrepancies exceeding ±10% indicate miswiring or faulty contactors.
Critical Errors to Prevent When Building a Three-Phase Transition System
Avoid mismatching contactor ratings with motor specifications. A 10 hp motor requires contactors rated at least 125% of its full-load current, typically 25A for 400V systems. Undersized contactors overheat, causing premature failure within 500–1,000 switching cycles. Verify datasheets against motor nameplate values before procurement.
Improper wiring of the timing relay leads to phase inconsistencies. Connect the delay output to the transition contactor coil, not the main or auxiliary circuits. A 2-second misconfiguration can force simultaneous engagement of both winding modes, tripping overload protectors or damaging windings. Test relay logic with a multimeter before energizing the system.
Neglecting to secure thermal overload relays in the correct current path guarantees false trips or no protection. Place them directly in series with the motor’s main lines, not downstream of fuses or soft-start bypasses. Incorrect placement allows 30–50% of overloads to go undetected, risking insulation breakdown at 120°C within hours of sustained overcurrent.
Reversing phase sequences during initial connections causes unpredictable rotation or torque loss. Label incoming L1, L2, L3 wires at the supply terminal block and match them identically at the motor. A single reversed pair drops starting torque by 40%, overheating bearings after 1–2 minutes under load. Validate rotation with a phase rotation meter prior to full-voltage testing.
Using incompatible cable gauges for different sections creates voltage drops. For 25A circuits, employ 4 mm² copper wires for main lines and 1.5 mm² for control signals. Smaller gauges in high-current paths increase resistance, reducing voltage at the motor terminals by 5–8% during peak loads. Measure voltage at the motor during startup to confirm drops stay below 3%.
Skipping the verification of neutral integrity in control panels introduces stray voltages. Ensure the neutral busbar and all related contacts are properly torqued and isolated from chassis ground. Loose neutrals can generate 10–20V AC leakage, falsely triggering auxiliary relays. Check continuity with an insulation tester set to 500V DC before closing panels.
Failing to torque terminal connections to manufacturer specifications shortens equipment lifespan. M10 bolts on contactors require 25 Nm; loose connections increase resistance, creating hotspots measured via thermal camera. Regularly retighten after the first 100 cycles, then every 500 cycles, to maintain reliability. Record torque values for audit trails.
