Start with a dual-path triggering mechanism to eliminate single points of failure. Use Normally Open (NO) and Normally Closed (NC) contacts in parallel–this ensures signal continuity even if one path severs. A 24V DC power supply with battery backup guarantees operation during mains failures. Select twisted-pair cabling (minimum 1.5mm²) to reduce EMI interference in industrial environments.
Place isolation relays at every activation station to prevent ground loops. Incorporate supervised resistors (typically 470Ω–1kΩ) across contacts to detect wire breaks or short circuits. The control panel should monitor resistance continuity–any deviation beyond ±10% should trigger a fault alert on the primary interface.
For multi-zone systems, use addressable modules (e.g., Apollo XP95 or Hochiki ESP) to pinpoint the exact source of activation. Each module should connect to a loop-powered bus (2-wire or 4-wire) with a maximum 1km segment length before signal degradation occurs. Test loop integrity with a 2.5kHz pulse–this verifies cabling and module responsiveness without false alarms.
Install end-of-line resistors (47kΩ) at the furthest station to confirm circuit completion. The panel must distinguish between an open circuit (fault) and a valid activation (≈0Ω). For hazardous areas, use intrinsically safe barriers (e.g., Zener diodes or galvanic isolators) to limit current to 20mA below ignition thresholds.
Document every connection with color-coded wiring (BS EN 60204-1 standards) and labeled terminals. Red for power, blue for returns, white for signal–never deviate. During commissioning, simulate activations with a 500Ω test resistor to verify panel response times (target:
Emergency Activation Switch Wiring Guide
Use a Normally Open (NO) contact configuration for fire alarm triggers to ensure fail-safe operation. Connect the switch in series with a 24V DC power supply and a monitoring relay rated for at least 5A. This setup prevents false alarms while maintaining sensitivity to deliberate activations. Verify resistance across terminals does not exceed 2Ω to avoid voltage drop issues.
Label each wire with heat-resistant sleeves (e.g., Tyco Electronics 1705933-2) and color-code them: red for positive, blue for negative, and yellow for signal return. Route cables through conduit with a minimum 20mm diameter to protect against mechanical damage. Avoid running parallel to high-voltage lines–keep a separation of at least 300mm or use shielded twisted pairs if closer proximity is unavoidable.
Integrate a supervisory circuit with an end-of-line resistor (EOL) of 4.7kΩ to detect tampering or faults. Place the resistor at the last device in the loop and configure the control panel to trigger a trouble signal if resistance deviates by ±10%. Do not bypass supervision–this compromises system integrity and violates NFPA 72 standards.
Testing and Compliance
Conduct monthly functional tests using a multimeter to confirm continuity and voltage levels. Activate the switch and check for a clean 24V DC output at the panel. Replace components immediately if readings drift below 22V or exceed 26V, as this indicates potential corrosion or poor connections. Document test results with timestamps per EN 54-11 requirements.
For systems in harsh environments (e.g., maritime or chemical plants), specify IP67-rated housings (Honeywell MCO700) and gold-plated terminals to resist oxidation. Avoid splices in outdoor installations–instead, use waterproof butt connectors (3M Scotchcast 5000) with dual crimp bands. Seal junctions with silicone gel to prevent moisture ingress, which can cause intermittent faults.
Troubleshooting Common Issues
If the panel fails to recognize activations, first check for loose screws–torque terminal blocks to 1.2 Nm using a calibrated driver. Next, measure loop resistance; values above 5kΩ suggest a broken wire or faulty device, while readings below 3kΩ indicate a short circuit. Isolate segments systematically by disconnecting branches until the fault clears. Never ignore nuisance alarms–inspect switches for dust accumulation or physical obstruction, which can mimic false positives.
Critical Elements of Fire Alarm Activation Device Wiring
Externally supervised loops demand resistors in series with each activation switch to detect faults. For conventional systems, a 4.7kΩ end-of-line (EOL) resistor maintains supervision while allowing current flow for trigger detection. Addressable networks eliminate this need, as supervision occurs via communication protocols like Modbus or CAN bus. Always verify manufacturer specifications–some devices require precise resistance values (e.g., 3.3kΩ ±5%) for reliable fault reporting.
Isolated power supplies prevent ground loops and signal degradation. Use a dedicated 24V DC source with less than 50mV ripple for analog systems, or a cleaner regulated supply (e.g., 24V ±2%) for digital interfaces. For redundancy, integrate a battery backup with automatic switchover, sized to power the entire loop for 24 hours in standby plus 30 minutes of alarm condition as per EN 54-13.

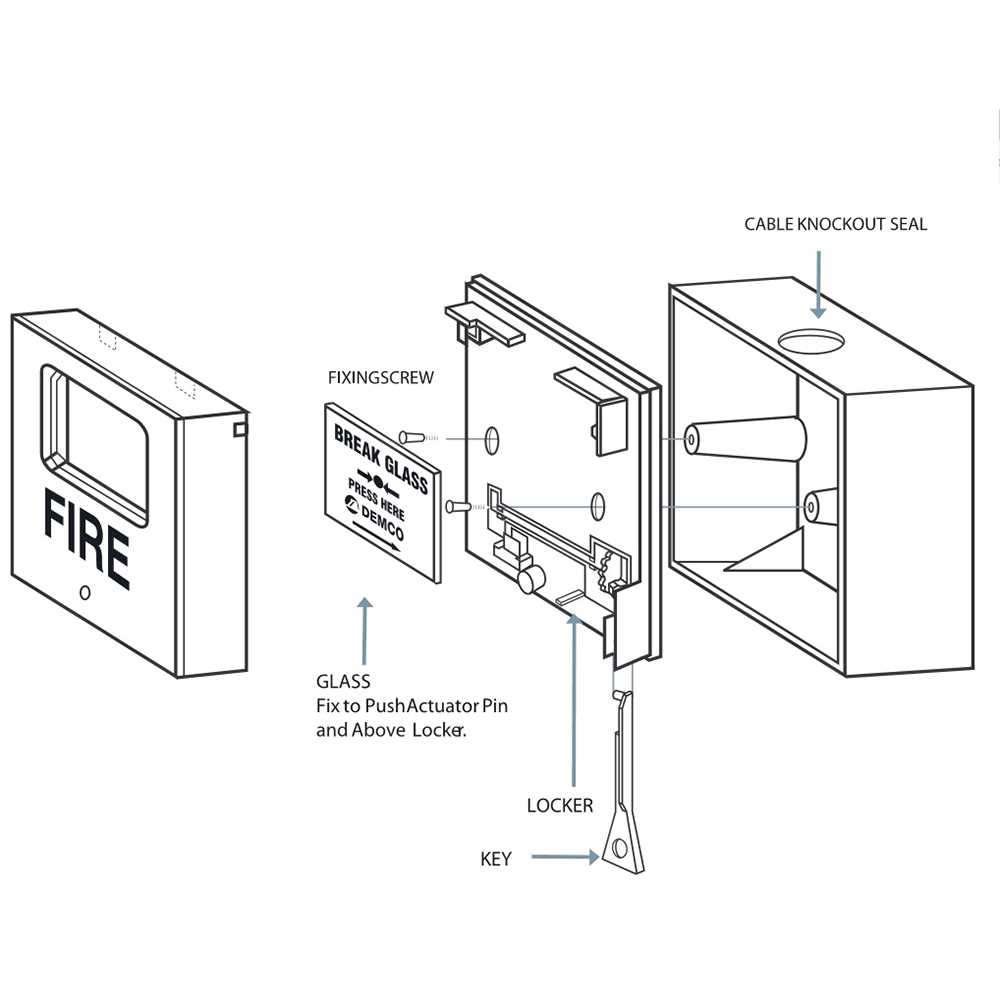

- Trigger switches: Momentary break-glass or push-button types must meet IP65 ingress protection. Hermetically sealed contacts prevent false alarms from dust or moisture. Addressable variants include microcontrollers for self-diagnostics–test these weekly via built-in test functions.
- Cabling: Twisted shielded pair (1.5mm² or 2.5mm²) reduces electromagnetic interference. Distance limitations dictate conductor gauge: 200m max for 1mm² at 24V DC. Use fire-resistant cables (e.g., FP200 or LSF) in compliance with BS 7629-1 for enclosed spaces.
- Indication LEDs: Bi-color (red/green) or RGB LEDs with 5mA current-limiting resistors show system status. Green denotes normal operation; red flashes at 1Hz during alarm. Some jurisdictions mandate redundant visual indicators–install a second LED on the opposite side of the enclosure.
Zoning logic dictates wiring topology. Radial configurations simplify troubleshooting but lack redundancy. Ring architectures, while more complex, allow diagnostics via loop controllers (e.g., claiming 99% uptime). For multi-story installations, segregate floors into separate loops to limit false alarm propagation. Configure addressable panels to report zone-specific faults within 10 seconds of detection.
Surge protection is non-negotiable. Install bidirectional transient voltage suppressors (e.g., Littelfuse SMBJ24A) at both ends of the loop. Ground loops introduce noise–bond shields at single points only, typically at the control panel. For outdoor devices, use gas discharge tube arrestors rated for 2kV impulses, tested annually.
- Label every termination point with heat-resistant tags (e.g., Brady B-499). Include device ID, loop number, and date of installation.
- Test continuity with a low-ohm meter (1kΩ resolution). Resistance should not exceed 50Ω per 100m of 1.5mm² cable.
- Verify loop current with a clamp meter. Analog systems typically require 20-50mA; addressable setups vary (e.g., 5mA per device in quiescent state).
- Document polarities–reversed connections can damage addressable modules.
Building a Fire Alarm Activation Panel from Scratch
Begin by securing a 24V DC power supply rated for at least 1A to handle the trigger load without voltage drops. Connect the positive terminal to a 250V 1A fuse, then route the line through a normally open push-button switch (momentary contact, red casing, IP65-rated). Ensure the switch’s back contacts have soldered leads or spade connectors for reliable bonding to 18AWG stranded copper wire, stripped to 8mm.
Run the wire from the switch to a 12V DC relay coil (SPDT, 5-pin, 10A contacts) with a built-in flyback diode. Secure the relay to a DIN rail or flame-retardant backboard using M4 screws. Connect the coil’s common terminal to the power supply’s return path–use a separate ground busbar for multiple units. Crimp the switch’s output to the relay’s coil input; polarity matters here–reverse connection risks coil burnout.
Attach the relay’s normally open (NO) contact to the siren’s positive terminal (12V DC, 95dB, 300mA max draw). Route the return wire through a 500mA slow-blow fuse before grounding. For LED feedback, connect a 2.2kΩ resistor in series with a 5mm red LED (3.2V forward voltage) across the relay’s coil–position it within 50mm of the activation switch for visibility. Test continuity with a multimeter before powering on.
Mount the switch at 1.4m above finished floor level, per EN 54-11 standards. Drill two 8mm holes 150mm apart for the backbox, using wall plugs for masonry or self-tapping screws for drywall. Route wires through 20mm conduit; secure with clips every 300mm. Label the conduit’s endpoint with heat-shrink tubing (white, 10mm diameter) marked “ALARM LOOP” in black lettering with a 2mm stroke width.
Finalize by adding a supervisory loop: connect a 3.3kΩ end-of-line resistor between the last relay’s NO contact and the return path. This ensures fault detection (open/short circuit) by the control panel. If using addressable systems, replace the resistor with a 1kΩ device and program the panel’s zone with a unique identifier (e.g., hex “0x1F”). Verify operation by simulating a press–siren latency should not exceed 100ms; LED must illuminate steadily without flicker.
Frequent Wiring Mistakes in Alarm Initiation Devices and How to Fix Them
Reverse polarity remains one of the most overlooked setup blunders in emergency signal activators. Many technicians install the positive and negative wires backward, assuming the device will function regardless. This error causes immediate system failures–devices either refuse to trigger or send false alerts to the control panel. Always verify terminal markings before connecting: most modern units use a standardized red (+) and black (-) scheme. If uncertain, consult the installation manual for polarity diagrams specific to the model.
Over-tightening terminal screws during installation damages wire strands, especially with solid copper conductors. A wire that appears intact may break internally, leading to intermittent signal loss. Apply consistent torque when securing connections–typically 0.7 to 0.9 Nm for most devices–and use ferrules on stranded wires to prevent fraying. Post-installation, perform a continuity test with a multimeter to confirm integrity across all channels.
Short circuits often result from improper insulation stripping or exposed wires touching metal surfaces. Even a 1 mm gap in insulation can create unintended paths, causing false alarms or outright system failure. Strip only the necessary length–usually 7–10 mm–and use heat-shrink tubing or electrical tape to cover bare sections. After wiring, inspect the entire setup under strong light to spot naked conductors near the device housing.
Misconfigured End-of-Line Resistors
Incorrect resistor values disrupt system supervision. Supervised loops require precise 4.7 kΩ resistors for proper monitoring; deviations trigger tamper alerts. Verify the resistor color codes–yellow-violet-red-gold for 4.7 kΩ–and ensure it’s placed at the farthest activated device, not simply tacked onto the main panel. Many installers mistakenly use lower values (e.g., 1 kΩ), believing it offers “better sensitivity,” but this violates fire safety standards (EN 54-11, NFPA 72). Always cross-check with the control panel documentation before soldering.
Parallel wiring errors occur when installers connect multiple activators on a single loop without proper branching. This creates voltage drops, causing distant devices to fail during alarm conditions. Use dedicated loops for high-risk areas or install isolator modules to segment sections. For existing installations, measure voltage at the farthest activator–it should not drop below 20% of the source voltage under load. If readings are low, rebuild the loop with thicker gauge conductors (minimum 1.5 mm² for runs over 100 m).
Ignoring environmental factors accelerates corrosion in outdoor or damp environments. Condensation inside device enclosures corrodes terminals within weeks, leading to unreliable operation. Apply dielectric grease to all connectors and seal entry points with waterproof glands (IP67 rated). In coastal areas, upgrade to tinned copper wires to resist salt-spray oxidation. Regular maintenance checks–every 6 months–should include terminal voltage tests and visual inspections for white powdery residue (zinc oxide) or greenish patina (copper carbonate), both indicators of impending failure.
Grounding loops introduce phantom signals, especially in installations with shared earth paths. Devices near large machinery or power lines pick up induced currents, causing false activations. Isolate the system’s earth reference by using a single-point grounding scheme–attach the control panel to a dedicated ground rod, not the building’s electrical earth. For retrofits, add opto-isolators (5 kV rating) between loops and the main panel to break ground loops. Document all grounding paths with a megohmmeter test to ensure resistance stays below 1 Ω.
