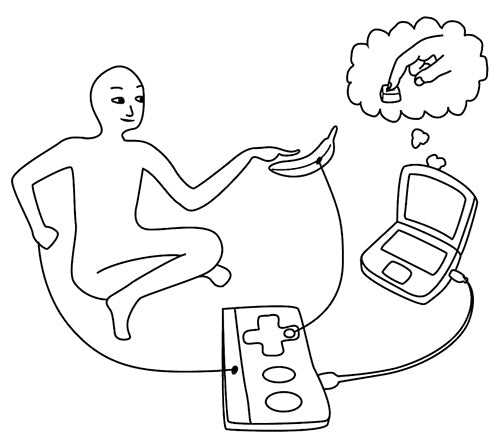

Start by connecting a conductive material–aluminum foil, graphite traces, or even fruits–to the board’s input pads. Each pad corresponds to a specific keyboard or mouse signal: spacebar, arrow keys, or left-click. Use a 10MΩ resistor between the input and ground to prevent false triggers, especially with high-impedance sources like dry skin or paper. This stabilizes readings and extends sensor lifespan.
For power, attach a USB cable to the controller’s micro-USB port. The device draws 5V directly from the host, eliminating the need for external batteries. Avoid relying on the host’s 3.3V line unless you’re pairing it with low-power components–most tactile inputs require full 5V for consistent response.
Bridge connections using alligator clips or soldered wires. Test continuity with a multimeter before finalizing; stray capacitance over 100pF can distort signals. For precision, limit wire length to 1 meter–longer runs introduce latency and electrical noise. If latency is critical, replace wires with shielded cables or copper tape.
Grounding is non-negotiable. Connect a dedicated ground wire from the board to the user or conductive surface. Without it, inputs float, causing erratic behavior. For multi-touch setups, isolate each input with diodes to prevent crosstalk–standard 1N4148 diodes suffice.
Programming relies on simple key mappings. Default settings mimic standard HID outputs, but you can remap inputs via firmware tools. Use the Arduino IDE with the provided library to override default keys–uploading new sketches erases previous configurations, so back up custom setups first.
Practical Guide to Building Interactive Input Boards
Begin by mapping conductive paths with 22-gauge copper wire–stripped ends must connect directly to the controller’s back panel pads. Use alligator clips only for prototypes; soldered joints last 10x longer under repetitive stress. Avoid bridging adjacent contacts–minimum spacing of 3mm prevents accidental shorts.
Test each input with a multimeter in continuity mode before attaching external components. A single faulty connection can disrupt the entire matrix. For moisture-prone projects, apply a thin layer of conformal coating to exposed traces (polyurethane spray works best).
For grounded backplanes, attach a 1MΩ resistor between each input and ground to eliminate floating voltages. Capacitive touch sensitivity drops 40% on resistive materials like paperboard–opt for conductive paint or aluminum foil instead. Verify signal paths at 5V; inconsistent voltage indicates poor contact.
Essential tools: wire strippers (18-24 AWG), needle-nose pliers (for tight bends), flux-core solder (63/37 alloy), and a 30W iron (higher wattage risks board damage). Always tin stranded wire ends before soldering to prevent fraying. Heat-shrink tubing (2:1 ratio) insulates joints better than electrical tape.
Common Pitfalls & Fixes
Ghost inputs occur when ground wires form loops–route them radially from a central point. If inputs register erratically, add a 0.1µF capacitor across the controller’s power terminals to filter noise. For large surfaces (>1m²), split the layout into zones, each fed by a separate USB hub to avoid bandwidth overload.
Use a breadboard only for temporary setups–its resistance (~0.5Ω/joint) introduces lag. Replace with a custom PCB for permanent builds. When working with fabrics, sew traces with conductive thread (3-ply) at least 1mm apart; thinner threads break under tension.
Key Hookup Basics for New Users

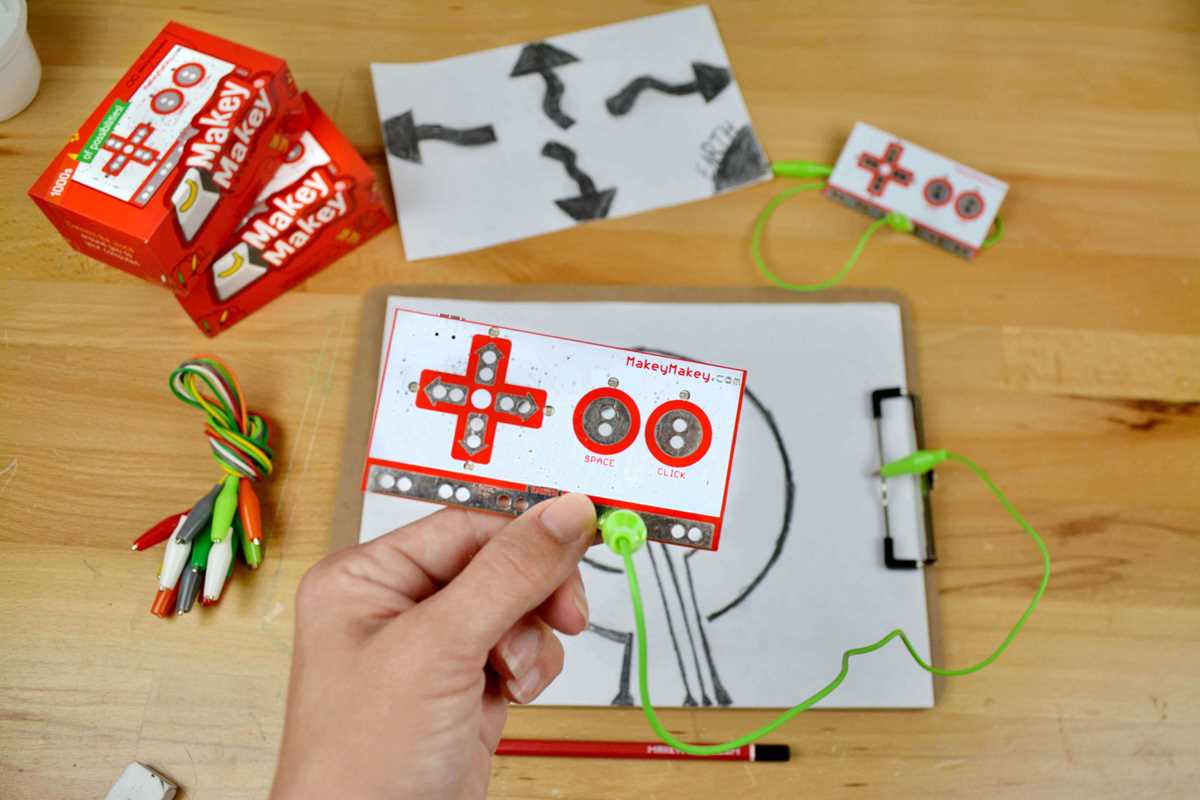

Attach the alligator clips to the input pads labeled W, A, S, D, F, G or arrow keys on the board’s edge. Each pad responds to conductive materials–test with a pencil graphite line, fruit, or even damp paper. Avoid connecting directly to non-conductive surfaces like dry wood or plastic. For stable grounding, clip one lead to any metal object the user touches, such as a foil strip or a kitchen spoon.
Ensure the USB cable is plugged into both the device and a computer, then verify the connection by opening a text editor or browser. Pressing a hooked-up input should register as the corresponding keystroke. If no response occurs, check for loose clips or insufficient conductivity–adjust by dampening the material slightly or switching to a more conductive object like a coin.
Troubleshooting Poor Responsiveness
If inputs trigger randomly or fail, clean the board’s contacts with isopropyl alcohol on a cotton swab. Oxide buildup on wires or conductive surfaces weakens signals. Replace worn alligator clips with fresh ones if corrosion is visible–corroded metal introduces resistance. For projects requiring multiple simultaneous inputs, distribute ground connections across separate conductive paths to prevent signal bleed.
For extended setups, use a breadboard to organize connections. Connect the board’s headers to the breadboard’s rails with jumper wires, then attach conductive elements to the breadboard. This reduces physical strain on the board’s pads and allows for modular testing. Label each wire with masking tape to track functions during prototyping.
Limit the distance between conductive elements and the device to under 1 meter. Longer distances introduce latency or signal degradation, especially with thin wires. For outdoor use, shield connections with plastic tubing to prevent accidental shorts from moisture. Always disconnect power before modifying hookups to prevent static damage to the components.
Step-by-Step Wiring for Common Interactive Controller Builds
Begin by identifying the target conductive surfaces for your input device. For a keyboard emulation project using fruits or vegetables, map each key to a distinct object. Use the default board connectors labeled W, A, S, D, F, G and the four arrow keys. Ensure each object has a dedicated alligator clip; ground the setup via the Earth terminal. Test conductivity with a multimeter–values below 5 kΩ guarantee reliable triggering.

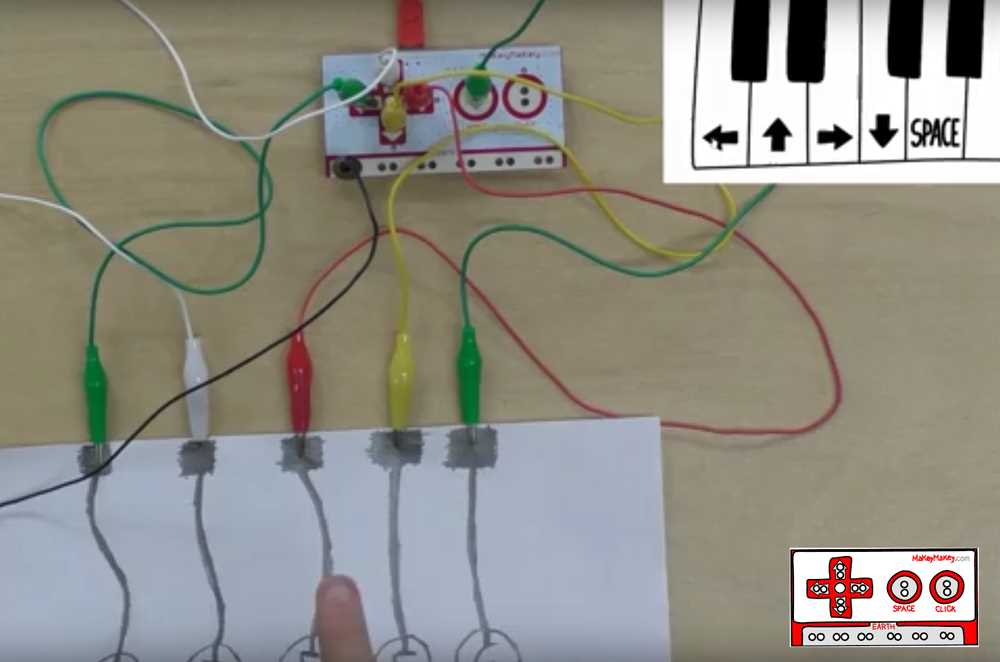

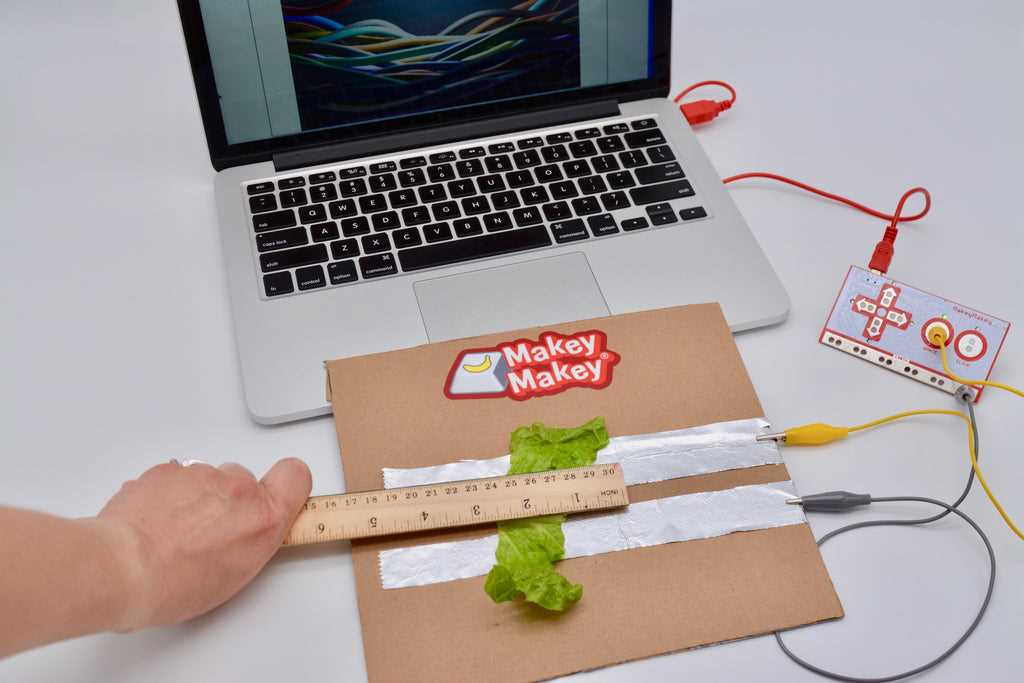

Construct a piano-style interface by arranging conductive pads in a row. Space foil or copper tape strips 1 cm apart to prevent unintended contacts. Wire each strip to a separate pin (space, click, left/right arrow, etc.) while connecting a shared ground wire to all pads. For stability, attach the ground to a large metal base (e.g., aluminum tray) to reduce false inputs caused by stray capacitance.
| Project Type | Recommended Conductors | Optimal Resistance Range | Common Pitfalls |
|---|---|---|---|
| Drum Pad | Graphite pencils, conductive ink | 5–20 kΩ | Inconsistent pressure sensitivity |
| Game Controller | Aluminum foil, coins | 2–10 kΩ | Loose alligator clips |
| Floor Mat | Copper tape, anti-fatigue mats | 1–8 kΩ | Surface wear reducing contact |
For a drum trigger setup, prioritize low-latency materials like bare copper wire loops or pre-treated conductive fabric. Twist the wire ends around the board’s header pins (1–6) to avoid slippage. Calibrate sensitivity by adjusting the distance between the ground connection and trigger point–shorter gaps increase responsiveness but may cause ghost inputs. Use a USB isolator if peripherals introduce noise.
Integrate a slider input by soldering a straight length of resistive wire (e.g., nichrome) to two pins: one for signal, one for reference. Connect the wiper–usually a metal ring or conductive foam–to the board’s analog input. Maintain tension along the wire to ensure smooth cursor movement. For linear potentiometers, confirm the resistance matches the board’s 0–5V range to avoid saturation or dead zones.
Troubleshoot connectivity issues by measuring continuity between the conductor and ground. If inputs register intermittently, clean the conductive surface with isopropyl alcohol or replace corroded materials. For projects requiring multiple simultaneous inputs, use diodes (1N4148) on each signal line to prevent backflow interference between channels. Document each connection in a schematic; label wires with their assigned functions to simplify future modifications.
Identifying and Fixing Connectivity Problems in Interactive Projects
Check the conductive paths first–if inputs register intermittently or fail entirely, inspect the entire conductive trace for breaks, oxidation, or loose connections. Use a multimeter in continuity mode (with a resistance threshold below 1kΩ) to test each segment: press one probe at the USB hub’s ground pin and the other along the trace leading to the input touchpad. A solid connection should register near 0Ω; anything above 10Ω suggests a faulty joint or corroded material. Replace jumper wires if frayed or crimped, and ensure alligator clips grip firmly without piercing insulating layers.
Verify signal flow with these steps:
- Reboot the interface board while monitoring the device manager–disappearing or reappearing USB devices indicate power instability.
- Test each input with a known conductive object (foil, wet sponge, fingertip) under 20% humidity to rule out false triggers.
- Short the input to ground briefly; a consistent click or system acknowledgment confirms proper signal routing.
- Isolate the project from other electronics (routers, monitors) on shared power strips to prevent ground loops.
- Update firmware if phantom inputs occur–older versions have latency bugs with certain conductive materials.
If latency persists, measure delay with an oscilloscope (below 50ms acceptable) or swap to shorter USB cables (
Enhancing Interactive Boards for Specialized Control Schemes
Replace default resistive pads with conductive thread stitched into textiles for wearables that register pressure gradients. Use stainless-steel thread alongside carbon-based conductive ink to create layered zones with distinct thresholds–0.5MΩ for light touch, 0.2MΩ for firm press. Arrange stitch patterns in concentric circles or radial spokes to encode positional data without extra sensors.
Integrate hall-effect sensors alongside capacitive touch zones to combine magnetic field detection with finger proximity. Position neodymium magnets beneath flexible membranes, then map voltage shifts from A1-A5 pins to differentiate between swipe direction, rotation, and squeeze gestures. Calibrate sensitivity by adjusting magnet distance–3mm for subtle interactions, 1mm for precise binary triggers.
- Tap conductive polymers (e.g., PEDOT:PSS) onto acrylic sheets to create translucent input surfaces with embedded LEDs. Apply multi-layer masking during curing to define isolated regions that respond to varying humidity levels–ideal for liquid- or sweat-triggered inputs.
- Pair frosted vinyl overlays with force-sensitive resistors to distinguish between incidental contact and deliberate pressure. Use hysteresis thresholds in code (5% variance) to prevent accidental double-triggering.
- Embed flex sensors in silicone keypads for bendable controls. Cross-reference resistance changes with time-stamped data to log dynamic gestures, such as pinch-to-zoom or torque measurements for robotic interfaces.
Stack alternating layers of copper mesh and perforated latex to build volumetric input grids. The mesh creates 3D touch zones when compressed, while the latex ensures voltage isolation between layers. Route signals through analog pins to capture depth-based interactions–useful for prototyping haptic feedback gloves or deformable game controllers.
Attach micro-servo motors to linear potentiometers for hybrid analog-digital inputs. Program the servos to physically adjust potentiometer resistance, enabling self-calibrating sliders or rotary knobs. Use pulse-width modulation on PWM pins to fine-tune servo position, then read the potentiometer’s voltage via analog input for a dual-feedback system.
- Solder snap buttons onto modular PCB sections to create swappable control panels. Design each segment with unique conductive patterns (e.g., zigzag, spiral, or binary-coded decimal) to encode identifier signals when connected.
- Deploy shift registers (e.g., 74HC595) to expand input channels beyond default pins. Use serial communication to cascade multiple registers, allowing for 32+ discrete touch points on a single board.
- Combine LDRs (light-dependent resistors) with pressure-sensitive pads to enable context-aware triggers. Adjust sensitivity curves in software to ignore ambient light fluctuations while responding to deliberate shadow casting or color filters.
Deposition conductive epoxy onto carbon-fiber substrates to construct lightweight, rigid input surfaces resistant to electromagnetic interference. Cure at 80°C for 20 minutes to stabilize resistance values, then bond to curved surfaces for ergonomic controllers. Use adhesive-backed copper tape to seamlessly transition between zones without signal degradation.
