Begin by identifying the primary feeder lines marked on the blueprint–typically labeled L1, L2, and L3 for three-phase systems. Verify the current rating of each conductor against the panel’s busbar capacity; a mismatch risks overheating or tripping. For 200-400A installations, use copper or aluminum busbars rated for at least 125% of the expected load to comply with NEC Section 220.12.
Isolate the neutral bus from the grounding bar unless specified otherwise in single-phase residential setups. In commercial three-phase systems, separate the neutral and ground entirely–bond them only at the service disconnect. Confirm torque specifications for terminal screws using a calibrated torque screwdriver; NEC 110.14(D) mandates manufacturer-listed values to prevent loose connections and arc faults.
Map circuit breakers by ampacity and interrupting rating. A 20A breaker on a #12 AWG wire (copper) requires a 60°C column rating unless the terminals are rated for 75°C. Label each breaker with its connected load–motor, lighting, or receptacle–and include voltage where applicable (e.g., “240V Baseboard Heater”). Use UL 489-listed breakers for branch circuits; avoid mismatched brands with the panel to prevent incompatibility.
For surge protection, install a type 2 SPD on the line side of the main breaker, ensuring it’s rated for the system’s voltage (e.g., 600V for three-phase). Ground the SPD to the panel’s grounding electrode conductor using #6 AWG copper minimum. Test continuity with a multimeter set to ohms; resistance should read between the neutral-ground bond and the grounding rod.
Document the layout with a digital tool or graph paper. Note wire gauge, breaker type, and load calculations per NEC Article 220. For future reference, include a legend indicating color-coding: red/black (hot), white (neutral), green/bare (ground). Store the diagram near the panel for maintenance personnel–hand-written updates are error-prone; prefer CAD or labeled photographs.
Central Control Panel Wiring Layout: Key Design Principles
Position the incoming line busbars at the top or left edge of the layout–never in the center or bottom. This reduces cable crossings and minimizes short-circuit risks. Copper busbars rated for 1.2× the maximum system current (e.g., 240 mm² for 630 A) should be spaced ≥10 mm apart, with insulated barriers between phases. Label each conductor at both ends with heat-resistant sleeves (minimum 250 V, 125 °C) to prevent miswiring during maintenance.
Use a modular spine topology for feeder circuits instead of radial branching. Each module–comprising circuit breakers, meters, and relay controls–should occupy a dedicated vertical section, 150 mm wide. Reserve the top 20% of the panel for overcurrent protection (MPCBs or fuses ≤1.1× breaker rating) and the bottom 10% for auxiliary contacts. Include a 5 mm drainage gap at the base for condensation control, especially in high-humidity environments.
Integrate surge arresters directly above each incoming breaker, selecting zinc-oxide varistors with a clamping voltage ≤2.5× system voltage (e.g., 800 V for 400 V networks). Ground the arrester’s base plate to a separate 95 mm² copper earth bus, isolated from the neutral bus. Avoid locating arresters near voltage transformers; maintain ≥30 mm clearance to prevent capacitive coupling.

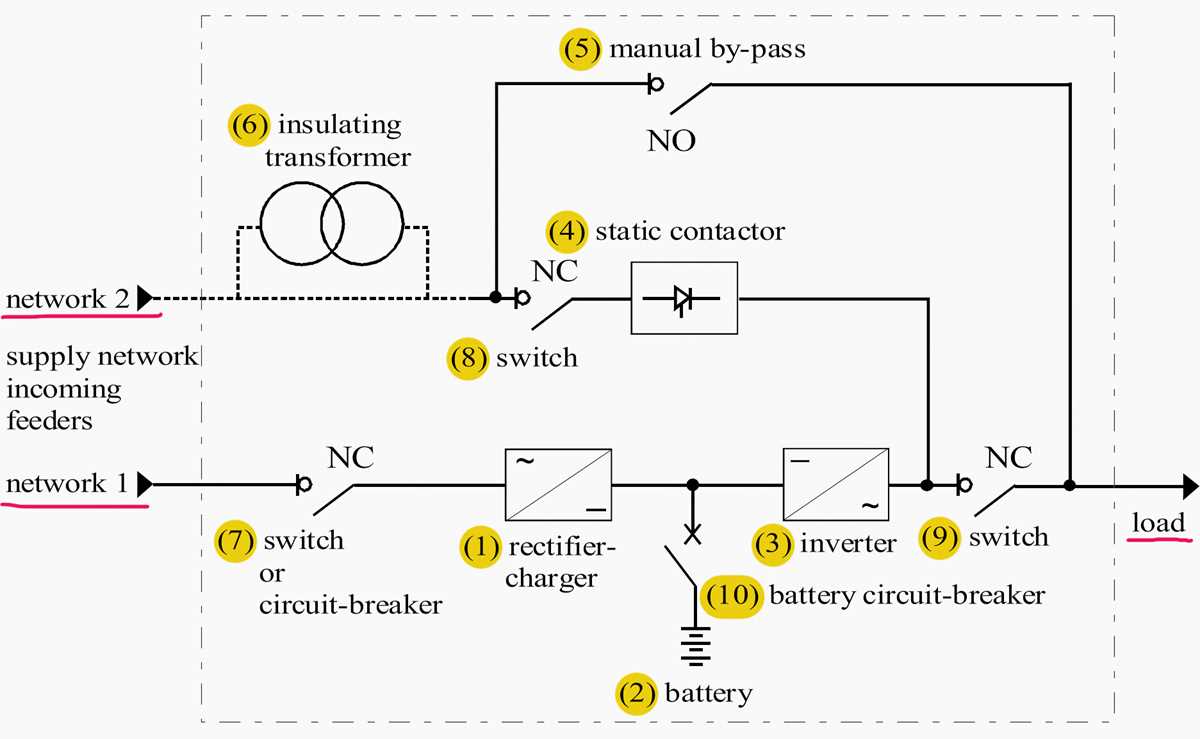

For dual-source configurations, use a mechanical interlock between the two main breakers to enforce exclusivity. The interlock mechanism–a cam-and-notch system–must undergo a 5,000-cycle endurance test. Connect the control circuit through a double-throw relay (24 V DC, 10 A) to prevent simultaneous closing even if the interlock fails. Include a manual override key switch (IP65-rated) for emergency bypass.
Color-code all conductors per IEC 60446: orange for phase L1, brown for L2, black for L3, light blue for neutral, and green/yellow stripes for earth. Apply a second, orthogonal coding system–numerical sleeves (01-99)–to cross-reference with the wiring schedule. Store the schedule in a fused, transparent pouch (PVC, 1 mm thick) mounted flush on the panel door, including torque specifications (e.g., 3.5 Nm for M6 busbar bolts).
Testing and Validation Procedures
Before energizing, perform a 500 V insulation resistance test between each phase and earth, rejecting values below 1 MΩ. Measure voltage drop across each breaker under full load; deviations >3% indicate loose connections. Use a thermal imager to scan busbars and joints after 30 minutes at 100% load–hotspots (>70 °C) require immediate disassembly and re-tightening. Document all test results in a logbook with timestamps, witnessed by two technicians.
Key Components of a Power Distribution Panel Layout
Start by allocating at least 20% of the total panel space to busbars–the backbone of any low-voltage installation. Copper busbars should have a cross-sectional area of no less than 10 mm² per 100 A of rated current, with a minimum of 5 mm clearance between phases for 400 V systems. For aluminum alternatives, increase the cross-section by 60% to compensate for lower conductivity. Position the main horizontal busbar above all circuit breakers to simplify wiring and reduce voltage drop across vertical runs.
Use molded-case circuit breakers (MCCBs) with adjustable trip settings for feeder lines exceeding 63 A. Ensure the short-circuit breaking capacity (Icu) exceeds the prospective fault current by at least 20%, with a minimum Icu of 25 kA for commercial installations and 50 kA for industrial settings. Table 1 lists optimal breaker sizes for common loads:
| Load Type | Typical Current (A) | Recommended MCCB (A) | Icu Requirement (kA) |
|---|---|---|---|
| Lighting circuits | 10–25 | 32 | 10 |
| HVAC compressors | 40–100 | 125 | 25 |
| Three-phase motors | 15–300 | 1.5×FLC | 50 |
| Data center UPS | 100–400 | 630 | 65 |
Incorporate a metering section with current transformers (CTs) sized at 120% of the maximum continuous current. Place CTs on the supply side of breakers to capture all downstream consumption, including leakage currents. For three-phase systems, use Class 1 CTs with a maximum burden of 5 VA to ensure accuracy within ±1%. Mount meters on the front panel door with DIN-rail clips for easy access during audits, maintaining at least 150 mm of free space behind for wiring bends.
Designate a dedicated neutral busbar with a current rating equal to 150% of the highest single-phase load. Isolate the neutral busbar from the enclosure using fiberglass barriers to prevent galvanic corrosion, especially in coastal or high-humidity environments. Ground the neutral at a single point–either at the transformer or the panel–to avoid parallel paths that can interfere with residual current devices (RCDs). For RCD-protected circuits, limit neutral-to-ground impedance to under 0.5 Ω to ensure proper tripping within 300 ms.
Segment the panel into zones based on load criticality, with critical circuits in the center and non-essential loads on the periphery. Use insulated DIN rails for control circuits (e.g., PLCs, relays) to prevent noise coupling; route these at least 50 mm away from power conductors. Label every terminal with laser-etched stainless steel tags, including the circuit number, load description, and breaker rating (e.g., “L-17 HVAC-45A”). Store spare fuses and breakers in a labeled, sealed compartment adjacent to the panel door, with a minimum of two spares for each standard rating used in the installation.
Step-by-Step Wiring Connections in an Electrical Control Layout
Begin by labeling every conductor on the panel layout with a unique identifier–use alphanumeric codes matching the manufacturer’s technical specs. For instance, designate incoming supply lines as L1, L2, L3 and neutral as N; auxiliary circuits should follow a sequential hierarchy (e.g., C1, C2). Trace each line from its origin to termination, verifying cross-sectional area against load requirements–16 AWG for control signals, 10 AWG for standard motors, 6 AWG for heavy-duty pumps. Secure connections with crimp terminals rated for the wire gauge; tin copper strands if exposed to vibration or corrosive atmospheres.
Critical Sequence for Circuit Integrity
Attach the ground bus first, ensuring bare copper bonds to the chassis via a star washer and locknut–torque to 25 Nm. Next, connect incoming phases to the primary breaker, aligning phase rotation with motor direction (verify with a phase rotation tester before finalizing). For auxiliary contacts, strip insulation precisely to 8 mm, insert into terminal blocks, and tighten to 2 Nm–avoid overtightening, which distorts conductor strands. Use heat-shrink tubing on joints near moving components to prevent abrasion and short circuits.
Test continuity after each stage with a multimeter set to low-resistance mode (≤0.5 Ω acceptable). Isolate circuits by opening breakers before probing; false readings often stem from accidental paralleling. For three-phase loads, verify phase balance–discrepancies exceeding 5% indicate miswiring or unequal impedance. Document every connection in a tabular log: terminal ID, wire gauge, color code, and torque value. Replace any conductor showing discoloration or nicked insulation immediately–even a 0.2 mm defect reduces withstand voltage by 30%.
Standard Symbols in Electrical Control Panel Blueprints
Begin by labeling power sources with a circle intersected by a horizontal line–this denotes a battery or DC supply, where the longer line indicates the positive terminal. For AC circuits, replace the circle with a sine wave enclosed in parentheses, with phase count specified by additional parallel waves (e.g., three for three-phase). Misalignment here causes misinterpretation during troubleshooting.
Use a rectangle with a diagonal slash to represent resistors: a single slash marks a fixed resistor, while two slashes indicate a variable type like a potentiometer. Include wattage as a superscript (e.g., R5W) to prevent overheating in high-current paths. Omitting this detail risks component failure under load.
Depict capacitors as two parallel lines: curved for non-polarized (e.g., ceramic) and straight with a “+” symbol for electrolytic. Add microfarad values directly above (C 100μF) to avoid polarity errors, especially in transient suppression circuits. Shortcuts here lead to reversed connections and catastrophic shorts.
Fuses appear as a rectangle with a line bisecting it horizontally–label amperage next to it (F10A) to match planned circuit protection. Circuit breakers follow the same shape but include a small arc at the line’s midpoint to differentiate them; specify trip curve (B, C, D) via text annotation.
Inductors (coils) use a series of loops: three loops for air-core, four with a core symbol (two parallel lines) for iron-core. Add henry values (L5mH) and note if tapped. Overlooking core material misleads impedance calculations, affecting filter design in AC panels.
Switches vary by function: a line breaking a circuit denotes an SPST switch, while adding a second line indicates SPDT. For three-position selectors, draw a rectangle with three connection points and label positions (OFF-ON-AUX). Pushbuttons swap the line for a vertical arrow, with normally-open (NO) or normally-closed (NC) contacts specified nearby.
Transformers require two inductor symbols side by side with a core symbol between them–label winding ratios (e.g., 230V/12V) and polarity dots to align phases. For current transformers, add “CT” and burden resistance (CT100:5A, R0.5Ω). Incorrect polarity dots cause phase mismatches, damaging connected equipment.
Relays combine a coil symbol and switch contacts: a dashed line connects both, with a “K” prefix (K1) and contact numbers (e.g., K1/11-12 NO). Terminal numbers must mirror physical pinouts to avoid wiring errors during installation. Overcurrent relays add an “OC” suffix and trip setting (e.g., OC5A).
Busbars are thick horizontal lines with tap points–label ampacity (e.g., 400A Cu) and material (Cu or Al). Ground symbols use three descending lines, with the longest representing earth and shorter ones for chassis ground; never merge unrelated grounds without isolation.

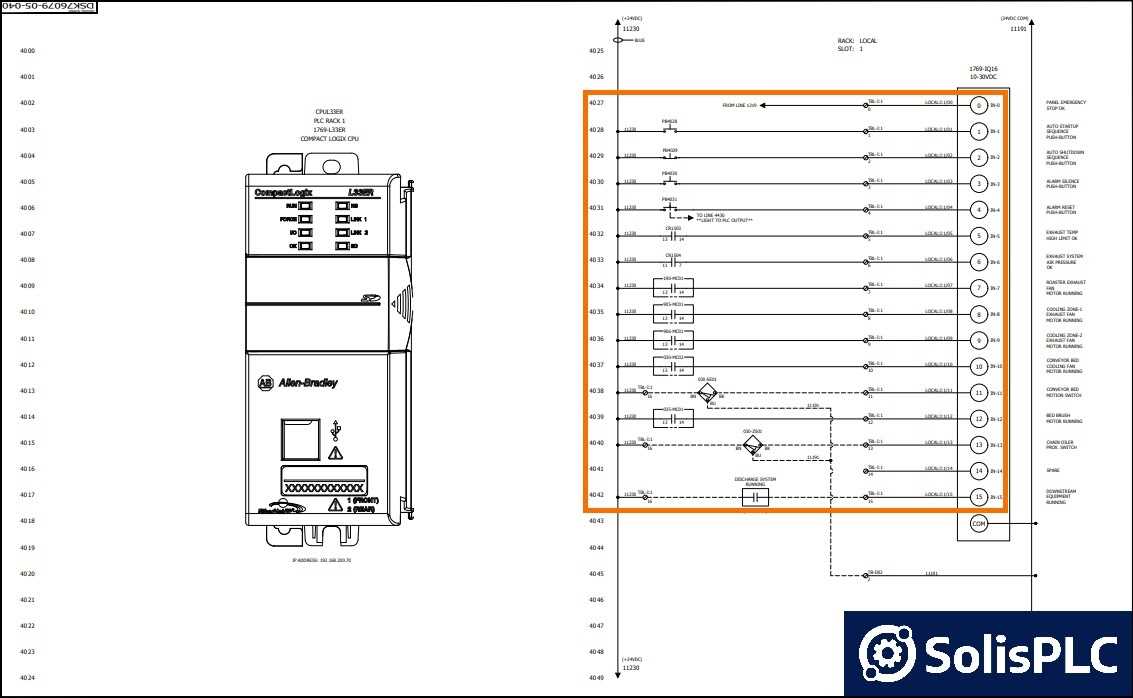

Meters (ammeters, voltmeters) appear as circles with measurement units inside (A, V)–specify scale ranges (e.g., 0-500V) and whether they’re analog or digital. For PLC modules, use a rectangle with the manufacturer’s model number (e.g., Siemens S7-1200) and I/O addresses below.
