Start by connecting the coil terminals of the contactor to the control voltage source–typically 24V AC for auxiliary circuits or 110V-480V AC for industrial applications, depending on the motor rating. Ensure the common (C) and normally open (NO) contacts are correctly paired with the start and stop pushbuttons. A typical three-wire control configuration requires the NO contact to maintain circuit continuity after the start button is released; neglecting this creates an unsustainable loop, causing the system to drop out immediately.
Use 14 AWG copper wire for control circuits under 15A and 10 AWG for currents exceeding 20A, adhering to NEC Table 310.16. Overcurrent protection must align with the motor’s full-load current (FLC): apply 125% of FLC for continuous-duty motors (NEC 430.22) and adjust for service factor if above 1.15. Install a thermal overload relay in series with the motor leads, selecting a class 10 or 20 device based on the application’s tolerance for startup delay–class 10 trips within 10 seconds at 600% overload, class 20 extends this to 20 seconds.
Label every conductor with heat-shrink tubing or self-laminating markers, noting function (e.g., “L1,” “OL,” “Aux NO”). Shield control cables with braided ground to minimize electromagnetic interference, grounding the shield at one end only to prevent ground loops. For remote operation, dedicate a separate 2-wire twisted pair for each control signal, avoiding multiplexed arrangements that introduce latency or false triggering in noisy environments.
Verify coil voltage compatibility with the control source before energizing; a 230V coil on a 120V circuit will fail to actuate, while a 120V coil on 230V risks burnout. Test contact continuity with a multimeter–resistance across closed contacts should measure fewer than 0.1 ohms. If using a timer module, confirm timing accuracy with an oscilloscope; mechanical dial timers drift ±5%, electronic modules maintain ±1%.
Isolate auxiliary circuits from power circuits using a 600V-rated barrier terminal block, separating 480V motor leads from 24V signaling wires. Route all wires in rigid conduit or armored cable, avoiding sharp bends (minimum radius: 10× cable diameter) to prevent insulation damage. Ground the metal enclosure at both supply and load ends using 6 AWG copper, bonding all non-current-carrying parts to the main grounding bus.
Schematic Guide for Electromechanical Control Circuits

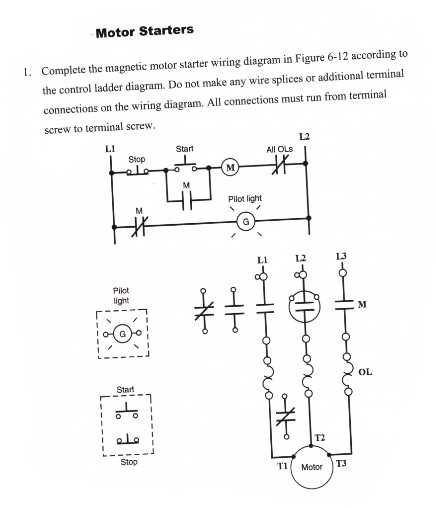

Begin by connecting the control power source directly to terminals L1 and L2 of the contactor’s coil, ensuring 120V or 240V compatibility based on system requirements. Use 14 AWG wire for control circuits to prevent voltage drop, routing it through a normally open pushbutton for start operations and a normally closed pushbutton for instant disconnection. Always include a holding contact across the start button to maintain circuit continuity once activated, preventing accidental shutdown during operation.
Integrate overload relays between the contactor’s load terminals (T1, T2, T3) and the motor windings, selecting thermal or electronic variants based on ambient conditions. For three-phase systems, wire relays in series with each phase, calibrating their trip settings to 115–125% of the motor’s full-load current. Verify relay placement by testing with a multimeter in resistance mode; open contacts should read infinite ohms, while closed contacts register near zero. Avoid bypassing relays during testing to prevent motor damage from prolonged overcurrent.
For reversing operations, install a secondary set of contactor contacts wired to swap any two motor phases. Use interlocking mechanical or auxiliary contacts to prevent simultaneous engagement of forward and reverse contactors, which would cause a short circuit. Label all wires with phase identifiers (e.g., L1/R, L2/S, L3/T) and color-code them per local standards–typically red for live, black for neutral, and blue for controls–to simplify troubleshooting. Secure connections with crimp terminals rated for 600V, tightening to 12–15 lb-in to avoid loosening under vibration.
Grounding and Safety Considerations
Route a dedicated grounding conductor from the motor frame to the system’s ground bus or metal enclosure, ensuring compliance with NEC/CEC requirements. Use green or bare 12 AWG wire, terminating it with a ring lug crimped and soldered for corrosion resistance. Test continuity between the motor frame and ground bus with a megohmmeter set to 500V; readings below 1 MΩ indicate inadequate grounding. Include a fused disconnect switch upstream of the contactor, sized at 125% of the motor’s full-load current, to provide local isolation for maintenance.
Before energizing, verify all connections with a polarity tester: apply control voltage and observe the contactor coil’s response (audible click and movement). If the coil doesn’t pull in, check for reversed L1/L2 connections, open circuits, or incorrect coil voltage. For motors above 5 HP, add a soft-start module or variable-frequency drive to reduce inrush current, wiring it between the contactor and motor terminals. Document the schematic with a legend noting wire gauges, contactor ratings, and fuse sizes–store a printed copy near the panel for quick reference during diagnostics.
Core Elements of an Electromagnetic Control Assembly
Begin by identifying the contactor as the primary switching device. This component must match the motor’s voltage and current ratings–undersized units overheat, oversized ones increase cost without benefit. AC3 duty class contactors handle frequent start-stop cycles (e.g., pumps, compressors) while AC1 suits resistive loads (heaters). Check coil voltage (24V, 110V, 230V) against control circuit supply; mismatches cause coil burnout or unreliable operation. Use silver-cadmium oxide contacts for currents above 15A–they resist welding better than copper.
Incorporate thermal overload relays to interrupt current when motor heat exceeds safe limits. Set the trip class (10, 20, 30) based on motor start time: Class 10 trips in 4–10 seconds at 6× rated current, Class 20 in 6–20 seconds. Adjust dial settings to the motor’s nameplate amps–accuracy here prevents nuisance trips. Modern relays include ambient compensation, critical for installations in uncontrolled environments (e.g., outdoors, near ovens). For three-phase motors, ensure all three poles are monitored; single-phasing protection requires phase-loss detection models.
| Component | Key Specifications | Failure Mode |
|---|---|---|
| Contactor | AC3 rating ≥ motor FLA; coil voltage matches control circuit | Contact welding, coil burnout |
| Overload Relay | Trip class aligns with start time; ambient-compensated | False trips, motor damage |
| Control Transformer | VA rating = contactor coils + pilot devices + 25% margin | Voltage sag, overheating |

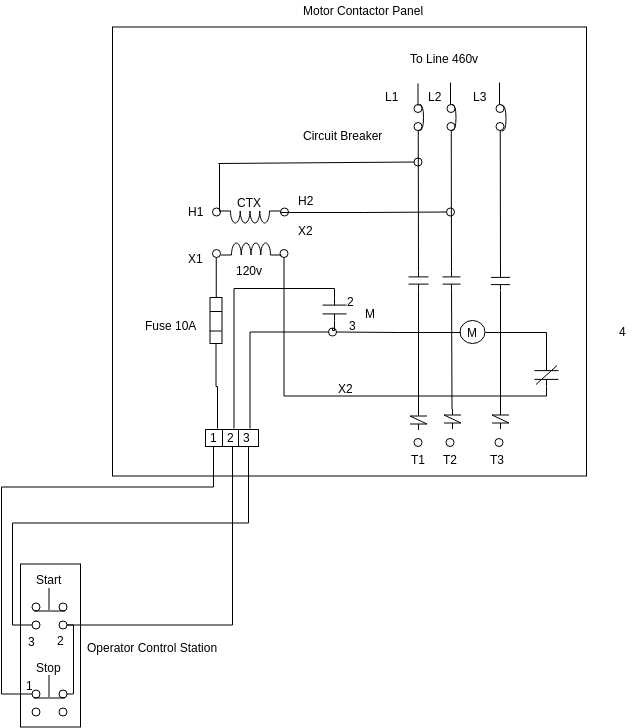

Select a control transformer with a VA rating at least 25% higher than the sum of all connected loads (contactor coils, pilot lights, relays). For 230V motors, isolate 120V control circuits with a separate winding–this prevents ground loops and simplifies troubleshooting. Fuse primary and secondary sides independently: 1A slow-blow on the primary protects the transformer, while 2–5A quick-blow fuses on the secondary shield delicate components. Avoid transformerless designs in noisy environments–line transients can trigger false starts.

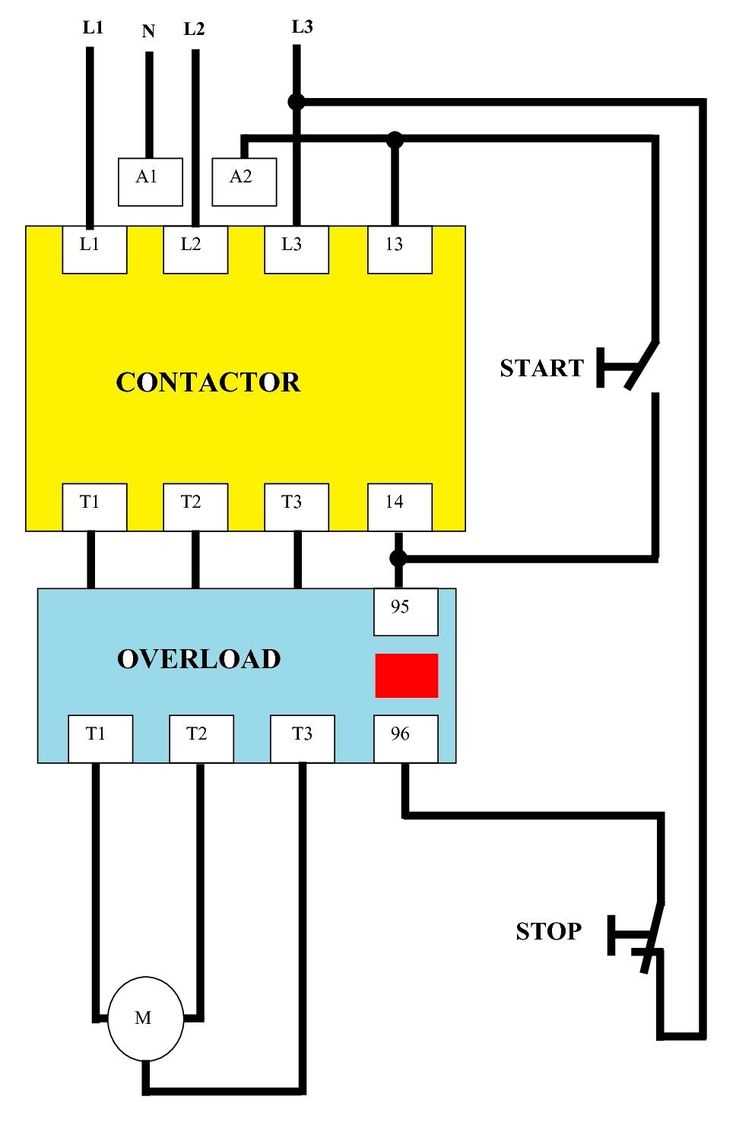

Use pilot devices to sequence operations safely. A normally open (NO) start pushbutton in parallel with a maintaining contact keeps the circuit latched after release; a normally closed (NC) stop button breaks the latch. Add auxiliary contacts (NO/NC) for interlocks–prevents concurrent operation of opposing loads (e.g., forward/reverse motor commands). For high-duty cycles, replace mechanical pushbuttons with 24V DC solid-state switches–reducing wear and improving response time. Label all conductors per NEC Article 430.7: L1/L2/L3 (power), T1/T2/T3 (load), A1/A2 (coil), 95/96 (overload).
How to Connect a 3-Phase Contactor Installation
Begin by verifying the supply voltage matches the contactor’s rating–typically 208V, 240V, 380V, or 480V. Misalignment risks overheating or failure. Label each conductor (L1, L2, L3 for input; T1, T2, T3 for output) with heat-shrink tubing or tags to prevent misconnection during troubleshooting.
Required Components and Tools
- 3-phase contactor (size based on motor current, e.g., IEC 40A for 15HP motor)
- Overload relay (select class 10 or 20; set to motor’s full-load amps)
- Circuit breaker (frame size 50–100A, trip rating 125% of motor current)
- Crimping tool (ratcheting type for 8–14 AWG wire)
- Insulated fork terminals (tin-plated copper, 6mm–10mm stud size)
- Multimeter (minimum 600V AC range, CAT III rating)
- Torque screwdriver (set to 2.5Nm for M5 terminals)
Mount the contactor and relay vertically on a non-conductive panel (fiberglass or DIN rail) with 50mm clearance above and below for heat dissipation. Secure bolts with thread-locking compound to resist vibration. Route power conductors (L1/L2/L3) from the breaker to the device’s upper terminals–use 10 AWG for 30A circuits, 8 AWG for 40A+. Maintain phase sequence (R-Y-B or L1-L2-L3) to avoid motor rotation reversal.
Connect the motor leads to the lower terminals (T1/T2/T3) with the same gauge as the input. Bridge the overload relay’s output to the contactor’s coil if using a 3-wire control scheme. For the coil circuit, attach a pushbutton (NO/NC contacts rated for 600V) and auxiliary relay if lockout is required. Wire gauge for control circuits: 14 AWG for 120V, 12 AWG for 240V. Test coil resistance (typical range: 20–150Ω) before energizing.
- Power down the main breaker and validate zero voltage with a multimeter at the input terminals.
- Attach ground conductor (bare copper, minimum 10 AWG) to the panel’s earth busbar before connecting any other conductors.
- Crimp fork terminals to all conductors, then torque to 2.5Nm–check with a torque screwdriver.
- Set the overload relay’s dial to the motor’s nameplate amps (e.g., 18A for a 15HP, 460V motor).
- Apply power, press the start button, and monitor the motor for 30 seconds–listen for humming or excessive heat.
- Measure voltage across T1-T2, T2-T3, T3-T1 (expected: ±5% of line voltage).
If the motor fails to start, verify coil voltage (should match nameplate, e.g., 120V or 240V) and check for open circuits in the control path. For persistent issues, inspect contactor contacts for pitting–replace if wear exceeds 1mm. Log all readings and settings for future reference, including torque values and phase order. Clean terminals annually with isopropyl alcohol and reapply contact grease (e.g., Noalox) to prevent oxidation.
