Install a three-point illumination regulator by first verifying the circuit’s compatibility with LED, halogen, or incandescent loads–the maximum wattage must not exceed 600W for resistive loads or 300W for magnetic low-voltage systems. Identify the primary load-bearing conductor (typically black) and secure it to the common terminal on the control unit before routing it through the traveler wires (usually brass or red) to the secondary switch points. Failure to isolate the neutral at the first control box risks producing a short despite appearing functional.
Label each conductor unambiguously–line (hot), load, traveler 1, traveler 2–and confirm the circuit breaker is disengaged before stripping insulation. Use 12-gauge solid copper conductors for 15/20-amp circuits to prevent overheating; stranded wire may not secure properly under terminal screws. If integrating with existing installations featuring unforeseen splices, test for voltage drops exceeding 3%–any deviation suggests improper grounding or corroded terminals, which must be corrected immediately.

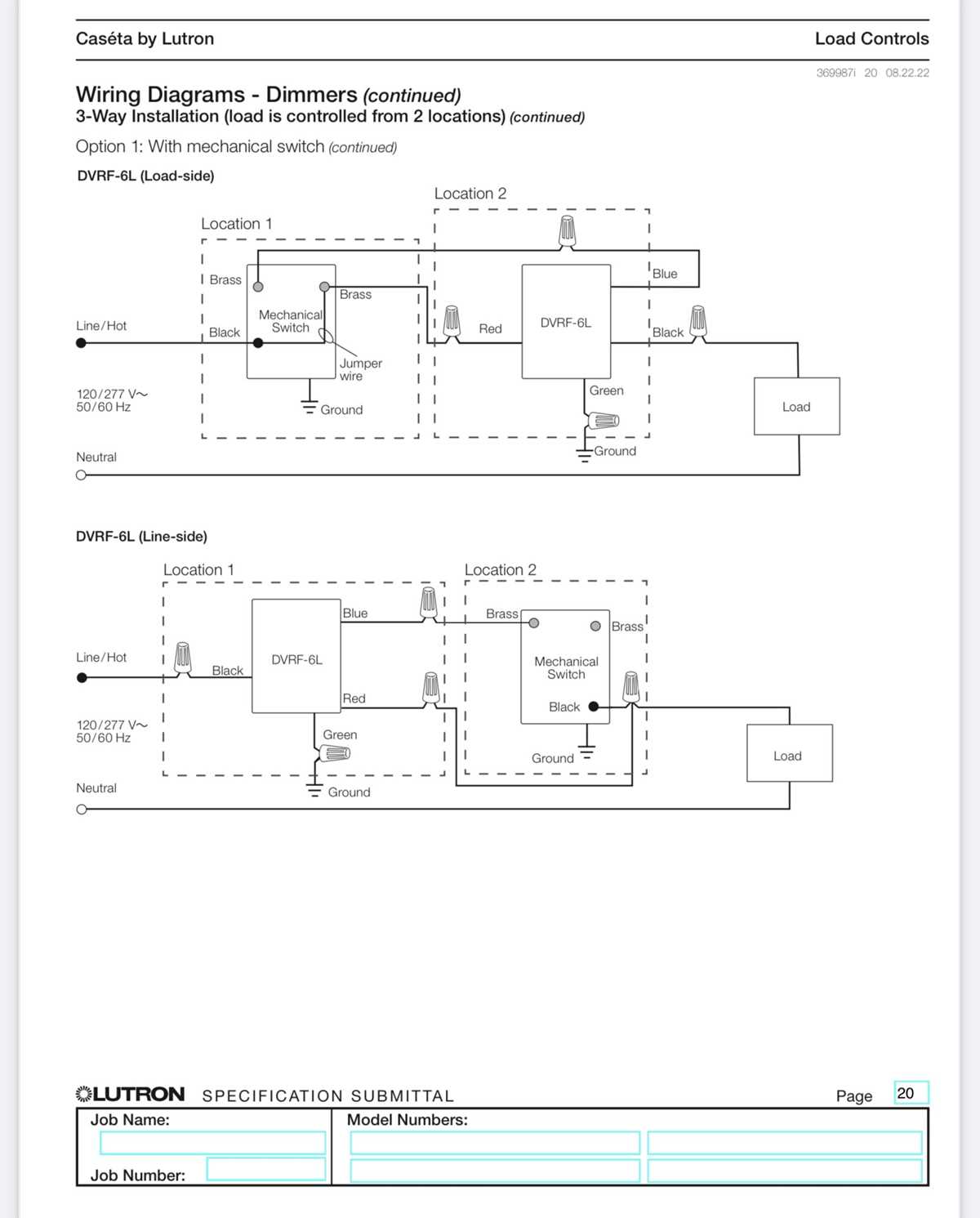

Ground the system directly to the box with a green or bare copper wire; pigtailing through multiple devices reduces reliability. For multi-switch setups, connect the load wire (highlighted in blue on Lutron’s reference schematics) exclusively to the final control point–bypassing this step creates unintended power loops. Validate functionality in all positions before closing the wall plates; subtle flickering in single-pole LEDs indicates borderline compatibility–replace with a capacitor-filtered unit if persistent.
Connecting a Multi-Location Light Control System
Begin by identifying the common terminal on the existing mechanical switch–this is typically marked with a darker screw or labeled “COM.” Disconnect the power at the circuit breaker, then detach the wire from this terminal and connect it to the brass-colored screw on the new smart illumination regulator. The remaining two wires from the original switch (travelers) must be attached to the black screws on the control device. If the fixture operates on a neutral wire, secure the white wire from the wall box to the corresponding silver terminal on the regulator.
Handling Neutral and Ground Connections
Ensure the neutral (white) wire is properly connected if required–some older installations lack this, risking inconsistent performance. The ground (bare or green) must always terminate on the green screw of the control unit. Verify that all connections are tightly secured to prevent arcing; loose wires can cause overheating or erratic behavior. If the circuit lacks a neutral, consult an electrician to modify the wiring safely–bypassing this step may violate local electrical codes.
After restoring power, test the setup by toggling the secondary switch at both locations. The regulator should respond smoothly without flickering or delays. If issues arise, recheck all connections, focusing on traveler wire placement–mismatched terminals often cause malfunctions. For LED bulbs, ensure the control unit supports them; incompatible models may require a bypass capacitor or a dedicated low-voltage regulator.
Essential Equipment and Supplies for Multi-Location Light Control Setup
Select a voltage detector rated for both 120V AC residential circuits and capable of distinguishing live wires behind drywall. Models with adjustable sensitivity and dual LED indicators reduce false negatives during initial scans–opt for units with a minimum detection range of 5 inches through standard insulation.
Verify the replacement device’s compatibility with your existing switch model. Check the manufacturer’s datasheet for:
- Minimum/maximum wattage ratings (typically 150W–600W for incandescent loads).
- LED/CFL compatibility (require specific firmware; non-dimmable bulbs may flicker).
- Wire gauge limitations (14–12 AWG only; oversized wires prevent proper seating).
Cross-reference the product ID against UL Listing for NEC compliance.
Use needle-nose pliers with insulated handles (rated 600V or higher) and a built-in wire cutter. Avoid generic tools–mismatched jaws can strip insulation or snap stranded copper during 90° bends required in tight gang boxes. For aluminum wiring retrofits, include a torque screwdriver (0.5–2.5 Nm range) to meet NEC Section 110.14(D) requirements.
Prepare:
- Wire nuts sized for 2–4 wires (yellow for #14, red for #12).
- One inch of exposed copper per terminal (excess length causes shorts in confined boxes).
- Non-conductive fish tape (fiberglass core) for navigating flex conduit between floors.
- Heat-resistant loom tubing (½” diameter) to shield splices near high-load circuits.
Label each conductor using color-coded shrink tubing before connecting–red for traveler wires, black for common, white for neutral (if present).
Equip a headlamp with adjustable beam width and red-light mode to avoid pupil constriction during dim conditions. Ensure batteries provide a minimum of 4 hours runtime at full brightness. For multi-story installations, include a telescoping mirror (3-inch diameter) to inspect rear terminals in recessed boxes.
Keep a digital multimeter with audible continuity testing and non-contact voltage mode. Verify functionality by measuring known live circuits before use–calibrate to 600V AC for U.S. standards. For troubleshooting:
- Test traveler pairs for balanced resistance (should match within 2 ohms).
- Check neutral paths for phantom voltage (induced currents above 30V require isolation).
- Confirm ground bonding at the service panel (infinite resistance indicates loose connection).
Store probes in a protective case to prevent tip oxidation between uses.
Step-by-Step Installation for Multi-Location Light Control
Turn off power at the circuit breaker before handling any connections. Verify the absence of voltage using a non-contact tester on both switch boxes. Label each wire with masking tape–common (typically black or red screw), traveler (brass screws), and neutral (if present)–to avoid confusion during reassembly. Standard configurations include one control point with a single load wire and another with two traveler wires plus a ground.
Identify the primary switch–the one directly connected to the fixture–by locating the load wire (marked or colored differently). Attach this wire to the dark-colored terminal on the electronic regulator. Connect the travelers to the matching brass terminals on both devices, ensuring polarity matches (top traveler to top terminal, bottom to bottom). Ground wires must link to green screws or bare copper. In setups with neutrals, join them with a wire nut but do not connect to the control unit unless specified in the model’s documentation.
Verification and Troubleshooting
Restore power and test each location’s functionality. If the lights flicker or fail to respond, recheck traveler connections–incorrect pairing often causes erratic behavior. For persistent issues, swap the positions of the traveler wires at one end. Ensure the ground connection is secure; loose grounds frequently disrupt performance. Replace faulty switches immediately if symptoms persist after rewiring.
Identifying Common Wire Colors and Terminals in a Multi-Location Switch Setup
Always start by locating the common terminal–it’s the critical connection point distinguishing a shared conductor from travelers. In standard U.S. electrical installations, this terminal is typically marked black on older devices or darker brass on newer models, though labeling may vary. Use a voltage tester to confirm: the common terminal will show voltage in relation to ground when the circuit is active, while traveler terminals alternate based on switch positions.
Traveler conductors in a three-point switch configuration usually follow consistent color coding: red and black (or yellow and black in some modern or European systems). These wires run between switches in parallel pairs. If you encounter white or gray insulated wires in a switch box, they are likely neutrals–though in older installations, white may be repurposed as a hot conductor. Neutrals are typically bundled together and capped with a wire nut, separate from switch connections.
Ground conductors are universally green, bare copper, or green with a yellow stripe. They must terminate on the grounding screw of each switch, regardless of device type. If a ground wire is absent in an older box, verify that the circuit’s metal conduit serves as an approved grounding path–otherwise, consult an electrician before proceeding.
| Wire Role | Common U.S. Color | Alternative Colors | Terminal Type |
|---|---|---|---|
| Common (hot/source) | Black | Red, sometimes white (marked) | Brass (darker or labeled) |
| Traveler | Red + Black | Yellow + Black, Blue + Brown | Brass (lighter or unlabeled) |
| Neutral | White | Gray | Silver |
| Ground | Green/Bare Copper | Green-Yellow Stripe | Green screw |
In split-tab receptacle scenarios or partial power setups, the common wire may split to supply both a switch leg and an always-hot outlet. Here, a pigtailed connection (using a short wire nut) ensures continuity. Never assume wire function based solely on color–always test with a multimeter or non-contact voltage detector before handling. A misidentified traveler connected to a common terminal will create a dead short.
For installations mixing NM-B cable with conduit, traveler pairs may be paired in the same conduit run. In these cases, striped or numbered sleeves often distinguish individual conductors. If wires lack markings, use colored electrical tape–wrap the common wire with black tape and travelers with red and yellow or another contrasting scheme to avoid confusion during future maintenance.
Switch terminals often include visual or tactile cues: the common screw may be a different shape (e.g., angled or larger), or the device housing may have a raised indicator. Some models feature back-wired push-in connectors–avoid these for traveler wires, as they can loosen under load. Instead, use traditional screw terminals for reliable connections, wrapping wire clockwise around the screw for a tight grip.
Troubleshooting Inconsistencies
If testing reveals no voltage at the common terminal, suspect a broken wire between switches or a mislabeled traveler. Work backward from the light fixture: the common should trace back to the source (panel or upstream outlet), while travelers loop between switch locations. In power-to-switch configurations, the common at the first switch is hot; in power-to-light setups, the common at the second switch feeds the fixture.
When retrofitting an existing circuit, inspect wire insulation for cracks or overheating–faulty traveler pairs are a common failure point. Replace damaged sections with THHN/NM-B of the same gauge (typically 12 or 14 AWG). Always de-energize the circuit at the breaker before cutting or stripping wires, and confirm zero voltage with a tester before proceeding.
