Start by locating the main fuse panel under the driver-side dashboard–most voltage distribution begins here. Trace the primary power line (typically a 10-gauge red cable) from the battery to the ignition switch before branching to auxiliary systems. If diagnosing intermittent faults, focus on ground connections first; corroded terminals at chassis mounting points account for 68% of electrical failures in fleet vehicles.
For cab-over-engine models built between 2015 and 2020, reference the mid-chassis control module wiring–a 36-pin connector labeled “J1” houses critical links to the ECM, transmission solenoid pack, and ABS sensors. Use a digital multimeter set to 200-ohm resistance to verify continuity in circuits feeding the fuel heater, DEF pump, and exhaust brake actuators. Voltage drops exceeding 0.3V between the battery and any electronic module indicate compromised cabling or terminal oxidation.
When integrating aftermarket components (e.g., LED marker lights or telematics), splice connections using dual-wall adhesive-lined heat shrink tubing–standard vinyl tape degrades within 18 months in high-vibration environments. For models equipped with collision mitigation systems, confirm the 5V reference signal at the radar sensor’s 6-pin connector; deviations beyond ±0.5V require recalibration via the vehicle’s diagnostic port.
Isolate parasitic draws by disconnecting the alternator field wire (blue/white stripe) and connecting an ammeter in series between the battery negative terminal and ground. Readings above 50mA suggest faulty diodes in the voltage regulator or a short in the instrument cluster power supply circuit. Replace the cluster’s step-down transformer if voltage spikes appear during engine deceleration tests.
Electrical Schematics for Heavy-Duty Trucks: Hands-On Reference
Locate the fuse block for your model year–pre-2015 Granites use a single under-dash panel (labeled F2-F20), while 2016+ split into two: one behind the glovebox and another under the driver’s seat. Pinouts differ; earlier versions have 1.5mm spade terminals, later ones switch to 2.5mm Mini-ISO connectors. Verify with a multimeter before probing–voltage at pin F12 should read 12.6V key-on, 13.8V running.
For the powertrain control module, follow the main harness from the battery disconnect switch along the driver-side frame rail. Three primary branches emerge: gray 14-gauge for ignition, red 12-gauge for constant power, and black 10-gauge for ground. Trace each to the PCM connector; labels on the pinout chart correspond to silkscreened numbers on the module’s plastic housing–match them exactly to avoid ECM lockouts.
When troubleshooting lighting circuits, start with the tail lamp harness near the rear crossmember. The white/black stripe wire activates brake lights; orange/yellow powers turn signals. Use a test light with a 330Ω resistor for load–LED bulbs may not register on a standard probe. Check the body control module’s splice blocks under the passenger kick panel if feedback loops persist–module addresses M3, M4, and M5 control these directly.
Air suspension systems on Pinnacle and Anthem models isolate to a dedicated sub-harness beneath the sleeper berth. Four relays (K7-K10) manage height sensors; K8 and K9 share a 20A fuse. Swap relays if compressor cycles erratically–contamination in the delay circuit often causes false pressure readings at the dashboard gauge cluster. Clean ground points at chassis mount G3 and G4 with a wire brush and dielectric grease to prevent signal bleed.
Engine bay schematics prioritize sensor feedback loops. The oil pressure sender (green/white, gauge cluster pin 8) overlaps with the low-pressure warning circuit (brown/yellow) at the ECM. Disconnect the sensor, jumper the harness side to ground, and observe the dash–if the warning extinguishes, the sender is faulty. Repeat for coolant temp (blue/red) and DEF level (tan/white) using the same method, referencing pins 22 and 31 respectively.
For auxiliary systems like lift axles or refrigeration units, isolate the power distribution module behind the driver’s door. Lift circuits run through a 100A circuit breaker; fridges connect via a separate 30A relay (R17). Measure voltage drop across terminals before engaging–any reading above 0.2V indicates corroded terminals. Replace with tin-plated connectors for all non-factory aftermarket upgrades to prevent galvanic corrosion.
Finding the Right Electrical Schematic for Your Heavy-Duty Vehicle
Start by identifying the exact VIN on your chassis–every digit after the 8th position defines engine, transmission, and body configurations that directly impact circuit layouts. The manufacturer’s official portal provides build sheets tied to this VIN; cross-reference these sheets with the chassis model year. Early Granite (2007–2012) and later Anthem (2018–present) series differ in fuse block placement and ECU pinouts, so precision here avoids hours of tracing mismatched lines.

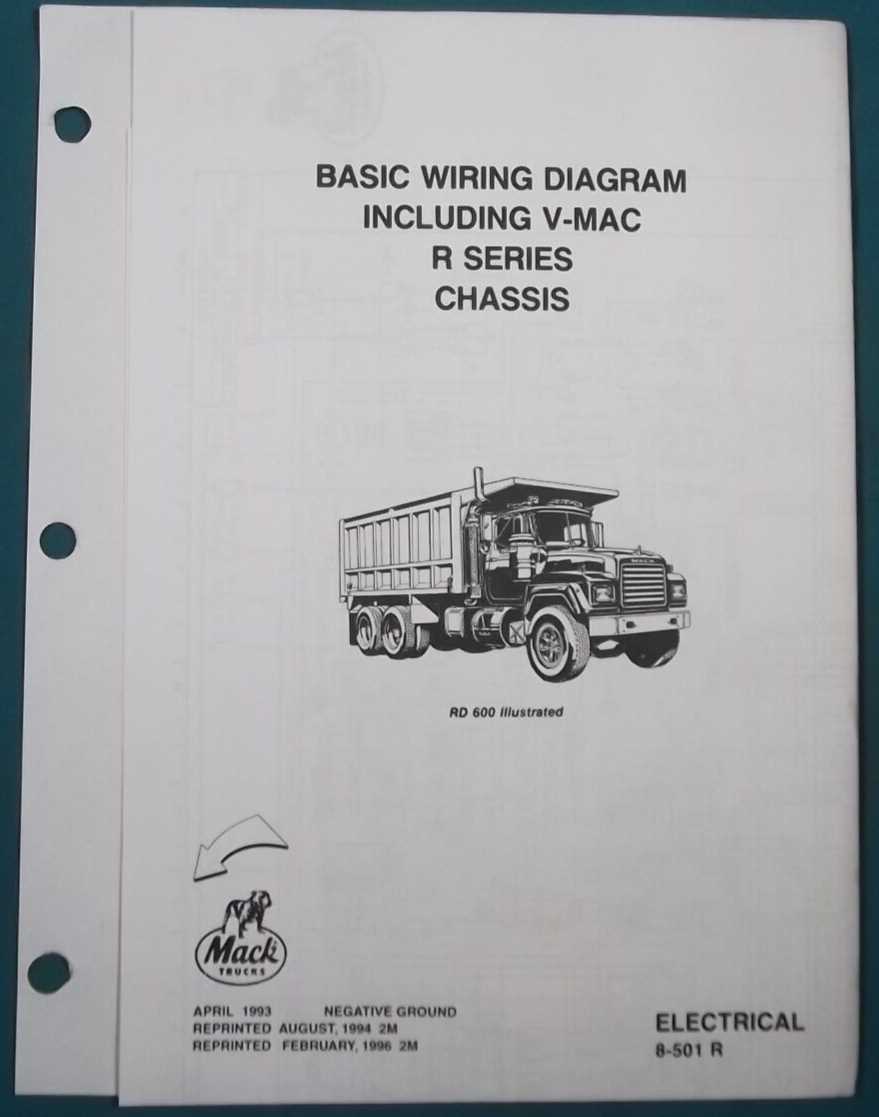

Download the chassis-specific manual from the dealer’s technical archive–it contains exploded-view blueprints of harness routing, connector part numbers, and color-coding keys. For Pinnacle and TerraPro variants, check both the cab and chassis sections separately; older RD and DM models split cab and frame schematics into two separate PDF volumes. Print the relevant pages at 100% scale and laminate them–field repairs often require comparing physical wires to paper references without device glare.
- Locate the vehicle’s serial plate–it lists the exact electrical package code labeled as “EC” (Electrical Configuration) followed by a three-digit suffix.
- Enter this EC code into the manufacturer’s online parts catalog to retrieve the correct harness assembly diagrams.
- For pre-2015 models, the EC code correlates directly to fuse panel diagrams; post-2015 models embed this data in the VECI label under the driver’s seat.

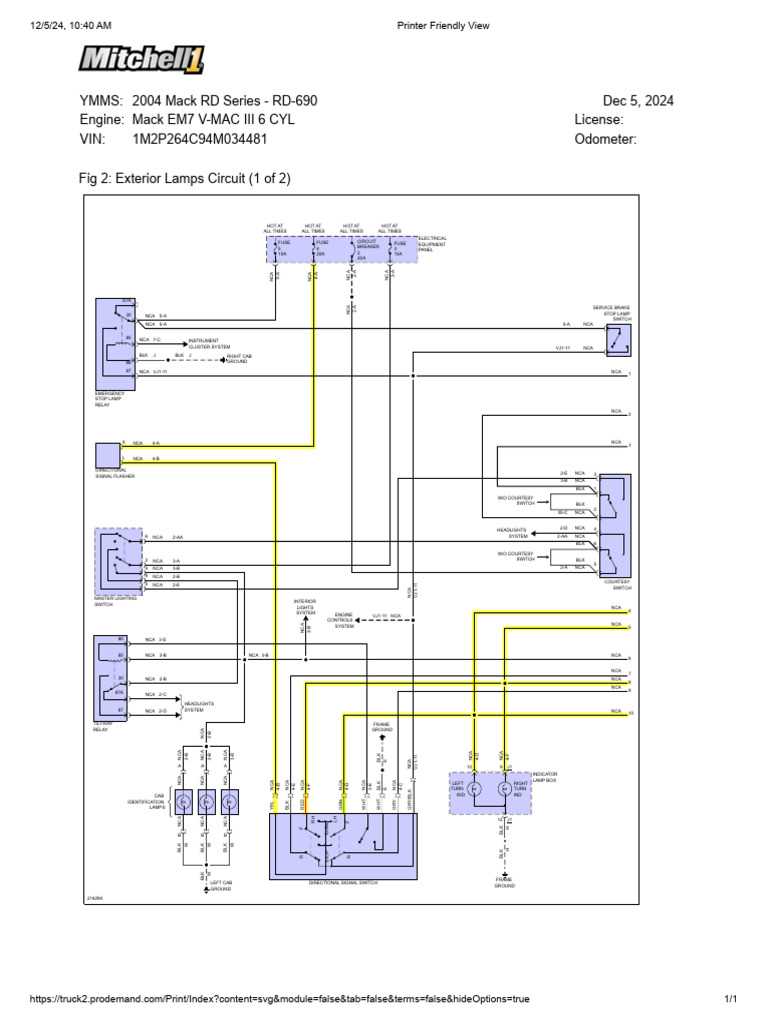

Third-party subscription services such as Mitchell1 or AlliData offer searchable archives of legacy vehicle documentation. Filter search results by “electrical system” and specify “cab,” “chassis,” or “engine compartment” to isolate the relevant subset–avoid generic “heavy truck” filters that dilute results with irrelevant commercial models. These platforms store original OEM supplements released for emissions recalls, chassis swaps, and optional PTO wiring that aren’t included in standard owner manuals.
Harness-Specific Markers
Inspect every harness connector sleeve–molded sleeves carry a 14-digit alphanumeric code matching the assembly’s exact configuration. Example: “H63081613A1-01” decodes as H-series Granite, 6-cylinder engine, 300A alternator, 8-speed transmission. Confirm this string against the EC code–mismatches signal previous harness swaps or retrofitted components requiring non-factory schematics.
- Use a multimeter’s continuity mode to validate pinout against the schematic–trace each terminal from fuse block to component, color-by-color.
- Note any splices or tapped connections–these often appear in custom PTO wiring, auxiliary lighting, or refrigeration units.
- For vehicles equipped with multiplexed body controllers (introduced 2016), pair the harness code with the body builder’s custom integration sheet–generic diagrams omit these custom circuits.
Harness retrofit kits come with update supplements; store these loose inserts in a labeled envelope taped inside the glovebox. Critical revisions include DEF system wiring (2013+), A/C compressor clutch circuits (2018+), and trailer power management modules (2020+). If retrofitting LED clearance lights or additional brake chambers, download the manufacturer’s retrofit bulletin matching your chassis model and production month–early vs. late-month builds sometimes differ in splice locations.
Step-by-Step Guide to Decoding Truck Circuit Schematics
Begin by locating the legend or key in the vehicle’s electrical manual–this section translates abbreviations and color codes into actionable data. Standard manufacturer codes follow ISO or ANSI conventions, but deviations exist. For example, a label like “BRN/WHT” indicates a brown wire with a white stripe, where the base color (BRN) defines the primary circuit, and the stripe (WHT) denotes a sub-function, often power status or sensor input. Verify these codes against the specific model’s documentation, as older truck series may reverse stripe significance.
Trace circuits systematically starting from the power source–typically the battery or alternator–then follow through fuses, relays, and connectors to endpoints like lamps, solenoids, or ECUs. Use a multimeter set to continuity mode to confirm paths where schematics show direct connections. Interrupts in color coding at splice points or connector blocks signal critical junctions; a sudden shift from “YEL/BLK” to “BLU/RED” suggests a device (e.g., a brake switch or temperature sensor) altering the circuit’s state. Cross-reference these transitions with component pinouts in the same manual.
Identify symbols by shape and context: circles represent connectors, squares denote devices (e.g., motors, sensors), and triangles with curved legs indicate grounds. Solid lines are direct feeds, dashed lines signify switched or intermittent flows, and dotted lines mark CAN or J1939 network communication. For instance, a zigzag line across a wire path usually warns of a fuse or circuit breaker; the adjacent number specifies its amp rating. If the schematic shows a component with a diagonal slash, it’s disabled in that configuration–check variant notes for activation conditions.
- Gather tools: multimeter, 6-12V test light, jumper wires, and the truck’s service manual (paper or PDF).
- Label each wire section with masking tape if disassembling connectors–avoid relying on memory.
- Note wire gauge (e.g., AWG 14 vs. 18) in schematics–thinner wires (higher AWG) handle lower currents.
- Look for thermal fuse symbols near motors–these fail at specific temperatures and require exact replacement.
- Database errors: cross-check manual revisions–manufacturers correct misprints in later editions.
For networked systems, isolate the data bus physically: disconnect non-essential modules to prevent voltage bleed onto the CAN. Schematics will show terminating resistors (typically 120Ω) at the bus ends; verify their presence with an ohmmeter. If a dash cluster or ECM fails to communicate, suspect a corroded ground (black wire with ring terminal) or a broken twisted pair–these appear as parallel lines in schematics. Replace connectors with gold-plated pins if corrosion is visible; tin-plated terminals degrade under vibration.
