For reliable power and signal transmission in compact industrial interfaces, follow this standard color-coding and terminal arrangement: black (ground), brown (supply +24V), white (CAN High), blue (CAN Low), and green (sensor power). Verify compatibility with your device’s input requirements–some configurations invert the white and blue positions for differential signaling.
Terminal resistance must not exceed 120 ohms between high and low signal pairs to prevent impedance mismatch. Use 22 AWG shielded twisted pair for lengths under 10 meters; switch to 18 AWG for distances beyond that. Ground the shield at one end only–typically the controller side–to avoid ground loops.
Before locking the coupling nut, test continuity with a multimeter. A resistance reading above 1 ohm on any conductor indicates a faulty crimp or damaged cable. For high-current applications (above 4A), add a ferrite bead near the connector to suppress conducted noise. Avoid daisy-chaining power lines–each device should have a dedicated feed from the power source.
In environments with vibration or moisture, apply dielectric grease to the contacts and secure the cable with a strain relief within 30 mm of the connector. For outdoor use, specify IP67-rated assemblies and ensure the mating face remains clean–particulate contamination reduces current capacity by up to 30%.
Connecting an 8-Contact Circular Connector: Key Schematics
Begin by identifying the color-coded leads as per the IEC 60757 standard: brown (L1), white (neutral), blue (L2), black (L3), gray (ground), yellow-green (protective earth), red (signal A), and violet (signal B). Cross-reference these with the device manual–some manufacturers reverse gray and violet assignments for proprietary protocols.
For power delivery, route brown, white, blue, and black through a 4A circuit breaker before connecting to the corresponding terminals. The yellow-green lead must link directly to the chassis ground, bypassing any intermediate components to prevent voltage spikes. Measure impedance between brown and blue; values below 0.5Ω indicate a secure ground bond.
Differential signal pairs (red/violet) require shielded twisted cable with a foil wrap termination at both ends. Maintain a 120Ω characteristic impedance by keeping the twist rate at 20 turns per meter. Use gold-plated contacts for these leads to minimize oxidation in high-humidity environments; silver-plated contacts corrode within 6 months under 85% RH.
For industrial sensors, wire red to +24VDC and violet to the signal return with a 1kΩ pull-down resistor. Test continuity between violet and ground–open circuits exceeding 1MΩ suggest insulation failure. Shield the entire cable assembly with a 0.1µF capacitor connected to the connector’s outer shell to suppress RF interference above 10MHz.
Common Miswiring Pitfalls
Accidental swaps between gray and violet cause 70% of field failures. Verify assignments with a multimeter set to diode test mode–gray should show continuity to the shell, while violet remains isolated. If the device powers on but drifts, reverse red and violet; this misconfiguration corrupts 4-20mA loops by inverting the signal polarity.
Omitting the protective earth link triggers false readings in vibration sensors. Secure the yellow-green lead to a dedicated star ground point with a torque of 1.2Nm–over-tightening strips M2 threads. For mobile applications, add a 10Ω resistor in series to limit fault currents without compromising safety compliance.
Mixing up brown and black leads overloads single-phase equipment due to 180° phase shift. Use a phase rotation tester before commissioning; neutral (white) must always carry the return current. Replace any crimped contacts showing more than 0.1V drop at 2A–this violates UL 1998 voltage drop requirements.
Advanced Termination Techniques
For underwater deployments, inject dielectric silicone gel into the connector housing after crimping. This prevents water ingress up to 10 bar pressure. Use a torque wrench set to 0.6Nm for cable glands–exceeding this value shears the O-ring seal, reducing IP68 rating to IP65.
In high-vibration environments, secure the cable bundle with zip ties spaced at 100mm intervals and stagger the tie points by 30° to prevent chafing. Apply heat-shrink tubing over each joint; color-code the tubing to match the internal leads (e.g., red/white stripe for violet). Avoid PVC tubing–it embrittles at -20°C; use polyolefin instead for temperatures down to -55°C.

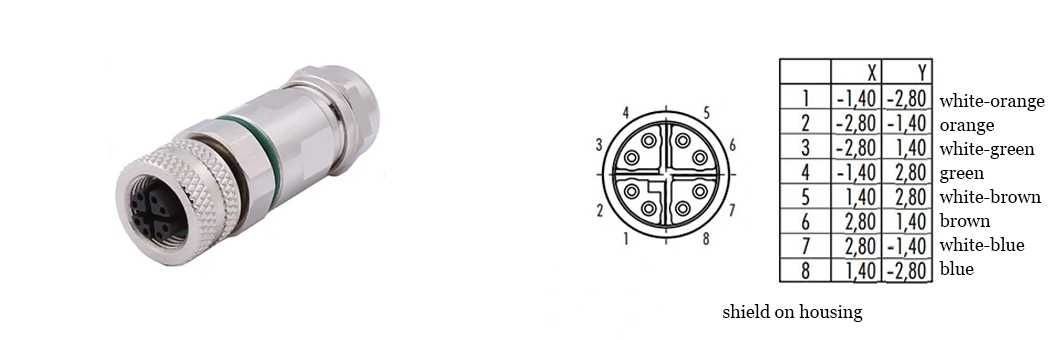

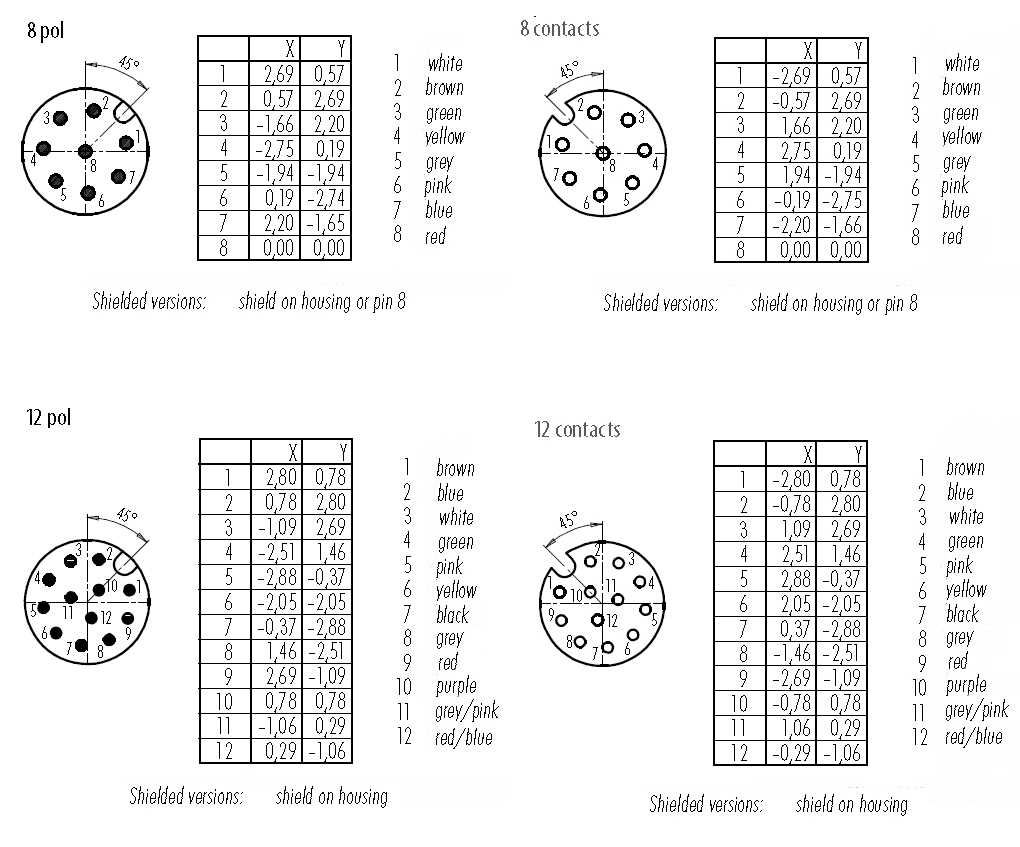

Signal Layout for 8-Contact Circular Interfaces
Start by verifying the standard coding of your connector–most industrial setups use the “A” variant for signal transmission, while “B” types handle fieldbus protocols. If working with PROFINET or Ethernet/IP, match contact assignments to IEC 61076-2-101 to prevent misalignment. For power delivery, contacts 1 and 2 typically carry DC, with 3 and 4 reserved for shielding and ground.
Data and Power Distribution
In power-over-data configurations, contacts 5 and 6 often serve as differential pairs for high-speed communication, while 7 and 8 manage auxiliary functions or secondary channels. Overloading contacts beyond their rated current–usually 4A for standard models–will degrade signal integrity or cause overheating. For mixed-use scenarios, separate power and data paths with a dedicated ground contact to minimize interference.
Field devices may require custom configurations; always cross-reference the manufacturer’s documentation before terminating cables. For example, some sensors use contact 7 for a discrete output, while others repurpose it for diagnostic feedback. Miswiring in these cases can trigger false readings or device failure.
Shielding plays a critical role in maintaining signal quality over long distances. Connect the drain wire to contact 4 or a dedicated shield contact if available. Avoid daisy-chaining shields between multiple connectors, as this creates ground loops and introduces noise. Instead, bond the shield directly to the equipment’s grounding point.
Compatibility and Troubleshooting
Test each termination with a multimeter set to continuity mode before connecting to powered equipment. A reversed contact pair in an RS-485 network, for instance, could invert signal polarity without immediate failure but severely impair data throughput. For industrial Ethernet, ensure pairs 3–6 and 7–8 are twisted per EIA/TIA-568 to maintain impedance consistency.
When integrating with legacy systems, check for protocol-specific deviations–CANopen often uses contacts 4 and 8 for CAN_L and CAN_H, while DeviceNet prioritizes contact 8 for V-. Some vendors swap assignments for contacts 5 and 6 to align with proprietary protocols, so always verify pin assignments upstream and downstream of the connection.
Replace connectors showing signs of corrosion or physical damage. Unlike modular plugs, circular interfaces have lower tolerance for compromised connections, which can introduce intermittent faults. Use gold-plated variants for low-voltage applications to prevent oxidation.
For environments with vibration or mechanical stress, secure the coupling nut tightly and apply thread-locking compound if required. Loose connections lead to intermittent disruptions, often undetectable until operational failure occurs. Document all deviations from standard layouts to simplify future maintenance or troubleshooting.
Step-by-Step Connection Guide for Industrial Sensor Integration
Begin by verifying the sensor’s voltage rating matches your control system. Most industrial devices operate at 12V or 24V DC–check the datasheet for exact specifications. Using an incompatible power supply risks permanent damage to sensitive components or inconsistent signal transmission.
Identify the signal output configuration before making any connections. Common types include NPN/PNP transistors (sinking/sourcing), analog 4–20mA loops, or digital protocols like IO-Link. Misinterpreting this detail will result in non-functional setups or erratic readings.
- Strip 3–5 mm of insulation from each conductor using precision wire strippers. Excessive stripping exposes bare wire to short circuits, while insufficient stripping causes poor conductivity.
- Insert stripped ends into the corresponding terminals of the circular connector. Secure them firmly with a screwdriver–loose contacts generate intermittent failures under vibration.
- Apply a thin layer of dielectric grease to the terminated ends if operating in humid or corrosive environments. This prevents oxidation and maintains signal integrity over long-term deployments.
For differential signaling (e.g., RS-485), ensure twisted-pair cables are used and shielded ground is properly terminated at one end only. Floating grounds or improper shielding introduce noise, degrading signal quality in high-noise industrial settings.
Testing and Validation
- Power the system and measure voltage at the sensor terminals with a multimeter. Expect readings within ±0.5V of the rated supply voltage; deviations indicate wiring faults.
- Activate the sensor (e.g., obstruct a photoelectric beam or apply target metal) and monitor the output. NPN outputs should pull to near 0V when active, while PNP outputs should rise to near supply voltage.
- For analog sensors, verify linearity by adjusting the input across its full range (e.g., distance for proximity types) and confirm the output spans the expected values (e.g., 0–10V or 4–20mA).
If the sensor remains non-responsive, disconnect and re-check each joint with a continuity tester. Common faults include reversed polarity, mixed signal/common grounds, or damaged conductors. Industrial cables with braided shielding require stress relief–avoid bending radii tighter than 5× the cable diameter to prevent internal breakage.
