Begin by identifying the low-voltage terminals on the control unit: COM (common), NO (normally open), and NC (normally closed). Connect the power source’s negative lead to COM and the positive to NO for standard operation. For reverse logic, use NC instead. Verify input voltage limits (12–24V DC) to prevent damage–this module does not support AC.
If integrating with occupancy sensors, wire the sensor’s relay output in series with the NO terminal. Ensure the sensor’s voltage matches the module’s rating; mismatches will cause erratic behavior. For multi-zone setups, parallel connections are permitted, but total current must not exceed 3A per channel.
For fail-safe configurations, attach a backup battery between COM and NO with a blocking diode to prevent backfeed. Use 18–22 AWG stranded wire for connections–solid core may fatigue under vibration. Label all wires at both ends to avoid miswiring during troubleshooting.
Test each circuit with a multimeter before finalizing connections. Measure continuity between COM and NO (closed when active) or COM and NC (open when active). If no signal is detected, check for loose terminals or reversed polarity–common causes of failure.
Connecting the AYCL-153P Dimmable Switch: Key Steps
Start by shutting off power at the circuit breaker to prevent hazards. Identify the load wire (typically black or red) and connect it to the brass screw terminal on the device. The neutral wire (white) must join the silver screw, while the ground wire (green or bare copper) secures to the green screw. Verify all connections are tight–loose terminals cause flickering or failure. Use a voltage tester to confirm power is off before handling wires, even if the breaker is tripped.
For three-way setups, the red traveler wire links to the terminal marked TRAVELER, while the common wire (usually black and distinct from travelers) attaches to the COMMON terminal. Mislabeling these leads to inconsistent operation. If the switch controls a fan, ensure compatibility–the AYCL-153P isn’t rated for inductive loads. Refer to the mounting plate’s alignment marks to avoid misinstallation; improper alignment stresses the mechanism over time.
After securing wires, fold excess neatly into the electrical box to avoid pinching. Snap the switch into the wall plate, ensuring it sits flush–gaps indicate misalignment. Restore power and test dimming levels at 10%, 50%, and 90% to confirm smooth operation. If flickering persists, check for voltage drop across connections or incompatible bulbs (CFL/LED must be dimmable). For troubleshooting, consult the device’s spec sheet; non-dimmable loads void the warranty.

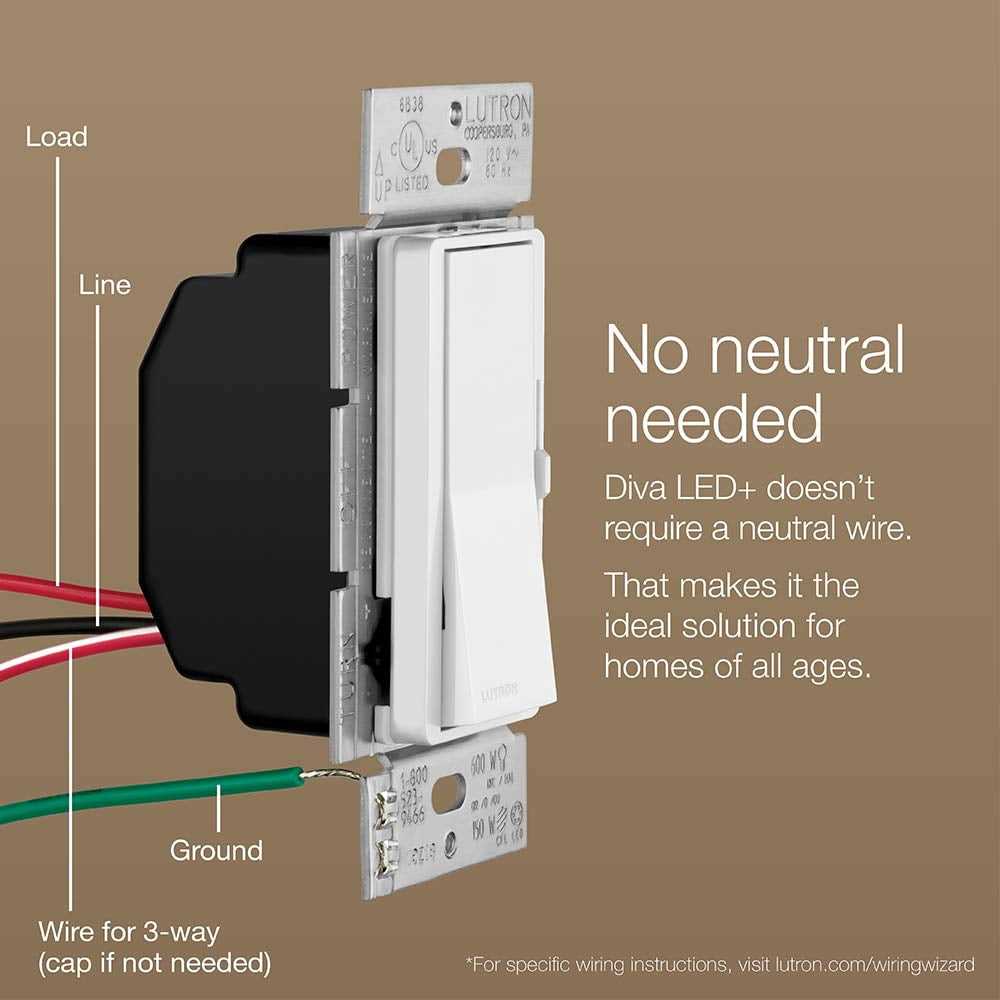

Identifying Terminal Connections on the Dimmer Switch
Begin by locating the labeled slots on the rear panel of the device. The primary input slot, marked LINE, connects to the power source–typically the black or red conductor from your circuit. Ensure this wire is securely inserted into the terminal and tightened with a screwdriver to prevent loose connections.
Directly next to the LINE terminal, you’ll find the LOAD slot. This terminal routes current to the fixture–chandeliers, recessed lights, or wall sconces–controlled by the switch. Verify the wire color matches the load side of your electrical layout; common colors include black, red, or yellow.
The NEUTRAL terminal, if present, requires the white conductor from your circuit. While some models omit this slot due to existing neutral lines in the electrical box, newer configurations include it for compatibility with smart home systems. Confirm local electrical codes before modifying this connection.
- Ground Slot: Attach the bare copper or green-insulated wire here. This connection diverts fault currents, ensuring safety during short circuits. Never omit this step–improper grounding risks equipment damage or electrical shocks.
- Traveler Terminals: Multi-way installations use these slots, usually labeled TRAVELER 1 and TRAVELER 2. They link to corresponding terminals on companion switches in three-way configurations. Use distinct conductor colors (e.g., red for one, blue for the other) to avoid confusion.
For dual-load models, identify the second LOAD terminal–typically marked LOAD 2. This slot controls a separate fixture, often requiring a dedicated circuit. Double-check that both load terminals receive wires from distinct breakers to prevent overload tripping.
Inspect the device’s faceplate for subtle markings near the slots. Some models imprint voltage ratings (e.g., 120V or 277V) or maximum wattage (600W). Exceeding these limits causes overheating, so dimmers operate only within specified ranges. Replace incandescent bulbs with LED equivalents if upgrading systems to avoid exceeding limits.
Testing connections follows these steps:
- Turn off the circuit breaker before handling conductors.
- Use a non-contact voltage tester to confirm de-energized wires.
- Attach conductors to labeled slots, securing each with a flathead screwdriver.
- Restore power and observe the switch’s LED indicator–steady light confirms proper installation, flickering suggests loose terminals.
Common errors include reversing LINE and LOAD wires, causing dimmers to malfunction. If fixtures don’t respond, swap these conductors and retest. For multi-way setups, mismatched traveler wires disrupt synchronization; ensure identical wiring across all switches in the circuit.
Step-by-Step Guide for Single-Pole Electrical Connections

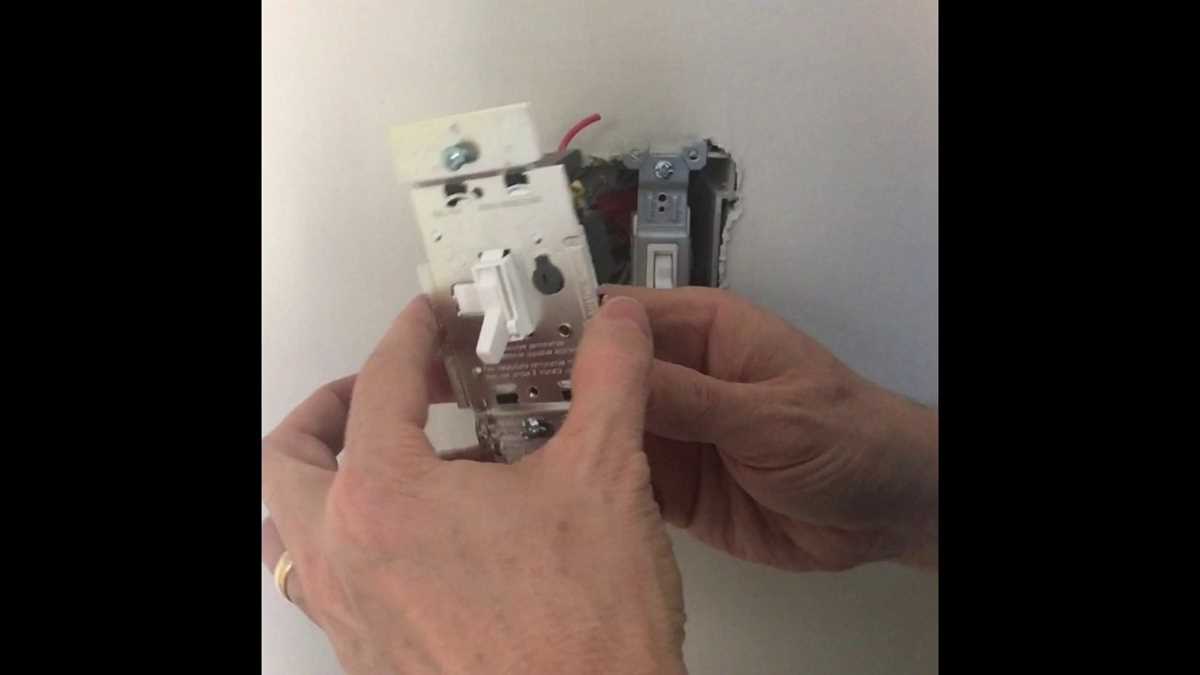

Turn off the circuit breaker for the switch location to prevent electrical shock. Verify power is off using a non-contact voltage tester near the terminal screws. Remove the existing wall plate by unscrewing the mounting screws and gently pulling the switch forward to expose the linked conductors. Identify the hot (black), neutral (white), and ground (bare or green) leads–confirm their roles with a multimeter if uncertain. Strip 5/8″ of insulation from each wire end using wire strippers, ensuring no frayed strands remain. For single-pole setups, connect the incoming hot wire to the brass-colored screw on the new device, wrapping the wire clockwise around the terminal before tightening securely with a screwdriver. Attach the outgoing hot wire to the remaining brass screw using the same method.
| Step | Action | Tool/Detail |
|---|---|---|
| 1 | Disconnect power at breaker | Circuit tester to confirm |
| 2 | Remove old fixture | Screwdriver (flathead/Phillips) |
| 3 | Inspect and strip wires | Wire strippers (5/8″ exposure) |
| 4 | Attach to terminal screws | Hot (brass), neutral (silver), ground (green) |
| 5 | Tuck wires into box | Avoid pinching or crowding |
| 6 | Secure device to box | Mounting screws (hand-tighten first) |
| 7 | Restore power and test | Switch should toggle smoothly |
Neutral wires (if present) must be joined with a wire nut if not terminated on the new device–never leave them exposed. Ground wires should always connect to the green terminal screw or a dedicated grounding pigtail if the electrical box is plastic. Once all connections are secure, carefully fold the wires into the box, ensuring no bare sections touch. Align the device with the mounting holes and fasten it snugly, avoiding overtightening. Reattach the wall plate, restore power, and test the switch by toggling it multiple times to confirm proper operation.
Frequent Errors in Installing the AYCL-153P Dimmer Switch and Corrective Measures
Connecting the load terminal to the wrong wire ranks as one of the most persistent missteps. The manual specifies that the black (or red) wire from the dimmer *must* link to the circuit’s hot lead, not the neutral or ground. Many installations mistakenly attach this to the neutral, causing the device to either flicker or fail entirely. Use a non-contact voltage tester to confirm the hot wire before securing the connection–this step eliminates guesswork.
Reversing the line and load wires also disrupts performance. The dimmer’s internal circuitry relies on correct polarity; swapping these results in erratic dimming, buzzing, or no response at all. Label wires during removal of the old switch to prevent confusion. If unsure, consult the installation guide’s terminal diagram–cross-referencing with colored markings avoids costly rework.
Overlooking the importance of a dedicated neutral for this model triggers compatibility issues with LED bulbs. Some installations attempt to bypass this requirement, leading to premature bulb burnout or inconsistent brightness. Ensure the electrical box houses a neutral wire (typically white) before proceeding. If absent, upgrading the circuit or selecting a compatible dimmer reduces long-term frustration.
Connecting a Three-Switch Setup with the AYCL-153P Dimmer Module
Identify the power source and neutral line first–these must connect directly to the primary switch location. The AYCL-153P requires a neutral wire for stable operation, so ensure it’s present at the installation box before proceeding. If neutrals aren’t available in all boxes, consider rewiring or consult an electrician to avoid voltage instability.
Label all conductors before disconnecting anything. Mark the common terminal on the existing three-way switch (usually darker or screw-positioned separately) and match it to the corresponding terminal on the AYCL-153P’s programming tab. Incorrect pairing will result in flickering or unresponsive dimming.
Attach travelers between switches using dedicated wires–typically red and black in U.S. setups. Connect these to the movable terminals on both the primary dimmer and the companion switch. Avoid mixing them with other conductors to prevent erratic behavior or damage to the module.
The companion switch (AYCL companion) doesn’t require a neutral but must share travelers and ground with the primary dimmer. Wire it last, ensuring all connections are tight and insulated. Loose wires here cause intermittent operation or complete failure.
Programming Phase Adjustments
Press and hold the dimmer’s on/off button for 10 seconds to enter configuration mode. The LED will pulse green twice to confirm. Adjust sensitivity by toggling the switch rapidly–two taps sets max brightness, three taps sets minimum. Repeat until behavior matches your preferences.
Test each switch location thoroughly. The three-way configuration should respond instantly at all positions without delay. If one switch controls brightness while the other only toggles on/off, recheck traveler assignments–swap wires if necessary between the two terminals.
For LED bulbs, enable dimming mode by holding the dimmer’s lower paddle until the LED flashes orange. This activates compatible curves to eliminate flicker. Incandescent and halogen fixtures don’t require this step but may need separate calibration for ramping speeds.
Secure all connections with wire nuts, then enclose them in the switch box. Leave no exposed copper; even minor shorts can disrupt communication between the dimmer and companion. Verify ground continuity before restoring power–never proceed if grounds are missing or improperly bonded.
