Start by selecting a Class 2 power supply rated for at least 20% more wattage than your total fixture load. For example, if your total wattage is 100W, use a 120W transformer. This margin prevents overheating and extends component lifespan. Avoid cheap plug-in adapters–opt for magnetic or electronic transformers with built-in short-circuit protection. Position the power source centrally to minimize voltage drop, keeping runs under 50 feet for 12-gauge wire or 30 feet for 14-gauge to maintain consistent brightness.

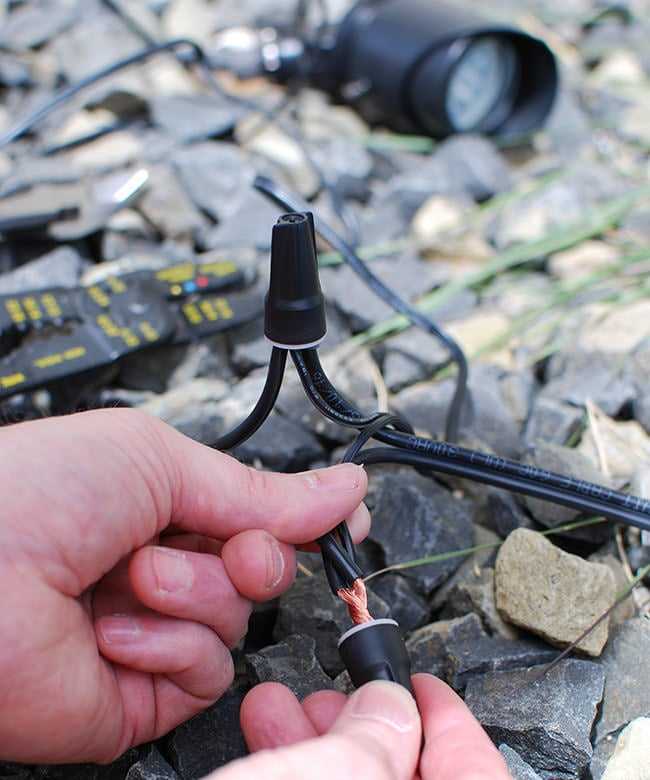

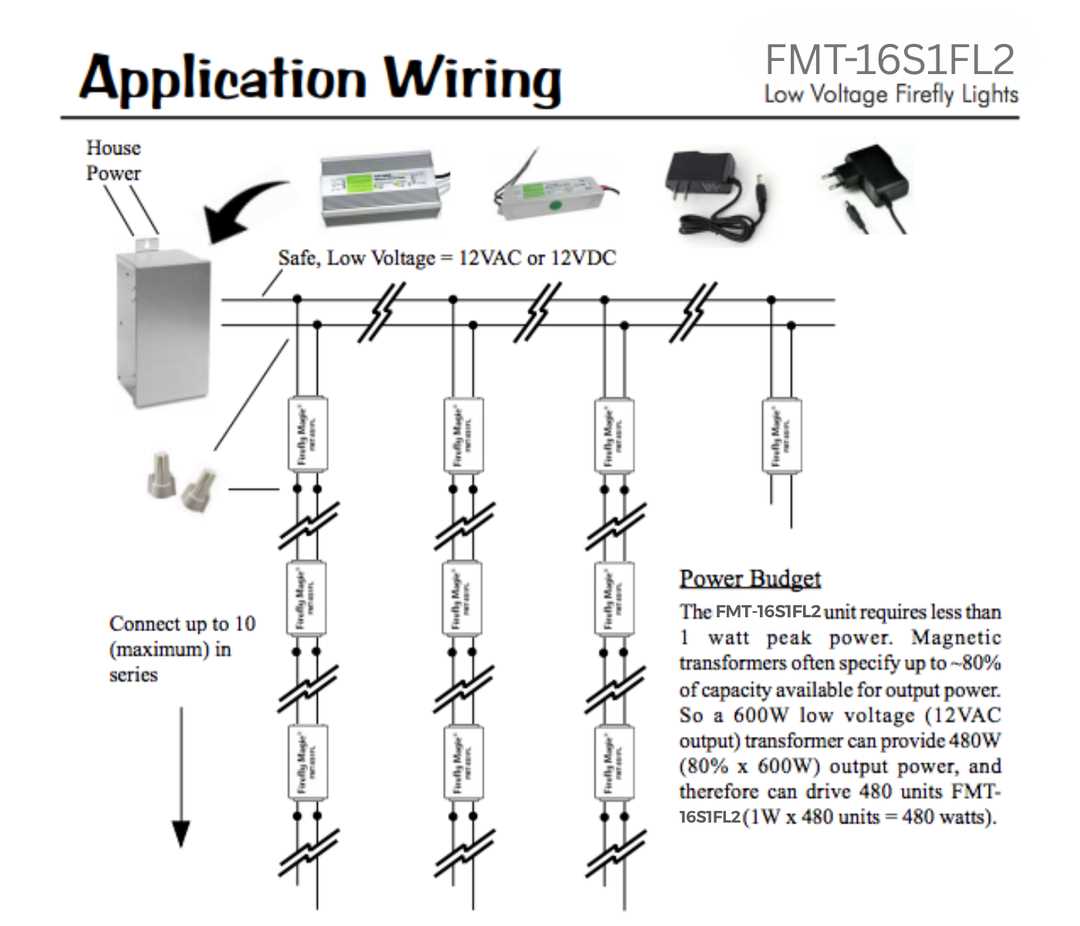

Use daisy-chaining only for short, evenly distributed loads. For longer runs or multiple fixtures, employ a hub-and-spoke layout with a splice block or junction box to split power into parallel circuits. This reduces resistance buildup compared to serial connections. Recommended wire sizes: 12 AWG for runs up to 100W, 10 AWG for 150W+ loads. Always twist wire pairs tightly and seal connections with heat-shrink tubing or waterproof wire nuts–exposed splices corrode within months, especially outdoors.
Test each circuit with a multimeter before finalizing. Measure output at the first and last fixture: voltage should not drop below 11.5V (for 12V systems). If readings fall outside this range, shorten runs, upsize wiring, or add a second power feed. For dimming, use PWM-based controllers–never standard AC dimmers, which overload transformers. Label all wires at both ends with their purpose (e.g., “Deck Accent +,” “Pathway Return”) to simplify troubleshooting.
Buried cable should be direct-burial rated (UF-B or THWN-2 in conduit) and laid at least 6 inches deep. Avoid sharp bends–radius should exceed 5x the cable diameter to prevent insulation damage. For landscape applications, route cables away from sprinkler lines and root zones. Terminate unused wires with wire nuts, not tape, to prevent accidental shorts. If fixtures flicker during operation, check for loose connections or inadequate wire gauge before assuming transformer failure.
Essential Electrical Setup for Energy-Efficient Illumination
Begin by selecting a 12V or 24V transformer rated at least 20% above the total wattage of all connected fixtures to prevent voltage drop. For example, if your total load is 100W, use a 120W transformer. Position the transformer within 10 feet of the first fixture to minimize power loss–longer distances require thicker gauge wires (e.g., 12 AWG for runs over 50 feet). Avoid daisy-chaining more than five fixtures per circuit; instead, split loads into parallel branches to maintain consistent brightness.
Key Connections and Safety Measures
Always connect the transformer’s common (COM) terminal to the fixtures’ negative (-) leads first, then attach the positive (+) leads. Use waterproof wire nuts or butt splices rated for outdoor use (e.g., IP68) if installing in damp areas. Ground the transformer’s metal case to a copper rod driven at least 8 feet into soil, especially in wet climates. For buried cables, encase 10 AWG or thicker wires in PVC conduit (Schedule 40) to prevent rodent damage and moisture ingress.
Test each segment with a multimeter before sealing connections: target 11.5V–12.5V at the farthest fixture for 12V systems. If voltage drops below 11V, shorten the run or increase wire gauge. For RGB systems, insert a DMX decoder near the first light and use Cat5e cable for control signals–avoid mixing power and signal wires in the same conduit. Label all connections with heat-shrink tubing and mark the transformer’s maximum load capacity on its housing.
Choosing the Optimal Power Source for Illuminated Installations
Select a toroidal transformer for systems requiring quiet operation and high efficiency–these units reduce hum by up to 90% compared to standard EI core models while maintaining a power factor above 0.95. Capacities should exceed total wattage by 20-30% to prevent overheating during prolonged use. Verify compatibility with dimming protocols: magnetic transformers pair with leading-edge dimmers, while electronic variants demand trailing-edge or multi-way dimmers.
- For outdoor use, prioritize units with IP65 or higher ingress protection and UV-resistant casings to withstand temperature swings (-20°C to 50°C) without performance loss.
- Underground installations necessitate encapsulated transformers with sealed terminals to prevent moisture infiltration–look for silicone-filled models rated for direct burial.
- Multi-tap transformers (12V, 15V, 24V) allow voltage adjustment for extended cable runs: each additional 100 feet of 12-gauge wire drops voltage by ~0.5V per watt load.
Test load compatibility with a true RMS multimeter–cheap transformers often exaggerate VA ratings. Match the unit’s frequency response (typically 50-60Hz) to local grid standards to avoid flicker or premature coil failure. For LED compatibility, ensure the transformer’s secondary winding delivers clean DC output if using an external rectifier; ripple current below 10% prevents premature diode burnout in fixtures. Replace transformers exceeding 80% of their rated load during peak usage within 3 years, as insulation breakdown compounds exponentially beyond this threshold.
Step-by-Step Guide to Installing Garden Illumination Systems
Begin by calculating the total power demand. Measure the length of each cable run from the transformer to the farthest fixture using a tape measure. Note the wattage of every lamp–most halogen or LED units consume 4 to 20 watts–and reference the table below to select 12-gauge or 14-gauge wire. Thicker cable (12AWG) supports runs up to 120 watts over 50 feet, while 14AWG handles 60 watts at the same distance.
| Cable Gauge | Max Load (watts) | Max Run (feet) |
|---|---|---|
| 12AWG | 120 | 50 |
| 14AWG | 60 | 50 |
| 16AWG | 35 | 30 |
Position the transformer within 1 foot of a GFCI outlet and at least 12 inches above ground level. Mount it onto brick, masonry, or pressure-treated wood using stainless-steel screws–avoid direct soil contact. Connect the primary leads to the outlet terminals: black to hot, white to neutral, green or bare copper to ground. Verify polarity with a multimeter before energizing.
Lay the cable along planned illumination pathways, securing every 6 feet with plastic stakes or staples to prevent tripping hazards. Keep wires 3 inches below sod or mulch, or 6 inches deep if buried in conduit. Split runs into parallel circuits using T-taps; never daisy-chain more than 10 lamps per line. Strip 3/8 inch of insulation from each conductor, twist strands clockwise, and crimp onto brass connectors–vibration from lawn equipment loosens loose twists over time.
Test each circuit segment before backfilling. Activate the transformer and check for consistent brightness–dim or flickering lamps indicate voltage drop, requiring thicker cable or shorter runs. Bury splices in waterproof silicone-filled gel caps and seal cable entries into fixtures with rubber gaskets. Program timers or photocells for automated operation, setting dusk activation 30 minutes before sunset and dawn cutoff 30 minutes after sunrise for battery conservation.
Inspect connections quarterly. Tug each splice; oxidation increases resistance, reducing output by up to 15%. Replace any corroded connectors and reapply dielectric grease to terminals exposed to standing water. Clean reflector surfaces with isopropyl alcohol every six months–dust and pollen degrade lumen output by 2-3% annually.
Standard Conductor Sizes for Decorative and Functional Illumination Circuits
For 12V landscape setups spanning under 50 feet, 18 AWG copper cables deliver optimal performance without voltage loss. This gauge handles currents up to 5 amps, making it ideal for path markers, accent fixtures, and low-profile garden installations. Verify manufacturers’ specs–some drivers push higher amperage, necessitating a shift to 16 AWG to prevent overheating or dimming over distance.
Architectural contour lighting in soffits or coves demands 16 AWG conductors for runs exceeding 30 feet. This size supports 8-10 amps, accommodating clusters of MR16 LEDs or linear strips with consistent lumen output. For commercial applications like retail shelving or museum displays, combine this gauge with a centralized transformer to avoid cascading power drops across multiple zones. Avoid daisy-chaining more than three fixtures per circuit to maintain stability.
Heavy-Duty Applications: When Precision Meets Power
Illuminating large trees, pergolas, or driveway luminaires requires 14 AWG or 12 AWG wire for runs beyond 75 feet. These sizes eliminate flicker in 20W+ fixtures by maintaining safe impedance levels (0.25 ohms per 100 feet for 12 AWG). Use direct burial-rated cables with UV-resistant jackets for outdoor use; standard PVC coatings degrade under prolonged sunlight exposure within 12-18 months. Pre-tinned copper resists corrosion in coastal or high-humidity environments, extending lifespan by 40%.
Pool and fountain lighting mandates 12 AWG minimum due to wet-location safety codes (NEC Article 680). Submersible fixtures drawing 15 amps or more need short, dedicated conductors–no splices underwater–to prevent galvanic corrosion or electrical hazards. Pair with a ground-fault circuit interrupter (GFCI) rated for 30mA trip threshold; standard 6mA GFCIs may nuisance-tripping in low-impedance pool circuits. For saltwater pools, upgrade to 10 AWG tinned copper to counteract accelerated oxidation.
Smart control systems with dimmable LEDs or color-changing protocols (DMX, 0-10V) rely on 16 AWG shielded twisted pair wire to reduce signal interference. Keep data lines separated from power conductors by at least 12 inches in conduit to prevent cross-talk. For installations with mixed AC/DC loads (e.g., 12V LEDs + 120V motion sensors), use 14/2 NM-B cable for the high-current segments, segregating them from low-signal wiring to avoid voltage spikes degrading the LED drivers.
Emergency exit lighting under egress codes requires 14 AWG solid copper for 1-hour rated circuits. Avoid stranded wire in these applications–strands can loosen at connections, causing arcing failures during prolonged loads. For recessed fixtures in insulated ceilings (IC-rated), match the wire gauge to the fixture’s thermal protection rating; 18 AWG may suffice for 6W LED downlights, but 10W+ models need 16 AWG to handle heat buildup without triggering the thermal cutoff. Always terminate connections with listed wire nuts or push-in connectors–solder splices violate NEC 110.14 for branch circuits.
