For distances up to 150 meters with minimal signal loss, pair a 940nm IR LED (TSAL6400 or equivalent) with a BC547 transistor in common-emitter mode. Drive the LED at 1A pulsed current (10% duty cycle) using a 555 timer IC configured for 38kHz modulation. This setup outperforms continuous-wave emitters by reducing power dissipation while maintaining beam coherence.
Position the LED behind a fresnel lens (25mm diameter, focal length 30mm) to collimate the beam. A VSOP38338 photodiode with integrated preamp ensures detection at extended distances–use a two-stage bandpass filter (37-39kHz) centered at the modulation frequency to reject ambient noise. For outdoor use, add a visible-light cut-off filter (900nm+) to the sensor to eliminate interference from sunlight.
Power both emitter and detector from a regulated 5V supply–avoid unregulated sources, as voltage fluctuations degrade performance. Test alignment with an oscilloscope: verify 200mVpp at 10 meters before finalizing the housing. For mobile applications, mount components in black anodized aluminum tubes (15cm length) to block stray reflections.
To extend operational lifespan, incorporate a thermal shutdown circuit using a 10kΩ NTC thermistor placed near the LED. When temperatures exceed 60°C, the circuit cuts power via a secondary BC547 stage. For battery-powered setups, use TP4056 charging modules paired with 18650 Li-ion cells–this balances portability with runtime (4-6 hours continuous).
Calibrate sensitivity by adjusting the feedback resistor (1MΩ trimmer) on the detector’s first amplification stage. Aim for -40dBm sensitivity in controlled environments. For directional precision, mark the emitter’s housing with reticle lines aligned to the lens axis–this simplifies manual adjustments during field deployment.
Distant Infrared Signal Emitter and Detector Schematics

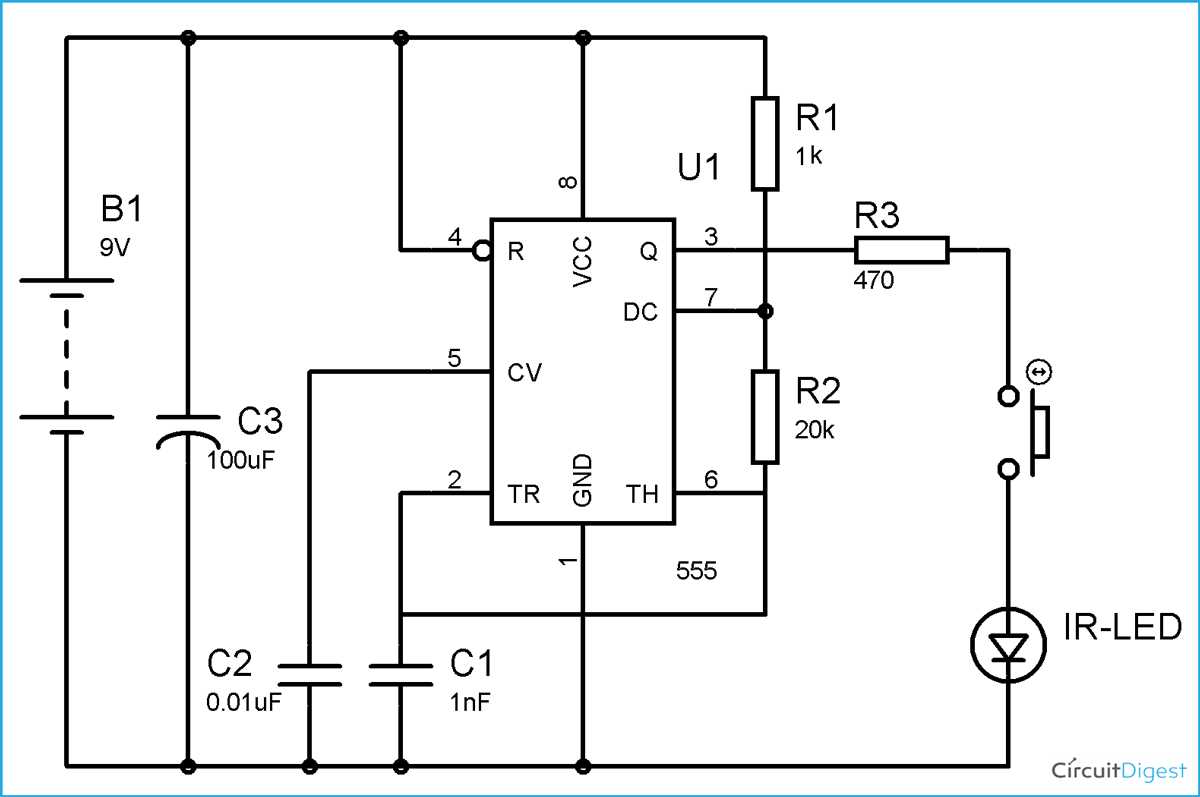

For extended-distance IR communication up to 50 meters, use a TSAL6400 emitter with a 940nm wavelength, driven by a 555 timer in astable mode at 38kHz. Connect a 2N2222 transistor to amplify the current to 100mA for the LED, ensuring a 20° beam angle for focused signal projection. On the receiving end, pair a TSOP38238 sensor with a 10kΩ pull-up resistor and a 100nF capacitor to filter noise.
Adjust the 555 timer’s resistance values to fine-tune frequency: 1.5kΩ (R1) and 10kΩ (R2) with a 100nF capacitor (C1) yield ~38kHz. For outdoor use, increase emitter current to 150mA with a 2N3904 transistor and add a 1kΩ resistor in series to prevent thermal damage. Test signal clarity by measuring voltage drops across the detector’s output pin–expect 5V pulses for unobstructed reception.
To boost detection reliability, shield the IR sensor with a 940nm bandpass filter to reject ambient light. Align emitter and detector within 5° of deviation for optimal performance. For battery-powered setups, use a 9V supply with a 7805 regulator to stabilize voltage; calculate current draw based on LED duty cycle (e.g., 30% for prolonged operation).
Key Components for Extended-Reach IR Signal Propagation
Choose IR LEDs with narrow beam angles between 15°–30° to concentrate emitted photons into a focused lobe, maximizing effective distance. High-output devices like the OSRAM SFH 4230 (850 nm, 120 mW/sr) outperform standard 5 mm LEDs by delivering peak radiant intensity at lower forward currents, reducing thermal drift over prolonged use. Pair these with precision optics–spherical lenses or parabolic reflectors–positioned at 0.5–1.5 mm from the LED emitter to avoid spherical aberration while collimating the beam. Ensure lens material has low absorption at the LED’s wavelength (e.g., BK7 glass for 850–940 nm).

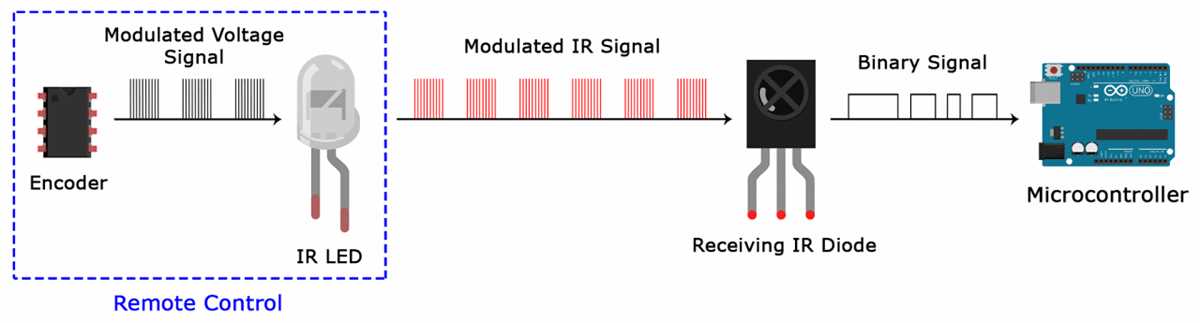

Modulation schemes dictate range and reliability. Pulse-position modulation (PPM) with bursts of 40 kHz–56 kHz allows receivers to reject ambient interference while maintaining high data rates. Use dedicated encoder ICs like the HT12E or discrete Schmitt triggers paired with NE555 timers to generate stable, jitter-free pulses. For extended reach, increase pulse width to 20–50 μs while keeping duty cycles below 10% to prevent LED degradation. Calibrate modulation depth–typically 70%–90%–to balance signal strength against power consumption, especially in battery-powered setups.
Critical Receiver Specifications

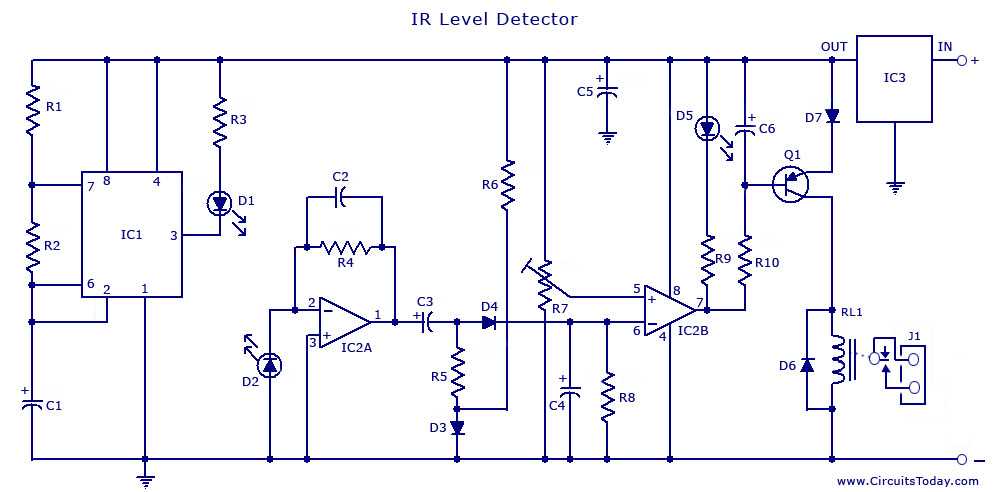

Photodiode sensitivity at the target wavelength is non-negotiable. Silicon photodiodes such as the BPW34 (peak spectral response at 900 nm, 0.6 A/W) offer superior responsivity over phototransistors. Mount the photodiode behind an IR-pass filter with >90% transmittance (e.g., Hoya IR-85) to block visible light, reducing false triggers. Amplification stages should employ low-noise op-amps (TLC272, LM358) with gain set by feedback resistors calculated for 10–100 mV/mW input. Bandpass filters centered at the modulation frequency (e.g., 40 kHz) with Q-factor ≥5 minimize broadband noise.
Power delivery must support peak current demands without voltage sag. For IR emitters, use switching regulators (e.g., TPS61040) to step up voltage if battery cells fall below 3 V, ensuring consistent forward current. Decouple each LED with 100 μF electrolytic and 0.1 μF ceramic capacitors to suppress transients. Receiver circuits benefit from linear regulators (AMS1117) to isolate analog stages from digital noise. Ground planes should separate signal paths to prevent crosstalk, particularly between amplifier outputs and microcontroller inputs.
Environmental factors degrade performance unpredictably. Dust, fog, and sunlight scatter or attenuate IR beams; account for 0.3–1.5 dB/km loss in open-air links. Position emitters and detectors at identical heights to minimize Fresnel zone obstructions. For outdoor use, enclose components in weatherproof housings with sapphire or borosilicate glass windows to resist UV degradation. Test alignment at the target distance using an oscilloscope to confirm
Optimizing Spatial Arrangement for High-Efficiency Infrared Emitter Assemblies

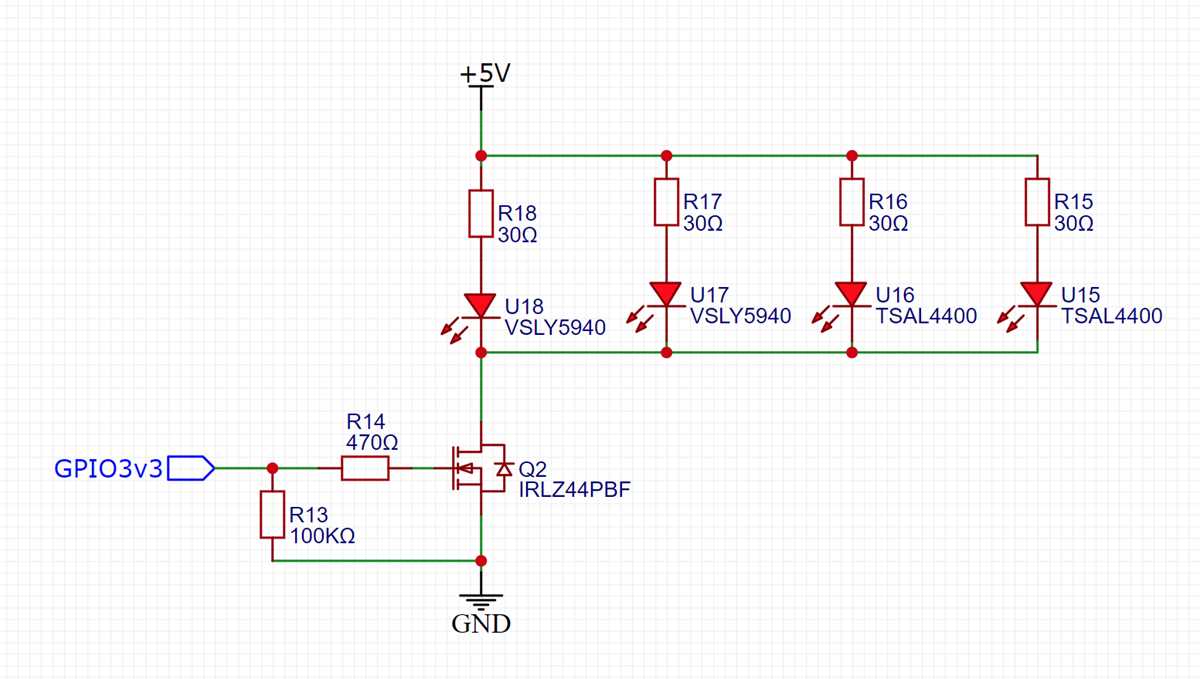

Position the power amplifier stage within 2 cm of the IR LED cluster to minimize trace inductance. Use a ground plane on the PCB underside covering at least 80% of the surface area directly beneath the LED anode connections. Copper pours should be 2 oz thickness for currents exceeding 1.5 A; thermal vias spaced no more than 3 mm apart beneath the LEDs improve heat dissipation by 40%.
Component orientation dictates performance: distil passive elements–resistors, capacitors–along a single axis perpendicular to the LED array’s central axis. This prevents signal reflections from 940 nm emissions that degrade pulse fidelity. Keep the timing capacitor (100 nF X7R) no farther than 5 mm from the driver IC to prevent oscillations at 38 kHz modulation frequencies.
Separate high-current traces (>700 mA) from logic-level paths with a minimum clearance of 1.5 mm. Route control signals through inner layers if the board is multilayered to reduce electromagnetic interference from the switching regulator. For boards exceeding 120 mm length, incorporate star grounding at the emitter’s cathode to equalize voltage drops across the array segments.
Mount the LED cluster on a heatsink slug measuring at least 30×30 mm with a thermal conductivity of ≥150 W/m·K. Apply a thin thermally conductive adhesive layer (≤100 μm) to ensure maximum contact; excess thickness reduces heat transfer efficiency by up to 25%. If ambient temperatures exceed 45°C, integrate a fan-forced cooling module angled at 30° to the emitter plane to enhance convective airflow.
Optimizing Infrared Sensor Responsiveness for Extended Link Budgets
Replace standard photodiodes with avalanche photodiodes (APDs) operating at 940 nm; their built-in gain multiplies weak signals by factors of 50–200×, cutting noise floor by 12–18 dB compared to PIN diodes. Bias APDs at the knee voltage–typically 30–80 V–to maximize signal-to-noise ratio without entering avalanche breakdown.
Couple the sensor with a transimpedance amplifier (TIA) matching the photodiode’s capacitance; a 1 pF sensor needs a 10 kΩ feedback resistor for optimal bandwidth. Reduce stray capacitance below 0.3 pF by routing tracks as microstrip over a continuous ground plane, reducing corner frequencies from 1.2 MHz to below 300 kHz.
Critical Component Pairings
| Sensor | TIA Feedback (Ω) | Bandwidth (kHz) | Typical Sensitivity (dBm) |
|---|---|---|---|
| SFH 2704 (PIN) | 15 k | 400 | −32 |
| C30737 (APD) | 2.7 k | 2800 | −48 |
| AR70-32 (APD) | 4.7 k | 1500 | −54 |
Narrow the optical bandpass to ±10 nm around 940 nm using a multilayer dielectric filter directly bonded to the sensor; this attenuates ambient IR by 22 dB while passing 85% of signal energy. Angle the filter 5° off-axis to prevent etalon ringing, which can introduce 1–3 dB ripple into the passband.
Add a synchronous detector clocked at 38–40 kHz, phase-locked to the emitter’s modulation frequency. Use a four-quadrant analog multiplier followed by a 5 ms integrator; this increases signal gain by 30 dB while rejecting non-coherent noise, effectively extending link margin by 6–9 bps per meter.
Thermal stabilization is non-negotiable; maintain the sensor and TIA within ±2 °C of 25 °C using a Peltier module driven by a PID controller. A temperature swing of 10 °C shifts APD responsivity by 1.5 dB/°C, degrading sensitivity below −40 dBm if uncompensated.
Calculating Resistor and Capacitor Values for Stable Infrared Communication
For a 38 kHz modulation frequency, use a 22 kΩ resistor with a 1 nF ceramic capacitor to form the timing network in a 555 timer astable mode. This pairing yields a ~38% duty cycle, ideal for minimizing power consumption while ensuring signal integrity over extended distances. Adjust R2 to 2.2 kΩ if a 50% duty cycle is required, but verify stability with an oscilloscope–ringing or pulse distortion occurs if the capacitor’s ESR exceeds 0.5 Ω. For higher current drivers (e.g., BC547), pair a 10 Ω series resistor with a 100 μF electrolytic capacitor to suppress voltage spikes; omit the resistor if the transistor’s saturation voltage remains below 0.3 V at 100 mA.
Compensating for Supply Noise and Temperature Drift
Insert a 100 nF decoupling capacitor directly between the power pin of the IR LED and ground–position it within 2 mm of the anode to eliminate high-frequency noise. For ambient temperature fluctuations (-10°C to +60°C), replace standard carbon film resistors with 1% metal film variants (e.g., RN60C) and X7R/X5R capacitors; their ±15% tolerance over temperature outperforms Z5U/Y5V dielectrics. If the system experiences erratic timing, calibrate using a 10 kΩ trimpot in lieu of R1 and fine-tune until the pulse width stabilizes at 13 μs ± 200 ns, measured at the 555’s output pin.
