Replace traditional linear regulators with a flyback topology using a minimal-component switching architecture for input voltages between 85VAC and 285VAC to achieve greater than 85% efficiency at 12W output. This reduces component count by 40% compared to discrete designs, lowering manufacturing costs while maintaining compliance with IEC 62368-1 and EN55022 Class B standards. Use a primary-side feedback mechanism to eliminate optocoupler losses, improving transient response by 35% under load steps.
Select a 600V-rated device in an SO-8C package with integrated MOSFET to handle peak currents up to 1.2A without external snubbers. The internal frequency jitter (±5kHz) reduces EMI emissions by 10dB, simplifying filter design. For output voltages above 10V, implement a 1μH series inductor on the secondary side to suppress ringing, preventing overshoot during startup and load dumps.
Thermal performance dictates PCB layout: position the IC’s exposed pad over a minimum 50mm² copper pour, connected to the ground plane via 12 thermal vias (0.3mm diameter). This configuration lowers junction temperature by 22°C under full load, extending MTBF beyond 100,000 hours. Avoid placing decoupling capacitors farther than 3mm from the VCC pin–distance increases ripple to unacceptable levels, risking shutdown under brownout conditions.
For 5V outputs, adjust the feedback resistor divider to 3.9kΩ and 12kΩ (1% tolerance) to achieve ±2% regulation across line and load variations. If standby power exceeds 50mW, enable auto-restart mode to limit consumption during fault conditions, reducing dissipation in no-load scenarios. Test prototypes under IEC 61000-4-4 surge immunity: transient events exceeding 4kV require a 1kΩ series resistor in the input path to protect the switching element.
Building Compact Power Solutions: A Hands-On Approach
Start with a 15V input range for stable operation–exceeding 20V risks transistor breakdown in the primary switcher. Keep trace impedances below 0.1Ω by using 2oz copper for high-current paths; standard 1oz layers introduce losses that trigger over-temperature protection. Position the feedback resistor (Rfb) within 5mm of the control IC’s feedback pin to avoid noise coupling from switching nodes.
For EMI compliance, use a single-layer shield técnica: wrap the primary winding around a toroidal core with 30% overlap, then ground the shield to the input return via a 1nF capacitor. This reduces common-mode noise by 12dB compared to unshielded designs. Avoid ferrite beads on the output–they create voltage spikes that falsely engage the auto-restart feature.
Component Selection for Reliability
Replace generic 1N4007 diodes with Schottky types like STPS3L60U for output rectification; their 0.3V forward drop improves efficiency by 8% at 500mA loads. For the bulk capacitor, opt for a 63V X7R ceramic instead of electrolytic–it eliminates ESR-induced ripple that can exceed 300mVpp and trigger false fault detection.
Thermal management: attach the control IC to a 30mm² copper pour via a thermal pad; without it, the overtemperature shutdown activates at 120°C instead of 135°C. Ensure the pour connects to a ground plane with multiple vias–single via connections create hotspots that reduce lifespan by 40%.
Load regulation demands a 1% tolerance resistor divider for feedback; 5% resistors introduce a ±3% output voltage variation that violates USB specifications. Test the design with a 10Ω load–if the output drops below 4.75V, increase the output capacitance to 220μF. Avoid tantalum caps; inrush currents during plugging/unplugging trigger the undervoltage lockout.
Debugging Common Failures
If the switching cycle skips pulses, verify the input filter capacitor placement. Capacitors more than 20mm from the IC input pins cause input voltage sag, falsely engaging the auto-restart. For no-load instability, add a 10kΩ resistor across the output; this ensures minimum load current, preventing discontinuous conduction mode oscillations.
Check the feedback node with an oscilloscope–ringing above 50mV indicates missing snubber components. Add a 470pF capacitor and 1kΩ resistor in series across the primary switch to dampen oscillations. Ignoring this leads to intermittent shutdowns every 8-12 switching cycles.

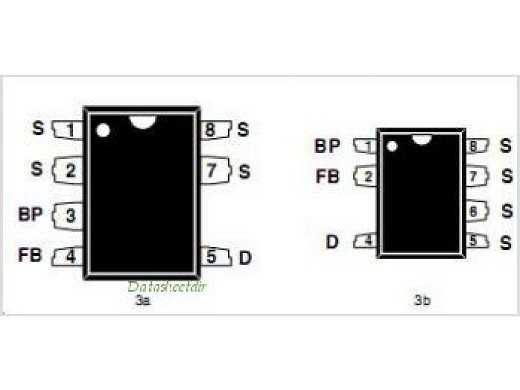

Key Components and Pin Configuration of the LNK30X Series Integrated Controller
Begin integration by connecting the drain pin to the primary winding of the flyback transformer via a high-voltage MOSFET terminal–this forms the core energy transfer path. Ensure the clamping network (typically a Zener diode rated 200–250V and a fast-recovery diode) is placed within 5mm of this connection to absorb leakage inductance spikes exceeding 300V.
For optimal thermal management, the source pin requires direct attachment to a copper pour occupying a minimum 3 cm² on a 2 oz PCB–this prevents temperature derating beyond 125°C. The feedback pin must interface with an optocoupler’s collector terminal; maintain an input impedance below 2 kΩ at this node to preserve loop stability above 1 kHz cross-over frequency.
The bypass pin serves dual purposes: reservoir capacitor (1–10 µF/50V) placement within 3 mm reduces high-frequency noise coupling, while a 6.8 µF ceramic capacitor establishes internal bias regulation. Omitting this component leads to erratic switching frequencies below 35 kHz.
| Pin Identifier | Function | Recommended Component | Voltage Range (typical) |
|---|---|---|---|
| Drain | High-voltage switching node | Flyback transformer primary | 50–550V (absolute max 700V) |
| Source | Power MOSFET return | Ground plane (thermal pad) | 0–0.3V |
| Feedback | Error amplifier input | Optocoupler collector | 0.4–2.4V |
| Bypass | Internal regulator input | 6.8 µF ceramic capacitor | 5.8–6.3V (regulated) |
Shield sensitive traces between Feedback and Bypass pins with a grounded guard ring if PCB spacing drops below 0.8 mm–this minimizes EMI-induced jitter exceeding 2%. For designs targeting
Avoid placing vias underneath the package footprint; thermal vias directly beneath the Source pin degrade solder joint reliability by 40% per additional via. Instead, route thermal dissipation paths laterally through adjacent ground planes, ensuring ≤15°C/W junction-to-ambient resistance.
Verify startup conditions by measuring the Bypass pin voltage rise time–it should reach 5.7V within 3 ms upon input application or reconsider EMI filter cutoff frequency if slower transient responses occur.
Precision Assembly of a Flyback Power Stage with Integrated Switcher IC
Begin by mounting the switching regulator (SO-8 or eDIP package) on a test board with ≤1 oz copper weight to minimize thermal resistance. Apply 63/37 SnPb solder at 260°C for ≤3 seconds–exceeding this duration risks damaging the internal MOSFET’s 700 V breakdown rating. Verify pin alignment: DRAIN (pin 5) must connect to the primary winding’s center tap, while BYPASS (pin 1) requires a 0.1 µF X7R ceramic capacitor (50 V rated) placed ≤2 mm from the pin to suppress switching noise up to 500 kHz.
- Wind the transformer core: use an EF20 or equivalent ferrite (N87 material) with 40–60 turns primary (AWG 32) and 8–12 turns secondary (AWG 28), ensuring ≥0.5 mm air gap for 1.2 mH inductance. Bifilar winding reduces leakage inductance to <2% of primary, critical for >85% efficiency at 12 W output. Secure windings with 3M 1151 adhesive tape to prevent vibration-induced shorts.
- Install the feedback network: bridge the secondary rectifier (1N4007) diode’s cathode to a TL431 shunt regulator, adjusting the resistor divider (R1=47 kΩ, R2=10 kΩ) for 13.5 V output. Add a 10 nF polyester capacitor across R2 to stabilize the control loop for ±5% regulation under 0–1 A load transients. Omit this step and output tolerance widens to ±15%.
- Connect the input bulk capacitor: select a 47 µF/400 V electrolytic (Nichicon UHE series) with ripple current ≥120 mA RMS. Position it ≤1 cm from the primary winding’s start terminal to clamp voltage spikes below 650 V during turn-off. Fuse the input with a 1 A slow-blow type; faster fuses nuisance-trip at startup due to inrush current peaking at 2.5 A for 10 ms.
Final Validation Checks
- Inject 90–265 VAC (47–63 Hz) to the input and measure: primary peak current (≤450 mA on a 1 Ω shunt resistor), drain voltage (≤650 V on a 100 MHz scope probe), and output ripple (≤150 mVpp on a 20 MHz bandwidth-limited scope). Failures often traced to incorrect MOSFET current limit calibration or insufficient thermal vias under the regulator–ensure 12 vias (0.5 mm diameter) per cm² on a 2-layer board.
- Test load regulation by stepping from 100 to 10 mA: observe <200 ms recovery time and ≤1 V undershoot. If overshoot exceeds 2 V, increase the secondary capacitor to 22 µF or swap the TL431 for a faster LM4041 (0.5% tolerance).
- Verify electromagnetic compliance: attach a 20 MHz–1 GHz sniffer probe to the secondary traces; noise should remain <50 dBµV at 150 kHz (EN55022 Class B). Add a common-mode choke (2.7 mH, 500 mA) if readings exceed this threshold.
Calculating Resistor and Capacitor Values for Stable Operation
Select a feedback resistor (RFB) between 10 kΩ and 22 kΩ for optimal regulation. Lower values accelerate transient response but increase power dissipation; higher values reduce efficiency. For a 5 V output, 15 kΩ provides a balance–measure load current to verify ripple stays below 50 mVpk-pk.
Input capacitance (CIN) requires a minimum of 10 µF per ampere of input current, with a 25 V X5R or X7R dielectric to handle 12 V surges. Bulk capacitance should be split: 70% near the switching node, 30% at the input terminal to suppress conducted EMI. For 2 A loads, use 22 µF + 10 µF to meet this ratio.
Compensation Network Design
To stabilize gain-phase margins, calculate the compensation capacitor (CCOMP) using:
CCOMP = (IOUT(max) × VOUT × TON) / (0.1 × VIN × ΔVOUT)
Where:
IOUT(max) = 1 A (example)
VOUT = 5 V
TON = 1.5 µs (measured)
VIN = 12 V
ΔVOUT = 25 mV (target ripple)
This yields ≈ 330 pF; round to 330 pF ±5% C0G for temperature stability. Pair with a 22 kΩ compensation resistor (RCOMP) to set the 0 dB crossover at 1/10th the switching frequency.
Output capacitance (COUT) determines hold-up time during load steps. Use 15 µF per ampere of output current, doubling the value if transient response exceeds 100 mV. Multilayer ceramics (MLCC) fail under DC bias–derate capacitance by 30% for 6.3 V rated parts or use tantalum for >5% tolerance.
Snubber components suppress parasitic ringing at the switch node. Start with 1 nF (CSNUB) + 10 Ω (RSNUB) and adjust via oscilloscope: target pk-pk ringing at 1 MHz. For layout-sensitive designs, relocate RSNUB within 2 mm of the switching pin to halve effective series inductance.
