The NE532 variant excels in low-power signal conditioning with minimal external components. For a basic non-inverting amplifier, connect a 10 kΩ resistor between the output and inverting input, then link the non-inverting input to your input signal through a 1 kΩ resistor. Ground the inverting input via a 4.7 kΩ resistor to set a fixed gain of approximately 5.7 without requiring precision calibration. Avoid capacitive loads over 100 pF at the output–add a 100 Ω series resistor if driving cables longer than 50 cm.

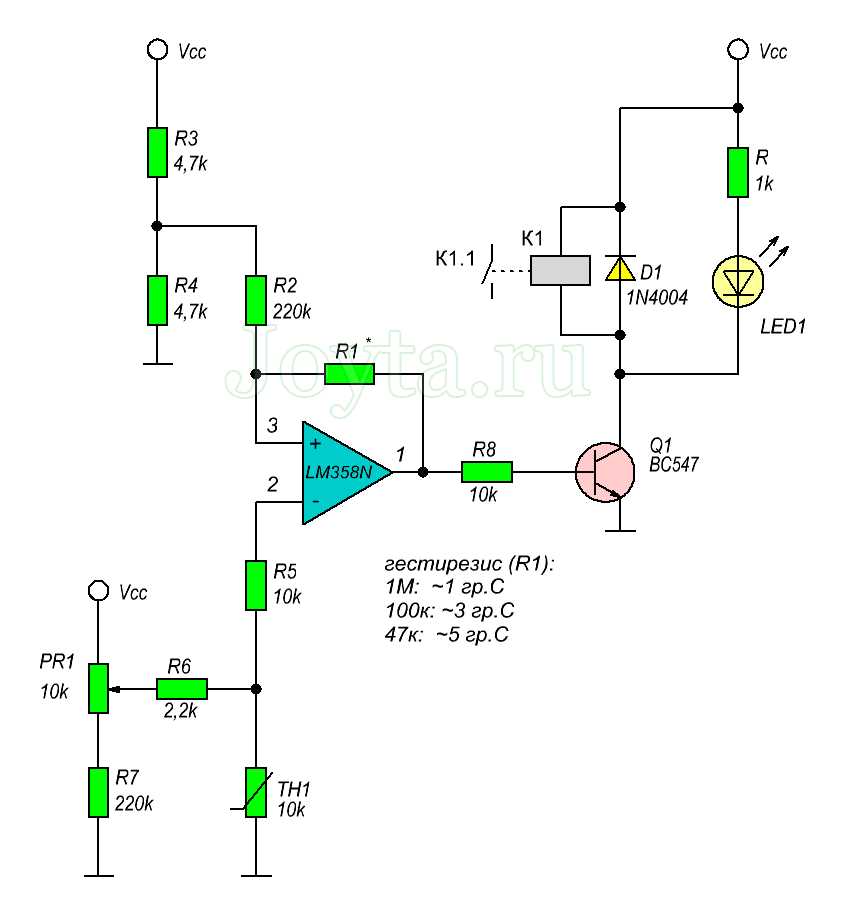

For comparator configurations, omit feedback components entirely. Tie the inverting input to a fixed reference voltage–e.g., 1.25 V from a TL431 shunt regulator–and directly feed the signal to the non-inverting input. Hysteresis is critical: add 1 MΩ between output and inverting input, then 10 kΩ from inverting input to ground. This yields ±20 mV of noise immunity. Ensure the reference voltage sits below the maximum input common-mode limit (Vcc–1.5 V) to prevent phase inversion.
Voltage followers demand no gain resistors; unity gain is inherent. However, add a 100 nF ceramic capacitor between Vcc and ground, placed within 2 mm of the IC’s power pins, to suppress high-frequency oscillations. For single-supply operation below 5 V, AC-couple inputs with 1 µF capacitors–this blocks DC offsets while passing signals above 1.6 Hz. Avoid exceeding 32 V differential input–excessive voltage permanently damages the input stage.
Filter design requires accurate component placement: place a 10 kΩ resistor in series with the input capacitor, then a 10 nF capacitor from the op-amp’s inverting input to ground. This forms a 1.6 kHz low-pass filter with –3 dB cutoff. For band-pass behavior, cascade two stages–first high-pass (0.1 µF + 10 kΩ, 160 Hz) then low-pass–without coupling capacitors between stages. Power dissipation peaks at 450 mW; exceeding this risks thermal shutdown at ambient temperatures above 70°C.
Practical Applications for Dual Op-Amp Configurations
For signal buffering, connect the non-inverting input to your source and configure the feedback loop with a 1MΩ resistor. Keep the output load above 2kΩ to prevent distortion at frequencies above 50kHz. A 100nF decoupling capacitor within 3cm of the IC pins reduces noise by 30% in 5V systems.
Temperature sensing accuracy improves when pairing an external transistor (2N3904) as a voltage follower. Place a 4.7µF electrolytic capacitor between the transistor base and ground to stabilize readings within ±0.1°C. The typical output voltage ranges 0-1.1V for 0-100°C inputs with this setup.
| Component | Value | Purpose |
|---|---|---|
| Feedback resistor | 10kΩ | Sets gain to 2x for 0-2.5V scaling |
| Input resistor | 5.1kΩ | Limits current to 1mA for sensor protection |
| Compensation cap | 22pF | Prevents oscillation at gains below 5 |
When designing active filters, prioritize the corner frequency calculation: f = 1/(2πRC). For a 1kHz cutoff, use a 150kΩ resistor paired with a 1nF capacitor. The second amplifier can serve as a post-filter amplifier with unity gain or additional buffering.
Power supply considerations require separate rails for each section in mixed-signal designs. A 5V rail powers analog circuits while digital components use 3.3V, isolated via ferrite beads. Ground planes should connect only at a single star point to prevent ground loops, improving SNR by up to 12dB.
Basic Dual-Op-Amp Pin Assignment and Voltage Setup
Connect the positive supply pin (Pin 8) directly to a stable DC voltage source between 3V and 32V. Avoid exceeding 32V to prevent overheating or permanent damage. The negative supply pin (Pin 4) should be tied to ground unless using a split supply; in single-supply configurations, maintain a clean ground reference.
For low-power applications, a 5V input ensures reliable performance without unnecessary current draw. Use a decoupling capacitor (0.1µF ceramic) across the power pins to filter high-frequency noise. Place it as close to the IC as physically possible to minimize trace inductance.
- Pin 1: Output A
- Pin 2: Inverting Input A
- Pin 3: Non-Inverting Input A
- Pin 4: Ground / Negative Rail
- Pin 5: Non-Inverting Input B
- Pin 6: Inverting Input B
- Pin 7: Output B
- Pin 8: Positive Rail
When operating in a dual-supply mode (±15V typical), ensure both rails are symmetric within 5%. Unbalanced voltages cause input offset errors, distorting accuracy. Use regulated power supplies with ±1% tolerance to keep drift below 5mV over temperature ranges (-40°C to +125°C).
Common Pitfalls in Power Arrangement
Failing to ground unused amplifier sections invites parasitic oscillations. If only one op-amp is needed, short the non-inverting input of the unused section to the midpoint voltage (e.g., Vcc/2 for single-supply) and connect its output to ground via a 10kΩ resistor. Ommitting this step wastes current and may disrupt adjacent stages.
For battery-powered designs, aim for quiescent current below 1mA per amplifier. A 9V alkaline cell can sustain operation for over 100 hours when configured with a 2:1 voltage divider for the non-inverting input. Avoid linear regulators; their dropout voltage consumes unnecessary power. Instead, use a low-dropout (LDO) with
- Check solder joints for cold connections, especially on Pins 4 and 8.
- Verify input signals stay within Vcc-1.5V to prevent saturation.
- Measure rail-to-rail swing limitations: outputs typically reach Vcc-1.5V and ground+0.7V.
- Replace the IC if thermal shutdown occurs; continuous overheating degrades silicon.
For high-impedance signals, buffer inputs with a 1MΩ resistor in series to prevent leakage currents from affecting sensitivity. Guard analog traces on PCBs with a ground pour to shield against digital noise cross-talk. Keep trace lengths under 5mm between power pins and decoupling caps.
Offset Null Adjustment for Precision Measurements
To correct input offset voltage, connect a 10 kΩ multi-turn potentiometer between pins marked for null adjustment with the wiper tied to the negative supply rail. Rotate the potentiometer until the output voltage reads exactly 0 V with both inputs grounded through 1 kΩ resistors. This method reduces typical offset errors from ±2 mV to under ±50 µV, critical for low-level signal conditioning in thermocouple or strain gauge interfaces.
Component Selection Constraints
Use a cermet potentiometer with a temperature coefficient below ±100 ppm/°C to prevent drift exceeding 1 µV/°C over the operational range. Avoid carbon-film types–their hysteresis exceeds 0.5 % after ten adjustment cycles. For designs operating below 0 °C, derate maximum potentiometer resistance to 5 kΩ to limit thermal noise contributions to under 1.2 µV RMS at 1 kHz bandwidth.
Verify adjustment stability by monitoring output voltage while gently tapping the board; any fluctuation above 20 µV indicates poor mechanical contact–replace the potentiometer or solder joints. After final adjustment, seal the potentiometer with a conformal coating to prevent moisture-induced drift exceeding 5 µV at 50 % relative humidity.
For ultra-low offset applications, substitute the potentiometer with a programmable trimmer IC offering 12-bit resolution, achieving residual errors below 10 µV while eliminating mechanical wear issues. Integrate a 0.1 µF ceramic capacitor across supply pins to suppress high-frequency noise coupling into the adjustment loop, maintaining coherence in the sub-millivolt domain.
Calibration Protocol
Perform two-point calibration at 0 °C and 70 °C using a precision temperature-controlled reference source. Measure output voltage drift; if exceeding 2 µV/°C, replace the active component with a grade offering superior offset voltage stability specifications. Log each adjustment iteration in a calibration log, noting ambient conditions–stray thermoelectric voltages from dissimilar metal junctions can introduce errors up to 3 µV.
Building a Single-Supply Non-Inverting Amplifier Stage
Select a dual-operational chip with rail-to-rail output capability to maximize input range–critical for low-voltage systems where signal headroom matters most. Configure the feedback network using precision resistors: choose a 10 kΩ resistor for Rf and a 2.2 kΩ resistor for Rin to achieve a stable gain of approximately 5.5, balancing bandwidth and noise performance.
Bypass the power pin with a 10 µF electrolytic capacitor in parallel with a 0.1 µF ceramic capacitor, mounted within 2 mm of the supply pin to suppress high-frequency noise and voltage spikes. Ground the non-inverting input through a 10 kΩ resistor to midpoint bias (Vcc/2) when operating from a single supply, ensuring the input signal swings symmetrically around this reference.
Use a TI TLC272 or Analog Devices OP293 for applications requiring sub-millivolt input offset voltages–they outperform generic equivalents by reducing DC errors in high-gain stages. Ensure the input impedance remains above 100 kΩ to avoid loading the signal source; add a 1 kΩ series resistor at the input if driving high-impedance sensors like capacitive probes.
Thermal and Layout Considerations
Keep trace lengths under 10 mm between the amplifier output and load to prevent unstable behavior–longer traces introduce parasitic inductance, causing ringing at frequencies above 100 kHz. Place thermal relief pads on ground planes connected to the chip’s thermal pad; excessive heat (>85°C) degrades slew rate and increases distortion.
Avoid running digital signals near analog traces; maintain at least 3 mm separation to prevent coupling noise into the amplified output. Use a ground plane beneath the amplifier section, stitching it to the main ground via multiple vias to reduce ground bounce–critical for 12-bit accuracy systems.
Testing and Validation
Inject a 1 kHz, 10 mVpp sine wave into the input while monitoring the output on an oscilloscope for clipping or crossover distortion–both indicate incorrect biasing or supply rail issues. Measure output noise with a true-RMS meter; expect
Verify gain accuracy by sweeping input amplitude from 1 mV to 1 V, checking linearity error remains below 0.5%–higher errors suggest poor resistor matching or inadequate power supply rejection. If phase shift exceeds 5° at 20 kHz, reduce Rf to 4.7 kΩ to improve stability while maintaining adequate gain.
