Use a 1.25V reference between the adjustment pin and output to establish a stable voltage baseline. Apply a feedback resistor network–typically 240Ω between output and adjust pins, paired with a potentiometer in the 1–5kΩ range–to set output levels from 1.25V to 37V. Ensure input voltage exceeds the desired output by at least 2V to maintain proper regulation; exceeding 40V risks thermal overload without a heatsink.
Calculate power dissipation using (Vin – Vout) × Iload. For a 12V output at 500mA from a 15V supply, expect 1.5W of heat–attach a TO-220 heatsink if ambient temperature exceeds 40°C. Decouple input and output with 0.1µF ceramic capacitors to suppress high-frequency noise and prevent oscillation. A 10µF electrolytic on the output smoothes transient responses under variable load conditions.
Select resistors with 1% tolerance to minimize voltage drift. For higher currents up to 1.5A, use a parallel pass transistor like a TIP41C, driven via a 2N2222 to share the load. Mount components compactly to reduce trace inductance, especially when handling switching loads. Test under full load with an oscilloscope to verify transient recovery within 50µs–excessive overshoot indicates inadequate capacitance or improper grounding.
For low-power applications below 100mA, omit the heatsink but monitor case temperature; sustained operation above 80°C degrades long-term stability. Bypass the adjust pin to ground with a 10µF capacitor to improve ripple rejection by 15dB. When prototyping, isolate the ground plane for the feedback network to avoid ground loops corrupting regulation accuracy.
Step-by-Step Build for a Linear Voltage Regulator
Begin by selecting a 1.25V to 37V adjustable IC with three terminals, grounding the adjust pin through a 240Ω resistor for stable reference voltage. Input capacitors of 0.1µF ceramic or 1µF tantalum suppress transients at the supply side, while an output cap of 10µF aluminum electrolytic smooths ripple–values scale inversely with load current. A 5kΩ potentiometer wired as a voltage divider between the adjust pin and ground sets output; wiper rotation alters the feedback loop, varying output from 1.25V upward.
Thermal and Protection Measures
Mount the TO-220 package on a heatsink rated for at least 10°C/W if dissipating over 1W; tab-to-sink interfaces require thermal paste or mica pads for even conduction. Add a 1N4001 diode across input and output to clamp reverse voltage during power-down, preventing internal die damage. For overcurrent safety, place a 1A fast-blow fuse in series with the input lead; exceeding 1.5A risks thermal runaway without active current limiting.
Verify output accuracy with a multimeter by measuring across the load while adjusting the potentiometer; expect ±2% tolerance at room temperature. For low-noise applications, replace the 10µF output cap with a 1µF film capacitor to minimize dielectric absorption, and add a 0.1µF ceramic cap directly between input and adjust pins to filter reference noise below 10mVpp. Test transient response by toggling a 100mA load at 1kHz; output sag should recover within 50µs.

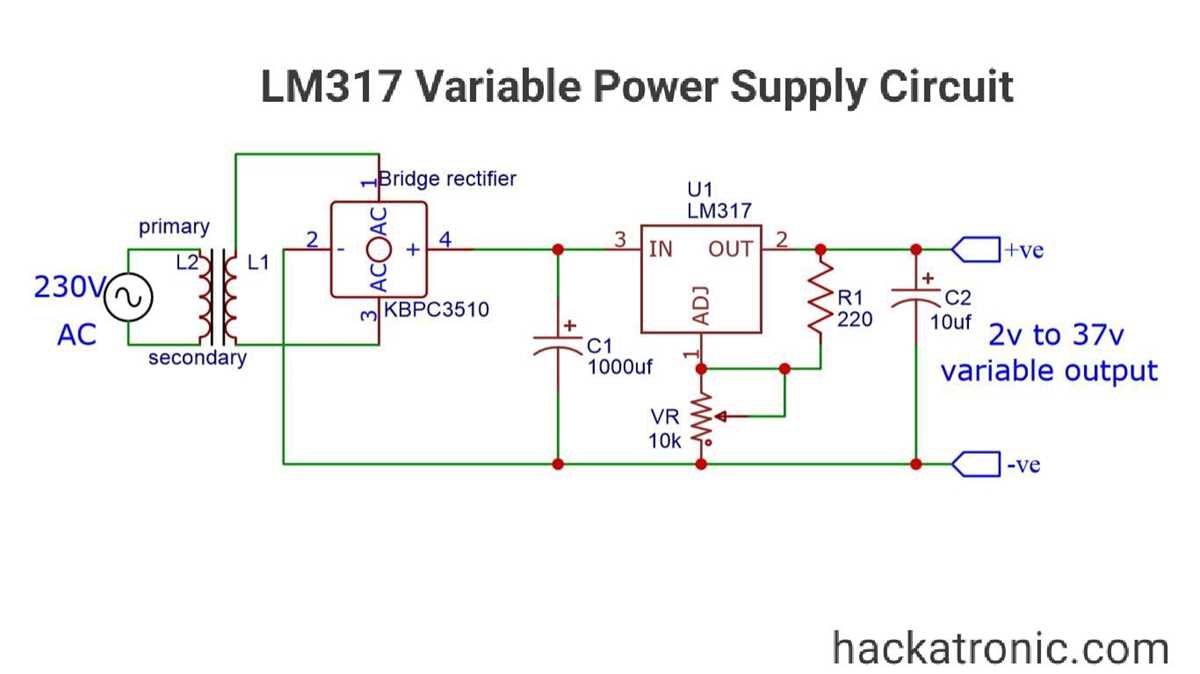

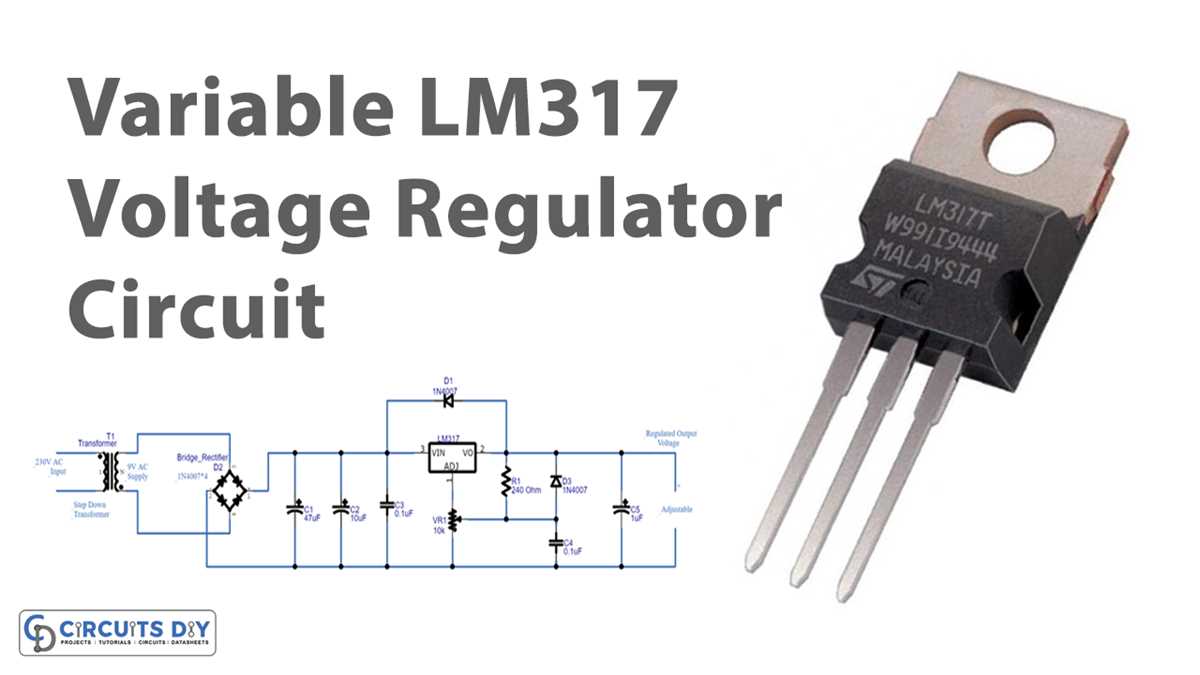

Basic Linear Adjustable Regulator Connection Outline
Connect the input terminal to a DC supply voltage 3V above the desired output. For stable operation, ensure the source voltage remains within 3–40V. Place a 1µF tantalum or 10µF electrolytic capacitor directly between the input pin and ground to prevent high-frequency oscillations. Skipping this step increases noise susceptibility and risk of transient damage.
A 1kΩ resistor between the adjustment pin and the output terminal sets the reference current. Pair it with a 5kΩ potentiometer to ground for output voltage fine-tuning. For fixed output under 12V, use a 240Ω resistor in series with the potentiometer to limit dissipation. Verify component wattage: ¼W resistors suffice for currents up to 100mA.
Attach a 1µF output capacitor to the regulated terminal to ground to improve transient response. Larger values (10–100µF) enhance load stability under dynamic conditions. Avoid ceramic capacitors below 1µF–they lack sufficient ESR for reliable feedback. Add a 1N4007 diode from output to input as reverse polarity protection, especially in battery-powered setups.
Current limiting activates at ~2.2A; exceeding this triggers thermal shutdown. For higher loads, bolt the device to a 20–30°C/W heatsink. Derate power by 0.5W/°C above 75°C. Verify output voltage ripple with an oscilloscope–expect
Calculating Resistor Values for Target Voltage Regulation
Begin with the reference formula: Vout = Vref × (1 + R2/R1) + Iadj × R2. The nominal reference voltage (Vref) for this adjustable regulator is 1.25 V. For most practical setups, neglect the adjustment pin current (Iadj), which typically measures around 50 µA, unless R2 exceeds 1 kΩ. If precision below 0.5% is required, however, include this factor in calculations.

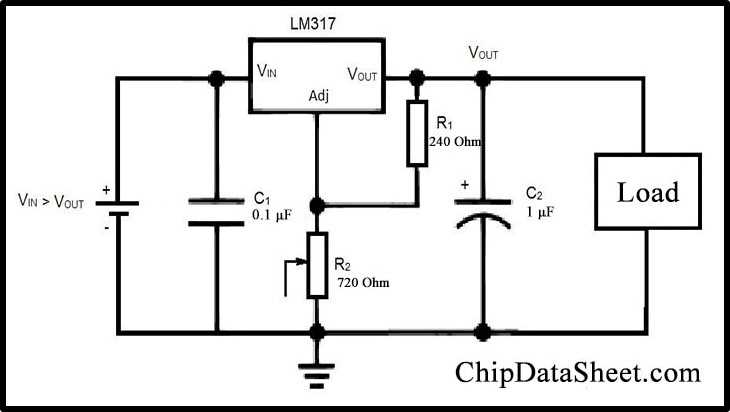

Select R1 between 240 Ω and 1 kΩ to maintain stable operation. A 240 Ω resistor delivers optimal load regulation and minimizes drift, while values up to 1 kΩ remain within safe thermal limits for typical heat dissipation. Below is a quick reference table for common output voltages using a fixed 240 Ω R1:
| Target Vout (V) | Calculated R2 (Ω) | Nearest Standard Value (Ω) | Actual Vout (V) |
|---|---|---|---|
| 3.3 | 408 | 390 | 3.24 |
| 5.0 | 720 | 715 | 4.98 |
| 9.0 | 1,488 | 1,500 | 9.02 |
| 12.0 | 2,088 | 2,000 | 11.67 |
For voltages outside standard resistor values, combine series resistors. To achieve 7.5 V with R1 = 240 Ω, pair 910 Ω with 330 Ω for a total R2 of 1,240 Ω. The actual output becomes 7.51 V, well within 2% tolerance. Avoid parallel resistors unless compensating for unavailable higher-precision components, as this introduces additional error sources.
Temperature stability improves with metal film resistors. Carbon film types exhibit higher drift, typically 300–500 ppm/°C, which can shift output voltage by 15–25 mV over a 50°C range. For critical applications, use 1% tolerance or better, and match thermal coefficients between R1 and R2 to cancel drift effects.
When input voltage exceeds output by less than 2 V, check dropout conditions. The minimum differential (Vin – Vout) must stay above 1.5 V at full load to prevent dropout errors. For example, regulating 9 V from a 12 V supply works reliably, but 9 V from 10.5 V may require recalculating R1 toward the lower end of the range to compensate.
Adjustment pin capacitance above 10 nF introduces instability. If noise filtering is necessary, limit it to 1–2 nF and verify transient response with an oscilloscope. Larger capacitors risk overshoot during load changes, particularly with R2 values above 2 kΩ.
Document measured results against calculated values. Even with precision resistors, real-world outputs often deviate by ±0.2–0.4 V due to layout parasitics, ground loops, or input ripple. For example, a 12 V target with calculated 11.67 V may settle at 11.8 V or 11.6 V depending on PCB trace impedance. Always verify with a calibrated multimeter before finalizing the design.

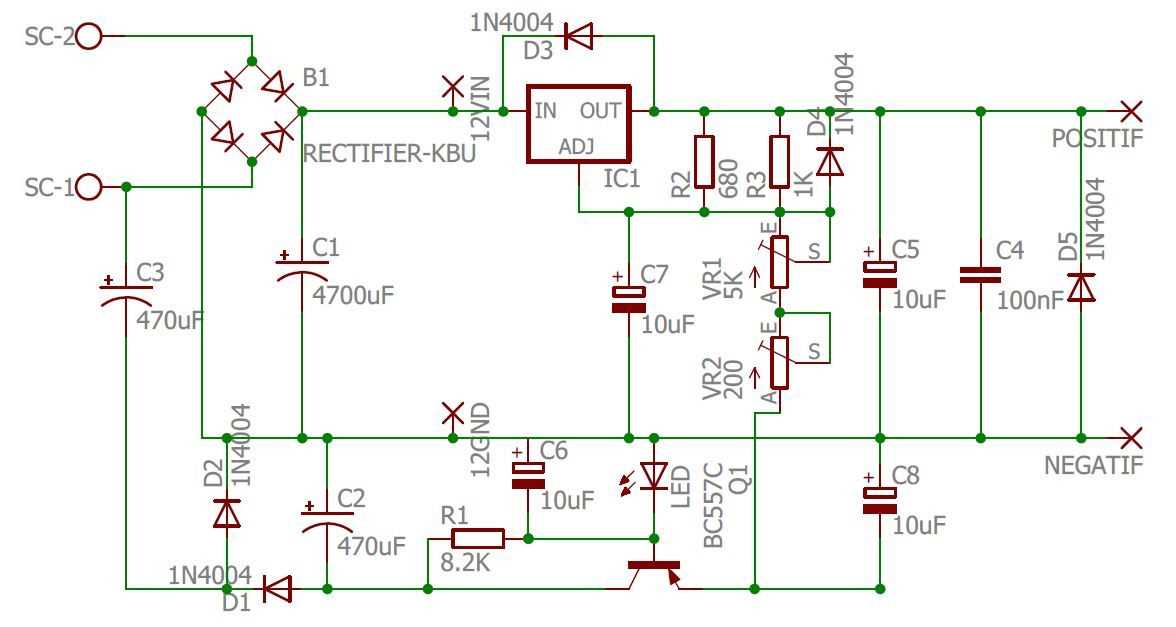

Adding Adjustment Potentiometer for Variable Output
Use a 5 kΩ linear taper potentiometer to achieve a stable 1.25 V to 30 V output range with minimal drift. Position the potentiometer between the feedback pin and the output terminal, ensuring its wiper connects directly to the feedback node. A 1% tolerance resistor in series with the potentiometer prevents short-circuit conditions during zero-resistance adjustments.
Key Component Selection
- Potentiometer value: 1 kΩ to 10 kΩ (5 kΩ optimal). Higher values increase noise sensitivity; lower values waste current.
- Temperature coefficient: Choose carbon-film or cermet for stability under 50 ppm/°C.
- Load capacitor: 1 µF tantalum or 10 µF electrolytic at the output to suppress oscillations. Avoid ceramic capacitors below 0.1 µF.
For fine-tuning, add a 240 Ω resistor between the fixed pin and the feedback node. This lowers the minimum output to 1.25 V and ensures predictable regulation. Bypass the potentiometer’s outer pins with a 0.1 µF capacitor to filter high-frequency noise, particularly in layouts with long traces.
Wiring and Calibration
- Connect the potentiometer’s outer pins in series with a 120 Ω resistor for default 1.5 A current limiting.
- Verify output voltage at three positions: minimum (1.25 V), midpoint (calculated as
Vout = 1.25(1 + Rpot/240)), and maximum (30 V). - Use a 6-turn trimpot if resolution below 50 mV/V is required. Secure the setting with thread-locking compound to prevent vibration-induced drift.
Heat Sink Selection and Thermal Protection Techniques
Choose a heat sink with a thermal resistance below 5°C/W for dissipating 10W or more under forced air cooling. Aluminum extrusions (6063-T5 alloy) provide cost-effective performance, while copper offers superior conductivity at 398 W/m·K versus aluminum’s 205 W/m·K. For passive cooling, verify the sink’s surface area exceeds 50 cm² per watt of dissipated power, with fins spaced no closer than 6 mm to prevent airflow restriction. Active cooling combinations (e.g., heat sink + 40mm 5V fan) can reduce thermal resistance by 40-60% compared to passive solutions alone.
Material and Fin Geometry
- Aluminum: 2.7 g/cm³ density, $0.8–$1.5 per 100g, ideal for weight-sensitive designs. Anodizing increases emissivity to 0.8–0.9, improving heat dissipation by 15–20%.
- Copper: 8.96 g/cm³ density, $3–$5 per 100g, required for high-power loads (>20W). Tin-plating prevents oxidation; nickel-plating adds 5–10% thermal resistance.
- Fin configurations: Pin fins offer 10–15% better performance than straight fins in natural convection but increase manufacturing complexity. Forced-air applications favor straight fins to minimize pressure drop.
Apply thermal interface material (TIM) with a thickness under 0.1mm to fill microscopic gaps. Arctic MX-4 (8.5 W/m·K) outperforms standard silicone pads (1–3 W/m·K) by 3x but requires precise torque-controlled mounting (0.5–0.8 Nm) to avoid pump-out. Reapply TIM annually in high-temperature environments (>85°C), as thermal degradation accelerates beyond 0.5% per 1,000 hours. For budget constraints, use phase-change materials (PCM) like Bergquist TF8080 (4.0 W/m·K), which melt at 65°C to fill gaps without manual reapplication.
Implement over-temperature protection via a negative temperature coefficient (NTC) thermistor (e.g., Murata NCP18XH103F03RB) mounted within 2mm of the regulator’s tab. Use resistive dividers to trip a comparator (LM393) at 120°C ±5°C, triggering a shutdown signal. For redundant protection, add a polyfuse (e.g., Littelfuse 1210L150SL) in series with the load–its resistance rises exponentially at 130°C, limiting current to
Optimize heat sink attachment with M3 screws (304 stainless steel) and Belleville washers (0.4mm deflection) to maintain consistent pressure across thermal cycles. Torque screws in a star pattern to 0.7 Nm ±10% for even clamping force. For high-vibration environments, use thread-locking adhesive (Loctite 222) on screw threads to prevent loosening, which can increase thermal resistance by 25% over 10,000 cycles. Avoid spring washers–they relax at 150°C, reducing clamping force by 60% over 1,000 hours.
