Start with a 47μF input capacitor as close to the power module’s Vin and GND pins as physically possible–distances above 5mm increase ESR losses and risk voltage spikes. Use thick, short traces (2.5mm width minimum for 1A loads) to connect the capacitor; vias under thermal pads degrade performance by adding inductance. Pair this with a 22μF low-ESR tantalum or ceramic capacitor at the output; aluminum electrolytics introduce ripple currents exceeding 50mVpp at 150kHz.
Place the flyback diode within 10mm of the regulator’s SW node. Schottky types like 1N5822 (3A/40V) outperform ultrafast diodes in switching applications, reducing reverse recovery losses by up to 60%. Ground the diode’s cathode to the regulator’s GND pin with a dedicated trace–shared ground paths cause cross-regulation issues in multi-output designs.
For feedback accuracy, route the voltage-divider resistors directly to the ADJ pin with 1% tolerance components. A 3.3kΩ resistor from Vout to ADJ and a 1kΩ resistor from ADJ to ground yields 4.7V output; stray capacitance above 10pF shifts frequency response, creating subharmonic oscillations. Add a 1nF bypass capacitor from ADJ to GND to stabilize transients during load steps.
Thermal management demands a copper pour of at least 10cm² under the module’s exposed pad. Single-layer boards require a 2oz copper weight; dual-layer designs benefit from stitching vias (0.3mm diameter, 0.5mm pitch) to distribute heat. Exceeding 85°C junction temperature reduces efficiency by 0.5% per °C beyond this threshold.
Input voltages above 24V mandate a series diode (1N4007) before the regulator to block reverse polarity–unprotected circuits fail catastrophically at 2mA reverse current. Pulse-skipping mode under light loads (
Step-by-Step Implementation of a Switching Regulator Layout
Start with a 33µH inductor rated for at least 1.5A saturation current, even if your load demands less–this prevents core saturation during transient spikes. Place the inductor within 15mm of the converter’s output pin to minimize trace inductance, which otherwise degrades efficiency by up to 5%. Route the input capacitor’s ground separately from the output capacitor, connecting both grounds at a single star point near the converter’s GND pin to avoid ground loops.
Select a Schottky diode with a reverse voltage rating 20% above the input voltage. A 1N5822 (3A, 40V) works for most 12V-to-5V drops, but ensure the package’s thermal pad contacts the PCB’s copper pour. Position the diode adjacent to the inductor, keeping the anode trace short–long traces increase switching losses and radiated noise. If using a surface-mount device, confirm the pad layout matches the diode’s datasheet footprint to prevent solder bridges.
Key Component Placement Rules
- Keep the feedback network (two resistors forming a divider) routed away from high-current paths. A 0.1µF ceramic cap should sit between the divider’s midpoint and GND, placed no farther than 10mm from the feedback pin to filter noise.
- Use 2oz copper pours for all high-current traces, or double-layer the board if space is constrained. A 2.5mm-wide trace handles 1A with a 30°C rise; scale width proportionally for higher currents.
- Avoid vias in series with the inductor’s current path. If vias are unavoidable, use multiple (minimum three) with 0.5mm drill holes to reduce resistance.
For input voltage ranges exceeding 24V, add a 100nF X7R ceramic capacitor in parallel with the bulk input electrolytic. This snubs high-frequency transients that can trigger false undervoltage lockouts. Place this capacitor within 5mm of the converter’s input pin, prioritizing shortest possible traces to minimize parasitic inductance.
Adjust the output voltage by selecting feedback resistors within 1kΩ–50kΩ. A 10kΩ upper resistor paired with a lower resistor calculated via R2 = R1 × (Vout/1.23V – 1) ensures stability. For 3.3V outputs, R1=10kΩ and R2=16.9kΩ (1% tolerance) yield a typical 3.29V with ±1.5% error. Avoid relying on trim pots unless the design requires field adjustability–fixed resistors reduce noise sensitivity.
Troubleshooting Switching Noise
- Measure ripple at the output with an oscilloscope probe in 10x mode, tip directly on the capacitor leads. Ripple exceeding 50mVpp suggests inadequate output capacitance–add a second 100µF electrolytic or a 47µF polymer capacitor.
- Check for ringing on the input waveform. If present, increase the input capacitor’s value or add a damping resistor (0.5Ω–2Ω) in series with the Schottky diode.
- Verify ground connections with a multimeter on continuity mode. A resistance above 10mΩ between the converter’s GND pin and load ground indicates a layout flaw–rework star grounding.
For designs requiring compensation, omit external components unless output capacitance exceeds 1000µF. If needed, place a 1nF–10nF capacitor across the feedback resistors to reduce high-frequency noise gain, but confirm stability with a load step test: apply a 50% current step and check for overshoot below 100mV. If overshoot exceeds this, increase the compensation capacitor by increments of 1nF.
Thermal management demands a copper area beneath the converter extending at least 30mm beyond the package. For TO-220 or TO-263 packages, use a heatsink secured with thermal adhesive rated ≥1W/°C. Mounting holes should match the datasheet’s recommended pad size–typically 4mm diameter–for adequate heat dissipation. Without a heatsink, derate output current by 40% when ambient temperature exceeds 40°C.

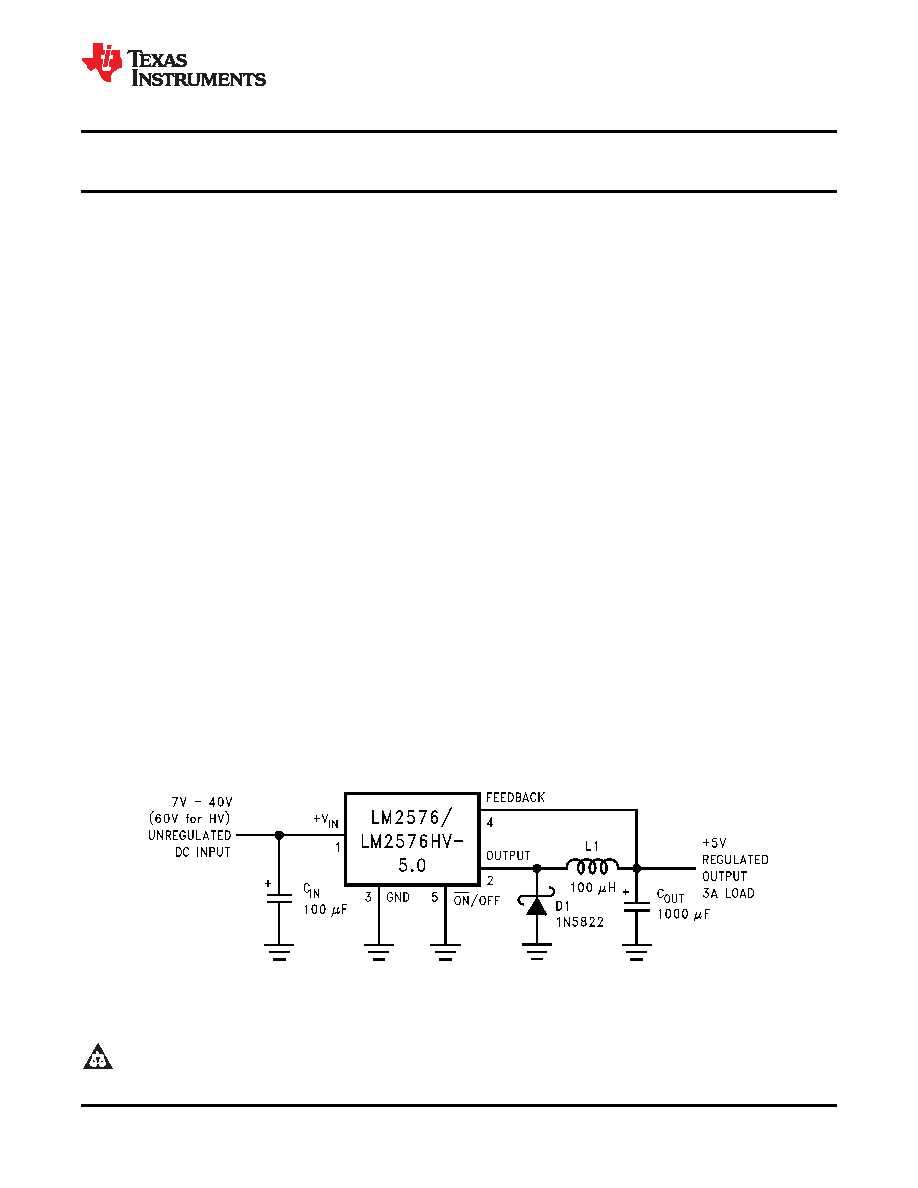

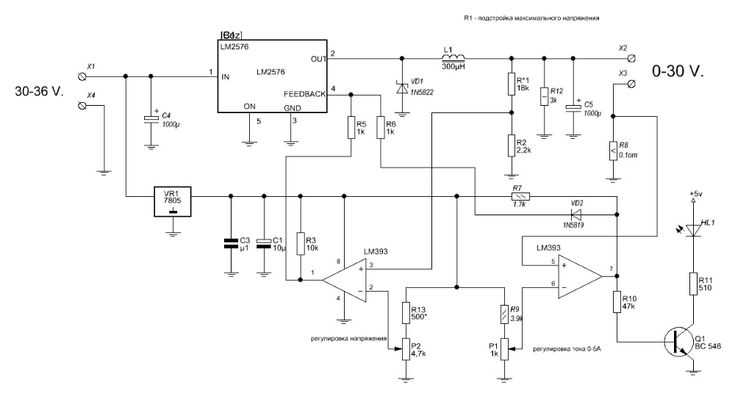

Step-by-Step Schematic Design for a 3A Switching Regulator
Begin by selecting a 33µH inductor with a saturation current rating of at least 4.5A to prevent core saturation during transient loads. Place the inductor immediately after the input capacitor, ensuring its winding resistance stays below 0.1Ω to minimize power losses. Use a 1N5822 Schottky diode for output rectification–its 3A forward current and 40V reverse voltage rating are sufficient for most 5V or 12V applications. Position the diode as close as possible to the inductor to reduce switching noise and improve efficiency.
For input filtering, a 470µF electrolytic capacitor with low ESR (≤0.2Ω) stabilizes voltage before regulation. If noise is critical, add a 0.1µF ceramic capacitor in parallel. On the output, combine a 220µF low-ESR capacitor with a 0.1µF ceramic to suppress voltage spikes during load changes. Avoid exceeding 3A output current–thermal shutdown activates at ~125°C, and prolonged overloading risks permanent damage. Ground connections must converge at a single point to prevent ground loops.
Feedback resistors set the output voltage: a 1.23kΩ resistor from the feedback pin to ground establishes a 3.3V output, while a 3.01kΩ resistor yields 5V. For adjustable variants, use a 10kΩ potentiometer in series with a 1.2kΩ fixed resistor to fine-tune between 1.23V and 37V. Test with an oscilloscope–ringing exceeding 200mV on the switch node indicates parasitic inductance; reduce trace length or add a snubber (e.g., 10Ω + 0.1µF) to dampen oscillations.
Selecting and Calculating Component Values for Step-Down Regulator Implementation
Begin with the input capacitor (Cin) rated for ≥25V if the supply voltage reaches 30V, ensuring ≥100μF for stable operation under load transients. Murata GRM32 series or Kemet T520/X5R dielectrics provide temperature-stable capacitance with low ESR, critical for minimizing input voltage ripple below 50mVpp. For applications with >12V input, paralleling two 47μF capacitors reduces ESR further, improving efficiency by 1-2%. Verify derating curves–X7R capacitors lose ~20% capacitance at 85°C, while X5R degrades ~30%, necessitating upsized values for high-temperature environments.
Inductor Selection and Switching Frequency Trade-offs
| Output Current (A) | Recommended Inductance (μH) | Peak Current Rating (A) | Saturation Current (A) | Core Material |
|---|---|---|---|---|
| 0.5 | 47-100 | >1.5 | >1.2 | Ferrite (e.g., Coilcraft MSS1048) |
| 1.0 | 33-68 | >2.5 | >2.0 | Powdered Iron (e.g., Bourns SRP6030) |
| 2.0 | 22-47 | >4.0 | >3.5 | Sendust (e.g., Würth 744310220) |
| 3.0+ | 15-33 | >6.0 | >5.0 | Amorphous (e.g., Vishay IHLP4040) |
Select inductors with DC resistance to limit power loss–every 0.05Ω increases dissipation by ~5% at 1A. Ferrite cores reduce core losses at 52kHz but saturate abruptly; powdered iron tolerates 20-30% overload before performance degrades, better suited for >3A applications. Switching frequency directly impacts inductor size: 200kHz operation allows 10μH inductors but increases MOSFET switching losses, while 52kHz requires larger values but improves efficiency by 3-5%. Use the formula L = (Vin - Vout) × Vout / (Vin × ΔIL × f), where ΔIL is 20-40% of Iout, to balance ripple and transient response.
Output capacitors (Cout) must handle ≥2× Iout ripple current, with ≥10μF per ampere for ripple. Polymer tantalum (e.g., AVX TPS) offers but de-rates voltage by 50%–use ≥2× Vout rating. Ceramic (X7R/X5R) provides low ESR but requires 3-5× larger capacitance due to piezoelectric microphonic effects; a 22μF/16V ceramic (e.g., TDK CGA) equals 100μF electrolytic stability. For feedback resistors (R1/R2), target 1-1.5kΩ for R2 to minimize noise pickup; use 1% tolerance resistors and keep the trace impedance to prevent oscillation. Calculate R1 with R1 = R2 × (Vout / 1.23 - 1), where 1.23V is the internal reference–avoid values to reduce error from bias currents.
Common PCB Layout Mistakes and Fixes in Switching Regulator Designs
Position the input capacitor no further than 2mm from the Vin and GND pins. Excessive trace length introduces parasitic inductance, causing voltage spikes during switching transitions. A 22µF ceramic capacitor with X7R dielectric minimizes ESR and reduces noise. Avoid electrolytic types unless bulk capacitance is critical at lower frequencies.
Ground returns for the output capacitor and catch diode must connect directly to the power ground plane without intermediate traces. Daisy-chaining grounds increases resistance, elevating output ripple by 20–30mV in worst-case layouts. Use a star ground topology with separate paths for high-current and low-current nodes.
Trace Width and Thermal Viability
Underestimate trace width for 3A+ currents, and copper dissipates heat poorly. A 1oz copper trace carrying 3A needs 2.5mm width for 25°C temperature rise; double it for 2oz copper. Thermal vias spaced every 5mm beneath the regulator improve heat transfer to inner layers, dropping junction temperature by 15–20°C.
Placing the feedback trace near high-current paths invites noise coupling. Route it as a narrow, shielded trace on the top layer, away from the inductor and switching node. A low-pass RC filter (1kΩ + 10nF) at the feedback pin attenuates high-frequency interference, stabilizing regulation accuracy within ±1%.
Component Placement and Parasitic Effects
Locate the catch diode within 1cm of the switching node to prevent ringing. Solder pads should match the diode’s current rating–oversized pads reduce thermal resistance but increase parasitic capacitance. Schotky diodes like SB560 offer 0.5V forward drop, improving efficiency by 2–3% over silicon counterparts.
Inductor selection dictates peak-to-peak ripple current; aim for 20–40% of the average output current. A 33µH inductor with 5A saturation limits ripple to 1–1.5A, balancing size and efficiency. Keep the inductor’s magnetic field away from sensitive traces–horizontal mounting reduces coupling to nearby components by 40%.
Neglecting EMI filtering leads to conducted emissions failing CISPR 22 Class B limits. Add a ferrite bead in series with the input line, followed by a 100nF capacitor to ground. For output noise, a π-filter (10µF + 1Ω + 10µF) suppresses spikes below 5mVpk-pk. Test layouts with a spectrum analyzer; emissions should drop 20dB between 150kHz–30MHz.
Via stitching around high-current pads prevents thermal gradients and copper delamination. Use three vias per pad for 3A currents, increasing to six for 5A+. Avoid thermal reliefs on power planes–solid copper connections reduce impedance by 70%. Validate the layout with a thermal camera; hotspots above 100°C indicate insufficient cooling or trace width.
