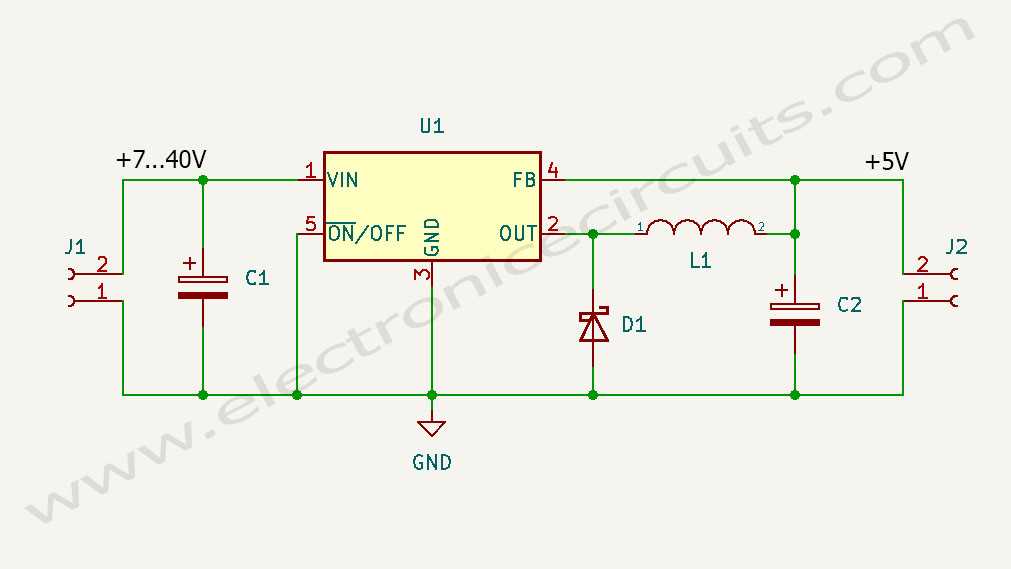

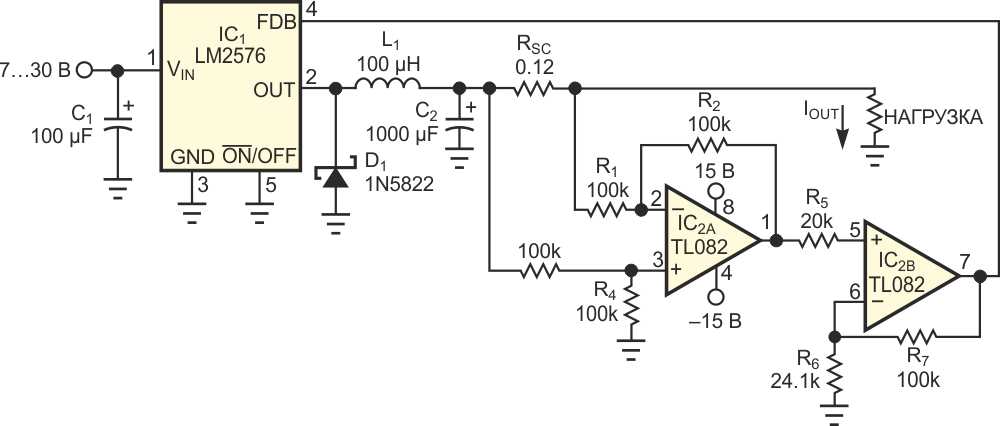

Begin with a 100µH inductor rated for at least 1.5A current handling–this component directly impacts efficiency and output ripple. Pair it with a Schottky diode (1N5822 or equivalent) to minimize voltage drop during switch-off cycles. Input capacitors should include a 100µF electrolytic for bulk stabilization and a 0.1µF ceramic for high-frequency noise suppression. Output capacitors require similar attention: use a 100µF low-ESR electrolytic in parallel with a 22µF ceramic to ensure stable voltage under dynamic loads.
Select resistors for feedback based on Vout = 1.23 × (1 + R2/R1). For a 5V output, set R1 at 1kΩ and adjust R2 to 3kΩ (1% tolerance or better) to avoid drift. Route feedback traces away from switching nodes to prevent noise injection–keep them short and wide, with a ground plane beneath. The enable pin (typically tied high) can be pulled low via a transistor or open-collector logic for shutdown control, drawing under 10µA in standby.
Thermal management demands a copper pour of at least 30mm² for the switching IC, even at moderate loads. For 3A continuous current, add a small aluminum heatsink or double-sided PCB patterns. Ensure the input voltage stays within 7–40V range; exceeding these limits risks damage from overvoltage transients. Test the design under load steps (e.g., 10% to 90% of max current) to verify transient response–oscilloscope measurements should show overshoot under 5% of nominal output within 20µs.
For EMI mitigation, use a snubber (RC network) across the diode if switching edges exceed 1V/ns. A 1nF capacitor in series with a 10Ω resistor placed close to the inductor-Diode junction reduces ringing. Ground the output capacitor’s negative terminal directly to the input capacitor’s ground to avoid ground loops. Finally, add a 47pF capacitor between the feedback pin and output to dampen high-frequency oscillations–this often-overlooked detail prevents erratic regulation during light-load conditions.
Practical Steps for Building a Switching Regulator Layout
Start by placing the input capacitor directly adjacent to the converter’s power pins–no trace should exceed 5mm. Use a low-ESR tantalum or ceramic capacitor rated for at least 25V, such as a 100µF Kemet T491 or Murata GRM32 series. The ground return path must be a single, unbroken plane; avoid daisy-chaining ground vias, as this introduces loop inductance and degrades transient response. For the output capacitor, match its value to the load’s dynamic current–470µF at 10V for a 1A load is typical, but scale linearly for higher currents.
Inductor selection determines efficiency and ripple performance. For a 5V output at 1A, a 100µH shielded inductor (e.g., Coilcraft SER2915H or Bourns SRR1260) reduces EMI while keeping saturation current above 1.5A. Keep the switching node traces as short as possible; exceeding 10mm increases radiated noise. Route feedback traces away from the inductor and diode to prevent coupling–use a star grounding technique for the feedback resistor divider, connecting it to the output capacitor’s ground point rather than the main ground plane.
Thermal and PCB Considerations
Mount the switching IC on a thermal pad connected to the internal power plane via at least four thermal vias, each 0.3mm in diameter with 1oz copper thickness. For TO-220 packages, attach a 25mm² heatsink if ambient temperatures exceed 50°C. Use 2oz copper for power traces carrying more than 500mA, and widen traces to 2.5mm/A to prevent voltage drops–calculate trace resistance using the IPC-2221 formula. Test for stability by loading the output with a 10µF capacitor; if ringing exceeds 10% of the output voltage, add a small (10-100nF) ceramic capacitor in parallel to the feedback resistor to dampen oscillations.
Key Components of a Step-Down Power Supply Layout
Choose an inductor with a saturation current rating at least 20% above the maximum load current to prevent core saturation and ensure stable regulation. For 3A loads, select a 47µH–100µH inductor with a 4.5A+ saturation threshold, such as Vishay IHLP4040DZ-01 or Coilcraft MSS1048. Verify the inductor’s DC resistance (DCR) remains below 50mΩ to minimize power losses–higher DCR increases heat dissipation, reducing efficiency by 2-5% in high-current applications.
Place the input capacitor as close as possible to the regulator’s Vin and GND pins, using a low-ESR ceramic (X7R/X5R) or tantalum capacitor rated for 16V or higher. A 100µF–470µF value is critical; smaller values risk input voltage ripple exceeding 50mV, triggering instability. For noise-sensitive loads, add a 0.1µF–1µF bypass capacitor parallel to the main input cap, positioned within 2mm of the regulator pins. Output capacitors follow similar rules: use 220µF–1000µF low-ESR types, with a 22µF–47µF ceramic in parallel to suppress high-frequency noise below 10mV.
Critical Attention Points
- Diode selection: Use a Schottky diode with a reverse voltage rating 1.3× the maximum input voltage and a forward current rating exceeding the load current. A 1N5822 (3A) or SB560 (5A) is typical; slower recovery diodes (e.g., 1N4007) cause 300ns+ switching losses, reducing efficiency by 8-12%.
- Feedback resistor network: Calculate both resistors using Vout = 1.23(1 + R1/R2), where R2 is 1kΩ–5kΩ. Prioritize 1% tolerance resistors to maintain ±2% output accuracy. Place the network within 10mm of the feedback pin to avoid pickup noise.
- Thermal management: Mount the regulator on a PCB with at least 2cm² copper pour per watt of power dissipation. For 12V→5V at 1A (7W), use a TO-220 package with a heatsink rated for 10°C/W or better. Without heatsinking, junction temperature rises above 100°C within 30 seconds, triggering thermal shutdown.

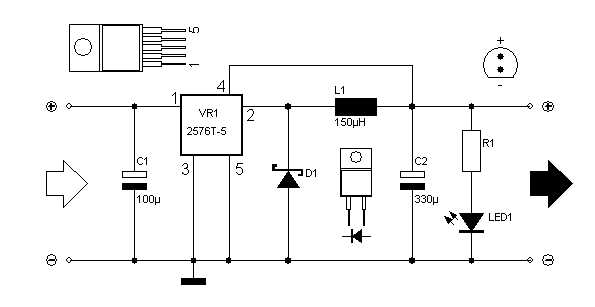

Step-by-Step Wiring for Adjustable Switching Regulator Output
Begin by connecting the input capacitor (100μF, 50V electrolytic) directly across the power source terminals, ensuring polarity matches the marked signs. Place it within 2cm of the regulator’s input pin to minimize voltage spikes. Use thick traces (minimum 2mm width) or short wires for this high-current path to reduce resistance losses.
Feedback Network Setup
For a 5V output, pair an 8.2kΩ resistor (R1) between the regulated output and the feedback pin. Select R2 as a 10kΩ potentiometer or fixed resistor to fine-tune voltage. The formula Vout = 1.23 × (1 + R2/R1) applies, where R2 is the resistor from feedback pin to ground. Verify stability by probing the output with a 22μF tantalum capacitor to ground–ESR below 0.5Ω is critical to prevent oscillations.
| Output Voltage Target | R1 Value | R2 Value (Fixed) | Potentiometer Range |
|---|---|---|---|
| 3.3V | 2kΩ | 3.3kΩ | 1kΩ–10kΩ |
| 5V | 8.2kΩ | 25kΩ | 5kΩ–50kΩ |
| 12V | 10kΩ | 86.6kΩ | 50kΩ–150kΩ |
Ground the feedback pin’s divider through a via to the primary ground plane, avoiding shared paths with high-current return traces. Add a 1N5822 Schottky diode from the switching pin to the output–observe the cathode stripe orientation. For currents above 1.5A, heatsink the regulator with a TO-220 clip or thermally conductive pad to a copper pour of at least 10cm².
Inductor and Diode Selection
Select a 100μH inductor with saturation current exceeding your load’s peak demand by 30%. For 3A loads, use a 15A-rated coil to prevent core saturation. Position the inductor within 3cm of the switching pin, minimizing loop area to reduce radiated EMI. Test output ripple with an oscilloscope set to 20MHz bandwidth; spikes above 50mV indicate layout or component mismatches.
Calculating Inductor and Capacitor Values for Stable Operation
Begin with the switching frequency: standard fixed-output converters typically operate at 52 kHz. For custom designs, ensure inductance aligns with ΔIL ≤ 30% of max load current. Example: a 1 A output requires inductance between 33 µH and 100 µH, depending on input voltage range. Higher inductance reduces ripple current but increases physical size.
Select the inductor core material based on saturation current. Powdered iron tolerates 50% overcurrent without performance loss; ferrite saturates abruptly. For 3 A continuous operation, choose a core rated for 4.5 A minimum. Calculate saturation margin using Isat = Iout(max) × 1.5. Core losses dominate at frequencies above 100 kHz; stick to recommended values unless temperature rise is documented.
Output capacitors stabilize voltage ripple under load transients. Polymer electrolytics outperform ceramics in energy storage but cost more. Use the ripple current formula ΔVout = ΔIL / (8 × f × Cout) to size the capacitor. For 50 mVpp ripple at 1 A output, a 100 µF low-ESR capacitor suffices; double capacitance if transient response must improve.
Input capacitors absorb switching noise and shield the supply. Place a 22 µF ceramic capacitor directly across the input terminals; add a 10 µF tantalum if input voltage dips below 10 V. Calculate input ripple as ΔVin = Iin(pk) / (f × Cin). Keep ESR below 0.2 Ω to prevent overheating during start-up surges.
Diode selection impacts efficiency. Schottky diodes drop 0.3 V versus 0.7 V for silicon; choose a current rating double the maximum output. For 3.3 V output, a 1N5822 (3 A, 40 V) prevents reverse recovery losses. Avoid ultrafast diodes unless switching frequency exceeds 200 kHz; their reverse recovery time degrades performance at lower speeds.
Verify stability with load step tests. Apply a 50% to 100% load step and measure output overshoot; ±5% transient deviation indicates proper compensation. Adjust feedback resistors if ringing persists: increase Rupper by 10% and retest. Document temperature rise; core temperature should never exceed 100°C at full load.
