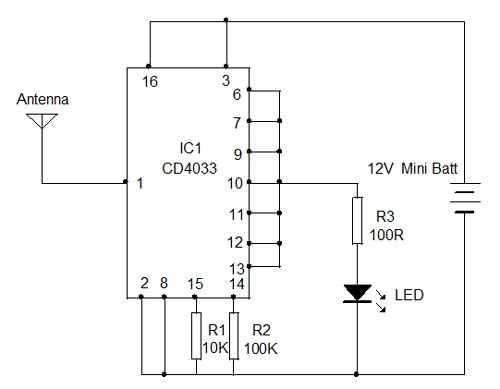

A non-contact voltage sensing setup can identify energized conductors without direct contact, using simple components. The core of this system relies on an operational amplifier (op-amp), paired with an antenna probe–typically a copper wire or small metal plate–to detect alternating electric fields. For a 220-240V AC mains signal, an LM358 or TL072 op-amp in a comparator configuration works reliably, triggering an LED or buzzer when voltage is present. Adjust sensitivity with a 1MΩ to 10MΩ resistor between the probe and the op-amp’s non-inverting input.
The ground reference is critical–connect the op-amp’s inverting input to a stable ground via a 10kΩ resistor or directly to the circuit’s negative rail. Without proper grounding, false positives may occur. For added stability, include a 100nF decoupling capacitor across the op-amp’s power pins (VCC and GND) to filter noise, especially in noisy environments like workshops or near switching power supplies.
For multi-range detection, add a potentiometer (50kΩ–100kΩ) in series with the probe to fine-tune the threshold. This allows the device to distinguish between weak signals (e.g., from 12V wiring) and high-voltage lines. Battery-powered versions (9V PP3) are portable but require a low-power voltage regulator like the 78L05 if using a microcontroller for additional processing.
Test the assembly with a known energized conductor first–hold the probe 5–20mm away to avoid direct arcing. If the indicator activates near non-conductive surfaces (e.g., insulated cables), increase probe capacitance or add a metal shielding layer (foil connected to ground) around the probe to reduce interference. For safety, never rely on this as a sole tool for live system verification–always use a confirmed ground reference and verified test equipment in critical applications.
Non-Contact Voltage Probe: Schematic Guide

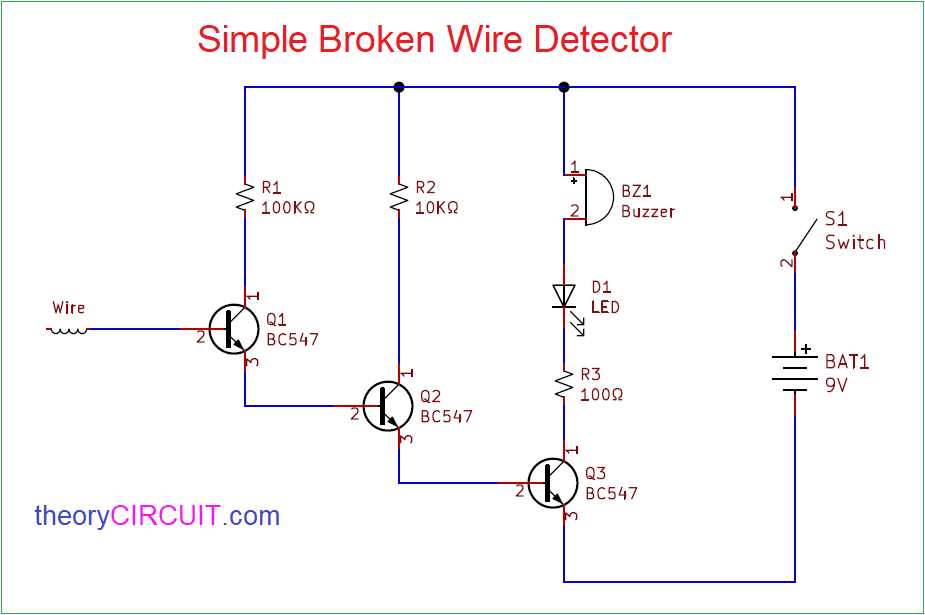

Construct the sensing module using a BC547 transistor as the core component. Position the 1MΩ resistor between the base and emitter to establish a high-impedance input, enabling detection of minute electric fields at distances up to 3cm from insulated cables. The collector should connect through a 470Ω resistor to a red LED (20mA forward current) for visual feedback. Add a 100nF ceramic capacitor parallel to the LED to suppress false triggers from transient noise.
Power the device with a 9V alkaline battery; a simple SPST switch placed in series with the positive terminal prevents drainage during storage. For calibration, adjust the 1MΩ resistor by ±200kΩ increments–lower resistance increases sensitivity but may cause false positives near transformers or fluorescent lights. Verify detection range using a known 230VAC conductor behind 1mm PVC insulation; the LED should illuminate at 5mm separation without direct contact.
| Component | Value/Part Number | Purpose |
|---|---|---|
| NPN Transistor | BC547B | Field sensing amplifier |
| Base Resistor | 1MΩ ±5% | Input impedance tuning |
| Collector Resistor | 470Ω | LED current limiting |
| Bypass Capacitor | 100nF/50V (X7R) | Noise filtering |
| Indicator LED | Red 5mm (2.1V Vf) | Visual alert |
| Power Source | PP3 9V | Portable supply |
Enhance reliability by mounting the probe on a single-sided FR4 PCB with a 2mm copper pour ground plane beneath the transistor to shield against electrostatic interference. Route signal traces at 0.5mm width with 0.3mm clearance to adjacent pours. For handheld use, encase the assembly in a non-conductive ABS enclosure drilled with a 3mm test aperture aligned over the transistor’s emitter; this concentrates the sensing field toward the target conductor.
Audible feedback improves usability in bright environments. Add a 555 timer IC configured as an astable multivibrator (1kHz tone) with a piezo buzzer driven via a 2N3904 transistor. Trigger the 555 input from the BC547 collector node through a 10kΩ coupling resistor. Volume adjusts via a 10kΩ potentiometer placed between the 555 output and buzzer. Test by sweeping the probe near a switched 10A circuit; the tone should modulate distinctly when crossing the conductor’s edge.
Final validation requires a controlled setup: terminated 2.5mm² solid copper cable carrying 120VAC (0.5A load) suspended 10cm above a wooden bench. Move the probe orthogonal to the cable at 0.5cm/s; the LED should flicker in a 4cm band centered over the conductor. Record false positives over 10 trials–acceptable performance yields ≤2 false triggers. Document environmental conditions (humidity, temperature) as variations above 60% RH reduce sensitivity by 15%.
Selecting Optimal Parts for an Electrical Proximity Sensor
Prioritize a transistor with ≥500 mW power dissipation and a gain (hFE) of at least 200 to ensure reliable signal amplification. The 2N3904 or BC547 meet these criteria, while cheaper alternatives like the PN2222 may introduce latency. Pair this with a high-impedance input stage–use a 1 MΩ resistor for the sensing probe to maximize sensitivity without false triggers from ambient noise. For voltage regulation, a fixed 5V LDO (e.g., LM7805) outperforms zener diodes in stability, critical for battery-powered variants.
Passive Component Considerations
Capacitors must balance response time and noise filtering: 100 nF ceramic for decoupling and 10 μF electrolytic for smoothing. Avoid low-ESR models if operating near interference sources–they amplify transients. LEDs should have 3–5 mA forward current; amber or red wavelengths (620–650 nm) improve visibility in daylight. Opt for through-hole resistors if soldering by hand–surface-mount tolerances (±1%) demand precise reflow techniques. Test probe materials: copper clad FR4 boards minimize oxidation, while silver-plated tips require frequent maintenance.
Step-by-Step Assembly of a Non-Contact AC Voltage Tester
Gather components first: a 2N3904 transistor, 1MΩ resistor, 330kΩ resistor, 100nF capacitor, 9V battery connector, piezoelectric buzzer (5V), and a small plastic enclosure. Use a solderless breadboard for initial prototyping–this lets you verify connections without permanent soldering. The 2N3904’s base connects to the 1MΩ resistor, while the emitter ties to ground. Attach the capacitor parallel to the resistor to filter noise.
Assemble the sensing probe by stripping 2 cm of insulation from a 10 cm rigid copper strand. Insert one end into the breadboard adjacent to the 1MΩ resistor’s free terminal. The probe’s tip will act as the field indicator. For stability, coat the probe’s handle with heat-shrink tubing or wrap it in electrical tape. Ensure no exposed copper remains except at the tip.
Fine-Tuning Sensitivity
Adjust detection range by replacing the 1MΩ resistor with a 500kΩ trimpot. Turn it clockwise to increase responsiveness–useful for identifying voltages behind thick insulation. Counterclockwise reduces sensitivity, preventing false triggers in high-noise environments like near fluorescent lighting. Test with a known energized conductor at varying distances (1–5 cm) to lock in optimal settings.
Encase the completed build in the plastic enclosure, securing components with hot glue. Drill a 3 mm hole for the probe and a 5 mm opening for the buzzer’s sound output. Label the probe tip with red shrink tubing–this serves as both insulation and a visual cue. Verify the device near a 120V AC cable before relying on it; the buzzer should emit a steady tone within 2 cm of an active line.
Ensuring Precision in Electrical Proximity Sensor Adjustments
Begin calibration by exposing the device to a known active voltage source, such as a 230V mains line shielded only by standard PVC insulation. Position the sensing tip at a fixed distance–ideally 10mm–to establish a baseline response. Use a non-contact voltage tester as a reference to verify the audible or visual feedback aligns with expected thresholds. If discrepancies arise, adjust the trimmer potentiometer on the PCB in 5° increments until the device triggers consistently at the target distance.
Test across multiple power lines with varying currents (0.5A to 15A) to validate sensitivity. Record false positives near low-power circuits–common with LED drivers or dimmable lights–by noting the exact distance at which the unit activates. Modify the sensitivity resistor (typically 1MΩ) in 100kΩ steps if the range is either too broad (activating on static) or too narrow (missing weak fields). Benchmark against a commercial meter like the Fluke 1AC II to confirm ±2mm accuracy.
Introduce interference sources–fluorescent fixtures, switched-mode power supplies, or adjacent ungrounded metal–to assess robustness. Rotate the device 360° around the test conductor; instability in feedback suggests parasitic capacitance. Counter this by replacing the standard 1nF decoupling capacitor with a 470pF variant, or reposition the antenna trace away from high-impedance nodes on the board.
Validate insulation detection by wrapping the test conductor in layers of tape or rubber, increasing thickness in 0.5mm increments. The device should cease responding beyond 4mm of standard electrical tape (breakdown ~3kV). For high-voltage testing (e.g., 600V industrial lines), swap the 2N3904 transistor for a BC547B if thermal drift occurs above 40°C; monitor junction temperature with a thermal probe during prolonged use.
Document calibration steps in a table: voltage level, distance, component adjustments, and ambient conditions (humidity, temperature). Include edge cases–like phase-to-phase detection in three-phase systems–where the unit must ignore adjacent energized lines. For multi-sensor arrays, stagger their threshold voltages by 0.2V increments to prevent cross-talk.
Final verification requires a controlled environment: a Faraday cage to block external EMI, a variable autotransformer to simulate brownout conditions, and a scope to check signal integrity at the comparator stage. Confirm the LED/buzzer latency remains under 50ms across the detection range. Store the calibrated unit with desiccant to prevent moisture-induced drift in high-impedance circuits.
