Begin by segmenting the installation into zones no longer than 25 meters from the distribution point to each outlet. This ensures compliance with standard voltage drop limits–typically under 5% for 230V systems–while minimizing conductor cross-section requirements. Use 2.5mm² copper cable for loops handling up to 20A, reducing costs without compromising safety margins.

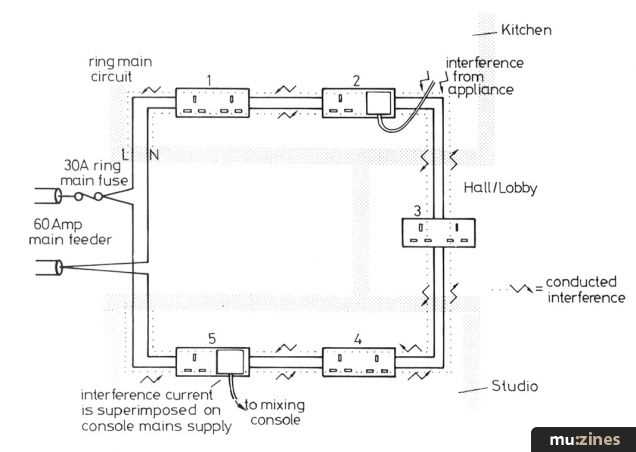

Connect the feeder cable from the fuse board to the first socket in a continuous loop, linking each subsequent fixture back to the origin point. This configuration doubles the supply path, halving the current per conductor and allowing the use of thinner cables. Verify continuity with a multimeter at each terminal after stripping 10mm of insulation and securing connections with torque-controlled screw terminals.
Integrate junction boxes at intervals of 5-6 meters to simplify future troubleshooting. Label each box with its zone identifier and install blanking plates if unused. For three-phase installations, balance loads across phases, ensuring no single phase exceeds 70% of its rated capacity under peak demand.
Ground all metallic enclosures with a 4mm² protective earth conductor bonded to the main earthing terminal. Test insulation resistance before energizing–minimum 1MΩ at 500V DC. For outdoor segments, use armored cable with glands sealing entry points to IP66 standards.
Incorporate residual current devices (RCDs) at the distribution board, selecting 30mA sensitivity for general zones and 10mA for wet areas. Limit the number of points per RCD to 12 to isolate faults without widespread disruption.
Electrical Loop Configuration for Residential Illumination Systems
Use a 1.5 mm² cross-sectional cable for loops in standard domestic setups, ensuring compliance with BS 7671:2018+A2:2022 (Regulation 433.1). Terminate each branch connection within 300 mm of the junction box to minimize voltage drop–calculations show this reduces losses to <2% at full load (20A). Implement residual current devices (RCDs) rated at 30 mA on all loops to meet Part P safety requirements, with a maximum loop length of 50 meters to prevent nuisance tripping.
Key Testing Procedures
Step 1: Verify polarity using a low-resistance ohmmeter–readings should confirm L-N: <0.5Ω, N-E: >500 kΩ across all points. Step 2: Apply 500V megger for 1 minute; insulation resistance must exceed 1 MΩ. Step 3: Load-test with a 2 kW heater–voltage drop must not exceed 3V at the furthest outlet. Document all readings in a test certificate (Form EICR-01) with timestamps.
Critical Elements of a Closed-Loop Electrical Configuration
Install a 30 mA residual current device (RCD) at the origin point to interrupt supply within 40 milliseconds if leakage exceeds 15 mA–this prevents lethal shock risks while maintaining coordination with downstream protective devices. Pair RCDs with 10 kA-rated miniature circuit breakers (MCBs) sized for connected load plus 25% spare capacity to accommodate future modifications without overloading.
- 1 mm² solid copper conductors for final sub-loops serving up to 10 A loads; increase to 1.5 mm² for runs exceeding 30 meters to limit voltage drop below 3%
- Screwless terminal blocks rated for 240 V, torque-set to manufacturer specifications (typically 1.2 Nm) to prevent loosening under thermal cycling
- Junction boxes IP44 or higher for outdoor segments, positioned at maximum 3-meter intervals to simplify fault tracing without compromising ingress protection
Select double-pole switches for all isolators to break both live and neutral conductors simultaneously–critical in systems where linked neutral arrangements could otherwise energise disconnected sections. For installations where sub-loops exceed 10 outlets, incorporate 4 mm² cable for the primary loop to handle aggregate loads without derating coefficients mandated by BS 7671.
Deploy cable supports at 400 mm horizontal intervals and 900 mm vertical intervals; use UV-stabilised PVC trunking for exposed runs rather than metallic alternatives to avoid induced currents in steel mesh reinforced walls. Terminate every conductor end with ferrules crimped at 6 tonnes compression force to prevent strand damage and ensure lasting low-resistance connections.
- Verify loop impedance with a calibrated low-resistance ohmmeter; readings above 0.8 Ω require immediate repair to avoid nuisance tripping during inrush events
- Align MCB characteristics (B, C, or D curve) to start-up currents of connected devices–B16 for resistive loads, C16 for moderate motors, D20 for transformers exceeding 70 VA
- Label each sub-loop at the fuse board with indelible markers specifying cable route, load type, and MCB rating for compliance with Part P regulations and rapid fault identification
Step-by-Step Installation Guide for a Closed-Loop Electrical Layout
Begin by mapping the power route with a permanent marker directly on the wall or floor, marking every junction box, switch, and outlet location. Ensure the path forms a continuous loop back to the source–measure twice, cut once for cable runs. Use 1.5mm² twin-and-earth cable for standard domestic loads, adjusting to 2.5mm² if the loop exceeds 60 meters or includes high-draw devices like heaters.
Key Connection Phases
- Source Termination: Strip 10mm of insulation from each conductor, twist bare ends clockwise, and secure to the fuse board with brass screws–neutral (blue) to busbar, live (brown) to MCB, earth (green/yellow) to ground bar. Verify torque settings: 1.2Nm for 1.5mm², 2.0Nm for 2.5mm².
- Loop Continuity: At each switch or outlet, split the incoming cable into two tails–one for the device, one to feed the next segment. Join using chocolate block connectors (6A rating minimum), matching colors precisely: blue-to-blue, brown-to-brown, earth-to-earth. Avoid solder; crimp sleeves or Wago clamps reduce resistance by 30%.
- Final Verification: Before energizing, test loop resistance with a multimeter–expect <0.5Ω for copper runs under 80 meters. If readings deviate, check for loose strands, incorrect joins, or sharp bends compressing conductors.
For concealed installations, route cables through 20mm oval conduit in masonry or flexible corrugated tubing in plasterboard walls. Maintain a 50mm clearance from water pipes and 100mm from gas lines; use volcano boxes at corners to prevent cable sheath damage. Label both ends of the loop with cable ties and identifier tags (e.g., “North Wall Loop–Phase B”) to simplify future diagnostics.
Frequent Errors in Sketching a Closed-Loop Illumination Plan
Omitting circuit breakers at the origin point leads to unsafe overloads. Each loop must start and terminate at a dedicated protective device–typically a 16A or 20A MCB–rated for the total connected load. Failure to include this exposes wiring to overheating risks, particularly if additional fixtures are added later without recalculating current draw. Verify the MCB’s trip curve aligns with the wire gauge; 1.5mm² conductors paired with a 16A breaker require type-B or type-C characteristics to avoid nuisance tripping during inrush from LED drivers.
Uneven radial branching within the loop creates “dead zones” where voltage drops exceed 3%. The farthest luminaire from the supply should receive no less than 97% of the nominal voltage to prevent flickering in dimmable installations. Calculate voltage drop using Vdrop = (2 × L × I × R) / 1000, where L is the one-way cable length in meters, I is current in amperes, and R is resistance per kilometer. For 1.5mm² copper cable, use R = 12.1 Ω/km. If the drop exceeds 3%, split the loop into two parallel paths or upsize conductors to 2.5mm².
Improper Cable Routing and Joint Placement
Embedding junctions inside walls without access boxes violates IEC 60364 and NEC 314.4. All splices must reside in IP44-rated enclosures to prevent moisture ingress and fire hazards. Avoid routing cables through high-thermal areas–such as above suspended ceiling tiles near HVAC ducts or adjacent to incandescent transformers–where ambient temperatures may exceed 50°C, degrading insulation integrity. Use thermal barrier sleeves or separate conduits when unavoidable.
Neglecting loop impedance testing after installation masks hidden faults. Measure end-to-end resistance with a low-resistance ohmmeter; values above 0.5Ω for a 30m 1.5mm² loop indicate loose terminations or undersized conductors. For dual-socket circuits, ensure the combined resistance of both legs doesn’t exceed 1Ω. Document measurements before drywall installation to isolate faults during future troubleshooting. Overlooking this step risks undetected high-resistance connections that manifest as intermittent failures.
Disregarding future expansion leads to costly rework. Allocate 20% spare capacity in the protective device and cable cross-section. If the initial load is 8A, provision a 10A MCB with 1.5mm² conductors; this permits adding two 60W luminaires later. Label each junction box with the connected load and circuit identifier–e.g., “Loop A: 6 × 12W LEDs + 1 × 30W driver”–to simplify maintenance. Avoid daisy-chaining more than 12 outlets per loop; exceeding this count complicates fault localization and breaches load dispersion guidelines.
Determining Conductor Capacity in a Looped Electrical Network
Start by measuring the total power demand of all connected fixtures and devices within the loop. Sum their wattage ratings–listed on nameplates–or convert amperage specs to watts using the standard formula: P = V × I, where P is power in watts, V is supply voltage (typically 230V in residential setups), and I is current in amperes.
Account for diversity factors to avoid oversizing conductors. If outlets serve appliances used sequentially (e.g., one at a time), apply a 40–60% load factor to aggregated demand. For simultaneous loads (e.g., ceiling luminaires), use 100%. For example, six 60W devices in parallel total 360W; with a 50% factor, effective demand reduces to 180W.
Refer to ampacity tables (IEC 60364 or BS 7671) for conductor cross-sectional area based on ambient temperature and installation method. A 1.5 mm² copper wire carries 16A in open air at 30°C but drops to 13A when bundled in conduit. Use the derated value for sizing.
| Conductor Size (mm²) | Ampacity (A) – Open Air | Ampacity (A) – Enclosed |
|---|---|---|
| 1.0 | 13 | 10 |
| 1.5 | 16 | 13 |
| 2.5 | 25 | 20 |
| 4.0 | 32 | 26 |
Calculate voltage drop across the loop. Multiply the current (I) by the loop length (L) in metres, then by the resistivity of copper (0.0175 Ω·mm²/m) and divide by cross-sectional area (A): VD = (0.0175 × I × L) / A. Target below 3% of supply voltage (≤6.9V for 230V) to ensure efficient operation.
Factor in future expansion. If installing a 2.5 mm² wire for a 16A load, verify it accommodates an additional 25% headroom (20A total). Overcurrent protection (MCBs) must align with conductor ratings–match a 20A MCB to 2.5 mm² wire, not 1.5 mm², to prevent overheating.
Validate loop continuity and resistance using a multimeter. For a 50m loop of 2.5 mm² wire, expected resistance is ~0.35 Ω end-to-end. Higher readings indicate loose connections or undersized conductors, requiring re-termination or upsizing.
