Start by identifying the power source. Use a 12V or 24V transformer for low-voltage setups, or connect directly to a 120V/240V mains supply for high-voltage circuits. Label each wire–typically, a white or gray conductor serves as neutral, a green or bare wire as ground, and black, red, or blue as live. Avoid mixing voltage types in the same circuit to prevent overloads.
For branch circuits, divide the layout into zones. Each zone should have a dedicated switch or dimmer, controlled by a master panel if automation is required. Use junction boxes at every 4-5 connection points to simplify troubleshooting. Keep runs under 100 feet to minimize voltage drop; for longer distances, increase wire gauge (e.g., swap 14 AWG for 12 AWG).
Install surge protectors at the source if LED drivers or transformers are involved. Ensure polarity is consistent–reversing live and neutral can damage bulbs or drivers. For outdoor installations, use weatherproof conduit and IP65-rated components. Test continuity with a multimeter before finalizing connections.
Standardize color codes: blue for phase in 3-phase systems, brown for live in single-phase, and yellow-green for ground (international IEC standards). Use twist-on connectors (e.g., Wago 221 series) for secure joins, or solder and heat-shrink for permanent setups. Document each circuit in a schematic with labels for switches, fixtures, and wire paths.
Add circuit breakers sized to 125% of the total load (e.g., a 15A breaker for a 12A circuit). For dimmable systems, pair compatible drivers with TRIAC or 0-10V dimmers to avoid flickering. Isolate sensitive components, like transformers, in separate enclosures to reduce interference.
Electrical Circuit Schematics for Illumination Systems
Begin by disconnecting the power source at the circuit breaker before handling any conductive paths. Use a non-contact voltage tester to confirm absence of current–probing terminals with a multimeter set to AC voltage mode (200–600V range) ensures no residual charge remains. For a single-switch setup, connect the incoming hot conductor (typically black or red) to the switch’s common terminal, then route the switched conductor to the fixture’s central contact. The neutral (white) should bypass the switch and splice directly to the luminaire, while the ground (green or bare) bonds all metallic components.

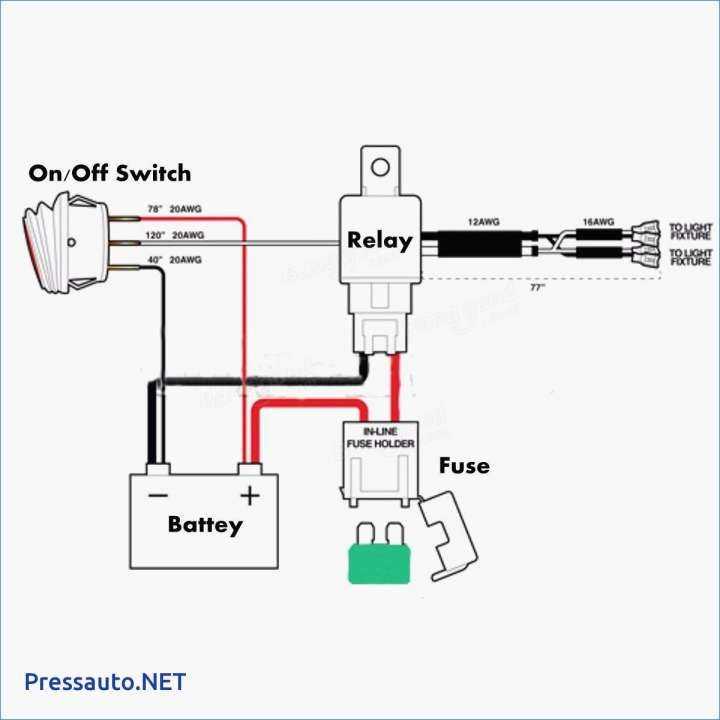

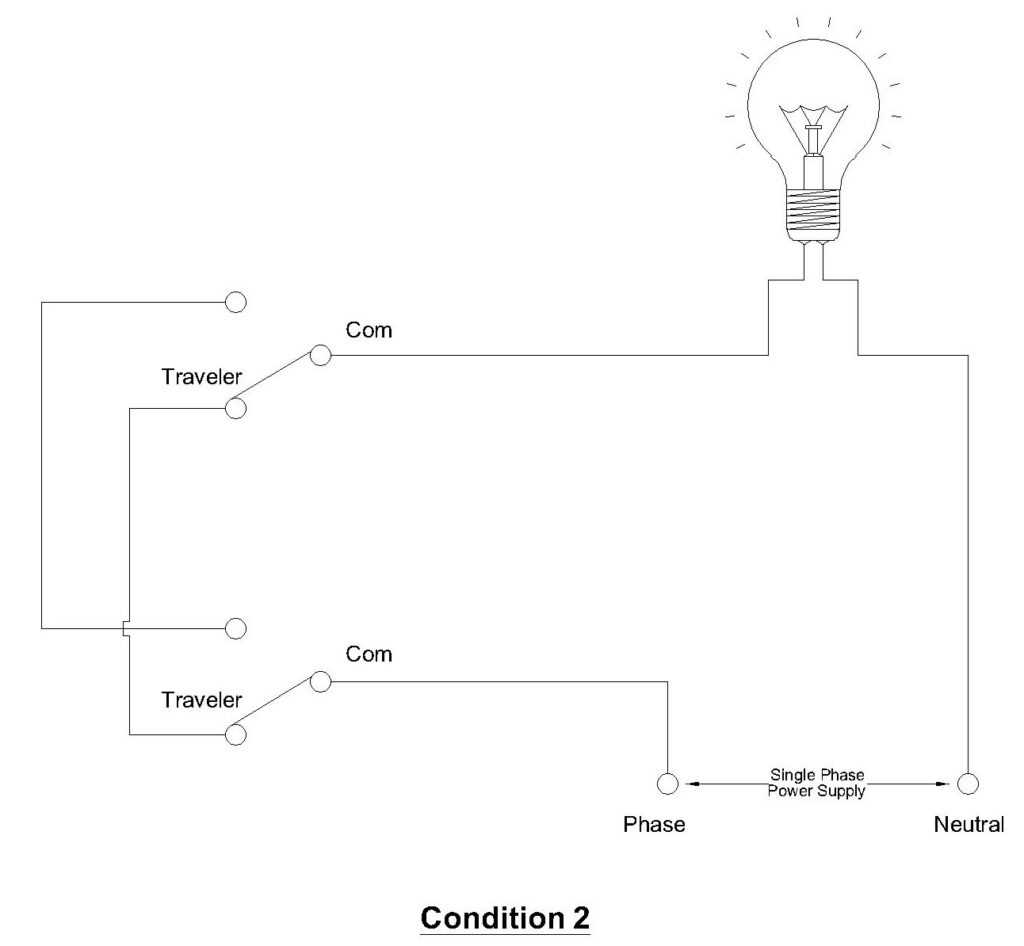

For multi-way control (three-way circuits), label conductors at each junction box with masking tape: “Common,” “Traveler 1,” and “Traveler 2.” The common terminal on the first switch connects to the incoming hot; travelers bridge the two switches via a 3-wire cable (14 AWG for 15A circuits, 12 AWG for 20A). At the luminaire, the common from the second switch links to the fixture’s hot terminal. Verify all connections with a continuity tester before energizing–crossed travelers will cause erratic operation. Below are standard conductor color codes by region:
| Conductor Type | North America | European Union | United Kingdom |
|---|---|---|---|
| Hot (Active) | Black/Red | Brown | Brown |
| Neutral | White | Blue | Blue |
| Ground | Green/Bare | Yellow-Green | Yellow-Green |
| Traveler (Multi-way) | Red/Yellow | Black | Black |
When retrofitting LED modules into existing incandescent circuits, check driver compatibility: constant-current drivers (350mA/700mA) require series wiring, while constant-voltage (12V/24V) systems use parallel. For dimmable installations, pair ELV (electronic low-voltage) transformers with trailing-edge dimmers–leading-edge dimmers will cause flicker. If buzzing occurs, swap the dimmer for a magnetic low-voltage (MLV) model or insert a RC snubber (0.1µF capacitor + 100Ω resistor) across the driver’s input terminals. Always match wattage ratings: a 600W dimmer can handle up to 12x 50W LED arrays.
For outdoor fixtures, use weatherproof junction boxes (NEMA 3R minimum) and silicone-filled wire nuts. Cable glands should compress the sheathing to form a watertight seal–avoid twist-on connectors outdoors. Underground feeds require direct burial cable (UF-B) or conduit (Schedule 40 PVC per NEC 352.44). Above-grade installations must include a drip loop at the entry point to prevent moisture ingress. Test ground continuity between the fixture and earth rod–resistance should not exceed 25Ω; if higher, drive an 8-foot copper-clad rod 6 feet from the structure and bond with 6 AWG copper wire.
Smart fixtures (Zigbee, Z-Wave, or Wi-Fi) need a stable 2.4GHz network and dedicated neutral at the switch location–most legacy switches lack this. Replace the switch with a smart module (e.g., Lutron Caséta, Zooz Zen71) and ensure the router’s DHCP lease time is set to 24 hours or longer. For PoE-powered luminaires (IEEE 802.3af/at), use Cat 6 cable with solid copper conductors and a maximum run length of 100 meters. Verify PoE injector compatibility: Class 1 devices require 4W, Class 4 up to 30W. If the system fails to initialize, check for IP conflicts using arp -a (Windows) or nmap -sn 192.168.1.0/24 (Linux/macOS).

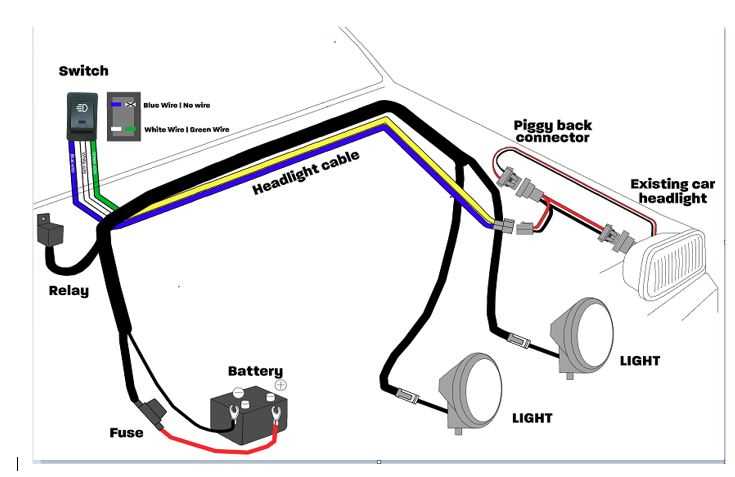

Core Elements for Sketching a Fundamental Electrical Schematic
Begin by selecting symbols that adhere to IEC 60617 or ANSI Y32.2 standards to ensure clarity and consistency. A switch, for example, should use a straight line breaking into an angled slant for single-pole types, while a breaker requires a rectangle with a diagonal line. Lamp representations often include a circle with an “X” or a filament symbol–stick to one style per project to avoid confusion. Standardized symbols reduce ambiguity when others interpret or modify your work.
Organize the layout with a logical flow: power source at the top, controls in the middle, and loads at the bottom. Use horizontal lines for supply rails (L1, N, or ground) and vertical drops for individual circuits. Label each conductor with gauge (AWG 14, 12) and color codes (black/red for hot, white for neutral, green for earth). For three-way setups, denote traveler wires (yellow or orange) distinct from common terminals (black or brass). Arrowheads can indicate current direction if polarities matter, such as in DC systems.
- Source: Battery, mains panel, or transformer–mark voltage (120V, 240V) and capacity (15A, 20A).
- Protection: Fuses (3A, 5A) or circuit breakers (MCB, GFCI), placed immediately downstream of the source.
- Control: Switches (SPST, SPDT, dimmer), relays (coil voltage 12V/24V), occupancy sensors. Note coil resistance and contact ratings (10A @ 250V).
- Load: Fixtures (LED, halogen), motors, or outlets–include wattage (60W, 100W) and current draw.
Critical Annotations
Add junction boxes (4″ square, octagonal) where splices occur, labeling each connection (J1, J2). Color coding: use red for switched hot, blue for 3-phase alternates if applicable. For conduit runs, note type (EMT, PVC) and size (1/2″, 3/4″). Where parallel paths exist, separate them vertically with at least 20mm spacing to prevent overlap. Print legible labels using monospace fonts (e.g., Courier New, 8pt minimum) and avoid grid-based CAD tools if hand-drawing–opt for pre-ruled schematic pads instead.
Step-by-Step Guide to Installing a Basic Toggle Control
Cut the power at the circuit breaker to the specific circuit you’ll modify. Verify absence of current with a non-contact voltage tester–hold it near the cables or switch terminals to confirm no live flow remains. Working on live circuits risks severe shock or fire.
Remove the existing plate from the switch enclosure by unscrewing the mounting screws. If replacing an old switch, detach the neutral (white), hot (black), and ground (bare or green) wires from the terminals–note their positions for reconnection. For new installations, strip 1/2 inch of insulation from each wire end using wire strippers, ensuring no frayed strands remain.
Connecting the Wires Properly
Attach the ground wire to the green grounding screw on the switch, tightening it securely with a screwdriver. Connect the incoming hot wire (from the power source) to the brass-colored terminal, and the outgoing hot wire (leading to the fixture) to the remaining terminal. Twist wire nuts over the connections if splicing, or use push-in terminals if the switch supports them–avoid loose connections that can arc.
Fold the connected wires neatly into the electrical box, ensuring no insulation is pinched or damaged. Secure the switch to the box with the provided screws, aligning it straight. Reattach the cover plate, then restore power at the breaker. Test the switch by toggling it–if the fixture responds without flickering or buzzing, the installation is correct. For smart or dimmer controls, consult the manufacturer’s guide for additional calibration steps.
If the fixture fails to activate, recheck all connections for proper attachment and correct wire placement. Confirm the circuit breaker is on and test adjacent outlets or fixtures on the same circuit to rule out broader electrical issues. For persistent problems, use a multimeter to measure voltage at the switch terminals–readings should match the expected supply voltage (typically 120V in North America).
Series vs. Parallel Circuit Connections: Key Differences
Opt for parallel connections when uniformity in brightness across multiple bulbs is critical. Each component in a parallel setup receives the same voltage as the power source–120V in US households or 230V in EU systems–regardless of the number of devices. This ensures consistent output and prevents dimming as more fixtures are added. Parallel circuits also isolate failures: if one bulb fails, the rest remain operational. Use this configuration for installations requiring reliability, such as ceiling panels, track systems, or outdoor arrays where redundancy is non-negotiable.
Series connections reduce voltage across each component, dividing the total supply equally. For example, three 24V bulbs in series on a 72V circuit each receive 24V. Brightness diminishes with each added unit, and a single failure breaks the entire chain. Reserve this method for specialized applications like low-voltage LED strips (e.g., 12V strips controlled by a single driver) where precise voltage drops are calculated. Avoid series for general lighting–efficiency drops by 30% per additional load, and safety risks increase with higher current demands.
- Calculate power requirements before deciding:
- Multiply wattage by the number of bulbs to find total load (e.g., 10 bulbs × 60W = 600W).
- Ensure the circuit breaker exceeds this value (20A breaker supports ~2400W at 120V).
- Parallel circuits distribute this load evenly; series circuits compound it linearly.
- Parallel advantages:
- Voltage remains constant (12V, 24V, or mains levels).
- Easy modular expansion–add/remove bulbs without recalculating.
- Compatibility with smart dimmers and motion sensors.
- Series limitations:
- Maximum 3–4 bulbs before noticeable dimming (test with a multimeter).
- Requires resistors or constant-current drivers for LEDs to prevent burnout.
- Not suitable for halogen or incandescent bulbs–use only for LEDs rated for series operation.
