Most residential circuits built after the mid-1980s include an unused return path–often overlooked but essential for modern installations. If your device lacks this conductor, you risk flickering indicators, malfunctioning sensors, or even voiding warranties on smart controls. Verify its presence by locating the white or gray bundle in the back of the junction box, typically grouped with other neutrals. Absence means rewiring the circuit or choosing an alternative setup.

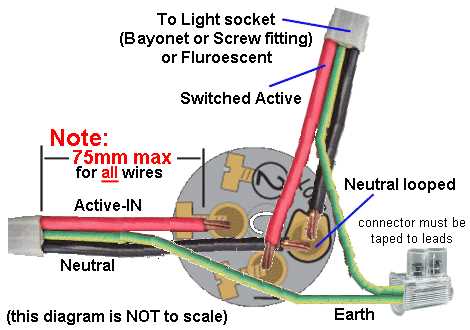

Standard two-way toggles require only the phase and load lines, but newer models–especially those with built-in timers or wireless connectivity–demand a direct return path. Splice it by joining the bundle to the corresponding terminal on the device, usually marked N or colored light blue in international schematics. Use twist-on connectors rated for 20A circuits or crimp sleeves for permanent installations. Never rely on the ground conductor as a substitute; while it might complete the circuit, it violates safety codes and risks tripping RCDs.
For three-way configurations, neutral must run parallel to all traveler wires without interruption. Trace the non-grounded conductor from the power source to the first terminal, ensuring it bypasses intermediate toggles before reaching the final one. Use a multimeter set to AC voltage to confirm continuity: probe between the return path and the incoming phase; readings should match the supply voltage (120V in North America, 230V in most of Europe). If values differ by more than 5%, inspect splices for loose connections or hidden junctions in outlet boxes downstream.
When retrofitting older boxes, beware of split-phase systems where 240V circuits may share the enclosure. The return path must be isolated from any conductors carrying opposing phases–crossing them creates a short, instantly tripping breakers. Label both ends of every wire with heat-shrink tubing before disconnecting anything; misplaced markings lead to hours of troubleshooting. If the box lacks depth for modern devices, replace it with a deeper unit or extend the circuit to a nearby accessible location.
After physical connections are secured, test functionality before closing the panel. Activate the device at the primary control and verify operation at secondary points (if applicable). Smart controls often require a factory reset after rewiring–consult the manufacturer’s Quick Start Guide for model-specific sequences. Store spare wire nuts, a spare length of 14 AWG stranded copper, and a non-contact voltage tester near the workbench for future adjustments.
Connecting a Toggle Device to a Common Return Path
Always verify the presence of a white conductor connected to the terminal block before proceeding. Modern electrical codes mandate this unused return path in junction boxes for safety and compatibility with smart modules. Failure to identify it may lead to improper circuit behavior or intermittent faults.
Disconnect the power at the circuit breaker panel–test both terminals with a non-contact voltage detector to confirm absence of current. Label the black conductor tied to the existing mechanism as “line,” the red or black lead going to the fixture as “load,” and the white wire as the return path.

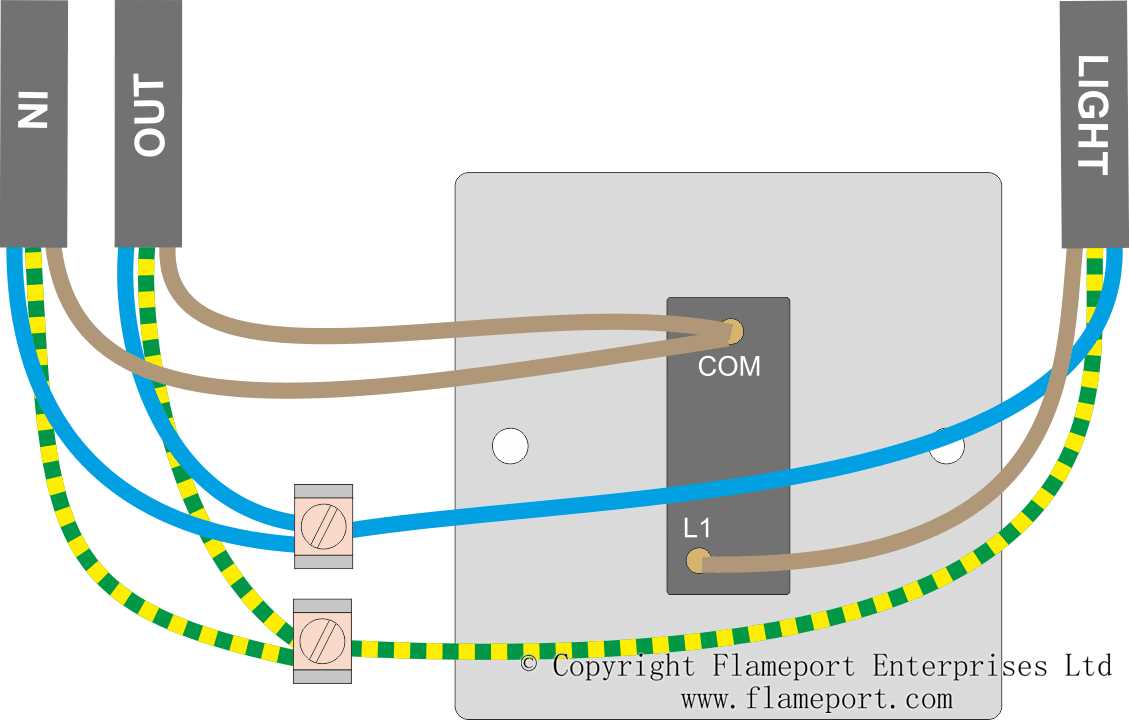

For single-pole installations, attach the line conductor to the brass screw, the load to the darker terminal, and the return path to the silver screw. Ensure wrap direction follows clockwise rotation of the terminal to prevent loosening over time. Twist connectors rated for 90°C must secure all splices, and excess conductor should be trimmed to avoid short risks.

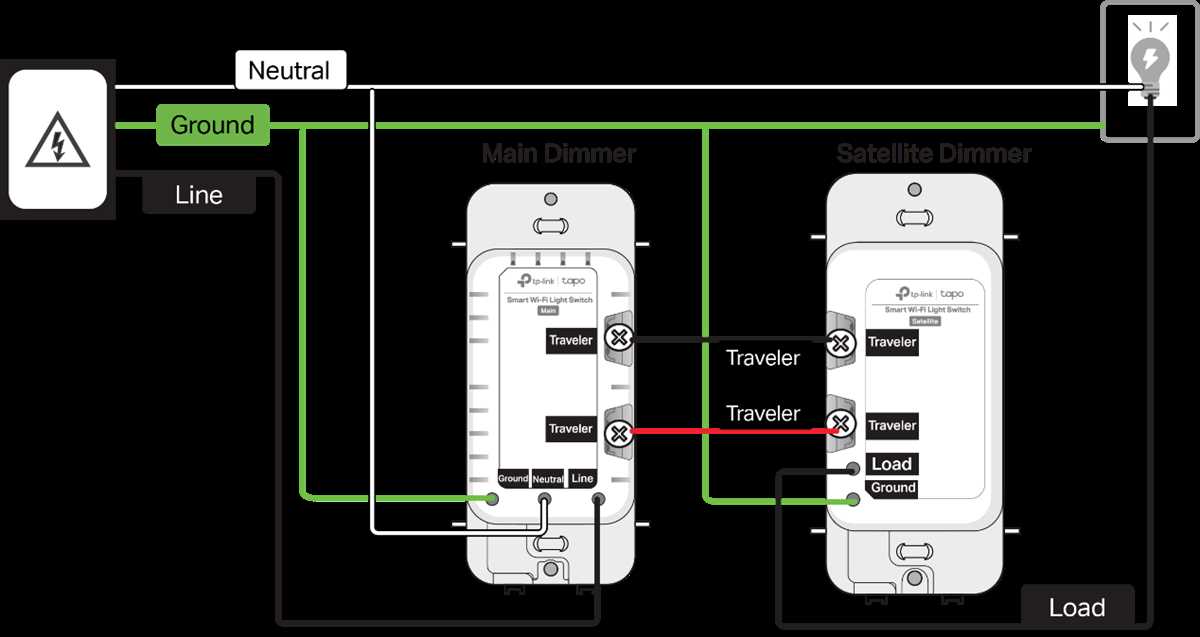

In three-way configurations, identify the traveler pair (often red and white) alongside the return path. Connect the travelers to the matching screws, marked or angled, while the return path joins the terminal common to both toggles. Polarity consistency across all devices prevents erratic operation.
After reassembling the faceplate, restore power and test each position. A multimeter set to AC volts should read 120V between line and return path, and 0V across closed contacts. If the fixture fails to energize, recheck splice integrity and terminal tightness–torque specs typically range 12-18 inch-pounds for residential devices.
Essential Gear and Supplies for Power Conduit Upgrades
Begin with a voltage detector rated for 90–600V AC, such as the Klein Tools NCVT-3 or Fluke 1AC II, to verify circuit deactivation before handling conductors. Non-contact models eliminate probe insertion risks, but test both phases and ground/return paths separately–older systems may retain residual charge in capacitive loads. Include a digital multimeter with true RMS for accurate voltage, current, and resistance readings; the Fluke 87V or Amprobe AM-570 covers most residential and small commercial tasks. For conduit bending, a hand bender (Ideal 74020 for ½” EMT) paired with a bending gauge ensures precise 10°, 22.5°, and 30° offsets without manual measurements.
Stock THHN/THWN-2 conductors in 12 AWG (20A circuits) or 10 AWG (30A) with dual-rated insulation; verify compliance with NEC Table 310.16 for ampacity adjustments in ambient temperatures above 30°C. Use fish tape (Klein 1628-25 for 250ft pulls) with a lubricant like Greenlee Glide–avoid petroleum-based products on PVC to prevent long-term degradation. For junction enclosures, select weatherproof boxes with threaded hubs (Hubbell HBL4000 series) or gangable plastic boxes (Carlon B318R) per NEC 314.16(A) volume requirements; derate fill limits by 40% when bundling more than four conductors. Include grounding pigtails (12 AWG bare copper) terminated with compression lugs or irreversible crimp connectors (Panduit CT-72 for 10–14 AWG).
Equip yourself with insulated screwdrivers (Wiha 32099, certified to 1000V) and lineman’s pliers (Klein J2000-9NECR) for wire cutting and stripping; sharpen cutting edges monthly to prevent rail damage on coated wire. For terminations, use lever-nut connectors (Wago 221 series) for stranded copper and push-in wire nuts (Ideal Twister 74B) for solid core–torque to manufacturer specifications (typically 12–18 in-lbs) to avoid loosening under thermal cycling. A non-pyrogenic heat gun (Steinel HL 1620 E) shrinks dual-wall tubing (Raychem DR-25) for moisture protection on splices; maintain nozzle temperature between 200–250°C to avoid insulation carbonization. Store spare conduit straps (1-hole EMT clamps) and self-tapping screws (#8×1″ zinc-plated) for secure mounting onto wood or metal studs.
Step-by-Step Guide to Locating Zero-Potential Conductors in Installed Electrical Paths
Turn off the power at the circuit breaker before handling any conductors–verify absence of current with a non-contact voltage tester on all exposed leads. Most modern residential systems include a zero-potential conductor, identifiable by its white or gray insulation, though older installations may deviate. Check for bundled conductors entering the junction box; the zero-potential lead is typically paired with hot wires in cables containing three or more conductors (excluding grounding paths).
Inspect terminations: zero-potential conductors should be connected to terminal screws marked “common,” “neutral,” or “white” on outlet receptacles, dimmers, or control modules. In improperly labeled boxes, trace the conductor to its origin–it often terminates at the service panel’s neutral bus bar. Avoid assuming color codes in mixed-metal systems (e.g., aluminum and copper); verify continuity with a multimeter set to resistance mode (0 ohms between zero-potential leads).
- Examine junction boxes for spliced white/gray conductors–these often indicate zero-potential paths routed to multiple devices.
- Look for insulating tape or markings (e.g., colored sleeves) on conductors; some electricians re-label zero-potential leads for clarity.
- In split-phase systems, zero-potential conductors carry unbalanced current–measure voltage between hot and zero-potential leads (should read ~120V AC).
- If conductors appear identical (e.g., all white), tag each before disconnecting, then test individually with a multimeter.
In conduit installations, zero-potential conductors may lack consistent coloring–check for physical grouping with hot leads. For dual-voltage systems (e.g., 120/240V), zero-potential conductors are shared between circuits; ensure they’re sized for combined load (e.g., 10 AWG minimum for 30A circuits). If retrofitting older equipment, confirm zero-potential conductors aren’t repurposed as hot or grounding paths–this violates safety standards and creates shock hazards.
For three-way or multi-location control setups, zero-potential conductors may run through traveler terminals–use a tone generator to trace their path through walls without extensive dismantling. Document findings with photographs or sketches, noting conductor gauge, insulation color, and terminal connections. If zero-potential paths are absent, consult local electrical codes for compliant retrofit options (e.g., adding a dedicated zero-potential conductor or using smart devices with built-in zero-potential functionality).
Connecting a Basic Toggle Using the Return Conductor
Turn off the circuit at the breaker before handling any conductors. Verify absence of voltage with a non-contact tester on both feed terminals. Failure to confirm zero potential risks severe shock or arc faults.
Identify the hot feed conductor–typically wrapped in black or red sheathing–and the neutral, commonly in white or gray. Strip 1/2 inch of insulation from each end of the feed and neutral leads using wire strippers calibrated for the gauge. Twist strands clockwise to prevent fraying before inserting into terminal screws or push-in ports.
Attach the hot feed to the brass-colored terminal on the toggle device. Loop the exposed conductor clockwise around the screw before tightening to 12–15 inch-pounds; this prevents loosening under thermal expansion. Secure the neutral conductor to the silver-colored terminal following the same torque specification. Avoid overtightening, which can deform copper strands and reduce conductivity.
For push-in connections, insert straight-cut conductor ends fully into the ports until a slight resistance is felt. Tug gently to ensure retention–loose connections generate heat and may trip breakers or melt insulation. Use back-wired clamps only if the device explicitly supports side-release mechanisms; improper use voids UL certification.
Fold excess conductor neatly into the junction box, avoiding sharp edges that could chafe insulation. Secure the device to the box with mounting screws, ensuring flush alignment against the wall plate. Misalignment stresses terminals and risks intermittent contact, especially with frequent operation.
Restore power at the breaker and verify operation with a voltage tester. The toggle should energize the load circuit without humming or excessive heat–a sign of loose or undersized conductors. If flickering occurs, recheck terminal tightness and conductor gauge against the circuit’s amperage rating (typically 15A for 14 AWG, 20A for 12 AWG).
Label neutral-to-ground bonds if present, as improper isolation violates NEC 300.13(B) and can cause ground loops. Use a permanent marker inside the box cover to note circuit identification for future troubleshooting. Store unused conductors coiled without tension to prevent insulation memory effects, which weaken dielectric strength over time.
