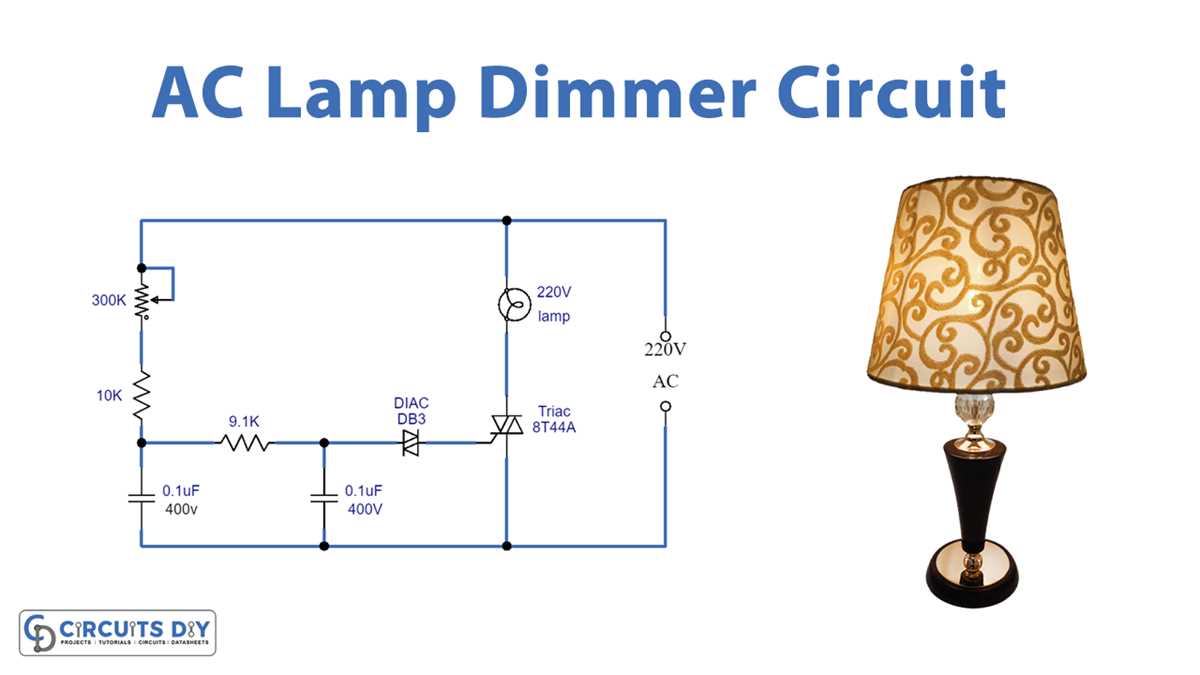

Begin with a triac as the core switching element–opt for an BT136 or BT139 for mains-powered applications due to their 600V/4A rating. Pair it with a DIAC (e.g., DB3) to trigger the gate reliably, eliminating inconsistent firing delays. A 100kΩ logarithmic potentiometer ensures smooth adjustment from 0% to 100% output, while a 0.1µF/400V polyester capacitor stabilizes the RC network’s timing.
For mains synchronization, use a 47kΩ resistor in series with the potentiometer to limit current through the DIAC. Add a snubber circuit (47Ω resistor + 0.01µF/630V capacitor) across the triac to suppress voltage spikes, preventing false triggering. Ensure the triac’s heatsink is rated for at least 10°C/W thermal resistance–excessive heat degrades efficiency and lifespan.
Avoid using carbon-film potentiometers in high-power setups; they exhibit erratic behavior under load. Instead, select a cermet or wirewound type for durability. For 120VAC systems, halve the resistor values (e.g., 47kΩ → 22kΩ) to maintain the same timing characteristics. Test the circuit with a 60W incandescent load first–LEDs and CFLs require additional filtering (a 100µH choke + 1µF electrolytic capacitor) to prevent flicker.
Ground the metal case if enclosing the unit, and isolate all high-voltage traces by a minimum 2mm clearance. For dimming arrays, parallel multiple triacs with individual RC networks–shared components cause uneven brightness. Use PCB traces at least 2oz copper thickness for currents above 2A. Verify phase-cut operation with an oscilloscope; a distorted waveform signals improper component pairing.
Adjustable Brightness Control Circuit Design
Select a triac with a current rating at least 30% higher than your maximum load. For a 600W bulb, a BT136 (4A) or BTA16 (16A) ensures thermal margin. Pair it with an MOC3021 optocoupler–its 400V isolation prevents mains feedback into low-voltage circuits. Avoid zero-cross optocouplers for phase-angle control; their 50μs delay creates flicker at low brightness.
Calculate RC timing components precisely. For 50Hz mains, use:
| Target Power (W) | R (kΩ) | C (μF) | Trigger Angle (°) |
|---|---|---|---|
| 100 | 15 | 0.1 | 145 |
| 300 | 33 | 0.047 | 120 |
| 600 | 47 | 0.022 | 90 |
These values mitigate hysteresis–test with an oscilloscope to confirm stable waveform symmetry across the dimming range.
Wire a snubber circuit (100Ω resistor + 0.01μF X2 capacitor) in parallel with the triac’s MT1-MT2 terminals. This suppresses voltage spikes above 1.5kV that degrade semiconductor junctions over time. Without it, 5mm lead spacing may arc at 230VAC under inductive loads.
Use a potentiometer with logarithmic taper–linear models compress adjustment sensitivity at low power levels. A 500kΩ log pot paired with a 1N4007 diode ensures single-polarity charging of the timing capacitor, preventing false triggers from negative half-cycles. Avoid carbon-film potentiometers under 250mW power rating; they develop hotspots at 2W continuous dissipation.
Ground the metal chassis of the control box to the earth pin via a 10nF Y2 safety capacitor. This shunts high-frequency noise from the triac’s commutation dV/dt (typically 100V/μs) that can radiate 30MHz interference into AM radio receivers. Include a 10Ω series resistor to limit ground fault currents to 250mA.
For 3-way compatibility, add a 1μF suppression capacitor across the triac’s gate-MT1 junction. This prevents erratic triggering caused by leakage currents (5-10μA) through switch contacts when the pot is set to minimum. Cold-rolled steel enclosures require a nickel-plated finish; untreated steel oxidizes at 200°C under sustained load, increasing contact resistance.
Test load compatibility with:
- Incandescent: full range (1-99%)
- LED drivers: 20-90% (below 20% flickers, above 90% overheats)
- Transformers: 40-80% (dc offset at extremes)
Transformers require a 10ms delay circuit (2.2μF + 1MΩ) to block inrush currents–otherwise, saturation occurs at 1.3x rated VA.
For 400VAC industrial applications, replace the triac with a TIC226D and use 1kV ceramic capacitors. The MOC3063 optocoupler’s 7500V isolation prevents arc-through failures. Laser-trimmed resistors (±1%) maintain consistent trigger angles across production batches–verify with a rms meter calibrated to IEC 61000-4-11.
Key Elements in a Triac-Based Brightness Control Assembly
Triac: Select a bidirectional thyristor with a current rating exceeding the load’s maximum draw by at least 20%. For standard incandescent adjustment, models like BTA16-600B are optimal–low holding current (≤50 mA) ensures stable operation at low conduction angles. Avoid sensitive-gate variants unless interfacing with low-power triggers; snubberless types reduce external component count.
Diac (Trigger Diode): Use a DB3 or equivalent with a breakdown voltage of 30–36 V. This component governs the triac’s gate pulse timing; inconsistencies here cause flicker. If precise control is critical, substitute with a quadrac (integrated diac-triac) like Q401E3, eliminating separate biasing requirements.
Potentiometer (Adjustment Resistor): Choose a linear taper, carbon-film type between 220 kΩ and 500 kΩ. Resistance tolerance ≤±10% prevents abrupt changes near minimum settings. For high-power loads, wirewound pots resist heat-induced drift but introduce nonlinearity; test with a load simulator before finalizing.
Capacitor (Phase-Shifting Element): A polyester film capacitor (0.1 µF, 250 V AC) provides smooth phase delay. Polypropylene alternatives handle higher peak currents but occupy more PCB space. Avoid ceramic capacitors–they lack stability under AC stress, leading to erratic firing angles.
Gate Circuit Resistor: Insert a 100–220 Ω resistor between the diac and triac gate. This limits surge current to ≤1 A during triggering, protecting both components. For inductive loads, increase to 330 Ω to suppress false triggering from back-EMF. Verify with an oscilloscope; gate waveform spikes should not exceed 5 µs.
Snubber Network (Optional but Recommended):strong> For loads above 200 W, pair a 100 nF capacitor (X2-rated) with a 100 Ω resistor (1 W) across the triac’s main terminals. This suppresses voltage transients (>400 V/µs) that can cause misfiring or premature failure. Absence risks radio-frequency interference, detectable with an AM receiver.
Load Considerations: Confirm compatibility: triac-based controls perform poorly with LED drivers (require leading-edge compatibility) and CFLs (phase-cut distortion). For resistive loads (e.g., halogen), use fast-switching triacs (e.g., STMicroelectronics TN4015H) with turn-off times ≤50 µs. Always fuse the circuit–5 A slow-blow for 400 W loads–to prevent catastrophic faults.
Step-by-Step Build of a Custom Brightness Control Circuit
Select a TRIAC suited for your load–BT136 handles 4A, MAC97A8 manages 1A, while BTA16 supports 16A. Verify its pinout: gate (G), main terminal 1 (MT1), and main terminal 2 (MT2). Use a heatsink if currents exceed 2A to prevent thermal runaway. A TO-220 package with a 1.5°C/W heatsink drops junction temperature by 60% under continuous 3A load.
Attach the potentiometer’s outer pins across a 100nF polyester capacitor. Wire the wiper to a 1N4007 diode’s cathode, anode connecting to the TRIAC’s gate. This forms a phase-shift network; a 470kΩ pot yields a 10ms–90ms adjustable delay. For inductive loads, replace the diode with a DB3 diac to avoid false triggering.
- Strip 22 AWG solid-core wire to 5mm lengths for secure PCB solder joints.
- Tin the TRIAC’s legs before mounting–prevents dry joints under thermal stress.
- Insert a 100Ω series resistor between the pot’s wiper and TRIAC gate to limit gate current to 10mA.
- Orient the TRIAC’s MT2 tab toward the neutral line–minimizes RF interference.
- Neutral: MT2 → mains input → fuse → load.
- Live: pot → capacitor → gate → fuse → load.
Secure components with a fiberglass PCB; avoid paper phenolics above 2A. Drill 1.2mm holes for through-hole parts–clearance reduces stray capacitance. Apply a 60/40 leaded solder; 63/37 eutectic melts at 183°C but costs 20% more. Preheat the board to 120°C for 30 seconds to prevent cold joints.
Testing and Calibration
Power the circuit with a variac set to 50VAC. Measure phase delay across the TRIAC’s MT1-MT2 using an oscilloscope’s differential probe. A 220kΩ pot should produce an 8ms delay; deviation beyond ±1ms indicates faulty components. Swap the capacitor to a 470nF unit if delays stretch below 5ms. For noise suppression, add a 10nF 400V X-rated capacitor across MT1-MT2.
Final Adjustments for Load Types
Incandescent bulbs tolerate abrupt phase cuts; LEDs and CFLs require a 1μF snubber capacitor across MT1-MT2 to prevent flicker. Motorized loads demand a snubber plus a 10μH choke in series with MT2–reduces dv/dt spikes below 5V/μs. Document phase-cut angles with a DSO for later troubleshooting; a 45° cut equals 2.5ms delay on 50Hz mains.
Wiring Guide for Single-Pole vs. Three-Way Control Modules
For standalone installations with one regulator managing a fixture, connect the hot (live) wire–typically black–to the common terminal (marked “COM” or brass-colored). Attach the switched output (red or another color, depending on manufacturer) to the load terminal. Ground and neutral must follow local electrical codes; copper to green screw, white to neutral bus if required. Verify polarity with a multimeter before sealing the junction box–miswiring risks overheating or flickering.
Three-way configurations require two modules working in tandem. Assign the primary regulator:
- Attach incoming hot wire to the common terminal.
- Connect traveler wires (usually red and black) to the remaining terminals.
- Leave the load terminal empty unless the unit doubles as endpoint.
For the secondary module:
- Link the now-regulated hot input to the common terminal.
- Join traveler wires to the matching terminals on both units.
- Attach the fixture’s hot wire to the load terminal.
Double-check traveler pairing–swapping red and black reverses operation polarity, causing erratic brightness.
Screwless terminals simplify installation but demand caution:
- Strip wires precisely 12mm–excess copper causes shorts, insufficient grip loosens over time.
- Insert wire directly, avoiding loops or partial insertions.
- Tighten clamping mechanisms fully; torque varies by brand (e.g., Lutron: 1.5Nm, Leviton: 1.2Nm).
Neutrals in smart modules must never be daisy-chained–terminate each device’s neutral separately to the busbar to prevent interference.
Compatibility dictates wire gauges:
- 15A circuits: 14 AWG minimum (solid or stranded).
- 20A circuits: 12 AWG mandatory.
- LED loads below 40W: use manufacturer-supplied bypass capacitor to prevent ghosting.
- Inductive loads (motors, transformers): derate capacity by 25%; check unit’s max wattage rating minus 10% for safety margin.
Isolate traveler circuits with colored tape–mark both ends of red wires at every junction box to avoid confusion during future service.
