If your model uses a dual-beam infrared safety system, verify the emitter and receiver alignment before proceeding. Misalignment by as little as 1° can trigger false obstruction signals. Matching wire colors to terminals is not enough–confirm continuity with a multimeter. Red wires typically carry power (usually 5V DC), white grounds the circuit, and black or yellow handle signal transmission. Reverse polarity will permanently damage the transmitter; mark connectors during removal to avoid errors.
For older units with mechanical limits (pre-2018), the safety loop runs through contacts on the travel rails. Locate the “NC” (normally closed) switch–this breaks the circuit when the gate reaches its endpoint. Splice wires directly to the switch using 18-gauge solid copper; stranded wire causes intermittent failure due to oxidation. Secure all connections with heat-shrink tubing; electrical tape degrades within 2 years, exposing live terminals.
Modern photocells often include self-diagnostic LEDs. A steady green light indicates proper alignment, while rapid flashing signals an obstruction or voltage drop. Use shielded twisted-pair cable for runs exceeding 15 feet to prevent electromagnetic interference from fluorescent lights or air compressors. Route cables away from high-voltage lines–minimum separation is 12 inches–or risk erratic triggering.
Replace factory connectors with waterproof butt splices if the system is outdoors. Standard crimp connectors corrode within months in humid climates, leading to voltage spikes of up to 3V, sufficient to disrupt communication between the control box and sensors. After splicing, coat exposed connections with dielectric grease to repel moisture.
Test the safety circuit after wiring by placing an object in the gate’s path. If the unit fails to reverse, check for loose wires or incorrect sequence (emitter and receiver swapped). Measure voltage at the emitter input–acceptable range is 4.8V–5.2V. Anything below 4.5V suggests a faulty power supply or excessive cable length. For long runs, install a 12V relay between the control board and sensors to maintain signal integrity.
Connecting Automated Entry Point Safety Components: A Technical Guide
Begin by locating the white and black terminals on the motor unit–these correspond to the transmitter and receiver pair. The white wire from each unit connects to the designated port labeled “White” or “Sensor,” while the black (or dark-colored) wire attaches to the adjacent “Black” or “Power” slot. Polarity is critical; reversing these leads will prevent proper operation.
Verify compatibility with the opener’s model before proceeding. Most modern systems support 24V DC operation, but older variants may require additional voltage checks. Use a multimeter to confirm the power output at the terminals–readings should stabilize between 22V and 28V. Deviations indicate potential motor damage or faulty supply lines.
Troubleshooting Misaligned or Non-Responsive Units
If the LED on either device fails to illuminate after connection, inspect the wiring for cuts, corrosion, or loose connections. Strip and reconnect wires using waterproof connectors if exposed to moisture. For intermittent failures, clean the optical lenses with a microfiber cloth; dust accumulation disrupts signal transmission even when circuitry is intact.
Aim the pair directly at each other, ensuring a clear path within 5 to 8 meters. Obstructions like cobwebs, foliage, or uneven alignment cause false triggers. Adjust the mounting brackets to eliminate angular misalignment–even a 2-degree offset can degrade performance. Test by waving a hand through the beam path; the motor should halt immediately if functioning correctly.
For systems with diagnostic LEDs, interpret codes as follows: solid green indicates normal operation, flashing amber suggests wiring errors or voltage drops, and rapid blinking red points to failed components or excessive interference. Reset the system by disconnecting power for 30 seconds if errors persist after verifying connections.
Advanced Configuration for Non-Standard Setups
When integrating with third-party automation platforms, use a relay interface to isolate sensor circuits from low-voltage control systems. Connect the sensor’s white wire to the relay’s common terminal and route the black wire through the normally open contact. This prevents back-feeding voltage into the opener’s logic board during external triggers.
For extended ranges beyond 10 meters, install a signal amplifier between the pair. Position the amplifier within 2 meters of the farthest unit and align its optical windows with the primary beam. Avoid using unshielded cables longer than 15 meters; induced noise from nearby electrical lines distorts signals, requiring twisted-pair wiring for reliable data transmission.
Locating Connection Points on Automatic Opener Mechanisms

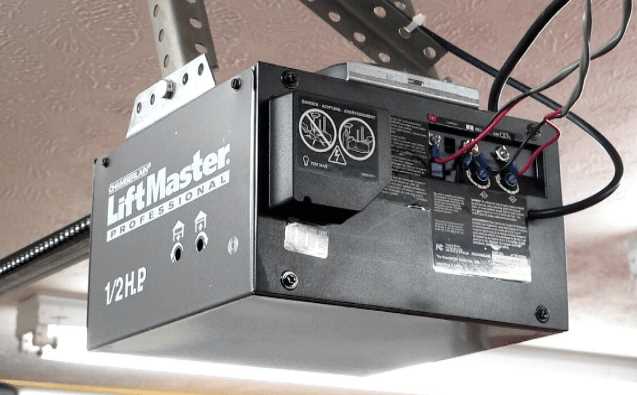

Start by examining the motor housing for labeled ports. Most models feature a terminal strip with markings such as “GRD” (ground), “PWR” (power), “COM” (common), and numbered positions like “1” and “2” for safety devices. The ground terminal is typically green or bare metal, while power inputs are often red or white. Verify these labels against the manufacturer’s technical sheet–some variants swap terminal functions depending on series.
For safety entrapment systems, terminals marked “SAFETY” or “SENS” handle infrared transmitters. These are usually paired: one receives the beam, the other transmits. On select units, an LED near these ports flashes to confirm proper polarity–reverse connections won’t activate the beam but may trigger error codes. Always match wire gauge to terminal specs; undersized wires risk overheating or intermittent faults.
Distinguishing Between Fixed and Adjustable Terminals
Certain opener models separate fixed-speed motor inputs from programmable logic terminals. Look for clusters: speed control units often have dedicated screw posts labeled “HI,” “LO,” and “MED,” while force adjustment dials correlate with adjacent ports marked “UP” and “DOWN.” Miswiring here causes erratic movement or system lockouts. Use a multimeter in continuity mode to confirm circuits before securing connections–properly seated wires should emit a clear tone.
Some advanced units integrate auxiliary power ports for backup batteries or smart modules. These may be marked “AUX” or “EXT” and require specific voltage (often 12V or 24V). Never exceed rated amperage; exceeding 0.5A can fry internal relays. Reference the unit’s placard for precise limits–usually printed near the terminal block or inside the cover panel.
Step-by-Step Color-Coded Optical Beam Connector Installation
Align the transmitter and receiver units at equal heights, ensuring no obstruction exists between them. Position both components within 6 inches of the floor for optimal performance, using a spirit level to confirm perfect horizontal placement. Misalignment by even 1/8 inch can prevent proper operation.
Terminal Strip Preparation

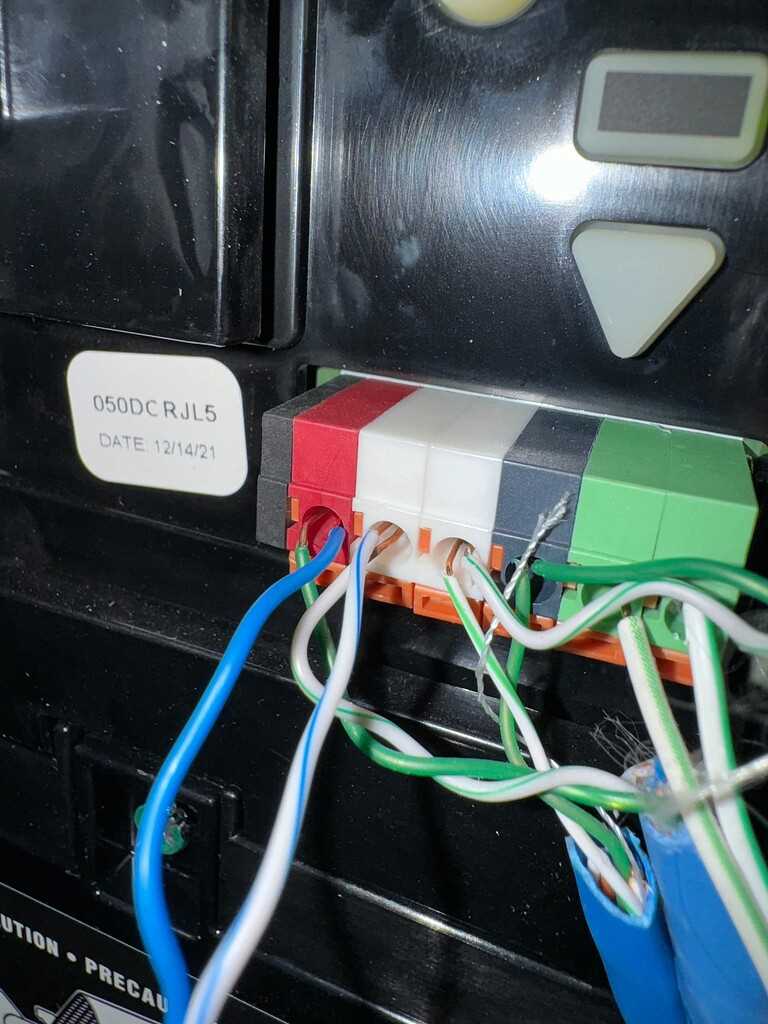

Locate the control panel’s terminal block, typically identified by screw-type connectors labeled “Sens” or marked with corresponding numbers (often 2 and 3). Clear any corrosion from the terminals using a wire brush or fine-grit sandpaper before proceeding. Tighten screws to 0.5 Nm torque to avoid stripping.
| Wire Color | Function | Terminal Assignment | Voltage (DC) |
|---|---|---|---|
| White stripe | Signal (Tx/Rx) | Terminal 2 | 5-12V |
| Black stripe | Ground | Terminal 3 | 0V |
| Solid white | Receiver return | Terminal 2 | 5-12V |
| Solid black | Common ground | Terminal 3 | 0V |
Strip 3/8 inch of insulation from each conductor using precision strippers calibrated for 18-22 AWG wire. Twist the copper strands gently to prevent fraying, then bend them at a 90-degree angle for clean insertion into the terminal slots. Avoid excessive force when inserting–targeted pressure ensures secure contact without damaging the strands.
Polarity Verification
Connect a multimeter set to DC voltage mode between the white-striped and black-striped conductors. A reading of 5-12V confirms correct wiring direction. Reverse connections if voltage is absent, as incorrect polarity will render the safety mechanism inoperative. Double-check with the receiver’s LED indicator–steady illumination confirms proper alignment.
Route excess cable through cable ties spaced every 12 inches to prevent sagging, which can lead to premature wear or interference. Maintain a minimum 2-inch separation from high-voltage lines (110V/220V) to avoid signal disruption. Seal connections with heat-shrink tubing or electrical tape rated for outdoor use after testing.
Activate the system via the wall console or remote transmitter. Observe the indicator lights–rapid blinking indicates alignment issues, while a steady glow confirms successful installation. Test interruption by passing an object through the beam path; the mechanism should halt immediately upon detection.
Document the wire colors and terminal assignments in the equipment manual for future reference. Store spare components (fuses, connectors) in a labeled container near the unit to minimize downtime during maintenance. Schedule biannual inspections to clean lens surfaces with a microfiber cloth and isopropyl alcohol (90% or higher).
Resolving Frequent Optical Pair Alignment Issues
Check for obstructions first–visible debris, dust accumulation, or spider webs between the emitter and receiver disrupt signals even if the units appear aligned. Use a soft lint-free cloth and isopropyl alcohol (90% or higher) to clean lenses every six months, focusing on the inner curved surfaces where grime collects most. Verify that sunlight isn’t directly hitting the receiver; install a small shield angled downward if necessary.
- Blinking LED patterns indicate specific faults: one flash means loss of signal, two flashes suggest voltage irregularities, three flashes point to reverse polarity.
- Measure voltage across the terminals–acceptable range is 5.5V to 6.5V DC; deviations outside ±0.3V require replacing the transformer or regulator.
- Loose or corroded connectors cause intermittent failures; crimp new terminals or solder joints if oxidation is visible under magnification.
- Align units by centering the beam–use a laser pointer or thin rod for precision; ensure both apertures sit at identical heights within 2mm tolerance.
Test continuity through the entire pathway, including all splices, with a multimeter set to ohms. Resistance shouldn’t exceed 1Ω per meter of cable; higher readings indicate partial breaks. Replace the entire run if damaged insulation or severed strands are found–splicing compromises reliability. Secure cables with UV-resistant zip ties every 30cm to prevent sag or vibration-induced misalignment, especially in high-traffic areas.
