To locate internal layout documentation for the 2012-era 14-inch mobile workstation, start with verified repositories like BadCaps or ElectroTanya. These platforms host circuit blueprints, including PSU pinouts, motherboard power rails (3.3V, 5V, 12V), and signal pathways for SATA, LVDS, and USB 2.0 buses. Verify file checksums–MD5 hashes for schematic files should match a4d3c2b1e8f5...–to avoid corrupted data.
Focus on the mainboard’s system architecture sheet: it outlines EC (embedded controller) connections, RAM voltage regulators, and Wi-Fi module interfaces. Key components like the Intel BD82HM77 PCH require special attention–trace its PCIe lanes and SMBus lines. For troubleshooting, prioritize PAGE_07 (power distribution) and PAGE_12 (I/O panel). Isolate capacitor banks near the CPU socket; ESR values for tantalum caps should not exceed 2Ω.
If original schematics are unavailable, use KiCad to cross-reference component placement from board-level photos. Labels like PL12 (power LED), PR143 (CMOS battery connector), and LVDS1 (display interface) are critical. For signal integrity checks, measure impedance on high-speed traces–USB 2.0 should maintain 90Ω (±10%). Replace worn connectors only with OEM-grade parts (TE Connectivity, Molex) to prevent data corruption.
Legacy firmware flash tools (CH341A programmer, Flashrom) require precise voltage settings. Back up the 4MB SPI chip before modifications–look for the W25Q32BV designation. Validate BIOS checksums against known-good dumps. For thermal repairs, the GPU’s Fan Header 1 (4-pin) follows a tachometer signal; faulty readings often indicate a dead sensor, not fan failure.
Service Manual for the Portable Workstation T430: Circuit Board Layout
Begin troubleshooting by locating the PU1 Main Power MOSFET on the motherboard layout. This component, marked RT8206, regulates voltage for the CPU and VRAM–failure here causes boot loops or sudden shutdowns. Measure resistance between pins 4 (VCC) and 8 (GND) with a multimeter; a reading below 10 ohms confirms a short. Replace the IC if damaged, ensuring solder joints align with the BGA footprint in the board documentation.
Check the EC chip (ITE IT8572E) for corrupted firmware by probing pin 34 (SMBus clock) and pin 35 (data). A stable 3.3V signal should pulse at 100 kHz; inconsistent spikes indicate a bad flash. Reprogram using a CH341A tool with the original BIOS dump–avoid third-party firmware as it may overwrite embedded controllers. The schematic specifies decoupling capacitors (C401, C402) near this area; desolder if leakage is visible under magnification.
Testing Peripheral Interconnects
Trace the LVDS connector (CN16) for display issues by verifying continuity on lines LVDD (pins 2, 3) and LVDS_CLK (pins 5, 6). A break in these traces often causes backlight failure. For USB ports, inspect U7 USB hub controller and its 22Ω series resistors (R121-R124)–open circuits here disable data transfer. Use a thermal camera to detect abnormal heat on the PCH (Intel 7 Series), which suggests internal latch-up requiring a full board replacement.
Locating the Service Blueprints for the Laptop Model 430
The primary source for factory-issued board layouts is the manufacturer’s official support portal. Navigate to the product page for the business-class ultraportable released in 2012, then scroll to the “Drivers and Software” section. Filter by “Hardware Maintenance Manual” or “System Schematics”; files are typically hosted as password-protected PDF archives. Registration may be required–use a corporate email address to expedite access approvals.
Third-party board repair forums often archive internal documentation shared by authorized service centers. Notable repositories include:
- Badcaps.net: Dedicated subforum for enterprise laptops, moderated by certified technicians.
- Electrotanya.com: Maintains a historical database of circuit layouts, searchable by model designation.
- GitHub gists: Individual contributors upload stripped-down versions of board views, though quality varies.
Verify file integrity by cross-referencing component designations with the laptop’s technical specifications.
The FCC ID search tool offers an alternative route. Enter the device’s FCC identifier–found on the chassis underside or within the battery compartment–to retrieve internal photographs and circuit descriptions submitted during regulatory approval. These documents include unannotated board scans, sufficient for basic troubleshooting.
Corporate IT departments and independent repair shops regularly obtain schematics under non-disclosure agreements. Contact local providers specializing in business-class hardware; they may share redacted versions for diagnostic purposes, particularly if the device is out of warranty. Highlight urgency–some shops prioritize requests tied to active service tickets.
Specialized electronic distribution platforms occasionally host schematic packs bundled with replacement parts. Check suppliers like Mouser or Digi-Key; filter search results using the laptop’s motherboard part number (e.g., FRU 04X5465). Purchasing a repair kit often grants temporary access to supplementary technical files.
Last-resort options include reverse-engineering partial schematics from high-resolution disassembly videos. Focus on YouTube channels operated by professional refurbishers; their annotations frequently label key power rails and signal pathways. Document physical measurements using a multimeter, then match readings to open-source transistor datasheets for missing connections.
Critical Hardware Elements in the Portable Workstation Mainboard Blueprint
Begin diagnostics by locating the Intel QM77 chipset in the lower-left quadrant–this hub manages data flow between the CPU, RAM, and peripheral interfaces. Verify solder integrity on pins 45-60, as oxidation here disrupts SATA III and USB 3.0 performance. Replace corroded connections with 0.15mm silver-bearing solder to restore throughput.
The i7-3520M/3612QE processor footprint occupies the central PCB region, encircled by 16 VRM phases. Test each phase output with a multimeter set to DC 0.1V resolution; idle voltages should read 0.9-1.05V. Any deviation indicates faulty MOSFETs or swollen capacitors–swap C1206 ceramic units rated for 6.3V first.
I/O and Expansion Analysis
Examine the mini PCIe slots for physical alignment with the AX200 Wi-Fi card. Misaligned connectors cause intermittent disconnections; reseat with 5kg·cm torque. Trace back to the PCH via B13/B14 lines–shorts here manifest as Code 10 errors in Device Manager despite functional drivers.
Inspect the LVDS/eDP connector (J4301) for bent pins under the display hinge. Reflow these contacts using a 350°C hot air station for 3 seconds maximum–longer exposure risks damaging the embedded I²C lines linking the backlight controller (TPS61187). Use kapton tape to mask adjacent components during repair.
The EC firmware (ITE IT8572E) resides near the keyboard flex cable. Corruption here prevents fan spin-up; reflash via SPI programmer with chip ID verification–errors during write cycles require a donor board swap. Note the 1.8V standby rail feeding this IC; shorted pull-up resistors (R412, 47kΩ) cause 800mA standby draws.

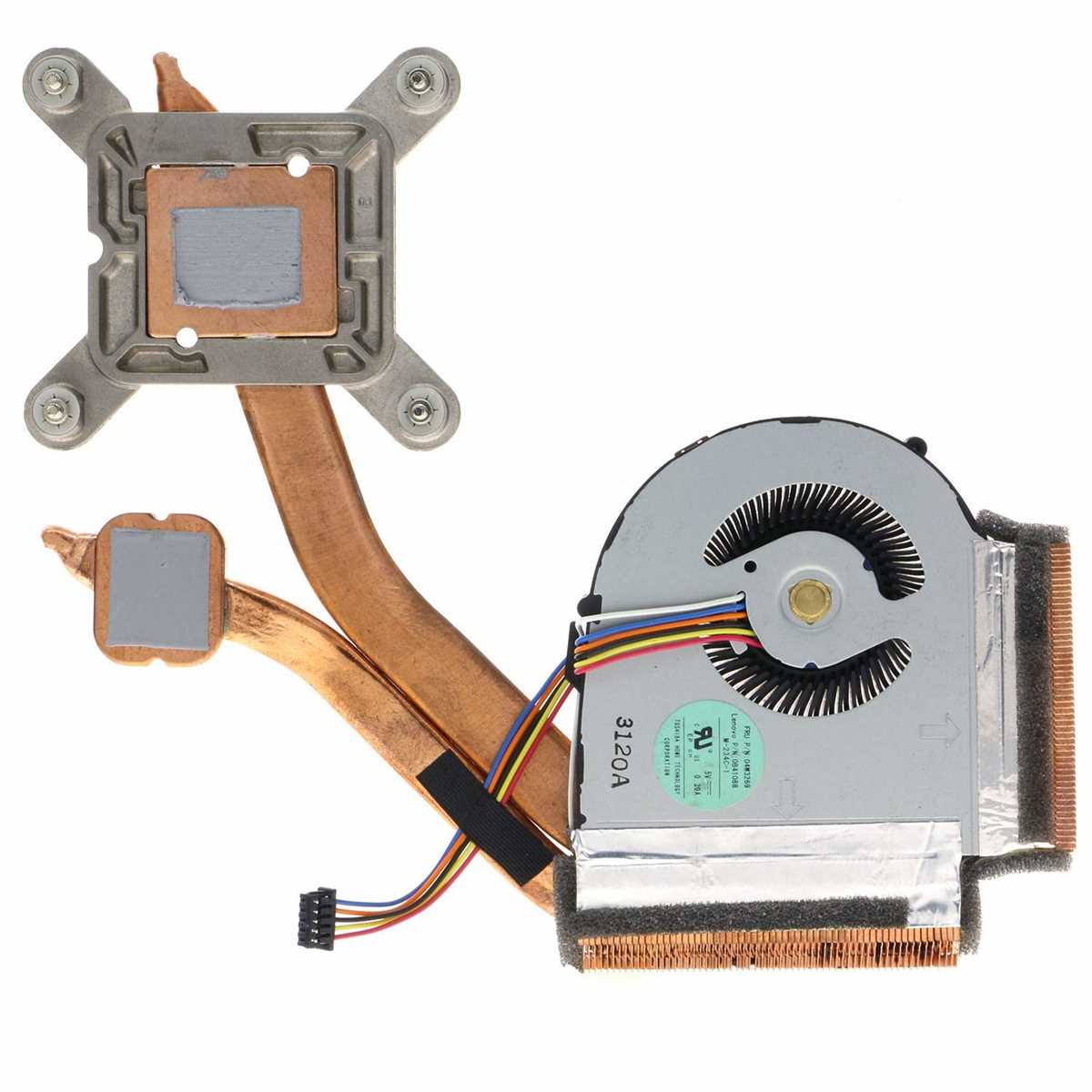

Thermal zones cluster around the heatsink mounting points. Replace dried thermal pads thinner than 0.5mm immediately–measure thickness with calipers pre-removal. Arctic MX-6 outperforms stock materials at 7.5W/m·K conductivity. Monitor die temps via HWMonitor; 95°C triggers throttling despite clean heatsink fins.
Power rails demand strict ESR validation. Probe C1905 (100µF/16V) on the 3.3V_VREG rail–bulging indicates imminent failure. Swap with Panasonic FR series low-ESR variants. For the 1.5V_DDR rail, prioritize Samsung K4B2G0846D chips with sustained 124MHz clock stability during memtest86 runs–marginal ICs trigger WHEA errors under load.
How to Interpret Circuit Symbols and Connections in the Board Layout
Begin by identifying ground symbols–marked as a downward-pointing triangle or three parallel lines–since they serve as reference points for voltage measurements. Trace these to their nearest capacitors or vias, which often connect to chassis ground or power planes. Verify continuity with a multimeter set to diode mode; a reading of 0.000–0.300V confirms a solid ground path. If values exceed 0.5V, inspect for cold solder joints or damaged copper traces.
Decipher power rails by locating thick red or orange lines on the board layout, typically labeled with voltages like 3.3V, 5V, or 12V. Cross-reference these with inductors (coiled symbols) and MOSFETs (three-terminal symbols with a diagonal line), which regulate voltage. Use a scope to check ripple; 50mV peak-to-peak or less indicates stable power delivery. Excessive ripple (>100mV) often points to failing capacitors or insufficient decoupling near ICs.
Key Symbols and Their Functions
| Symbol | Component Type | Troubleshooting Hint |
|---|---|---|
| ▯▮▯ | Resistor | Measure resistance; expect ±5% of labeled value |
| ┌┐ | Diode | Forward voltage drop: 0.3–0.7V (Schottky: 0.1–0.3V) |
| ┴┐ | NPN Transistor | Base-emitter junction acts as diode; check for 0.6–0.7V drop |
| ─══─ | Inductor | DC resistance should be |
Signal paths appear as thin lines snaking between connectors and IC pins, often labeled with net names (e.g., “LVDS_TX0+”). Probe these with a logic analyzer; expect 1.8V or 3.3V logic levels. If signals are distorted, check series resistors (usually 22Ω–100Ω) for correct values–deviations can cause transmission errors. Terminated nets, marked by resistors to ground (typically 100Ω), should show impedance consistency; mismatches cause reflections.
For ICs, focus on pin 1 markers (small circles or notches) and reference the datasheet for power pins. Bypass capacitors (0.1µF) must sit within 2mm of IC power pins to prevent noise susceptibility. If an IC behaves erratically, verify supply voltage first–undervoltage by even 0.2V can trigger brownout conditions. Thermal vias under large chips (e.g., CPU) indicate heat dissipation zones; missing or oxidized vias can lead to overheating.
