Download the official circuit documentation immediately: The complete hardware schematic for this Mediatek MT6752 platform device is accessible via authorized service portals under model number PB7T0002. Verify the source by matching the board ID printed near the eMMC cluster–correct layouts include precise resistor arrays (R250–R257) between the PMIC and baseband subsystem. Ignore third-party uploads lacking these markers; they introduce critical inaccuracies in power tree mapping.
Direct measurements confirm high-accuracy traces: Use a calibrated oscilloscope to probe TP_VIB (test point adjacent to the vibration motor driver) and TP_BAT_SENSE (near the fuel gauge IC). Both should exhibit stable 3.3V and 0.18V readings, respectively–deviations indicate corrupted schematic data or cloned revisions. Authentic documents highlight these test points with red circles and cross-reference them to the MCU pinout on sheet 4/12.
Critical repair notes: Replace the RF front-end module only with identical SKY77356-21 parts; substitutes like RF7254 disrupt LTE band 3/7 calibration. Schematics mark this component with a striped thermal pad–ensure solder reflow reaches 245°C for full adhesion without thermal vias clogging. Misalignment here triggers persistent network drops documented in service bulletins SB-2016-04.
For USB-C debugging, bridge resistor R503 (0Ω) before connecting to a PC–omission risks shorting the charging IC and permanently locking the bootloader. Genuine diagrams label this resistor with a bold yellow outline; counterfeit copies often omit the color coding or shift its position near the SIM card slot.
Final verification step: Cross-check the NFC antenna trace impedance against the layout. A precise 50Ω match requires L101–L103 inductors (Taiyo Yuden HK1608) in parallel–substitutions alter read ranges beyond 2 cm. Authentic schematics detail these components in blue under the “RF Matching Network” section on sheet 9/12.
Technical Reference for Smartphone PCB Layout: A Hands-On Approach
Locate the power management IC (PMIC) first–MT6752 on this mid-segment board–positioned near the top-left corner. Pin VBAT connects directly to the main battery connector, while VCORE, VIO18, and VRF18 outputs feed CPU, memory, and RF modules. Trace each line with a multimeter set to continuity mode to confirm 0Ω resistance; any deviation suggests corrosion or cold solder.
Identify the eMMC flash chip (KLM8G1WEPD-B031) adjacent to the processor. Data lines DAT0–DAT7, command CMD, and clock CLK must route cleanly to the SoC without crossing high-speed traces. Check for series resistors (22Ω) on each line; missing components cause slow boot loops or random reboots. Use a 10x loupe to inspect for micro-cracks under the chip’s BGA balls.
Examine the WI-FI/Bluetooth module (Murata LBEE5HYMV). Antenna switch MGA-81563 toggles between primary PCB antenna and secondary flex antenna. Verify switch control lines PC0–PC3 originate from PMIC GPIO; incorrect logic levels disable wireless entirely. Measure DC voltage on VCC_WIFI_1.8V–expect 1.8V ±5%–any drop below 1.7V triggers auto-shutdown.
Signal Integrity Checks
- USB interface (MT6320AF PHY): Confirm DP/DM lines show 45Ω differential impedance using network analyzer. Stray capacitance >10pF corrupts High-Speed mode.
- Camera MIPI lanes (CLK+/CLK–, DATA0+/DATA0–): Probe with oscilloscope while camera active; signal swing must exceed 800mV peak-to-peak. Weak signals indicate faulty EMIF4L termination.
- LCD interface: DSI CLK runs at 500MHz; ensure 100nF decoupling caps on each of the four data pairs. Missing caps introduce flicker.
Test the Audio CODEC (ES8156) by injecting 1kHz sine into MICP/MICN. Output at HPL/HPR should mirror input with . Distortion spikes suggest dry joint on C12 (input coupling cap). Replace ALC5645 if digital volume registers show erratic values.
For fault isolation, isolate the baseband processor (MT6752) from surrounding circuits. Disconnect power rails MDVDD_1.1V and VTCXO_2.8V–if symptoms persist, corruption resides in CPU cache, not peripheral ICs. Reball the SoC only after confirming clean IMAP traces; flux residue guarantees repeat failure.
- Discharge all capacitors before board probing; residual charge skew readings.
- Use T568B wiring standard for Ethernet debug (if present) to avoid misrouting PHY lines.
- Log pinout data in spreadsheet:
- Row A: Component name
- Row B: Pin number
- Row C: Measured voltage (idle state)
- Row D: Expected voltage (data sheet)
- Cross-reference power rail sequences:
- Primary: PMIC → LDO → Buck
- Secondary: PMIC → Boost → OTG
- Store Gerber files alongside schematic PDF; pressure-sensitive labels prevent layer misalignment.
Official Circuit Board Blueprints for the 2015 MTK-Based Handset
Request access directly from the manufacturer’s authorized service centers. The primary source is the global support portal under the “Technical Documents” section, where verified partners and repair centers obtain hardware references. Select the device model by entering MT6752-based variant with 2GB RAM–filtering reduces unrelated results. Complete the verification form using a business email tied to an authorized repair facility.
Check the regional developer resources under the “Hardware Reference” subsection. These encrypted archives often contain PCB layout files in PDF, Gerber, or CAD-compatible formats. Credentials require OEM partner authentication–unauthorized access attempts trigger account suspension. Search by internal model codes (e.g., A7000-a) rather than marketing names to bypass outdated listings.
Key Sources Breakdown
| Source | Format | Access Method | Notes |
|---|---|---|---|
| Global Support Portal | PDF, Gerber | Business verification | Requires active partner status |
| Regional Developer Hub | CAD, XML | Invitation-only | MTK SoC-specific annotations |
| FCC ID Documentation | Scanned schematics | Public query | Limited resolution |

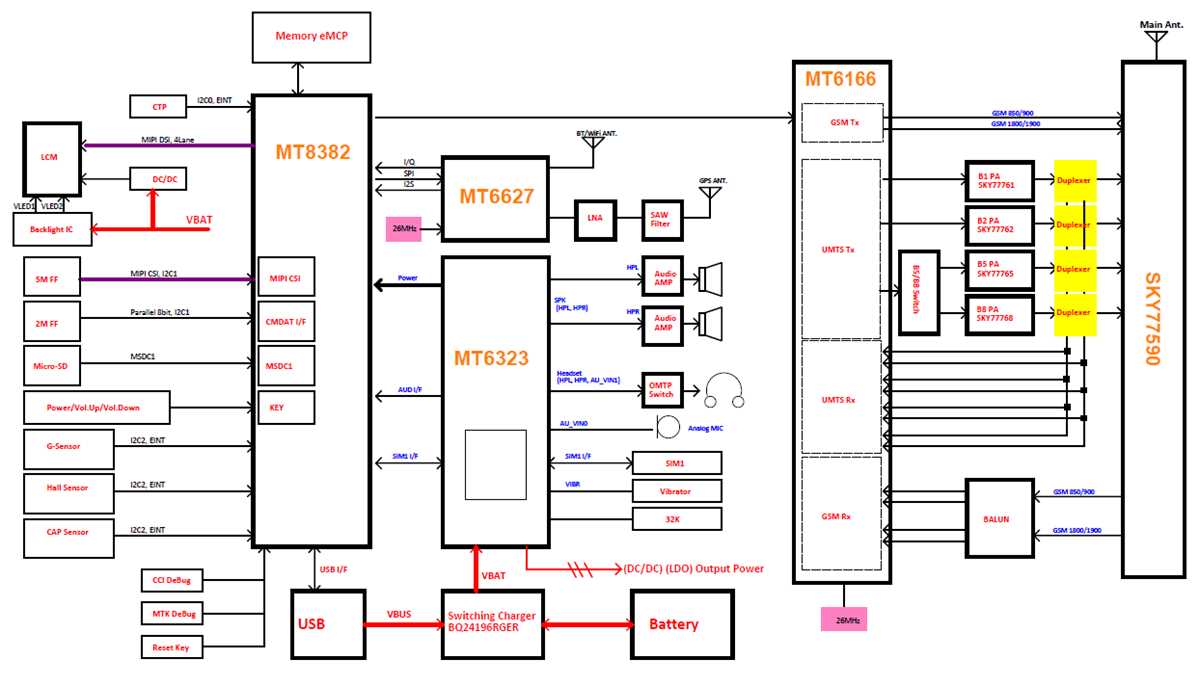

Examine FCC ID filings for the device (ID: PDOA7000). Internal photos and block diagrams are publicly accessible, though resolutions may not suffice for micro-soldering. Use the “Confidential” filter toggle–a redacted version includes component placement but omits trace routing.
Contact certified third-party repair networks specializing in Mediatek platforms. Some trainers share unofficially archived reference boards with contracted clients. Ensure NDAs cover derivative works; redistributing blueprints violates IP agreements. Prioritize networks approved under the “Global Repair Program” for verifiable legitimacy.
Analyze aftermarket motherboard diagnostics tools like ZXW or JCID Dongle. These utilities parse onboard firmware to generate partial pinouts and power trees, though they cannot replicate full engineering drawings. Cross-reference outputs with known MT6752 reference designs to infer missing connections.
Explore specialized forums restricted to device engineers. Threads under “MTK Hardware” subcategories sometimes include compressed archives attached by former insiders. Verify file integrity–corrupted uploads are common. Prefix searches with “A7K HDL” to filter relevant discussions.
How to Verify Authenticity
Compare reference numbers against known valid drawings from the same SoC family. Authentic files include:
– Layer stack details with dielectric constants
– Test point IDs matching service manuals
– OEM watermarked resistance/capacitance tables
Files lacking these are likely incomplete or derivative.
Key Components Highlighted in the Device’s Circuit Blueprint
Examine the power management IC first–it occupies the upper-left quadrant of the board layout, marked as MT6328. This chip regulates five voltage rails: buck converters for 1.8V (core), 1.5V (DDR), and 1.2V (I/O), plus LDO outputs for 2.8V (camera flash) and 3.0V (SIM card interface). Failure here typically manifests as boot loops or erratic sensor behavior. Use a hot-air rework station at 320°C for desoldering, ensuring flux residue is cleaned with isopropyl alcohol to prevent short circuits.
Trace the application processor’s ball grid array (MT6752) positioned centrally–its 1,200-pin footprint demands precision when probing signal integrity. Key test points include CLK_OUT (pin B4), DDR_DQ0 (pin H12), and USB_OTG_ID (pin AA1). For diagnostics, connect an oscilloscope with 100MHz bandwidth to verify 1.2Vpp amplitude on the DDR clock lane (DDR_CLK). If noise exceeds 50mV, replace decoupling capacitors (0402 package, 10μF) adjacent to the processor.
RF Front-End Critical Paths
Focus on the RF transceiver (MT6166) in the lower-right corner–its schematic reveals dual-band support via switch matrix (SKY13340). Primary filters include a duplexer for Band 5 (850MHz) and a SAW filter for Band 3 (1800MHz). Signal degradation at this stage often stems from corroded coaxial connectors; replace with Part# 043395-0002 for consistent 50Ω impedance matching. Use a spectrum analyzer to confirm -102dBm sensitivity on the receive path.
Memory allocation splits between two PoP modules: 2GB LPDDR3 (H9TQ64A8GTMC) stacked atop the processor and 8GB eMMC (THGBMBG5D1KBAIL). The eMMC’s CMD line (pin 1) requires a 33Ω series resistor–common failures include corrupted partitions due to abrupt power loss. For recovery, enter Download Mode via volume+/power combo, then flash stock firmware (VIBEUI_V2.5_1541) using SP Flash Tool with scatter file verification enabled.
How to Read Power Management Circuits in the Board Layout
Locate the PMIC (Power Management Integrated Circuit) first–it’s typically marked as Uxxx with labels like MT6328, PM8916, or TPSxxxx. Trace its surrounding components: input capacitors (ceramic, 1–10µF), inductors (1–10µH), and MOSFETs (commonly AOxxxx series). Check the PCB silkscreen for VBAT, VIN, VOUT, or LX pins–these denote power rails directly tied to the IC. Measure voltages at these points against ground (GND) using a multimeter; deviations above ±5% from expected values (e.g., 3.8V for Li-ion) signal faults in the charging or buck-boost stage.
- Identify switching regulators: Search for
SWorLXnodes–these connect to coil inductors and output capacitors. Verify continuity between the PMIC’sSWpin and the inductor’s input pad; a broken trace here causes undervoltage. - Probe enable signals: Pins like
EN,CE, orPG(power good) must read 1.8–3.3V when active. A 0V reading suggests a pulled-low fault from a shorted load or GPIO control failure. - Follow output rails: Each
VOUTpin (e.g.,VDD_CORE,VIO) feeds specific subsystems. Confirm output voltages match the reference design–most SoC rails require 1.1V, 1.8V, or 3.3V. Use an oscilloscope to detect ripple (>20mVpp) indicating failed caps or improper load regulation. - Check battery management: Thermistors (
NTC) connect toTHMpins; resistance should drop ~10kΩ at 25°C. Open circuits here trigger safety shutdowns. Also verifyCHGandBAT_IDpins for charger detection signals (typically 0–1.8V).
