Begin by identifying the voltage requirements of your illumination source. Most flexible ribbons operate at 12V or 24V–check the manufacturer’s label before proceeding. Incorrect voltage leads to dim performance or permanent damage. Use a multimeter to verify the output of your power supply matches the strip’s specifications.

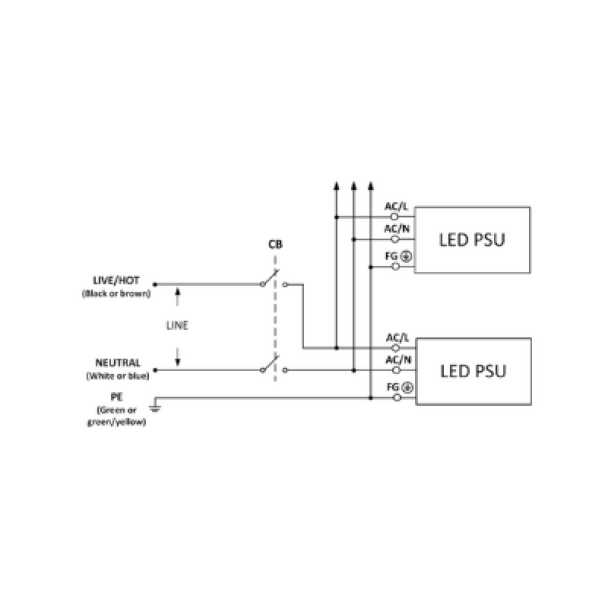

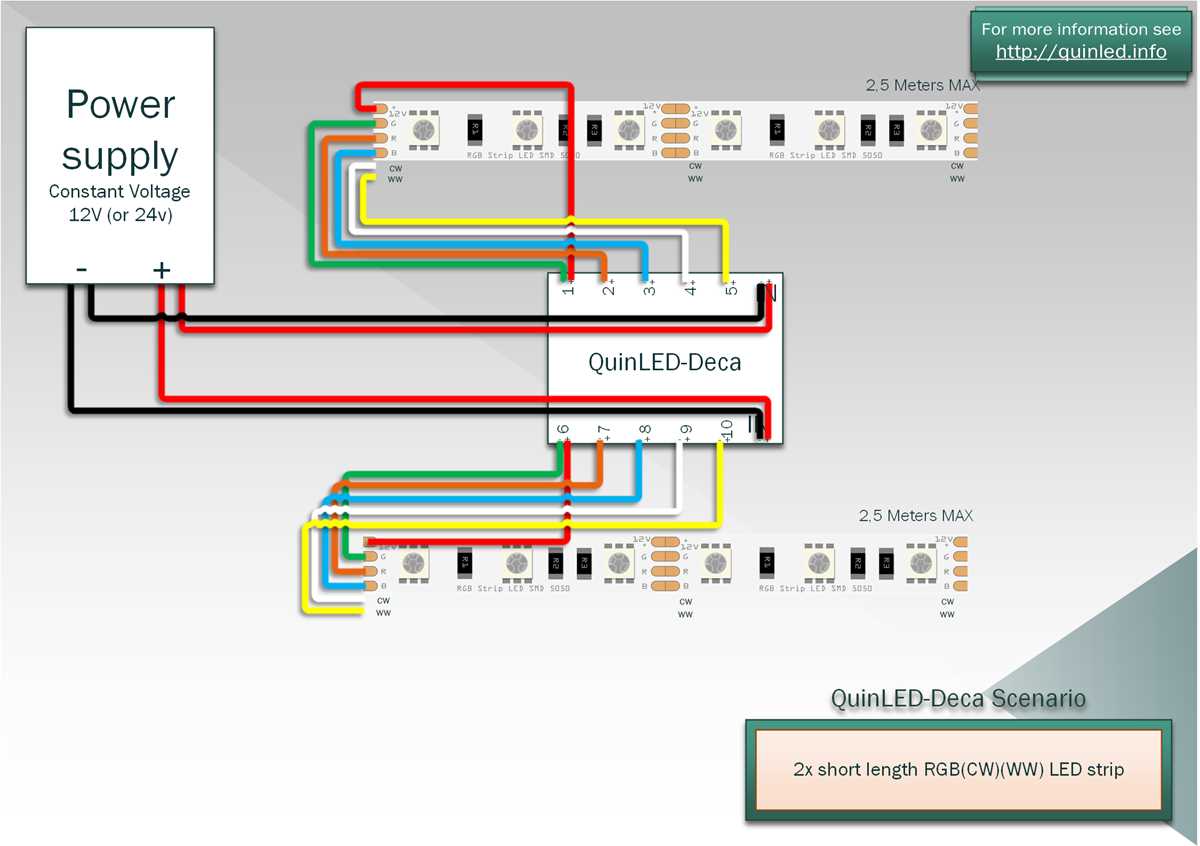

For single-color arrays, connect the positive wire to the V+ terminal and the negative to GND. If working with RGB variants, locate the controller first. The controller’s input connects to the power supply, while its output wires (typically red, green, blue, and common anode or cathode) attach to the corresponding pads on the ribbon. Polarity errors will prevent operation.
Soldering provides the most reliable connection. Apply rosin flux to clean the copper pads, then use a temperature-controlled iron (350–400°C) with a fine tip. Hold the wire against the pad for 2–3 seconds–excessive heat degrades the adhesive or burns the substrate. For temporary setups, use clip-on connectors, but ensure a tight fit to avoid voltage drops.
Route cables away from sharp edges and high-heat sources. Secure them with heat-resistant tape or cable sleeves, especially in automotive or outdoor applications. Test each segment with a 1A fuse in series–short circuits in low-voltage systems can melt insulation before tripping breakers.
When daisy-chaining multiple segments, calculate total wattage. A 12V, 5-meter 60LED/meter strip draws ~4.8W/meter (24A total). Use a power supply rated for 20% higher current than the calculated load. Distribute power via thick gauge wire (18AWG or lower) to minimize resistance losses–long runs require injections at both ends.
For addressable modules (WS2812B, SK6812), verify the data signal direction. The Din pad must receive input from the controller or previous segment. Maintain consistent voltage: noise or dips of >0.5V cause erratic behavior. Add a 330–470Ω resistor on the data line and a 1000μF capacitor across power leads to stabilize communication.

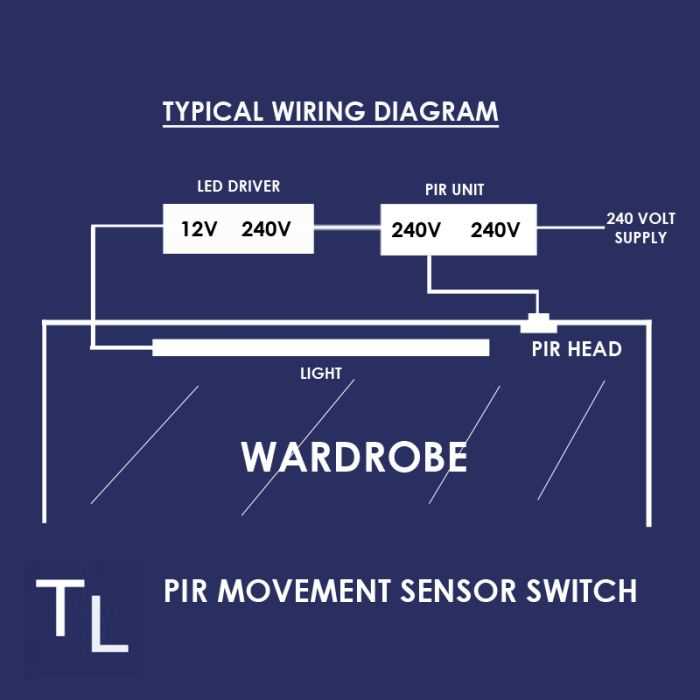

Step-by-Step Light Emitting Device Connection Layout
Select a power source with an output voltage matching your component’s forward voltage requirements. For single 3mm white emitters, a 3V supply suffices; arrays of three 1.8V red units in series need 5.4V. Verify the supply’s current rating–most small-scale projects demand 20mA per emitter, while high-brightness variants may require 350mA or more.
- Use a multimeter to measure actual voltage at the source terminals before connecting any components.
- Avoid parallel configurations unless each branch has its own current-limiting resistor.
- For battery-powered setups, lithium-ion cells with 3.7V nominal output work well with single emitters; reduce voltage with a buck converter for lower-voltage arrays.
Calculate resistor values using R = (Vsource – Vforward) / I. A 9V supply powering a 3V emitter at 20mA needs: R = (9 – 3) / 0.02 = 300Ω. Use the nearest standard value–270Ω or 330Ω. Heat dissipation increases with lower resistor values; ensure the resistor’s wattage rating exceeds (I2 × R).
- Test each emitter-resistor pair individually before integrating into larger circuits.
- Solder connections with 60/40 rosin-core solder; avoid acid-core flux for electronic assemblies.
- Place resistors as close as possible to emitters to minimize voltage drops over wiring.
For long runs or outdoor installations, use constant-current drivers instead of resistors. A 350mA driver maintains steady brightness across 10–15 series-connected emitters, even if input voltage fluctuates. Check the driver’s compliance voltage–it must exceed the combined forward voltage of all emitters in series. Install reverse polarity protection with a Schottky diode (1N5817) to prevent damage from incorrect power connections.
How to Select the Correct Current-Limiting Resistor for Semiconductor Indicators
Calculate the resistor value using the formula R = (Vsource – Vforward) / Iforward. For a 5 V supply, a 2 V forward voltage indicator, and a desired 20 mA current, this yields (5 – 2) / 0.02 = 150 Ω. Round up to the nearest standard E24 value (150 Ω or 160 Ω) and verify power dissipation: P = I² × R = 0.0004 × 150 = 60 mW, so a ¼ W resistor is sufficient.
Match resistor tolerance to circuit stability needs. A 1 % metal-film resistor (±1.5 Ω on 150 Ω) keeps current fluctuation within ±0.1 mA for 2 V drop indicators, while 5 % carbon-film parts (±7.5 Ω) may swing current by ±0.5 mA. For strings of three or more indicators, compensate by choosing the next lower standard value to prevent cumulative voltage drop errors.
Handling High-Current and Pulsed Applications
For indicator currents above 30 mA or pulsed loads, size the resistor for continuous dissipation. A 1 W thick-film part tolerates 0.5 W steady-state power; surface-mount 2512 resistors handle 1 W pulsed at 10 % duty cycle. Verify thermal derating: a 1206 resistor rated ¼ W at 70 °C drops to 0.16 W at 125 °C, requiring upsizing to 0805 for reliability.
Use the same forward-voltage rating for all components in a series string. Mixing 1.8 V and 3.3 V indicators without recalculating the resistor causes brightness mismatch; standardize on either type and adjust resistance accordingly. Keep trace lengths under 10 mm between resistor and indicator to minimize inductive voltage spikes, which can exceed the reverse breakdown threshold of 5 V on most devices.
Series vs Parallel Component Arrangement: Detailed Breakdown
Start by measuring the forward voltage (Vf) of each light-emitting component and the total voltage of your power supply. For a series arrangement, ensure the sum of Vf values does not exceed the supply voltage. For example, if each unit has a Vf of 3.2V and you wire five in sequence, the total required voltage is 16V. Use a supply with at least 18V to account for minor variances.
In parallel setups, connect the positive terminals together and the negative terminals together. Each branch operates independently, so a 12V supply can power multiple 3.2V units simultaneously. However, introduce a current-limiting resistor per branch to prevent overheating. Calculate the resistor value (R) using Ohm’s law: R = (Vsupply – Vf) / Idesired. For a 12V supply, 3.2V unit, and 20mA target current, R = (12 – 3.2) / 0.02 = 440Ω. Round up to the nearest standard value, e.g., 470Ω.
Series circuits simplify voltage distribution but introduce a critical failure point–if one component fails, the entire chain extinguishes. Parallel arrangements maintain functionality even if one branch fails, but they demand precise current regulation. For high-power applications, parallel connections reduce resistive losses due to lower voltage drops across individual paths.
| Parameter | Series Setup | Parallel Setup |
|---|---|---|
| Voltage per branch | Vtotal = V1 + V2 + … + Vn | Vbranch = Vsupply |
| Current per branch | Itotal = I1 = I2 = … = In | Itotal = I1 + I2 + … + In |
| Resistor requirement | Single resistor for entire chain | Resistor per branch |
| Failure impact | Entire chain fails | Only failed branch affected |
For mixed topologies, combine both methods–group components in series chains, then connect the chains in parallel. This balances voltage distribution and redundancy. Example: Create two series chains of three 3.2V units each (total 9.6V per chain), then wire both chains in parallel to a 12V supply. Each chain draws 20mA, so the supply must handle at least 40mA.
Always verify the power rating of resistors. A 1/4W resistor suffices for low-current branches (e.g., 20mA), but high-current setups (e.g., 100mA) require 1/2W or 1W resistors. Use P = I2 × R to calculate power dissipation. For 470Ω at 20mA: P = (0.02)2 × 470 = 0.188W. A 1/4W (0.25W) resistor is adequate.
Test each branch with a multimeter before finalizing connections. Check for consistent brightness; variations indicate incorrect current distribution. For series chains, measure the voltage across each component–it should match the expected Vf. In parallel, confirm each branch draws identical current; discrepancies signal wiring errors or resistor mismatches.
For PWM dimming, series arrangements respond uniformly, while parallel setups may exhibit slight brightness disparities due to inherent component tolerances. Use identical components and resistors from the same batch to minimize these effects. If dimming precision is critical, opt for a driver with individual channel control rather than a shared dimming signal.
Common Pitfalls in Illumination Circuit Design and Prevention Strategies
Always use a current-limiting resistor with semiconductor light sources to prevent thermal runaway. A 220Ω resistor is sufficient for a 5V supply with a single standard component drawing 20mA, while a 470Ω resistor protects against 12V supplies. Omitting this element causes excessive forward current, reducing lifespan from 50,000 to under 1,000 hours. Calculate values using Ohm’s law: R = (Vsupply - Vforward) / Iforward. For batch installations, verify voltage drop across lengthy cables–every meter of 0.5mm² copper wire adds 0.1Ω resistance.
Polarity Reversal and Heat Management Errors
Reverse voltage destroys semiconductor junctions instantly–always verify anode (longer lead) and cathode (flat side or shorter lead) before energizing. Even momentary backward connection can ruin components beyond repair. Additionally, thermal dissipation demands attention: standard 5mm devices handle 70°C maximum, exceeding this by 10°C halves operational life. Mount high-power modules on aluminum substrates with thermal paste, ensuring ≤0.5°C/W junction-to-ambient resistance. Use PWM dimming at ≥1kHz instead of adjustable resistors to minimize heat generation.
- Insufficient voltage margin: Supply must exceed total forward drop by ≥1V. Three white emitters in series need ≥10.5V (3 × 3.2V + 1V buffer). Below this, brightness drops exponentially.
- Parallel branches without balancing: Identical emitters mismatch by ±10% forward voltage. Add individual resistors or current mirrors to equalize.
- Ignoring derating curves: At 85% rated current, thermal stress increases by 40%. Consult datasheets for pulse-width modulation impact.
Loose connections invite intermittent failures–crimp terminals with 6-8kg/cm pressure using ratchet crimpers, then solder for mechanical strength. Cold solder joints create invisible high-resistance paths, detectable only via thermal imaging. Insulate exposed joints with polyimide tape (250°C rating) or heat-shrink tubing with 2:1 shrinkage ratio. For outdoor setups, seal junctions with conformal coating (e.g., acrylic AR) to resist 95% humidity.
