Start with a 12V DC power supply–match its wattage to the total load of the installed segments. Overloading causes voltage drop, visible as dimming or color shifts toward the far end. For every 5 meters of standard-density product (60 units per meter), use a supply rated at least 72W (6A). Adjust calculations for high-density versions (120 units per meter) to 144W (12A).
Use thick copper conductors–minimum 18 AWG–to minimize resistance. Twist wires at solder points before applying heat-shrink tubing for strain relief. Cut sections cleanly at marked intervals to avoid damaging internal circuits. Verify polarity before energizing; reverse connection instantly destroys circuitry.
Integrate a dimmer module rated for the same voltage and current as the power supply. PWM controllers offer smoother adjustment than resistive types. Place the dimmer close to the supply to reduce flicker. For RGB variants, add a dedicated controller between the power source and the segments–single-channel dimmers won’t separate color channels.
Install fuses inline with each power lead–fast-acting 2A for single-color segments, 3A for multi-channel. Locate fuses adjacent to the supply output. Keep total cable runs under 10 meters to preserve brightness uniformity. Route conductors away from inductive sources–transformers, motors–to prevent interference visible as color pulsing.
Test each connection with a multimeter before applying full voltage. Measure voltage at the far end of each segment; ideal value should match input within 0.5V. If below 11V, shorten the segment or add a secondary feed from the midpoint. Isolate faulty segments immediately–shorted units overheat rapidly, risking adjacent sections.
For outdoor use, enclose all connections in IP65-rated junction boxes. Seal entry points with silicone grease to prevent moisture ingress. Mount segments on thermally conductive surfaces–aluminum channels–to extend lifespan; adhesive alone traps heat, accelerating degradation. Tape backing loses adhesion above 45°C.
Connecting Flexible Illumination Sources: Electrical Layout Guide
Ensure proper voltage matching by selecting a power supply with an output 1-2V above the rated voltage of your flexible circuit. For instance, 12V ribbons require a 13-14V adapter to compensate for voltage drop over extended runs. Use this reference for acceptable voltage deviations:
| Circuit Length (meters) | Maximum Voltage Drop (V) | Recommended Power Supply (V) |
|---|---|---|
| 1-3 | 0.5 | 12.5 |
| 3-5 | 0.8 | 12.8 |
| 5-8 | 1.2 | 13.2 |
| 8-10 | 1.5 | 13.5 |
Solder connections between segments using 60/40 rosin-core solder with a temperature-controlled iron set to 350°C. Avoid exceeding 2 seconds of contact per joint to prevent substrate damage. Pre-tin both surfaces before joining to ensure rapid, reliable bonding. For field repairs, use pre-crimped butt connectors rated for 3A minimum – never twist wires directly, as this introduces resistance and potential failure points.
Route power cables perpendicular to the mounting surface whenever possible to minimize electromagnetic interference. Maintain a separation distance of at least 10cm from inductive loads (motors, transformers) to prevent flickering. For RGB or addressable color configurations, verify the controller’s maximum channel current rating matches your total circuit draw – most entry-level units support 2A per channel, while professional models handle up to 5A. Always include a fuse rated at 125% of the continuous current draw in series with the positive lead as a fundamental safety measure.
How to Choose the Right Power Supply for Your Flexible Illumination
Calculate total wattage by multiplying the power consumption per meter (check product specs) by the length you’ll install. Add 20% overhead to prevent voltage drop and prolong component lifespan. For a 5-meter reel consuming 14.4W/m, you need at least 86.4W:
- 5 × 14.4 = 72W
- 72 × 1.2 = 86.4W
Voltage must match; common options are 12V and 24V. Verify by checking printed specs on the reel’s adhesive backing or the manufacturer’s datasheet. A 12V supply cannot drive a 24V circuit–components will fail instantly.
Select an output amperage exceeding calculated needs. Supplies rated 5A or higher accommodate most residential setups; industrial applications may require 10A–30A options. Example: an 86.4W/12V setup demands at least 7.2A–round up to 8A or 10A for reliability.
Choose between constant-voltage and constant-current types. Constant-voltage (12V/24V) suits color-changing and dimmable products; constant-current is reserved for high-power linear segments. Incorrect choice causes flicker, overheating, or premature burnout.
Prioritize efficiency certification. Look for UL Listed, CE, or RoHS labels to ensure regulatory compliance and material safety. Avoid unmarked adaptors–fire risk increases exponentially with cheap components.
- Check maximum ambient temperature range (typically -10°C to 50°C).
- Confirm waterproofing rating (IP65+ for outdoor use).
- Verify enclosure material (metal dissipates heat better than plastic).
Consider modular options if scaling installations. Plug-and-play systems with detachable connectors simplify future expansion without rewiring. Example: a 200W unit with dual 100W outputs lets you segment runs cleanly.
Step-by-Step Guide to Connecting Flexible Illumination in Parallel vs. Series

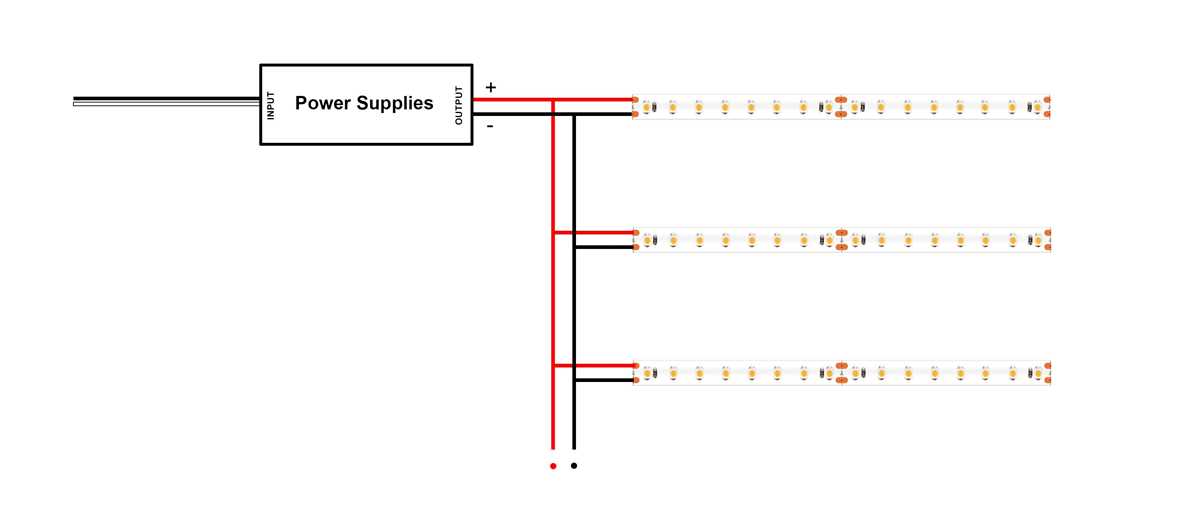

Choose parallel connections for uniform brightness and reliability–especially in long runs or multi-segment installations. Unlike serial setups, parallel circuits distribute voltage equally across each segment, preventing dimming as more elements are added. Ensure your power supply matches the total amperage of all branches combined; a 5-meter reel drawing 0.4A per meter at 12V requires at least 6A if split into three equal parts. Use thick gauge wires (18 AWG or lower) to minimize voltage drop, and solder joints at connection points to avoid corrosion over time.
For serial connections, calculate total resistance first–each added segment increases resistance, lowering current. A single 5-meter strip with 60 diodes/meter and 0.5Ω/meter resistance needs careful voltage planning; doubling the length doubles resistance, cutting brightness unless the supply compensates. Verify the power source output exceeds the combined forward voltage of all segments–three 5V segments in series demand at least 15V. Keep runs short; beyond 5 meters, voltage drop becomes noticeable, causing uneven luminosity. Use a multimeter to test segments individually before final assembly.
Begin parallel installations by stripping 10mm of insulation from the end of each branch and twisting the exposed copper strands. Apply heat-shrink tubing to joints before soldering to protect against oxidation. For adhesive-backed products, peel only what’s needed to avoid repositioning–once placed, alignment errors amplify during soldering. Secure branches to a non-conductive backing (acrylic or PVC) every 30cm to prevent sagging, which strains connectors. Label each branch’s start/end to simplify troubleshooting; mismatched polarity causes immediate failure.
Serial connections require precise voltage matching–connecting a 12V segment to a 24V supply burns it instantly. Use resistors only if segments vary in load; a 1W resistor suffices for balancing a 0.1A difference. Test polarity at every joint; reversing it in a serial chain disrupts the entire circuit. For high-wattage setups (above 20W per meter), add a fuse between the power source and the first segment to prevent short circuits from propagating. Avoid daisy-chaining more than three segments in series–thermal buildup degrades adhesive and solder joints over time.
Combine both methods for large installations: use parallel for main runs, then serial for short branches. A 24V main line feeding four 6V branches ensures consistent output, while serial sub-sections reduce cabling complexity. Always mount drivers and controllers within 2 meters of the first segment to minimize interference. After assembly, run the system for 30 minutes and check for hot spots–excessive heat (above 60°C) indicates undersized wiring or a faulty segment.
Color Coding and Conductor Size Guidelines for Flexible Illumination Circuits
For 12V low-voltage systems, adopt the following color standard: red (+12V), black (ground), and white or yellow for auxiliary signals. In 24V configurations, replace red with blue (+24V) to prevent confusion. For RGB variants, use green, blue, and amber dedicated channels, with a separate common anode (brown) or cathode (gray) line. High-density modular arrays exceeding 4A per channel require parallel conductors; twist each pair (minimum 2 turns per inch) to minimize electromagnetic interference. Avoid exceeding 3m between a constant-voltage driver and the first segment without amplification.
Conductor Gauge Selection Based on Load and Run Length
For single-color segments drawing ≤2A: use 22 AWG (0.64mm²) for runs ≤5m, 20 AWG (0.81mm²) for 5-10m. RGB configurations with segmented control: upgrade to 18 AWG (1.02mm²) for ≥3A per channel. Runs exceeding 15m demand 16 AWG (1.31mm²) or dual parallel 18 AWG conductors. For high-current applications (e.g., DMX-controlled arrays), consult NEC Table 310.16; derate ampacity by 20% for bundled conductors. Solder splice connections or use crimp terminals rated for 125°C, applying heat-shrink tubing with adhesive lining to seal moisture ingress points.
