Begin by selecting an appropriate current-limiting resistor for each light-emitting element–220Ω to 470Ω for standard 5V sources and 1kΩ to 2.2kΩ for 12V inputs. Resistor values outside these ranges risk either insufficient brightness or thermal damage from excessive current. Position the resistor immediately upstream of the component to prevent voltage spikes from affecting adjacent nodes.
Label each branch with clear notation–use R1-5V, D1-Red or similar–so troubleshooting remains intuitive. Ground symbols should align vertically or horizontally to avoid ambiguity; staggered placements complicate error tracing during prototyping. For multi-color variants, assign distinct suffixes (D1-Green, D1-Blue) rather than numerical increments to preserve consistency across revisions.
Opt for surface-mount resistors in dense designs, as they occupy 70% less footprint than through-hole counterparts while maintaining identical electrical characteristics. Ensure traces between the power source and resistive element are at least 0.5mm wide for 20mA loads, scaling proportionally for higher currents. Bypass capacitors (0.1µF ceramic) placed within 1cm of each emissive device suppress high-frequency noise from PWM dimming circuits.

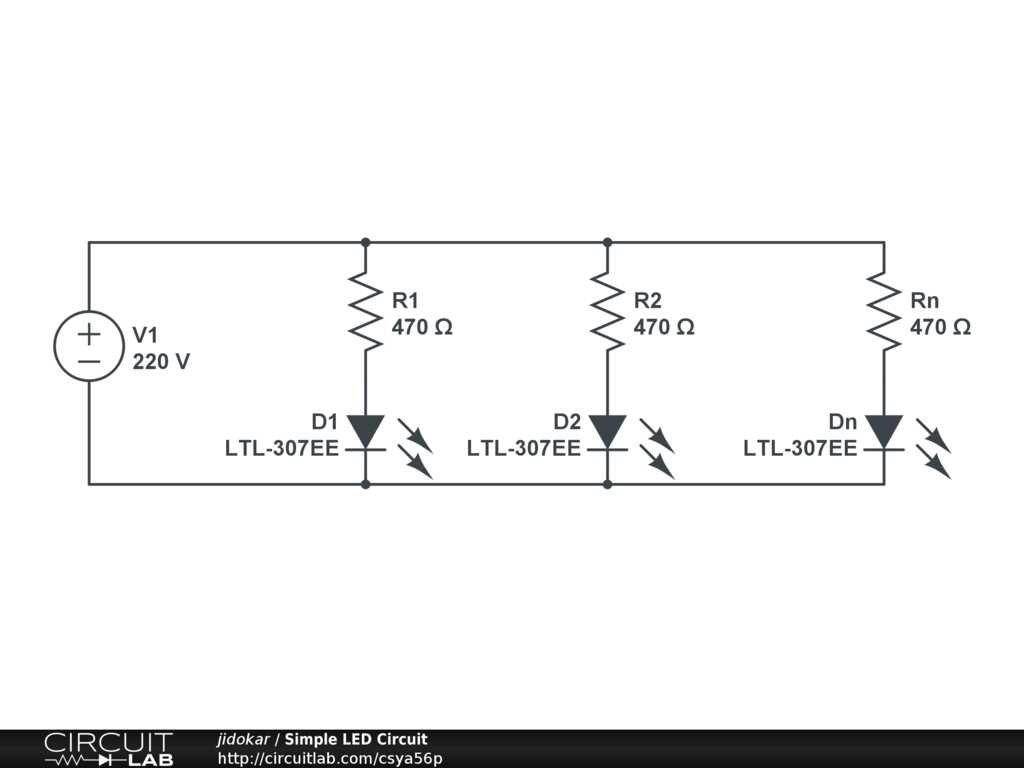

When using parallel strings of elements, isolate each path with a dedicated resistor–shared resistors cause uneven illumination due to manufacturing tolerances. For pulsed applications, verify that the combined forward voltage of all series-connected devices does not exceed the supply by more than 10%, preventing flicker from inadequate headroom.
Post-layout, simulate the schematic with LTSpice or KiCad’s integrated tools to confirm current compliance–target 15-20mA for longevity, avoiding the 30mA maximum rating. Export gerber files with silkscreen labels enabled; omit this step, and assembly becomes error-prone during manual soldering.
Representing Light Emitting Components in Schematic Drawings
Always place the illuminator symbol with the anode marked clearly–use a “+” sign or a longer lead line. The cathode must face the lower potential side, typically grounded or connected to a resistor. Standard schematics denote these elements with a triangle pointing toward a line, where the triangle’s base represents the anode. For clarity, add a series current-limiting resistor, calculated as R = (Vsupply – Vf) / If, where Vf is the forward voltage drop (1.8–3.3V, depending on color) and If is the desired current (5–20 mA).
Use distinct labels for multiple emitters in a single layout. For example, name them D1, D2, or DS1 for indicators, followed by color notation in parentheses–e.g., DS3 (Red). Avoid confusion in bidirectional arrangements; mark polarity even if the emitter operates in AC circuits with a bridge rectifier. In surface-mount designs, ensure footprint orientation matches the schematic, as misalignment causes assembly errors.
Handling High-Power Emitters
For emitters requiring over 30 mA, incorporate a drive transistor or MOSFET. The resistor calculation adjusts to Rbase = (Vin – Vbe) / Ib, where Vbe is ≈0.7V for silicon devices. Thermal management is critical: attach a heatsink if the emitter’s power exceeds 100 mW. Schematics should include a thermal pad symbol connected to the cathode or a dedicated ground plane.
Pulse-width modulation (PWM) control allows brightness adjustment. Indicate PWM lines with dashed connections and label the control signal PWM_IN. For constant-current drivers, use a dedicated IC symbol (e.g., LM317) with values Rset = 1.25V / Iout. Verify forward voltage compatibility with the supply–blue/white emitters demand 3.0–3.6V, while infrared variants operate at 1.2–1.5V.
How to Recognize Semiconductor Light Emitter Symbols and Terminal Layout in Electrical Blueprints
Look for a triangle with a line perpendicular to its base–this standard icon denotes a forward-biased light-emitting component in schematics. The triangle’s point indicates the anode (+), while the line marks the cathode (-). Variations exist, but this shape remains consistent across most engineering documentation.
Check for arrows pointing away from the symbol; these represent emitted photons and confirm the component’s function. If two arrows are present, the device may be bidirectional or an infrared emitter. Single-arrow configurations typically identify visible spectrum diodes.
Compare adjacent symbols: resistors or current-limiting elements often precede light emitters, protecting them from excess current. The cathode usually connects to the lower-potential node, often grounded or tied to a sinking driver.
Examine pin labels if available–”A” or “K” shorthand frequently marks anode and cathode terminals. Some schematics use numerical designations; verify against datasheets for absolute certainty. Older documents may employ “D” for diode, though this can be ambiguous.
Trace connections to power rails–anodes typically link to positive supply lines or constant-current sources. Multicolor emitters may feature multiple segments; each anode connects to a separate RGB channel or control IC.
Identify polarity-sensitive placements: arrays with common cathodes share a single ground, while common-anode configurations unite positive terminals. Series chains alternate polarity; parallel connections require matching orientation.
Measure voltage drops on physical boards when orientation is unclear: forward-biased emitters show ~1.8-3.3V (silicon types), while reverse bias indicates faulty or misconnected terminals. Thermal analysis can also reveal correct polarization–cathodes usually mount to heat sinks in high-power designs.
Refer to library footprints in CAD tools–KiCad’s “Device:LED” or Altium’s “Diode LED” templates include predefined anode/cathode markings. Custom symbols should mirror real-world pinouts to avoid assembly errors.
Step-by-Step Guide to Calculating Current-Limiting Resistor Values for Light Emitters
Begin by identifying the forward voltage drop (Vf) of your light emitter–this value varies by color and type. Standard red indicators typically have a Vf of 1.8–2.2 V, while high-brightness blue or white units may reach 3.0–3.6 V. Always refer to the manufacturer’s datasheet for precise figures, as assumptions can lead to premature failure.
Determine your power source voltage (Vs). Common values include 3.3 V, 5 V, or 12 V, depending on the application. Subtract the emitter’s Vf from Vs to find the voltage that must drop across the resistor (Vr). For example, if Vs = 5 V and Vf = 2 V, then Vr = 3 V.
Select the target current (If) based on the emitter’s specifications. Most small indicators operate safely at 10–20 mA, while high-power variants may require 350–1000 mA. Overdriving exceeds thermal limits; underdriving results in dim output. Use Ohm’s law (R = Vr / If) to calculate the resistor value. For Vr = 3 V and If = 20 mA, R = 150 Ω.
Choose a resistor with a standard value closest to your calculation, typically from the E24 series (e.g., 160 Ω instead of 150 Ω). Verify power dissipation (P = Vr × If) to ensure the resistor can handle the load–most through-hole resistors dissipate 0.25 W or less. For Vr = 3 V and If = 20 mA, P = 60 mW, well within limits.
Common Scenarios and Resistor Values
| Vs (V) | Vf (V) | If (mA) | Calculated R (Ω) | Nearest Standard R (Ω) |
|---|---|---|---|---|
| 5 | 2.0 | 10 | 300 | 330 |
| 12 | 3.2 | 20 | 440 | 470 |
| 3.3 | 2.1 | 5 | 240 | 220 |

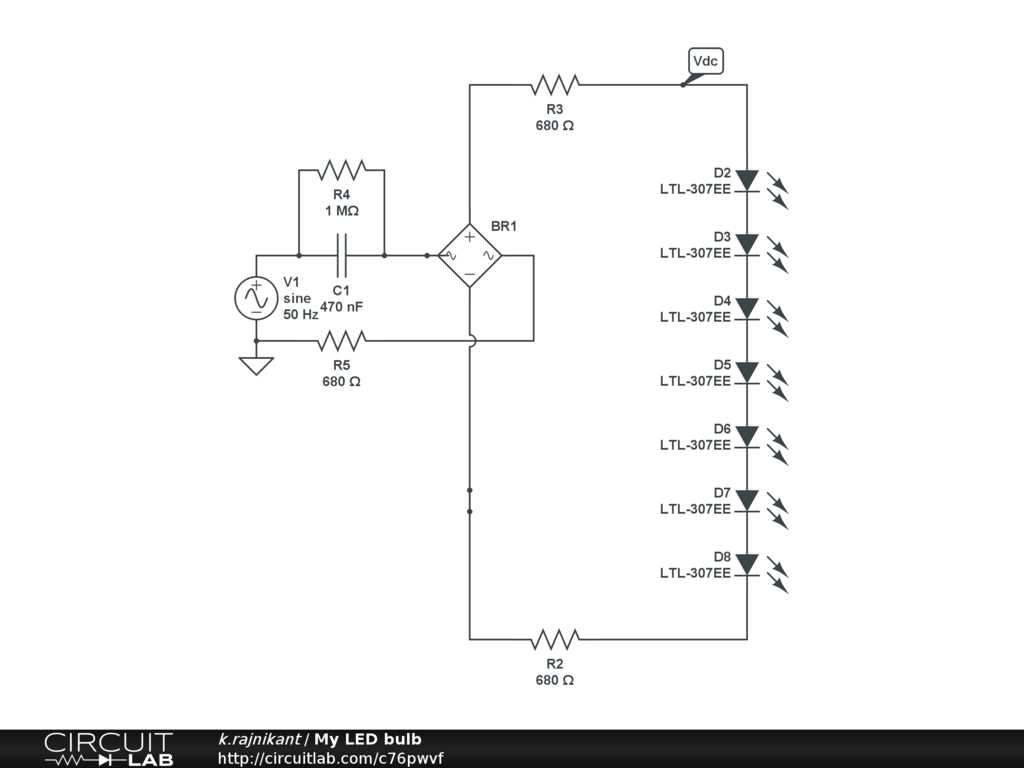

For parallel emitter configurations, calculate each branch individually, ensuring the power source can supply the total current. Series chains simplify calculations–sum the Vf values of all emitters and subtract from Vs, then apply Ohm’s law. Always test with a multimeter before finalizing, as real-world tolerances (±5% for resistors, ±0.1 V for Vf) may require minor adjustments.
Critical Notes
Pulse-width modulation (PWM) dimming eliminates the need for current-limiting resistors but introduces switching considerations. For linear regulators or constant-current drivers, omit resistors entirely–these solutions demand separate calculations. Never omit current control; even a brief overcurrent event can reduce emitter lifespan by orders of magnitude.
Common Mistakes When Connecting Semiconductor Indicators in Serial vs. Branch Networks
Always verify the forward voltage drop of each component before arranging them. A single mismatch of 0.2V in a chain can cause uneven brightness or failure. For example, mixing 3mm red indicators (1.8V typical) with blue ones (3.3V) in the same chain guarantees premature burnout of the lower-voltage elements. Measure each with a multimeter at expected current levels–datasheet values often differ slightly due to manufacturing tolerances.
Neglecting thermal derating when stringing multiples in a single path leads to cascading failures. A 20mA component rated at 25°C will drop to 15mA at 50°C and suffer reduced lifespan. For seven elements in a chain drawing 18mA, use thermal pads on the mounting surface and derate current accordingly. Overlooking this causes the weakest link to overheat first, pulling down the entire chain.
Avoid assuming identical current-sharing in branch networks. Even with matched resistors, manufacturing variances of ±5% in voltage thresholds create imbalances. In a setup with four branches, the brightest path may draw 22mA while the dimmest drops to 14mA. Modify resistor values individually based on observed brightness rather than relying on calculated averages.
Forgetting to account for resistor power dissipation in high-current branches melts components quickly. A 220Ω resistor at 20mA dissipates 88mW, but the same at 50mA jumps to 550mW–exceeding the standard ¼W rating. Switch to ½W resistors or metal-film types when combining more than three indicators in a branch.
Critical Overlooked Points
- Ignoring voltage spikes from inductive loads near indicator chains–always place a flyback diode even in low-power setups.
- Using breadboards for testing serial chains at currents above 10mA–contact resistance causes unpredictable drops.
- Assuming identical brightness for indicators from different batches–binning tolerances vary between suppliers.
- Combining indicators with different lens diffusers in a single chain–transmission losses differ unpredictably.
- Omitting current-limiting resistors in prototype branches “just for testing”–brief contact can destroy multiple indicators instantly.
Serial setups must include a bypass path for each indicator to prevent open-circuit failure taking down the entire string. A single failed connection breaks the loop, cutting power to all downstream elements. Use parallel branches for critical applications like emergency lighting or status panels where redundancy matters.
Branch networks with long wire runs (>30cm) suffer from voltage drop across conductors. 24AWG copper at 20mA loses ≈0.2V per meter. For equal brightness across a 1.5m span, compensate with thicker gauge (20AWG) or local regulation at each branch node.
Failing to decouple indicator networks from logic signals creates phantom illumination. A 5V logic line feeding a 3.3V indicator branch can bleed through via capacitive coupling. Isolate groups with a small MOSFET or buffer gate, never rely on reverse voltage specs which vary between batches.
